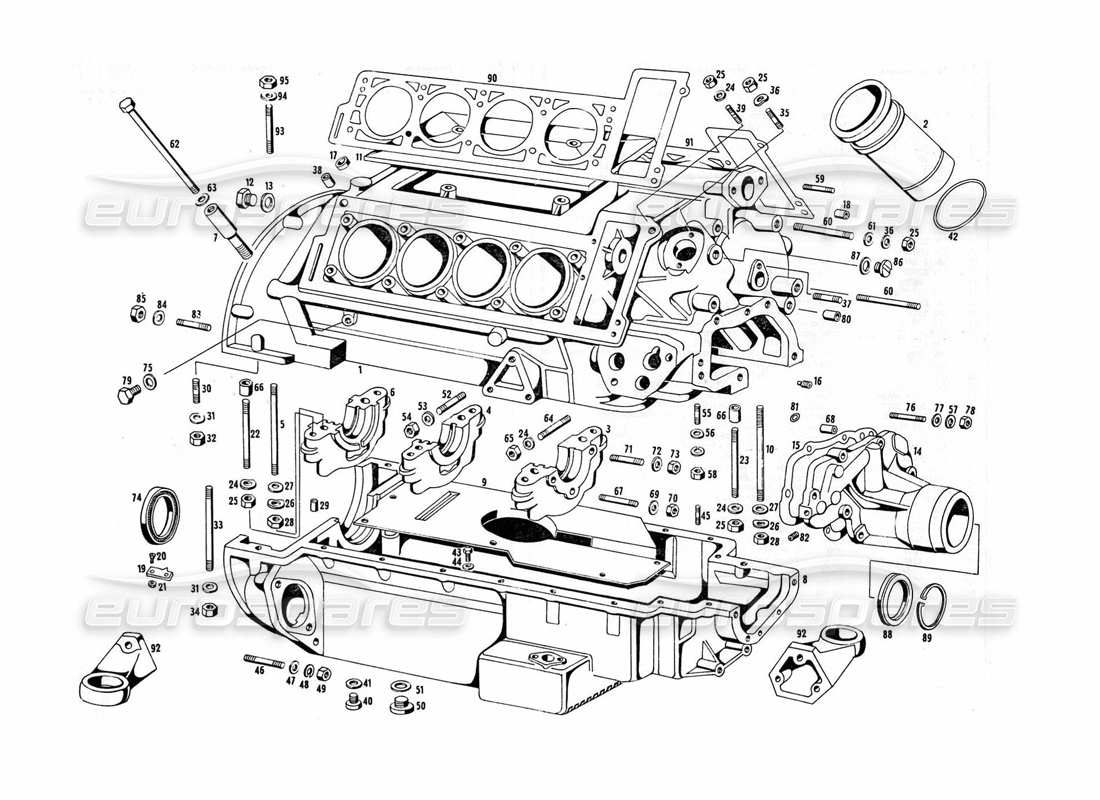

Maserati Indy 4.2 Engine housing Parts Diagram
View the exploded parts diagram to find the part you are looking for
- You can reposition the diagram by dragging it
- You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
- You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
- You can click on a hotspot
in the parts diagram to locate the part in the table - You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
# 000
MPN: MGAS001

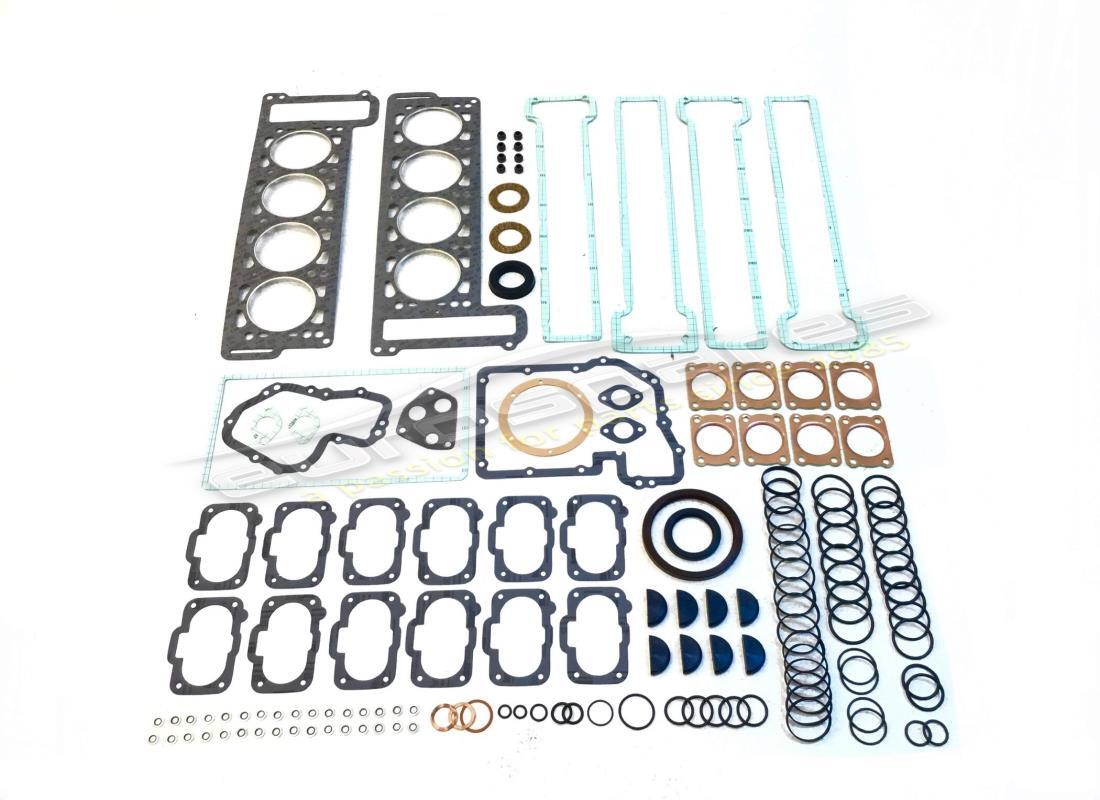

ENGINE GASKET SET
from £519.75
from £519.75
# 001
MPN: 107/2/47 MB 67785
CYLINDER BASE 4700 CC
# 001
MPN: 107/3 MB 67167
BASAMENTO CILINDRI MOT. 4200 C.C.
# 001
MPN: 112 MB 112001
COMPLETE CYLINDER BASE 4700 CC
# 001
MPN: 116 MB 116.006
BASAMENTO CLL. COMP!. DI CANNE, PRIGIONIERI E COPPA 4200 C.C.
# 002
MPN: MB 64188

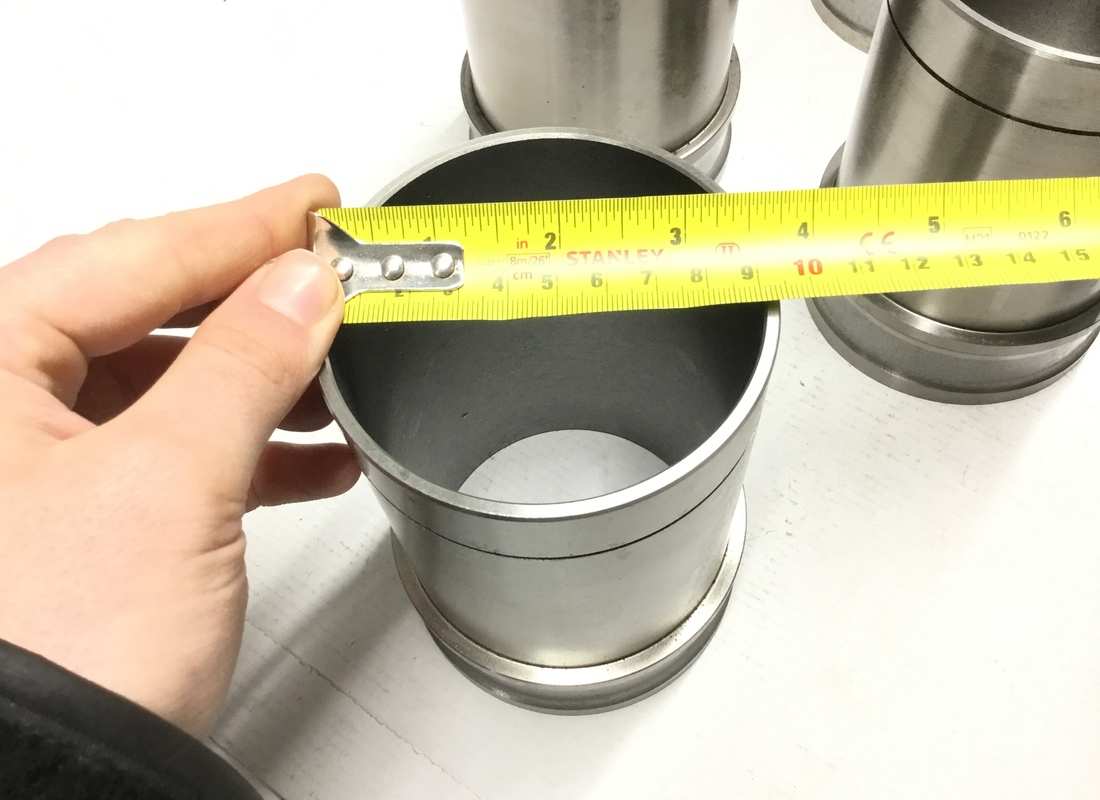

CYLINDER LINERS SET 4200 C.C.
(8 liners set)
from £1,395.00
from £1,395.00
# 002
MPN: MB 64189
CYLINDER LINERS SET 4700 C.C.
(8 liners set)
# 003
MPN: 107 MB 55704
SUPP. ANT. ALBERO MOTORE
# 004
MPN: 103153250488
SUPP. INTERMEDIO ALBERO MOTORE
# 005
MPN: 103 1531 53488
STUD
# 006
MPN: 107 MB 55703
SUPP. POST. ALBERO MOTORE
# 007
MPN: 107153654014
STUD
# 008
MPN: 107/3 MB 67175
COPPA OLIO MOTORE
# 009
MPN: 103 1820.51406
OIL BULKHEAD IN THE SUMP
# 010
MPN: 103 1531.53560
PRIGLONIERO SUL SUPP. ANT. ALBERO MOTORE
# 011
MPN: 107/3 MB 67164
COVER
# 012
MPN: 107/2 MB 65620
CLUTCH SIDE OIL LINE CLOSURE CAP
# 013
MPN: GN48059
GASKET OR SEAL
# 014
MPN: 107/3 MB 67248
COPERCHLO ANT. BASAMENTO
# 014
MPN: 116 MB 116016
COVER
# 014
MPN: 116 MB 116017
COMPLESSIVO COPERCHIO ANTERLORE
# 015
MPN: 107/2 MB 61424
GUARNIZLONE PER COPERCHIO ANT. MOTORE
# 016
MPN: 107/2 MB 61859
GRAIN FOR FRONT COVER WITH OIL CALIBRATION
# 017
MPN: 107/3 MB 67532
SPACER BETWEEN BASE AND TOP COVER
# 018
MPN: 107 M8 60864
DISTANZIALE PER PRIGLONIER FLSSAGGIO POMPA ACQUA LATO SINISTRO
# 019
MPN: 115 MB 67878
INDEX IGNITION ADVANCE READING
# 020
MPN: VNT 33020
Vito Ø 5 X 0.8 X 12 flssaggio Indice lettura anticipo accensione
# 021
MPN: DNT 47046
NUT
This part replaces part number 47046
# 022
MPN: PN55923
STUD
# 023
MPN: PN41864
THREADED STUD
# 024
MPN: RAT/45680
RONDEILA ELASTICA ATECO ATN 5203 8.4 X 15 X 0.5 PER DETTO
# 025
MPN: DNT. 47031
NUT
# 026
MPN: RAT/46736
RONDEILA ELAST. ATECO ATN 51003 12X24X1,2 PER PRIGION. SUPP. ALBERO MOT.
# 027
MPN: RNT47085
WASHER
from £3.44
from £3.44
# 028
MPN: DN47061
NUT
# 029
MPN: GRN 54501
CENTERING GRIN 8 X 24 BETWEEN BASE AND CUP
# 030
MPN: PN49099
THREADED STUD
# 031
MPN: RNT47210
WASHER
# 032
MPN: DNT 47080
NUT
# 033
MPN: PN 51443
THREADED STUD
# 034
MPN: DST 67465
NUT
# 035
MPN: PN32424
THREADED STUD
# 036
MPN: RSN 3 2 6 3 5
WASHER
# 037
MPN: PN46589
THREADED STUD
# 038
MPN: FRN 50669
CENTERING GRIN 10 X 26 BETWEEN HEAD AND BASE
# 039
MPN: PN 32662
THREADED STUD
# 040
MPN: TN48178
TAPPO PER CHIUSURA FORO CONDOTTO CONTR. NEL BOSOM. PER OLIO 0 20X1,5X12
# 041
MPN: GN 51444
GUARNIZLONE Ø 20.5 X 26 X 1.5 PER DETTO
# 042
MPN: GOM 50315.
Rubber seal on the barrels 0 70 X 1.2
# 043
MPN: DNT 47016
BOLT
# 044
MPN: RDI53899
WASHER
# 045
MPN: PN 32658
THREADED STUD
# 046
MPN: PN48126
PRIGIONLERO Ø TTXI,5X48.5 PER FLSSAGGIO MOTORINO D'AVVIAMENTO ALLA COPPA
# 047
MPN: RN 32422
WASHER
# 048
MPN: RSN 33667
WASHER
# 049
MPN: DN 48127
NUT
# 050
MPN: TN 50677
Verschlubschraube plug 30 X 1.5 for draining oil from the sump
# 051
MPN: GN33367
Guarnitura Ø 30.5 X 40 X 1 per detto
# 052
MPN: TN 33927
Priglonlero Ø 10 X 1.5 X 38 flssaggio zampa motore al basamento
# 053
MPN: RAT. 45681
WASHER
This part replaces part number 45681
# 055
MPN: PM 35771
PRIGLONIERO 6 X 1 X 28 PER FLSSAGGIO FLANGLA MANDATE POMPA OLIO
# 056
MPN: RNT 47074
WASHER
# 057
MPN: RSN/32690
WASHER
# 058
MPN: DNT 47047
NUT
# 059
MPN: PN 49103
THREADED STUD
# 060
MPN: PN. 55135
PRIGLONLERO 8X1,25X75 FLSA. POMPA ACQUA E SUPP. POMPA GUIDE IDRAULICA
# 061
MPN: RNT 55379
WASHER
# 062
MPN: BN 54015
BOLT
from £64.66
from £64.66
# 063
MPN: RN 60913
WASHER
Supersession
Supersession
# 064
MPN: PN32424
THREADED STUD
# 065
MPN: DN 66854
NUT
# 066
MPN: GRN 51124
SCREW Ø 12X8,5X22 FOR CENTERING THE BASE AND CRANKSHAFT SUPPORT
# 067
MPN: PN 53525
STUD 10 X 1.5 X 80 FOR FIXING THE BODY AND OIL PUMP COVER
# 068
MPN: GRN 55499
GRAIN Ø 14 X 11.5 X 34 BETWEEN BODY AND COVER FOR SAID
from £10.34
from £10.34
# 069
MPN: RAT. 45681
WASHER
This part replaces part number 45681
# 070
MPN: DST 48923
NUT
# 071
MPN: PN 33921
PRIGLONIERO Ø 8 X 1,25 X 54 FISSAGGIO COPERCHIO E CORPO POMPA OLIO
# 072
MPN: RNT 55379
WASHER
# 073
MPN: DST 53397
DODO Ø 8X 1,25 X 10 CH 14 PER DETTO
This part replaces part number 53397
# 074
MPN: ANT 67794
SEALING RING
# 075
MPN: GN 47208
GUAMING 10.5 X 16 X 1 FOR WATER DRAIN PLUGS FROM THE BASE
This part replaces part number 47208
# 076
MPN: PN 45843
PRIGLONLERO 8 X 1.25 X 37 PER FLSSAGGIO SUPPORTO ALTERNATORE
from £10.34
from £10.34
# 077
MPN: RAT/45680
WASHER
# 078
MPN: DNT. 47031
NUT
# 079
MPN: TN 65967
PLUG Ø 10 X 1.5 X 15.5 WATER DRAINAGE FROM THE BASE
# 080
MPN: GRN 54501
GRANO Ø 8 X 24 CENTRAGGIO COPERCHIO ANT. BASAMENTO
# 081
MPN: GOM. 42229
GOMMINO Ø 11 X 16 X 2.5 SOTTO IT COPERCHIO ANT. BASAMENTO
from £2.16
from £2.16
# 082
MPN: TN 44295
TAPPO Ø 6 X1 PER FORI OLIO COPERCHIO ANT. BASAMENTO
# 083
MPN: PN53067
THREADED STUD
from £4.32
from £4.32
# 084
MPN: RAT/45680
WASHER
# 085
MPN: DNT. 47031
NUT 8 X 1.25
# 086
MPN: TN 33915
CAP 20 X 1.5 TO CLOSE THE KNEE SHAFT HOLE IN THE CRANKCASE
# 087
MPN: GN 33916
GASKET OR SEAL
# 088
MPN: ANT 43241
SEALING RING
# 089
MPN: ART 60328
RING
# 090
MPN: MHGAS001

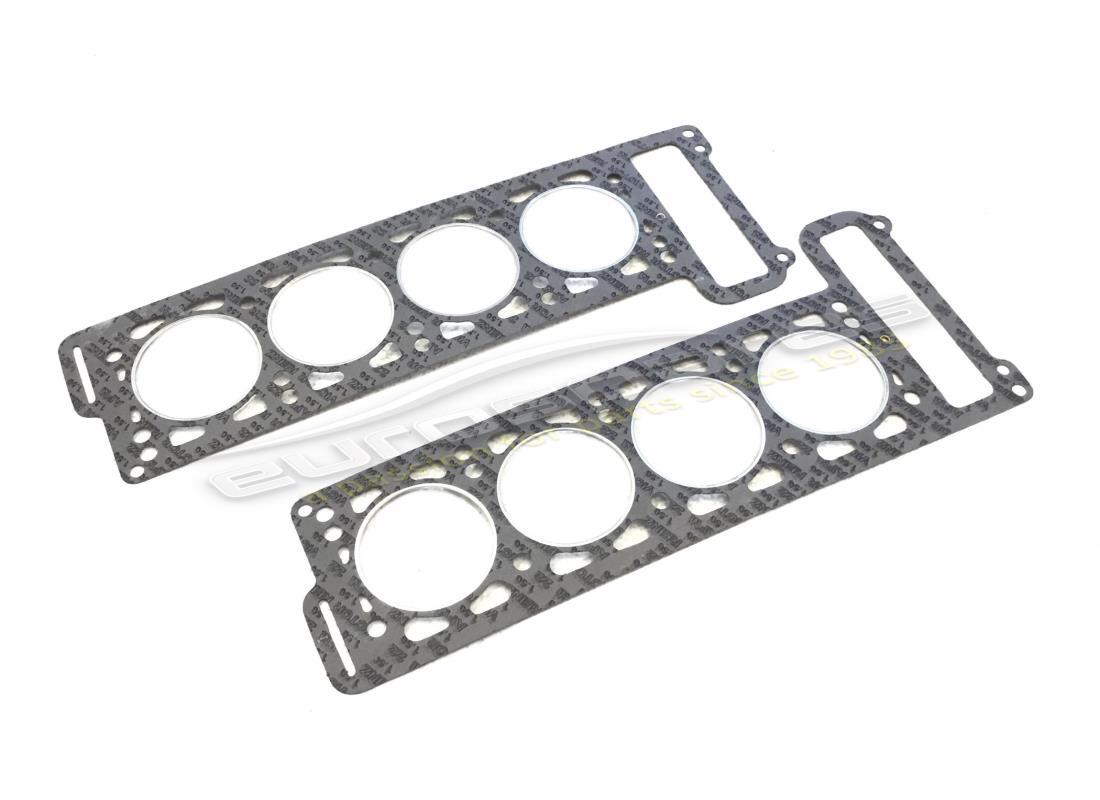

Head Gaskets
(pair - 4200cc)
from £236.25
from £236.25
# 090
MPN: ML54675

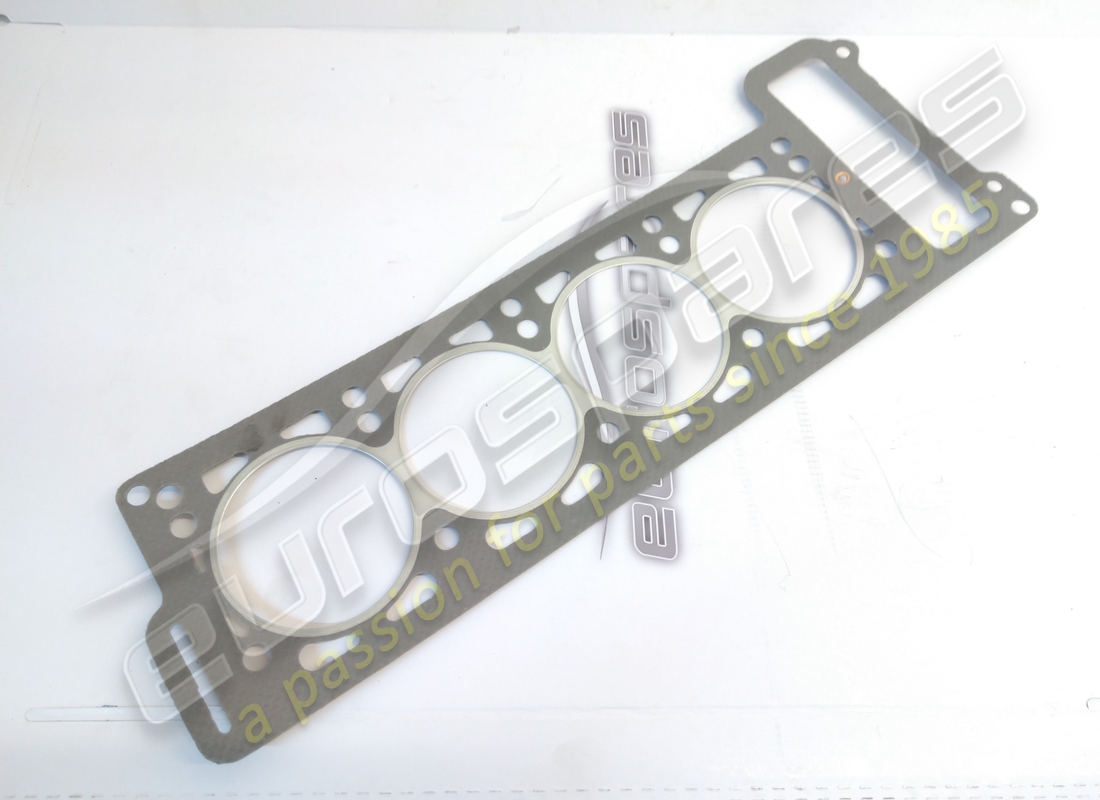

RH HEAD GASKET
from £120.75
from £120.75
# 091
MPN: 107/1 MT 62823
GASKET OR SEAL
# 091
MPN: ML54676

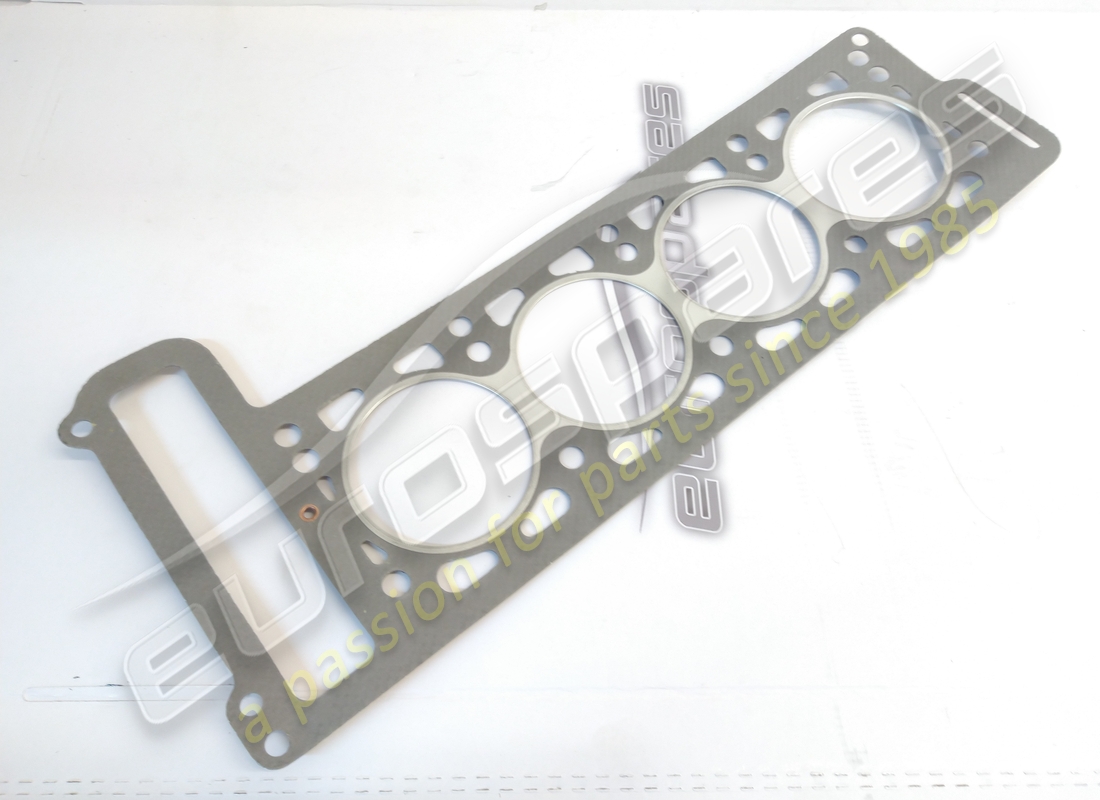

LH HEAD GASKET
# 092
MPN: 107/3 MB 66557
SUPPORT
# 093
MPN: PN 45888
PRIGIONLERO Ø 8 X 1.25 X 96 FISSAGGIO COPERCHIO SUPERIORE BASAMENTO
# 094
MPN: GN 32001
GASKET OR SEAL
# 095
MPN: DST 56574
NUT
