003 - moving parts

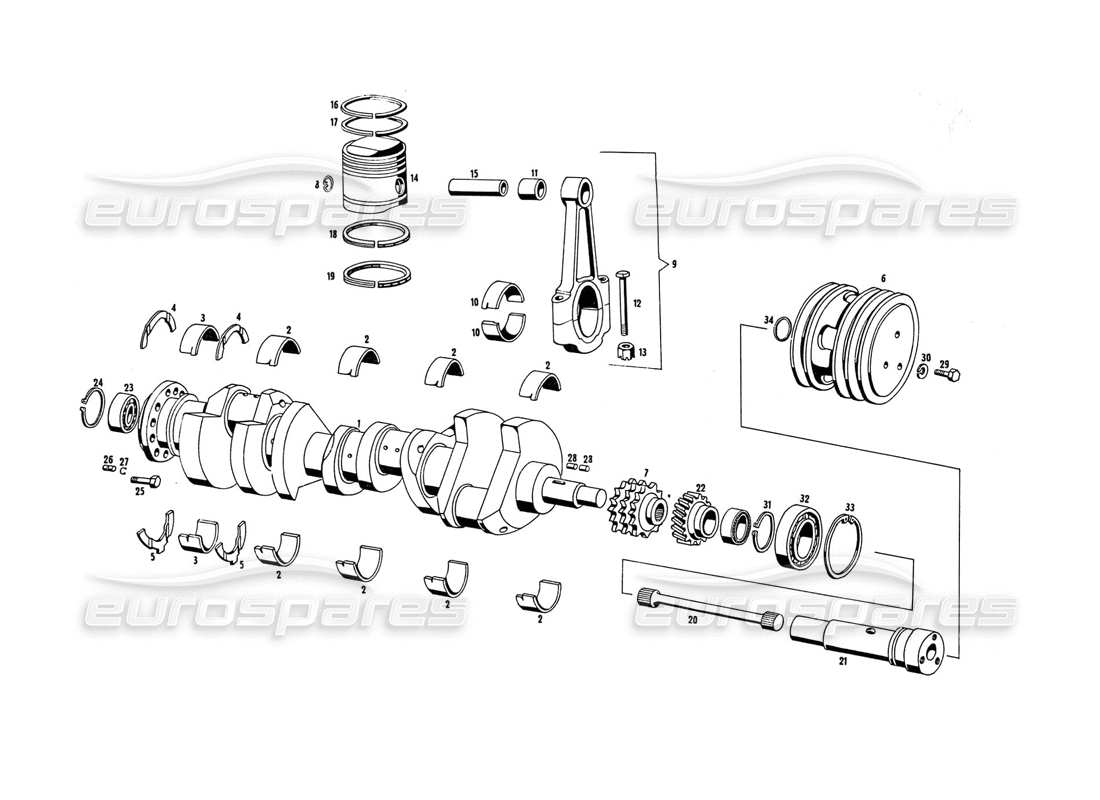

Maserati Indy 4.2 Moving parts Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                                                                      #
                                                                      Part number
                                                                      Description
                                                                      Price
                                                                      # 001
                                                                      MPN: 107/3 MM 67250
                                                                      ALBERO MANOVELLA
                                                                      # 001
                                                                      MPN: 116 MM 116010
                                                                      CRANKSHAFT ASSEMBLY
                                                                      # 002
                                                                      MPN: 103241250484
                                                                      CENTRAL MAIN BEARING
                                                                      # 003
                                                                      MPN: 101 2422 48728
                                                                      CU4CINETTO POST. CRANKSHAFT
                                                                      # 004
                                                                      MPN: 101243048737
                                                                      WASHER
                                                                      Supersession
                                                                      Supersession
                                                                      # 005
                                                                      MPN: 101243248738
                                                                      WASHER
                                                                      Supersession
                                                                      Supersession
                                                                      # 006
                                                                      MPN: 107/3 MM 67249
                                                                      PULEGGIA ANT. ALBERO MOTORE
                                                                      # 007
                                                                      MPN: 107/3 MM 67251
                                                                      Distribution control gear on the crankshaft
                                                                      # 008
                                                                      MPN: 107MM57318
                                                                      RETAINER FOR PIN
                                                                      # 009
                                                                      MPN: 107 MM 54705
                                                                      CONNECTING ROD AND CAP
                                                                      # 009
                                                                      MPN: 116 MM 116008
                                                                      Connecting rod and cap complete with bolts and bushing
                                                                      # 009
                                                                      MPN: 116 MM 116009
                                                                      CONNECTING ROD ASSEMBLY WITH PIN AND BUSHING
                                                                      # 010
                                                                      MPN: 107.2504.52011
                                                                      BUSHING FOR CONNECTING ROD
                                                                      from £103.05
                                                                      from £103.05
                                                                      # 011
                                                                      MPN: 103 2520 52032
                                                                      BUSH
                                                                      from £36.52
                                                                      from £36.52

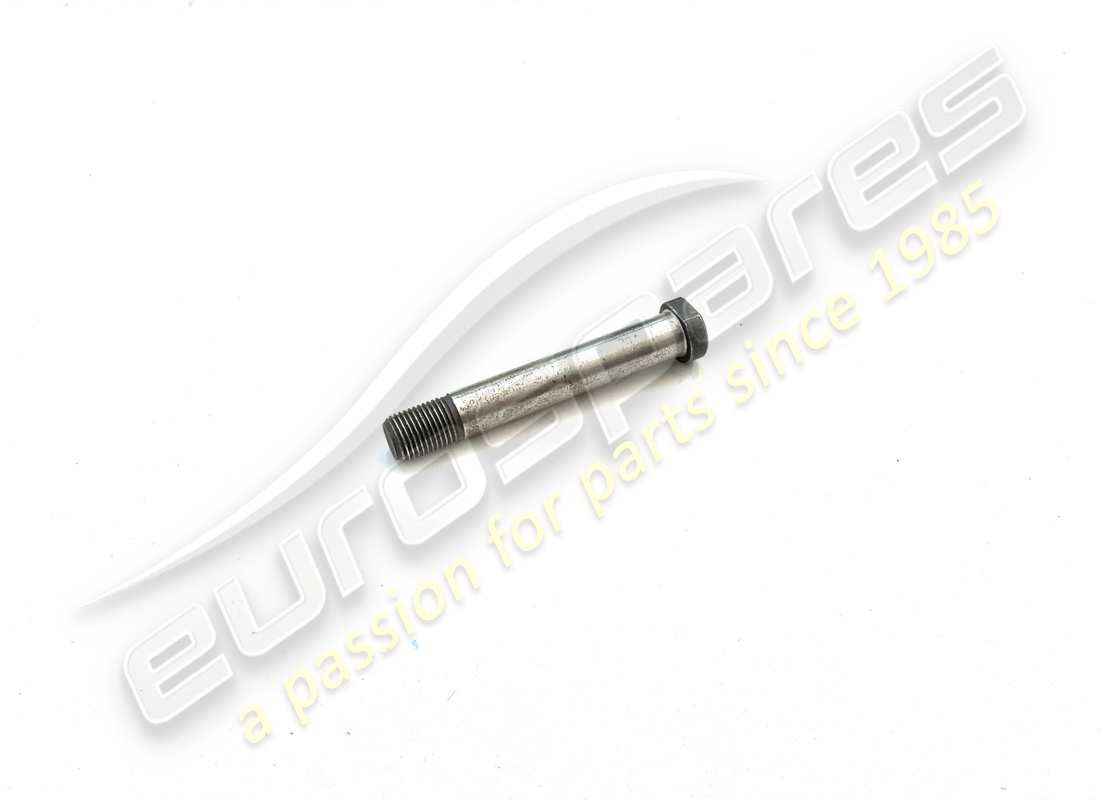

                                                                      # 012
                                                                      MPN: 104 2530 52185
                                                                      BOLT
                                                                      from £29.40
                                                                      from £29.40
                                                                      # 013
                                                                      MPN: 103.2532.50756
                                                                      NUT
                                                                      # 014
                                                                      MPN: 115 0349 MM 70449
                                                                      PISTONE PER CANNA Ø 93,9 - 4700 CC.
                                                                      # 014
                                                                      MPN: 429022100
                                                                      Pistone per canna Ø 88 4200 cc.
                                                                      from £243.48
                                                                      from £243.48
                                                                      # 015
                                                                      MPN: 101 - 2702 46431
                                                                      SPINOTTO PER PISTONE
                                                                      from £521.73
                                                                      from £521.73
                                                                      # 016
                                                                      MPN: 107 2754 53989
                                                                      Stepped sealing segment 4200 cc.
                                                                      from £78.27
                                                                      from £78.27
                                                                      # 016
                                                                      MPN: 115 0349 MM 71826
                                                                      Segmento di tenuta con gradino (superiore) 4700 cc.
                                                                      # 017
                                                                      MPN: 107 2754 53990
                                                                      Conical sealing segment 4200 cc.
                                                                      from £78.27
                                                                      from £78.27
                                                                      # 017
                                                                      MPN: 115.0349 MM 70656
                                                                      CONICAL SEAL SEGMENT (LOWER 4700 CC.
                                                                      # 018
                                                                      MPN: 107280453991
                                                                      OIL SCRAPER 4200 CC.
                                                                      from £78.27
                                                                      from £78.27
                                                                      # 019
                                                                      MPN: 107/2 MM 63305
                                                                      OIL SCRAPER 4200 CC.
                                                                      # 019
                                                                      MPN: 115.0349 MM 70657
                                                                      OIL SCRAPER 4700 CC.
                                                                      # 020
                                                                      MPN: 107/3 MM 67252
                                                                      BARRA DI TRAIN PULEGGIA ANT.
                                                                      # 021
                                                                      MPN: 107/3 MM 67253
                                                                      MOZZO PER PULEGGIA ANT.
                                                                      # 022
                                                                      MPN: 107/3 MM 67254
                                                                      PRIMARY GEAR FOR GENERATOR CONTROL
                                                                      # 023
                                                                      MPN: GSC 46424
                                                                      Bearing 17 X 47 X 14 on the rear crankshaft
                                                                      # 024
                                                                      MPN: ART/46284
                                                                      SIEEGER 471 SULL'ALBERO MOTORE PARTE POST
                                                                      # 025
                                                                      MPN: PN 65982
                                                                      BOLT
                                                                      # 026
                                                                      MPN: GRN44931
                                                                      GRAIN 10X 15 BETWEEN FLYWHEEL AND CRANKSHAFT
                                                                      # 027
                                                                      MPN: ART/49644
                                                                      RING
                                                                      # 028
                                                                      MPN: RUL55977
                                                                      ROLLER 5 X 5 FOR DRIVING THE OIL GEAR
                                                                      # 029
                                                                      MPN: BNT 47018
                                                                      BOLTS Ø 8X 1,25X 16 FOR FIXING THE PULLEY TO THE HUB
                                                                      # 030
                                                                      MPN: RSN 3 2 6 3 5
                                                                      WASHER
                                                                      # 031
                                                                      MPN: ART 49584
                                                                      RING
                                                                      # 032
                                                                      MPN: CSC49764
                                                                      BEARING 20 X 47 X 14 ON THE BELT TENSIONER PULLEY
                                                                      # 034
                                                                      MPN: GOM 55510
                                                                      GOMMINO Ø 25,12 X 28,58 X 1,78 PER PULEGGIA ANTERIORE
