006 - engine cooling

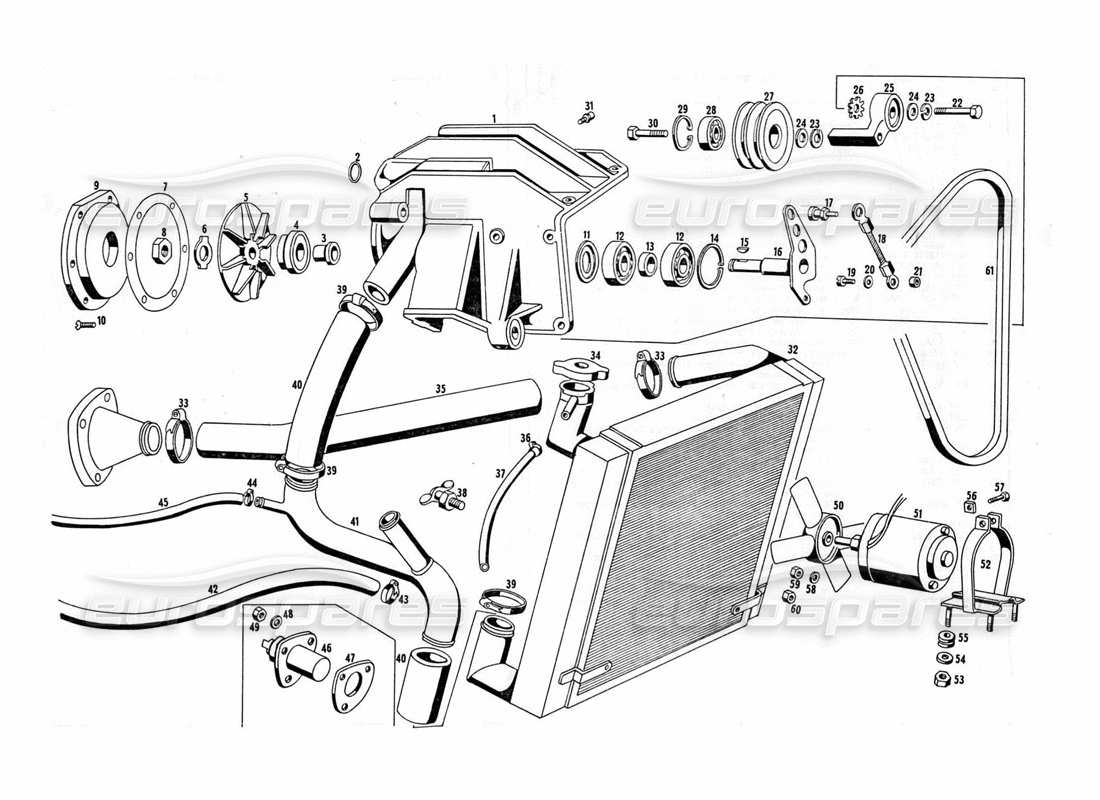

Maserati Indy 4.2 Engine cooling Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search

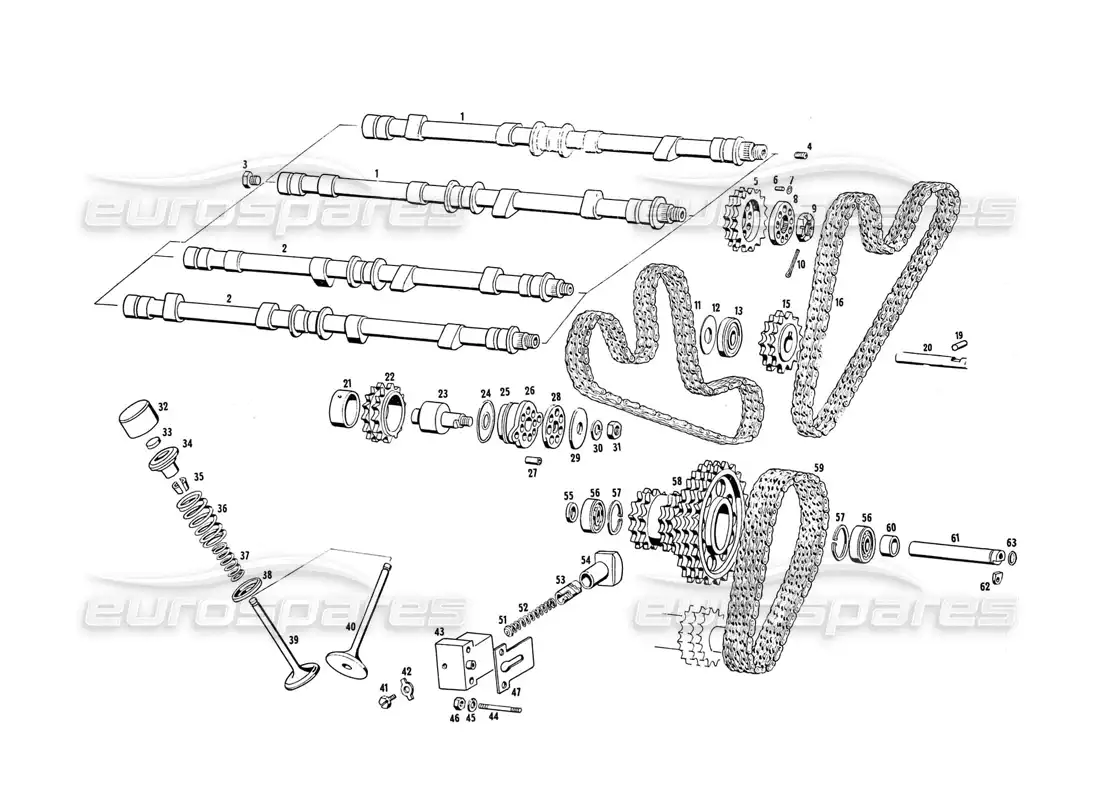

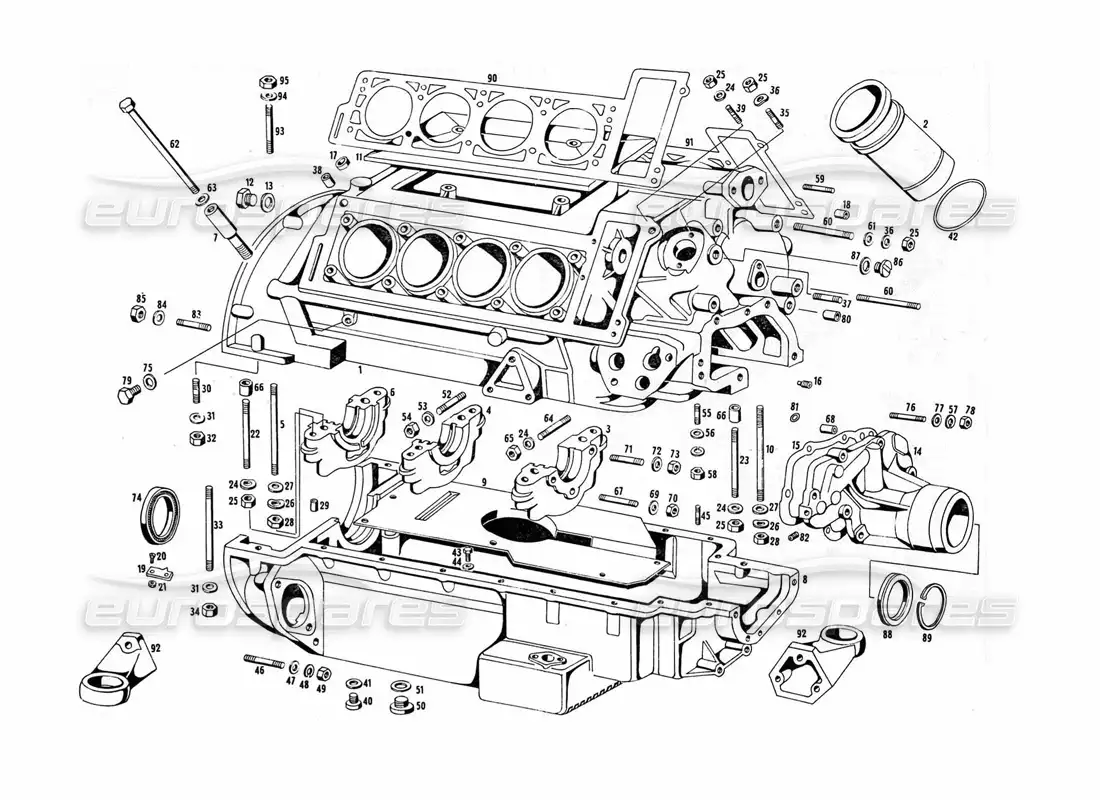

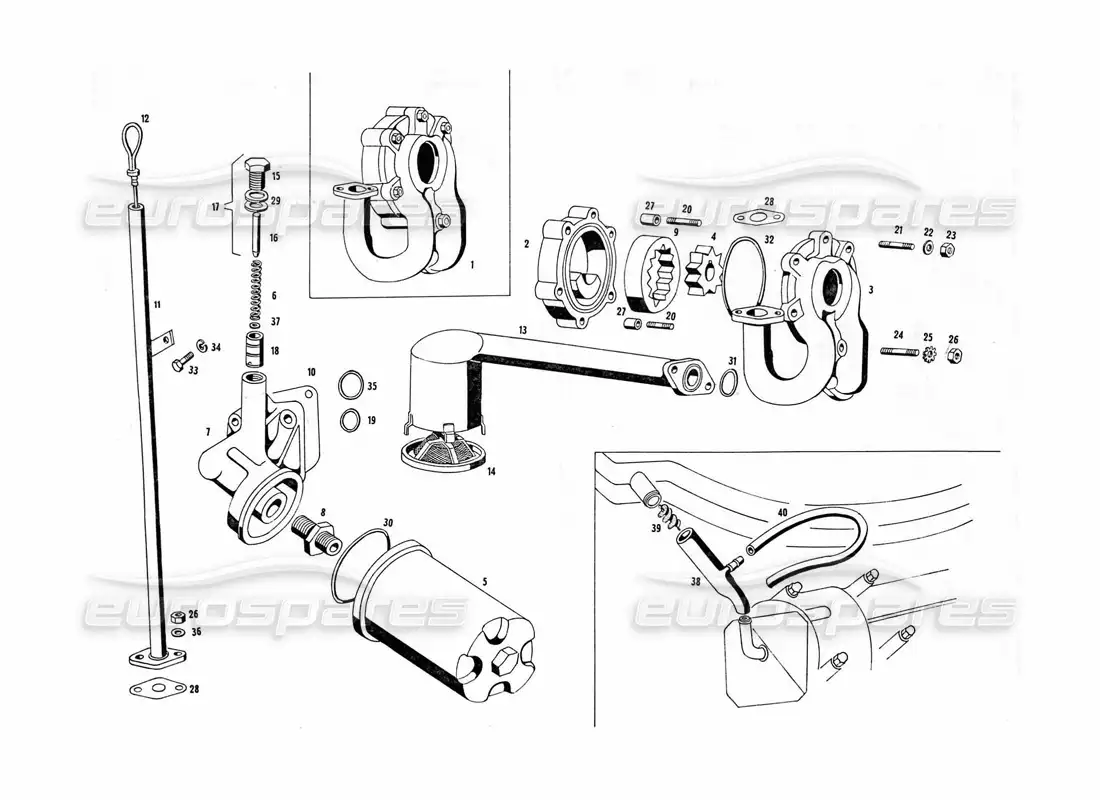

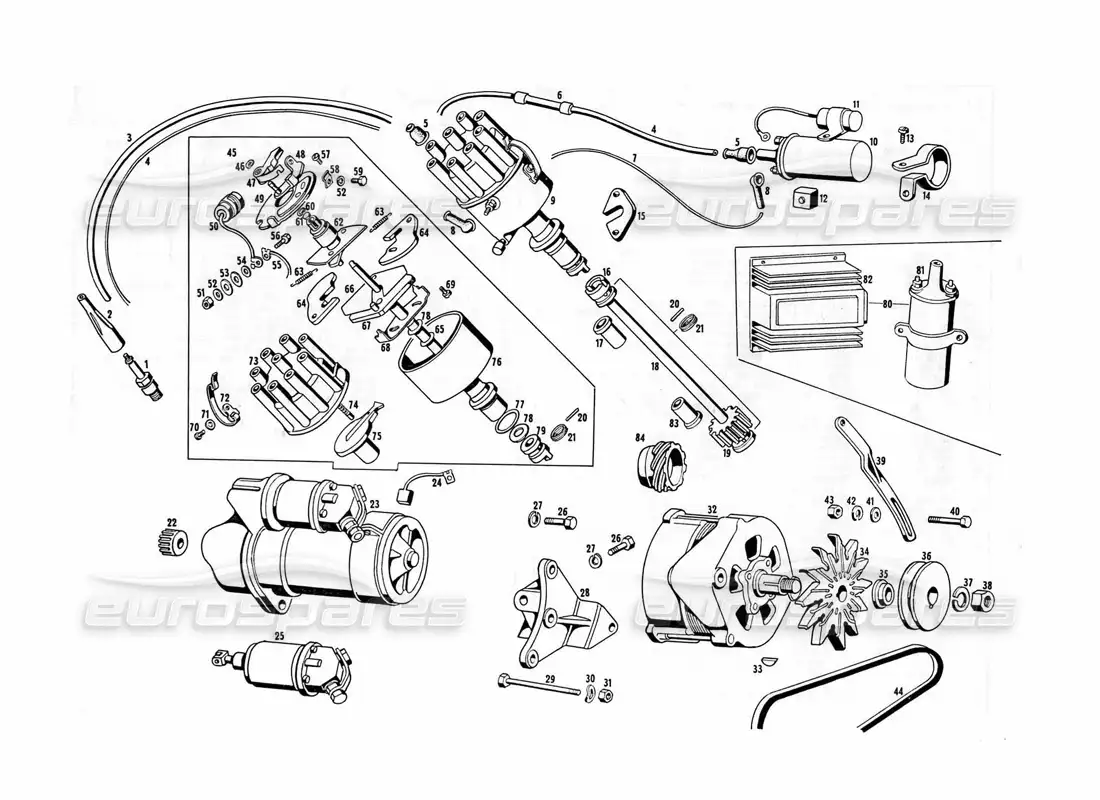

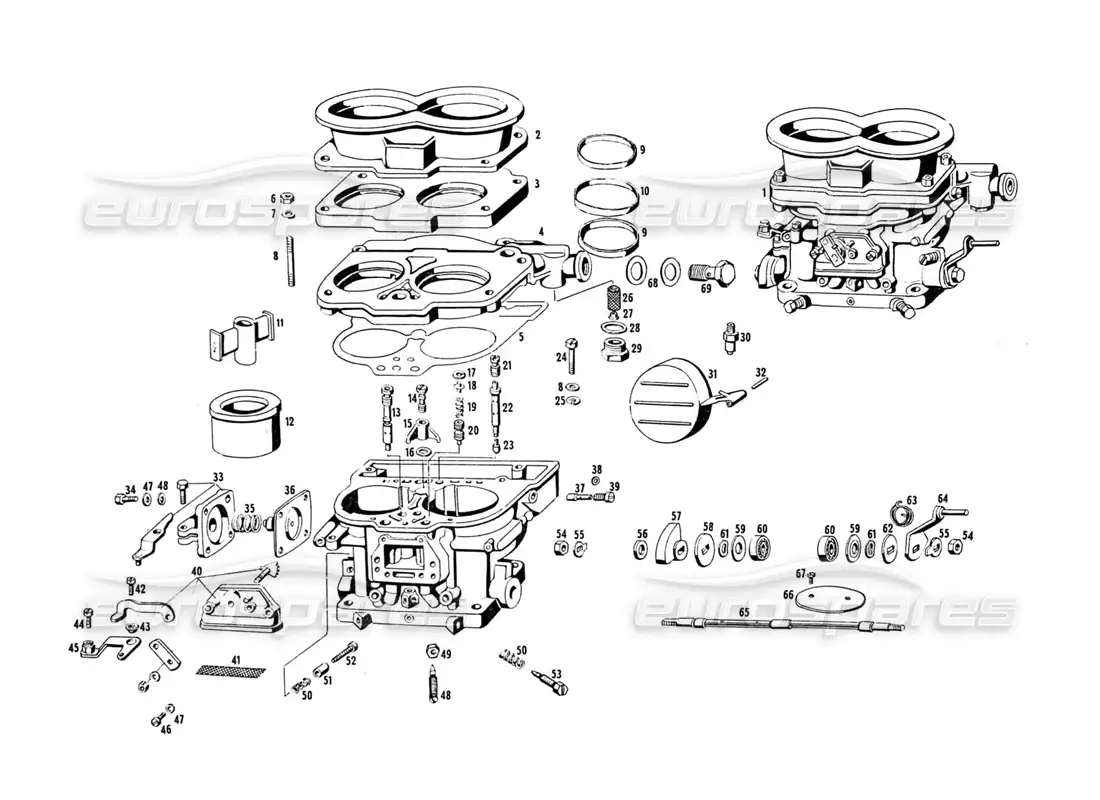

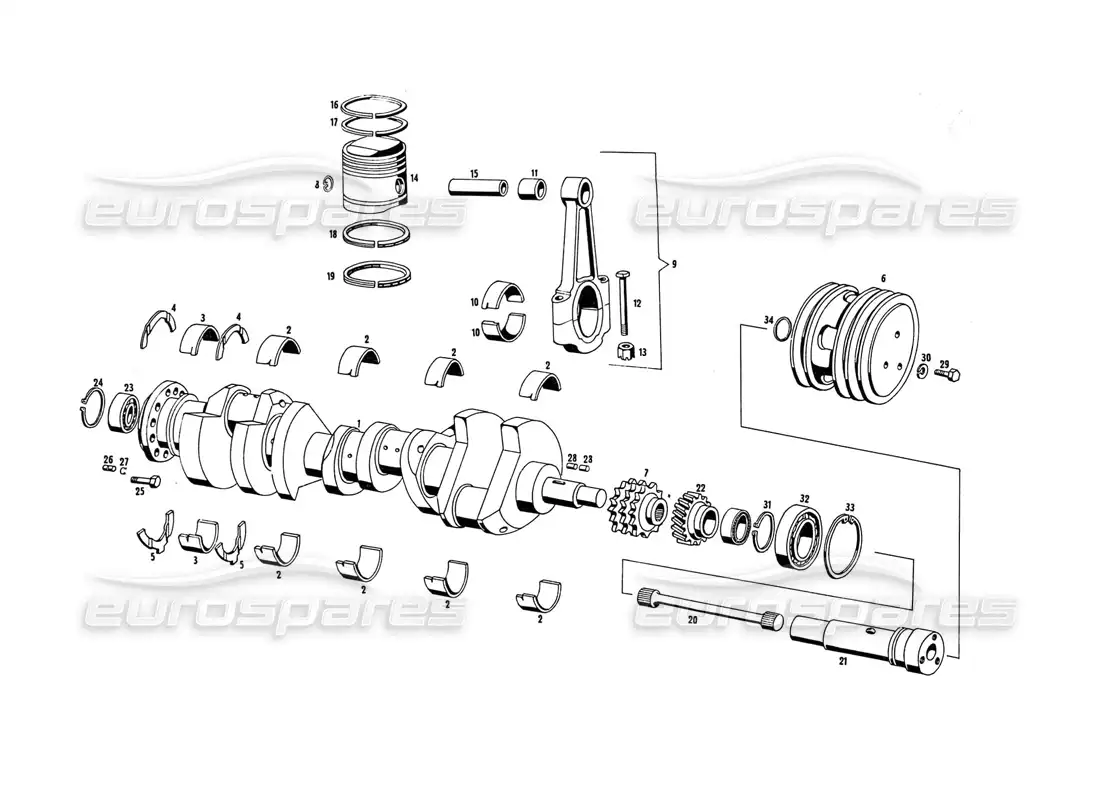

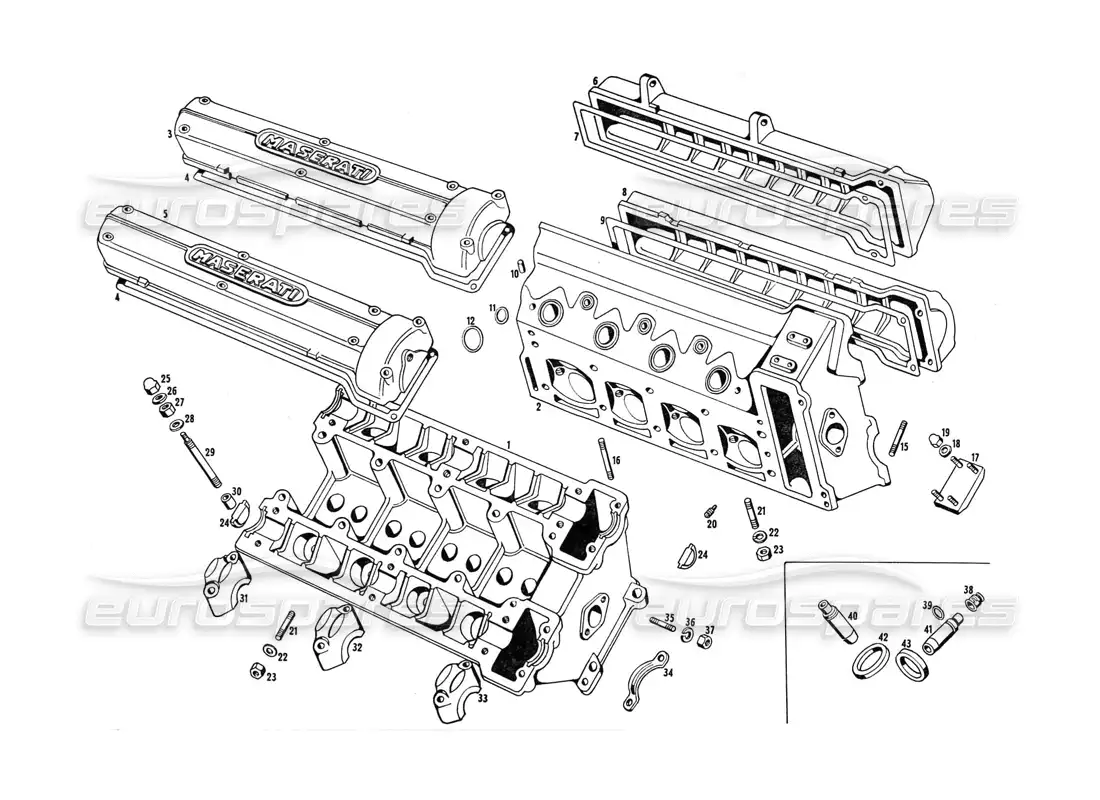

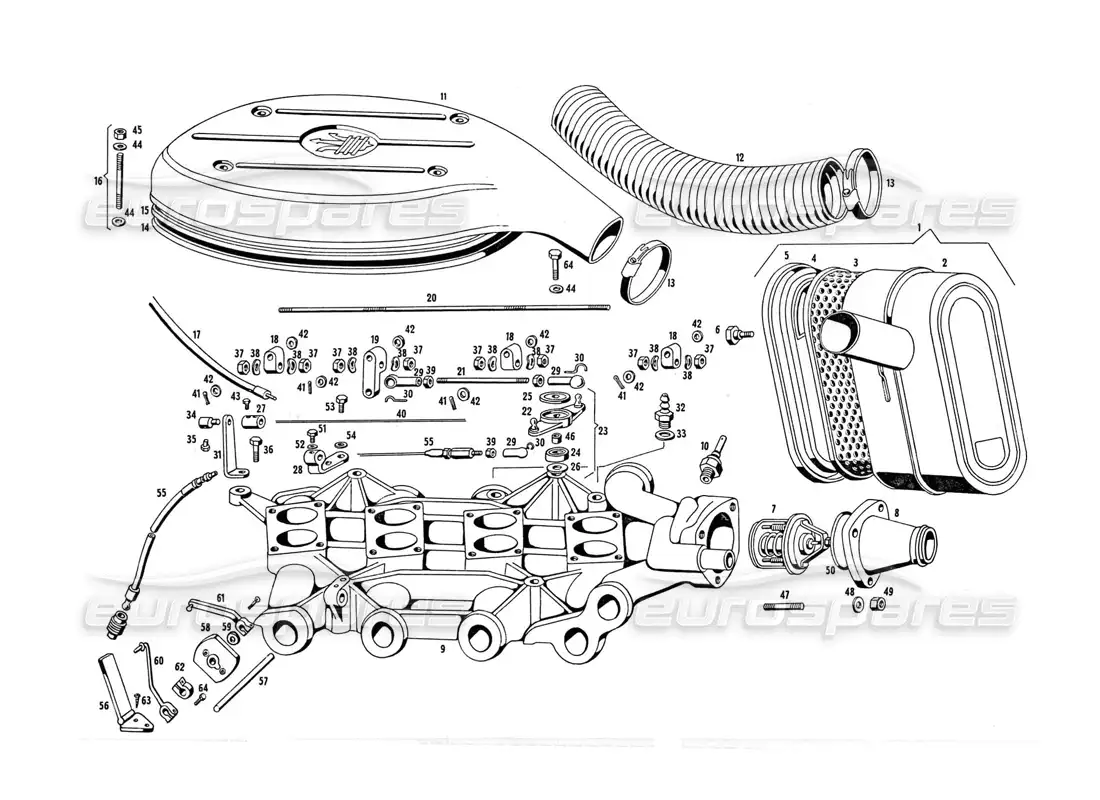

Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                                                                                                                          #
                                                                                                                          Part number
                                                                                                                          Description
                                                                                                                          Key
                                                                                                                          Price
                                                                                                                          # 001
                                                                                                                          MPN: 116 MA 116030

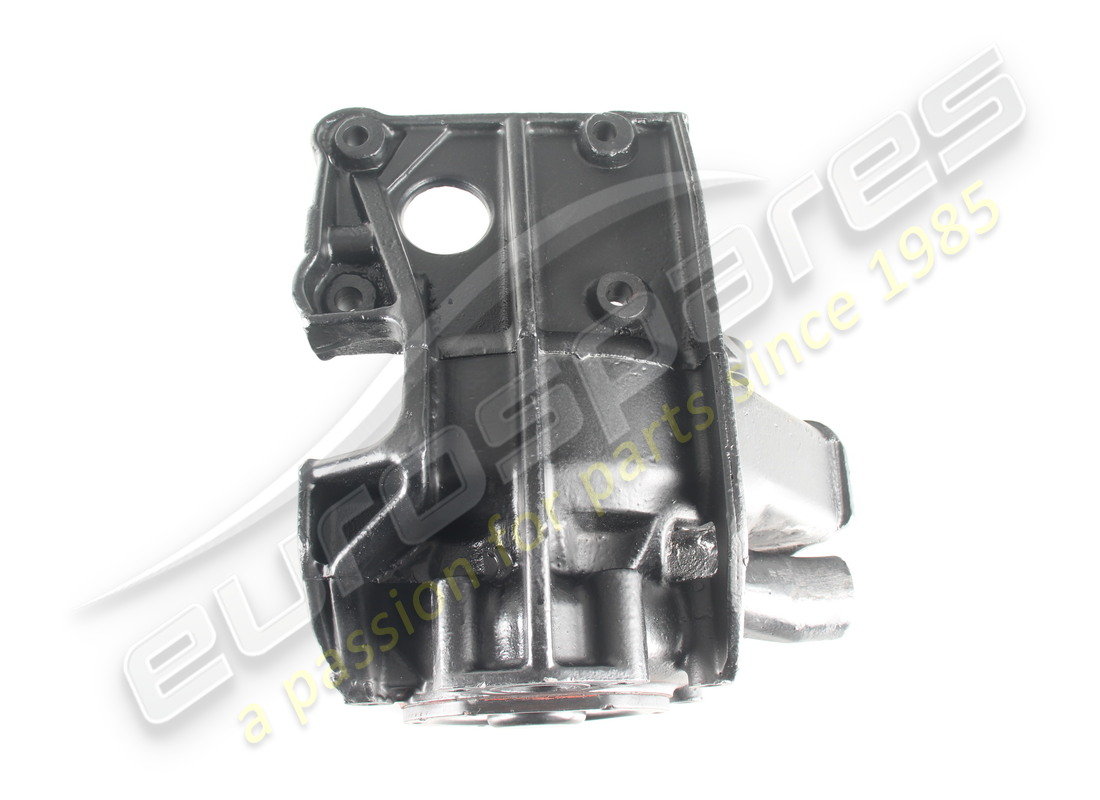

                                                                                                                          WATER PUMP ASSEMBLY
                                                                                                                          WATER PUMP ASSEMBLY Genuine Maserati Part - New (to order)
                                                                                                                          # 001
                                                                                                                          MPN: 116 MA 116031
                                                                                                                          WATER PUMP, COMPRESSOR AND BELT TENSIONER ASSEMBLY
                                                                                                                          WATER PUMP, COMPRESSOR AND BELT TENSIONER ASSEMBLY Genuine Maserati Part - New (to order)
                                                                                                                          # 001
                                                                                                                          MPN: 450253901
                                                                                                                          WATER PUMP ASSY
                                                                                                                          from £3,260.86
                                                                                                                          from £3,260.86
                                                                                                                          WATER PUMP ASSEMBLY Genuine Maserati Part - New (to order)
                                                                                                                          WATER PUMP ASSEMBLY Eurospares Approved Part - New In stock
                                                                                                                          # 002
                                                                                                                          MPN: GOM 41462
                                                                                                                          RUBBER 38 X 44 X3 FOR SEAL BETWEEN WATER PUMP BODY AND BASE
                                                                                                                          Rubber between water pump body and cylinder block Ø 38x44x3 Genuine Maserati Part - New (to order)
                                                                                                                          # 003
                                                                                                                          MPN: 107MA54692
                                                                                                                          Bush on the water pump control shaft
                                                                                                                          Bush on the water pump control shaft Genuine Maserati Part - New (to order)
                                                                                                                          # 004
                                                                                                                          MPN: MA 0115999
                                                                                                                          SEALING RING
                                                                                                                          d.38 mm
                                                                                                                          from £346.96
                                                                                                                          from £346.96
                                                                                                                          SEALING RING Genuine Maserati Part - New (to order)
                                                                                                                          # 005
                                                                                                                          MPN: 107 4542 53913
                                                                                                                          GIRANTE POMPA ACQUA
                                                                                                                          Supersession
                                                                                                                          Supersession
                                                                                                                          Genuine Maserati Part (no longer available to order)
                                                                                                                          # 006
                                                                                                                          MPN: GN 54461
                                                                                                                          STOPPING CRANKSET 14,5 X 27 X 0,8 FOR PUMP IMPELLER FIXING NUT
                                                                                                                          PLATE Genuine Maserati Part - New (to order)
                                                                                                                          # 007
                                                                                                                          MPN: 103 4523 50524
                                                                                                                          GASKET OR SEAL
                                                                                                                          GASKET OR SEAL Genuine Maserati Part - New (to order)
                                                                                                                          # 009
                                                                                                                          MPN: 107/2 MA 59614
                                                                                                                          COVER
                                                                                                                          from £252.18
                                                                                                                          from £252.18
                                                                                                                          COVER Genuine Maserati Part - New (to order)
                                                                                                                          # 010
                                                                                                                          MPN: VNT 33020
                                                                                                                          LIFE 5X 0.8 X 12 FOR FIXING THE REAR COVER TO THE PUMP BODY
                                                                                                                          Vito Ø 5 x 0.8 x 12 flssaggio Indice lettura anticipo accensione Genuine Maserati Part - New (to order)
                                                                                                                          # 011
                                                                                                                          MPN: 107 MA 54693
                                                                                                                          RING
                                                                                                                          RING Genuine Maserati Part - New (to order)
                                                                                                                          # 012
                                                                                                                          MPN: CSC52079
                                                                                                                          BEARING 17 X 40 X 12 ON THE WATER PUMP DRIVE SHAFT
                                                                                                                          Bearing 17x40x12 on the water pump control shaft Genuine Maserati Part - New (to order)
                                                                                                                          # 013
                                                                                                                          MPN: 107MA53930
                                                                                                                          DISTANZIAME SULL'ALBERO COMANDO POMPA ACQUA
                                                                                                                          Spacer on the water pump shaft Genuine Maserati Part - New (to order)
                                                                                                                          # 014
                                                                                                                          MPN: ART. 43191
                                                                                                                          SEEGER RING
                                                                                                                          RING Genuine Maserati Part - New (to order)
                                                                                                                          # 015
                                                                                                                          MPN: LN40155
                                                                                                                          TAB 3 X 5 FOR DRIVING THE PUMP IMPELLER
                                                                                                                          Tab 3x5 for water pump drive Genuine Maserati Part - New (to order)
                                                                                                                          # 016
                                                                                                                          MPN: 107/2 MA 64368
                                                                                                                          Complete water pump control shaft
                                                                                                                          Complete water pump control shaft Genuine Maserati Part - New (to order)

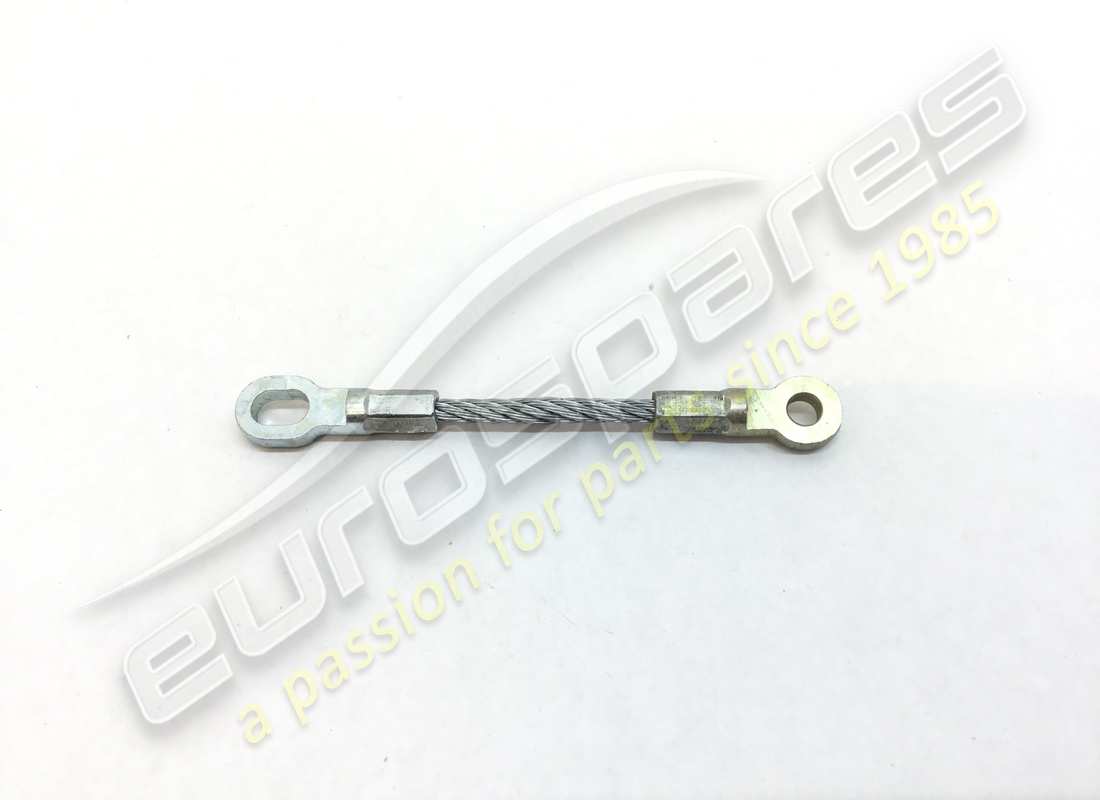

                                                                                                                          # 016
                                                                                                                          MPN: 116 MA 116029
                                                                                                                          Post complete with towing rope
                                                                                                                          Post complete with towing rope Genuine Maserati Part - New (to order)
                                                                                                                          # 017
                                                                                                                          MPN: 107/2 64374
                                                                                                                          GRAIN ON THE PULLEY TO DRIVE THE WATER PUMP SHAFT
                                                                                                                          GRAIN ON THE PULLEY TO DRIVE THE WATER PUMP SHAFT Genuine Maserati Part - New (to order)
                                                                                                                          # 018
                                                                                                                          MPN: MA 0064373
                                                                                                                          Water Pump Cord
                                                                                                                          from £112.18
                                                                                                                          from £112.18
                                                                                                                          Water Pump Cord Genuine Maserati Part - New In stock
                                                                                                                          # 019
                                                                                                                          MPN: BN 49603
                                                                                                                          BOLT
                                                                                                                          BOLT Genuine Maserati Part - New (to order)
                                                                                                                          # 021
                                                                                                                          MPN: 107 MA 57789
                                                                                                                          COLUMN BETWEEN CORD AND PULLEY CONTROL WATER PUMP AND AIR CONDITIONER
                                                                                                                          SPACER FOR WATER PUMP TOW ROPE Genuine Maserati Part - New (to order)
                                                                                                                          # 022
                                                                                                                          MPN: BNT 55653
                                                                                                                          BOLT
                                                                                                                          BOLT Genuine Maserati Part - New (to order)
                                                                                                                          # 024
                                                                                                                          MPN: RNT47101
                                                                                                                          WASHER
                                                                                                                          This part replaces part number 47101
                                                                                                                          Rondella Ø 14x26x3 per bullone tenuta antivibratore Genuine Maserati Part - New (to order)
                                                                                                                          # 025
                                                                                                                          MPN: 107MM55649
                                                                                                                          ECCENTRIC FOR BELT TENSIONER PULLEY
                                                                                                                          ECCENTRIC FOR BELT TENSIONER PULLEY Genuine Maserati Part - New (to order)
                                                                                                                          # 027
                                                                                                                          MPN: 107MM55650
                                                                                                                          BELT TENSIONER PULLEY
                                                                                                                          BELT TENSIONER PULLEY Genuine Maserati Part - New (to order)
                                                                                                                          # 028
                                                                                                                          MPN: CSC49764
                                                                                                                          BEARING 20 X 47 X 14 ON THE BELT TENSIONER PULLEY
                                                                                                                          Bearing for water pump control pulley Genuine Maserati Part - New (to order)
                                                                                                                          # 030
                                                                                                                          MPN: 107 MM 55651
                                                                                                                          Vita bioccaggio puleggla tendicinghia
                                                                                                                          Vita bioccaggio puleggla tendicinghia Genuine Maserati Part - New (to order)
                                                                                                                          # 031
                                                                                                                          MPN: IN/48089
                                                                                                                          INGRASSATORE TECALAMIT TIPO IDRAULIC GC 36 PER IUBRIFLCAZIONE CUSCINETTI
                                                                                                                          Grease nipple on the brake and clutch pump support Genuine Maserati Part - New (to order)
                                                                                                                          # 032
                                                                                                                          MPN: 116 CR 67479
                                                                                                                          COMPLETE WATER RADIATOR FOR VERTICAL SINGLE-ANGLE CONDENSER ASSEMBLED UNTIL EXHAUSTION
                                                                                                                          Supersession
                                                                                                                          Supersession
                                                                                                                          Genuine Maserati Part (no longer available to order)
                                                                                                                          # 032
                                                                                                                          MPN: 116 CR 70548
                                                                                                                          RADIATORE ACQUA COMPLETO SOSTITUISCE 116 CR 67479
                                                                                                                          RADIATORE ACQUA COMPLETO SOSTITUISCE 116 CR 67479 Genuine Maserati Part - New (to order)
                                                                                                                          # 033
                                                                                                                          MPN: FRN 37832
                                                                                                                          FASCETTA MT 3 Ø 50 X 70 PER FISSAGGIO TUBO COLLEGAMENTO RADIATORE H 20 AT MOTORE PARTE SUPERIORE
                                                                                                                          Upper hose clamp Genuine Maserati Part - New (to order)
                                                                                                                          # 034
                                                                                                                          MPN: TN41374
                                                                                                                          TAPPO Ø 38 PER RADIATORE
                                                                                                                          from £47.25
                                                                                                                          from £47.25

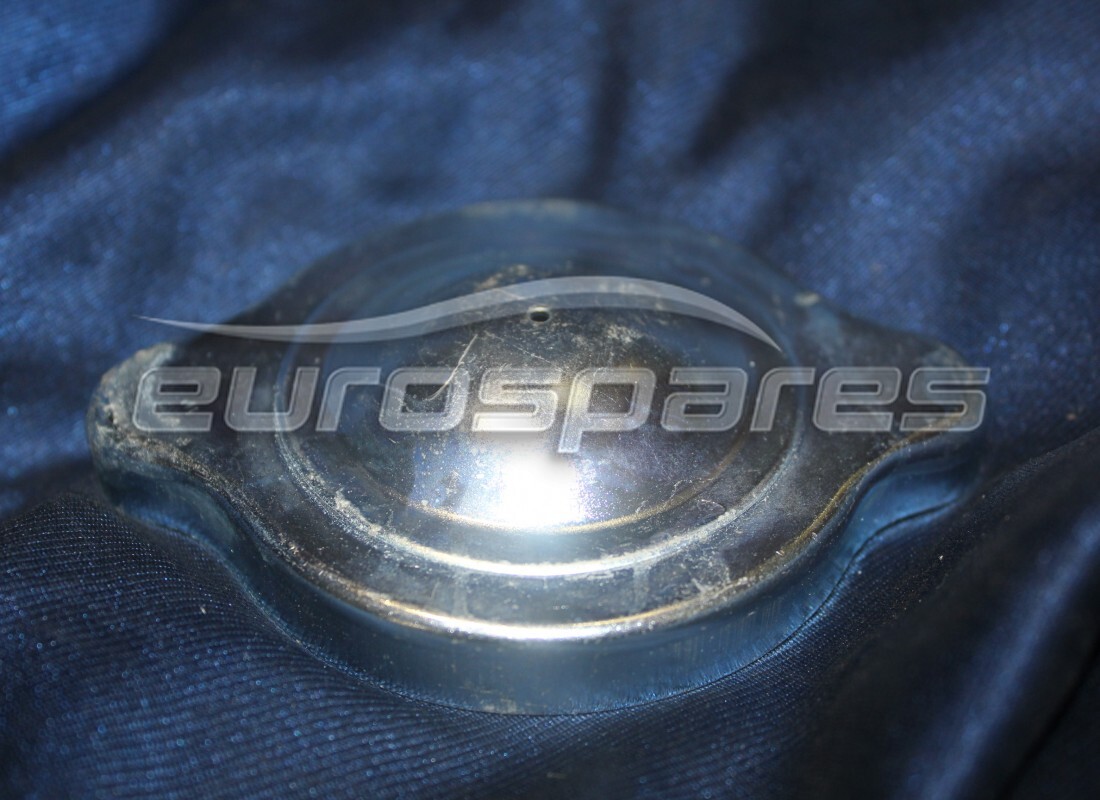

                                                                                                                          RADIATOR CAP Genuine Maserati Part - New In stock
                                                                                                                          # 035
                                                                                                                          MPN: 116 CR 66571
                                                                                                                          TUBO COLLEGAMENTO RADIATORS H 20 AL MOTORS PARTE SUPER
                                                                                                                          TUBO COLLEGAMENTO RADIATORS H 20 AL MOTORS PARTE SUPER Genuine Maserati Part - New (to order)
                                                                                                                          # 036
                                                                                                                          MPN: FRN 65942
                                                                                                                          FASCETTA Ø 11 FISSAGGIO MANICOTTO RADIATORE
                                                                                                                          Fascetta Ø 7 ÷ 11 tenuta tubo in plastica scarico a terra Genuine Maserati Part - New (to order)
                                                                                                                          # 037
                                                                                                                          MPN: TPN 53758
                                                                                                                          Tubo plastica Ø 4 X 6 X600 sul radiatore
                                                                                                                          Tubo plastica Ø 4 X 6 X600 sul radiatore Genuine Maserati Part - New (to order)
                                                                                                                          # 038
                                                                                                                          MPN: 101 - 16440 47390
                                                                                                                          TAP FOR DRAINAGE OF WATER FROM THE RADIATOR
                                                                                                                          DRAIN TAP ON THE RADIATOR Genuine Maserati Part - New (to order)
                                                                                                                          # 039
                                                                                                                          MPN: FRN 62541
                                                                                                                          FASCETTA MT 1 PER FISSAGGIO TUBO RICIRCOLAZIONE ACQUA
                                                                                                                          Securing band Genuine Maserati Part - New (to order)
                                                                                                                          # 041
                                                                                                                          MPN: 116 CR 67851
                                                                                                                          TUBO COLLEGAMENTO RADIATORE H 20 AL MOTORE (PARTE INFER.)
                                                                                                                          from £493.92
                                                                                                                          from £493.92
                                                                                                                          RADIATOR HOSE Genuine Maserati Part - New (to order)
                                                                                                                          # 042
                                                                                                                          MPN: 112 CR 67596
                                                                                                                          Tubo Ø 32 X40 X380 per ricircolazione acqua dal termostato al raccordo
                                                                                                                          Tubo Ø 32 X40 X380 per ricircolazione acqua dal termostato al raccordo Genuine Maserati Part - New (to order)
                                                                                                                          # 043
                                                                                                                          MPN: FRN37829
                                                                                                                          CLAMP FOR FIXING THE INTERMEDIATE HOSE CONNECTION LOWER PART OF THE RADIATOR UPPER PART. MOTOR.
                                                                                                                          Fascetta per tubazioni principali acqua Genuine Maserati Part - New (to order)
                                                                                                                          # 044
                                                                                                                          MPN: FRN/37825
                                                                                                                          MTO CLAMP FOR WATER RETURN HOSE FROM THE RADIATOR
                                                                                                                          Fascetta TO tubazione benzina Genuine Maserati Part - New (to order)
                                                                                                                          # 045
                                                                                                                          MPN: MN 54688
                                                                                                                          Sleeve Ø 14 X 20 X 130 heating water return from the radiator
                                                                                                                          from £84.78
                                                                                                                          from £84.78
                                                                                                                          PIPE (Per Metre) Genuine Maserati Part - New (to order)
                                                                                                                          # 046
                                                                                                                          MPN: 101/7 5022 54237
                                                                                                                          THERMOSTAT AUTOMATIC SWITCH FOR FANS
                                                                                                                          Thermostat on the fan control water radiator Genuine Maserati Part - New (to order)
                                                                                                                          # 047
                                                                                                                          MPN: GN 54238
                                                                                                                          Guarnitura Ø 24 X 35 per tenuta fra radiatore e interruttore per coperchietto sul 2° foro
                                                                                                                          Guarnitura Ø 24 X 35 per tenuta fra radiatore e interruttore per coperchietto sul 2° foro Genuine Maserati Part - New (to order)
                                                                                                                          # 049
                                                                                                                          MPN: DNT/62557
                                                                                                                          NUT
                                                                                                                          NUT Genuine Maserati Part - New (to order)
                                                                                                                          # 052
                                                                                                                          MPN: 115 BL 64904
                                                                                                                          Fascetta fissaggio motorino Tp. LUCAS e GAMBERINI
                                                                                                                          Fascetta fissaggio motorino Tp. LUCAS e GAMBERINI Genuine Maserati Part - New (to order)
                                                                                                                          # 054
                                                                                                                          MPN: RN 58406
                                                                                                                          WASHER
                                                                                                                          WASHER Genuine Maserati Part - New (to order)
                                                                                                                          # 056
                                                                                                                          MPN: DNT 47046
                                                                                                                          DADA Ø 5 X 0,8 SULFA FASCETTA FISSAGGIO MOTORINO TP. LUCAS
                                                                                                                          from £0.86
                                                                                                                          from £0.86
                                                                                                                          This part replaces part number 47046
                                                                                                                          Screw nut Genuine Maserati Part - New (to order)
                                                                                                                          # 057
                                                                                                                          MPN: BNT 41857
                                                                                                                          BOLT
                                                                                                                          BOLT Genuine Maserati Part - New (to order)
                                                                                                                          # 058
                                                                                                                          MPN: RMT 60333
                                                                                                                          WASHER
                                                                                                                          WASHER Genuine Maserati Part - New (to order)
                                                                                                                          # 059
                                                                                                                          MPN: DST 53496
                                                                                                                          NUT
                                                                                                                          NUT Genuine Maserati Part - New (to order)
                                                                                                                          # 060
                                                                                                                          MPN: DNT 47047
                                                                                                                          NUT
                                                                                                                          NUT Genuine Maserati Part - New (to order)
