007 - Electrical equipment

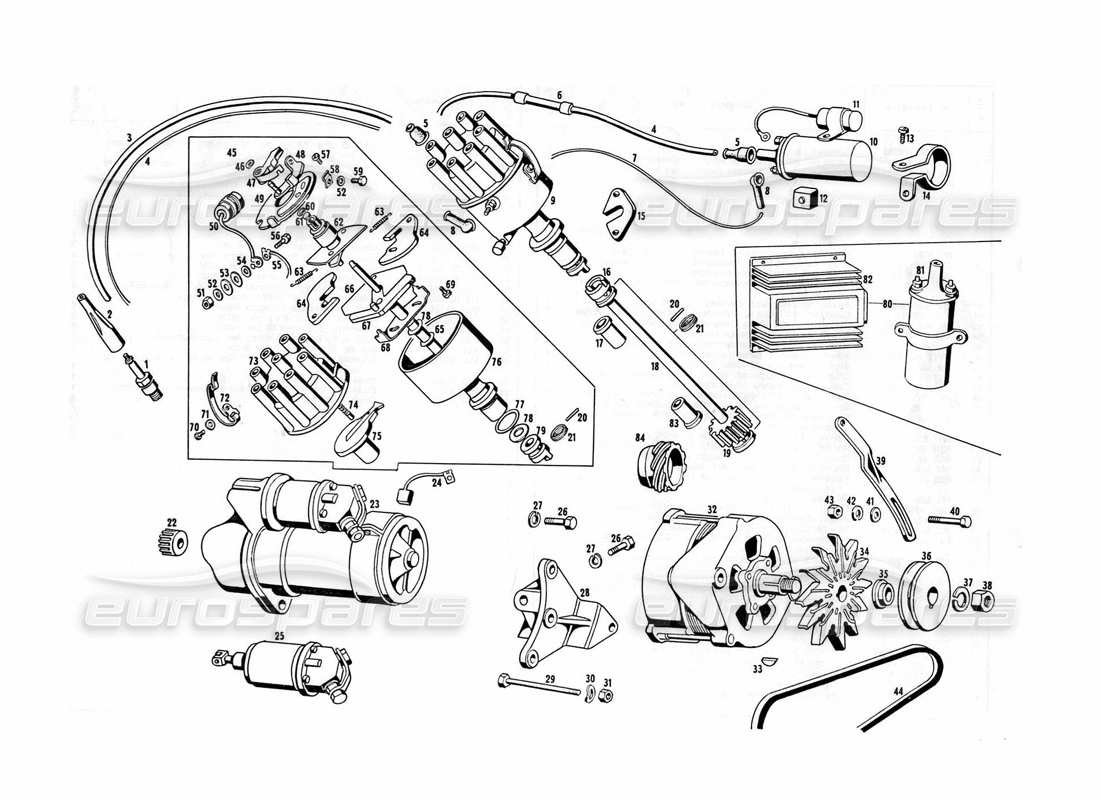

Maserati Indy 4.2 Electrical equipment Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                                                                                                                                                                      #
                                                                                                                                                                      Part number
                                                                                                                                                                      Description
                                                                                                                                                                      Key
                                                                                                                                                                      Price
                                                                                                                                                                      # 000
                                                                                                                                                                      MPN: 107/2 ME 70070
                                                                                                                                                                      COMPLETE CAM CONNECTION SPACER PLATE
                                                                                                                                                                      Details without numbers at the bottom of the illustrative table
                                                                                                                                                                      COMPLETE CAM CONNECTION SPACER PLATE Genuine Maserati Part - New (to order)
                                                                                                                                                                      # 000
                                                                                                                                                                      MPN: MHT003

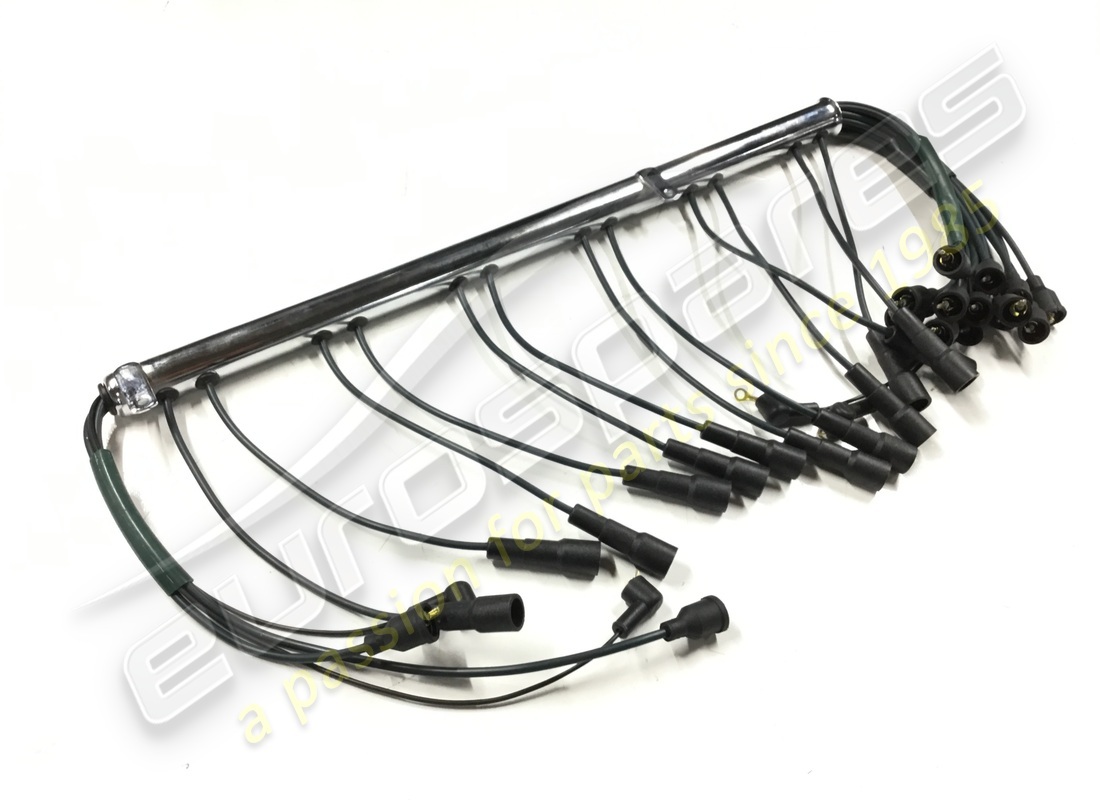

                                                                                                                                                                      Complete HT Lead Set
                                                                                                                                                                      from £260.88
                                                                                                                                                                      from £260.88
                                                                                                                                                                      HT LEADS SET Genuine Maserati Part - New (to order)
                                                                                                                                                                      HT LEADS SET Eurospares Approved Part - New In stock
                                                                                                                                                                      # 001
                                                                                                                                                                      MPN: CND 66232
                                                                                                                                                                      CANDELA D'ACCESIONE BOSCH
                                                                                                                                                                      Supersession
                                                                                                                                                                      Supersession
                                                                                                                                                                      Genuine Maserati Part (no longer available to order)
                                                                                                                                                                      # 002
                                                                                                                                                                      MPN: 107/2 ME 65902
                                                                                                                                                                      Shielded socket for spark plugs
                                                                                                                                                                      Shielded socket for spark plugs Genuine Maserati Part - New (to order)
                                                                                                                                                                      # 002
                                                                                                                                                                      MPN: 107/2 ME 65903
                                                                                                                                                                      Reduction for spark plug cable on the shielded coupling
                                                                                                                                                                      Reduction for spark plug cable on the shielded coupling Genuine Maserati Part - New (to order)
                                                                                                                                                                      # 003
                                                                                                                                                                      MPN: TVN 47035
                                                                                                                                                                      VIPLA TUBE FOR MT. SPARK PLUG CABLE PROTECTION.
                                                                                                                                                                      VIPLA TUBE FOR MT. SPARK PLUG CABLE PROTECTION. Genuine Maserati Part - New (to order)
                                                                                                                                                                      # 004
                                                                                                                                                                      MPN: CSN 47374

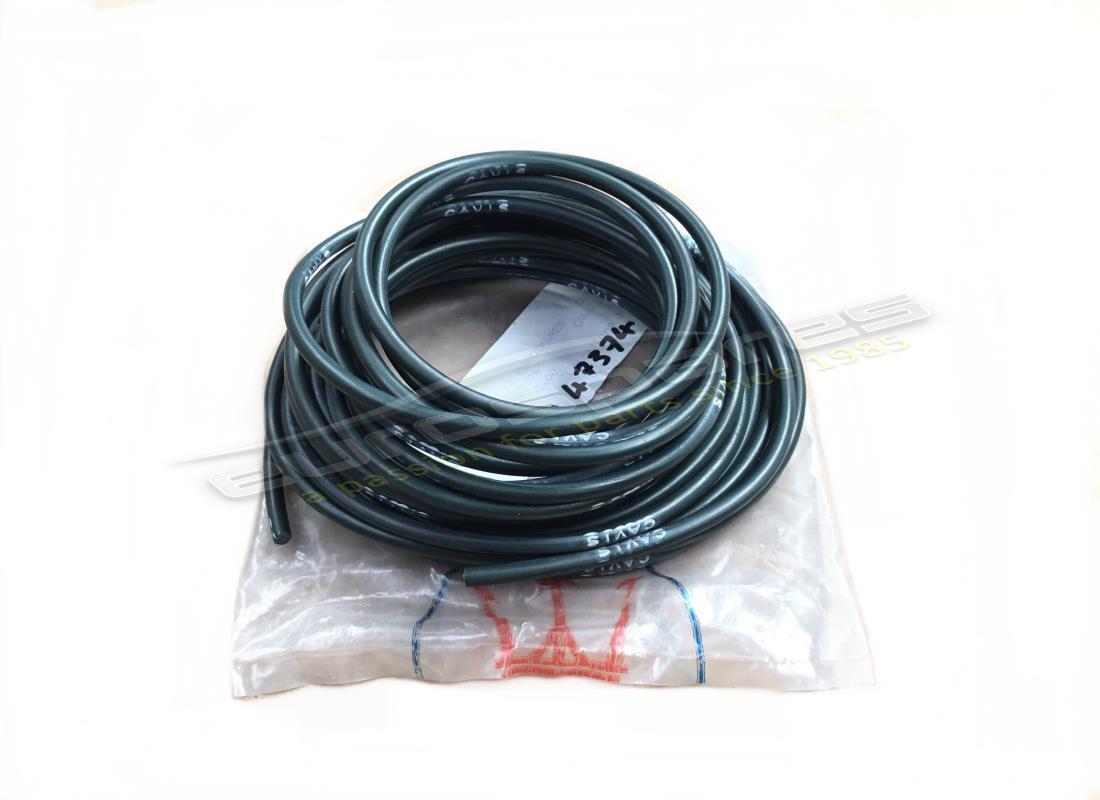

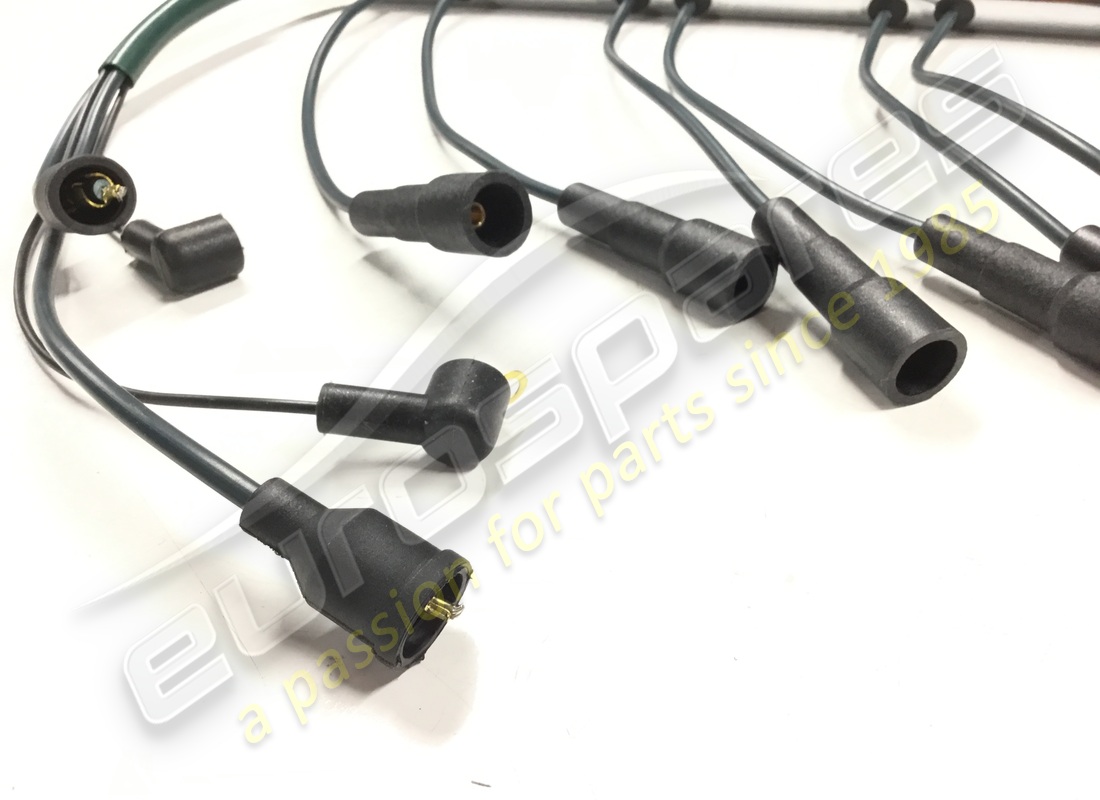

                                                                                                                                                                      Cavo sterlingato collegam. candele d'accensione e bobina mt.
                                                                                                                                                                      from £99.75
                                                                                                                                                                      from £99.75
                                                                                                                                                                      CAVO STERLINGATO COLLEGAM. CANDELE D'ACCENSIONE E BOBINA MT Genuine Maserati Part - New (to order)
                                                                                                                                                                      CAVO STERLINGATO COLLEGAM. CANDELE D'ACCENSIONE E BOBINA MT Genuine Maserati Part - New (other) In stock
                                                                                                                                                                      Kit x8 sparkplugs
                                                                                                                                                                      # 005
                                                                                                                                                                      MPN: CPN32926
                                                                                                                                                                      Spark plug cable connection protection cap
                                                                                                                                                                      Spark plug cable connection protection cap Genuine Maserati Part - New (to order)
                                                                                                                                                                      # 006
                                                                                                                                                                      MPN: 107/2 ME 65905
                                                                                                                                                                      COIL SHIELDING RESISTOR
                                                                                                                                                                      Terminated for distributor cap Genuine Maserati Part - New (to order)
                                                                                                                                                                      # 007
                                                                                                                                                                      MPN: CSN 54976
                                                                                                                                                                      CAVETTO STERLINCATO COLIEGAMENTO BASSA TENSIONE BOBINA E SPINTEROGENO MT.
                                                                                                                                                                      Sterling cable connecting low voltage coil and voltage Genuine Maserati Part - New (to order)
                                                                                                                                                                      # 008
                                                                                                                                                                      MPN: CPN 32934
                                                                                                                                                                      PROTECTIVE CAP FOR LOW VOLTAGE CONNECTIONS
                                                                                                                                                                      Cappuccio protezione fill sulla bobina Genuine Maserati Part - New (to order)

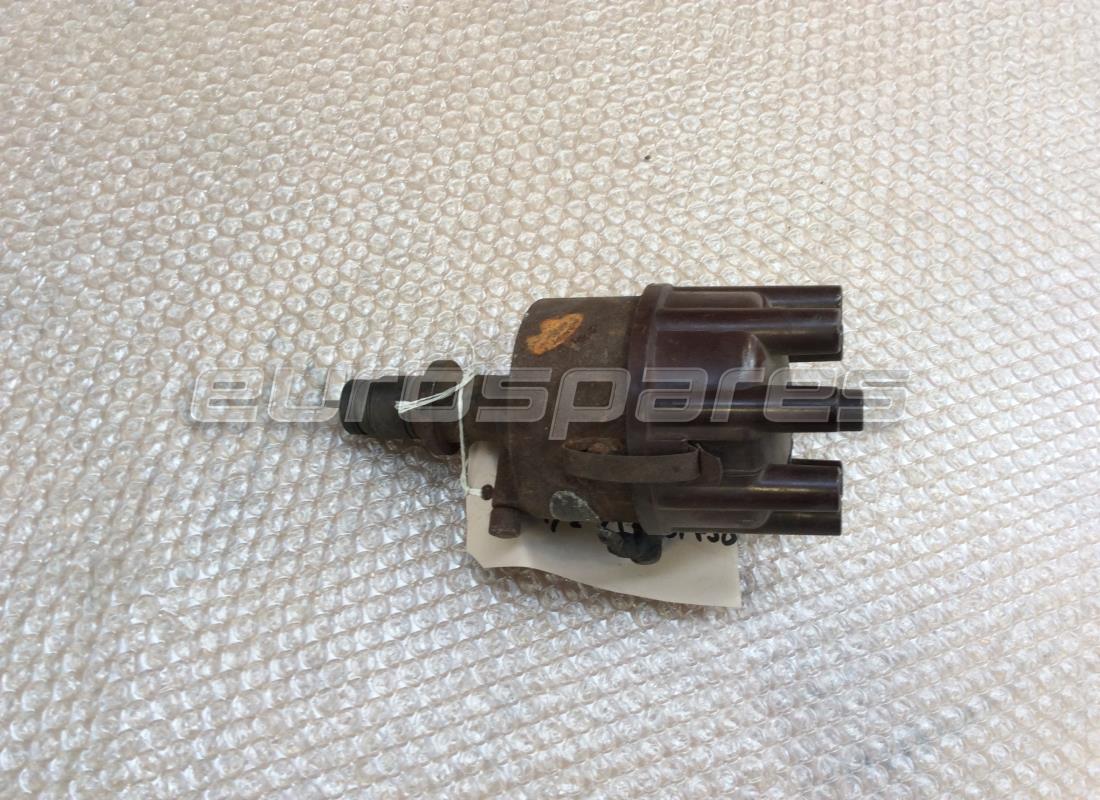

                                                                                                                                                                      # 009
                                                                                                                                                                      MPN: 107/2 ME 61438
                                                                                                                                                                      SPINTEROGENO TP. BOSCH Z V2/30 V2
                                                                                                                                                                      from £1,044.75
                                                                                                                                                                      from £1,044.75
                                                                                                                                                                      Spinterogeno tp. Bosch Z V2/30 V2 . Genuine Maserati Part - New (to order)
                                                                                                                                                                      Spinterogeno tp. Bosch Z V2/30 V2 . Genuine Maserati Part - Used In stock
                                                                                                                                                                      # 010
                                                                                                                                                                      MPN: 107 ME 58441

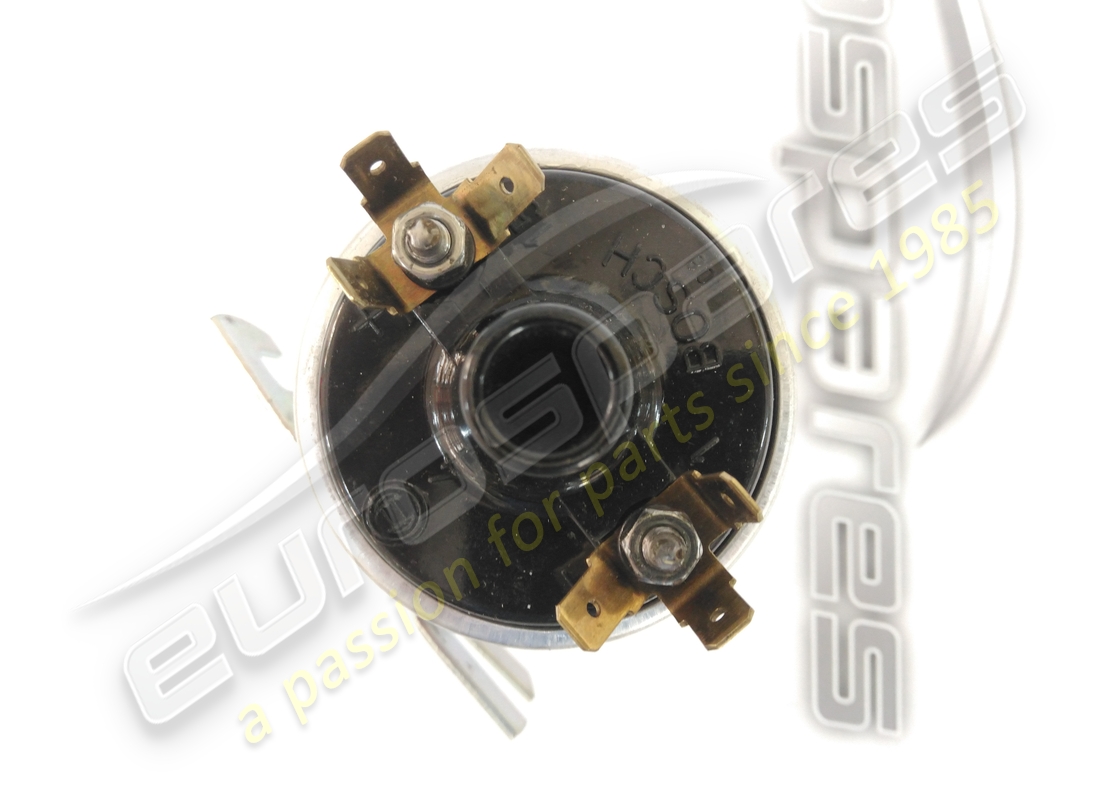

                                                                                                                                                                      BOBINA D'ACCENSIONE TP. BOSCH
                                                                                                                                                                      from £205.22
                                                                                                                                                                      from £205.22
                                                                                                                                                                      BOBINA D'ACCENSIONE TP. BOSCH Genuine Maserati Part - New (to order)
                                                                                                                                                                      # 011
                                                                                                                                                                      MPN: 101/7 ME-52898

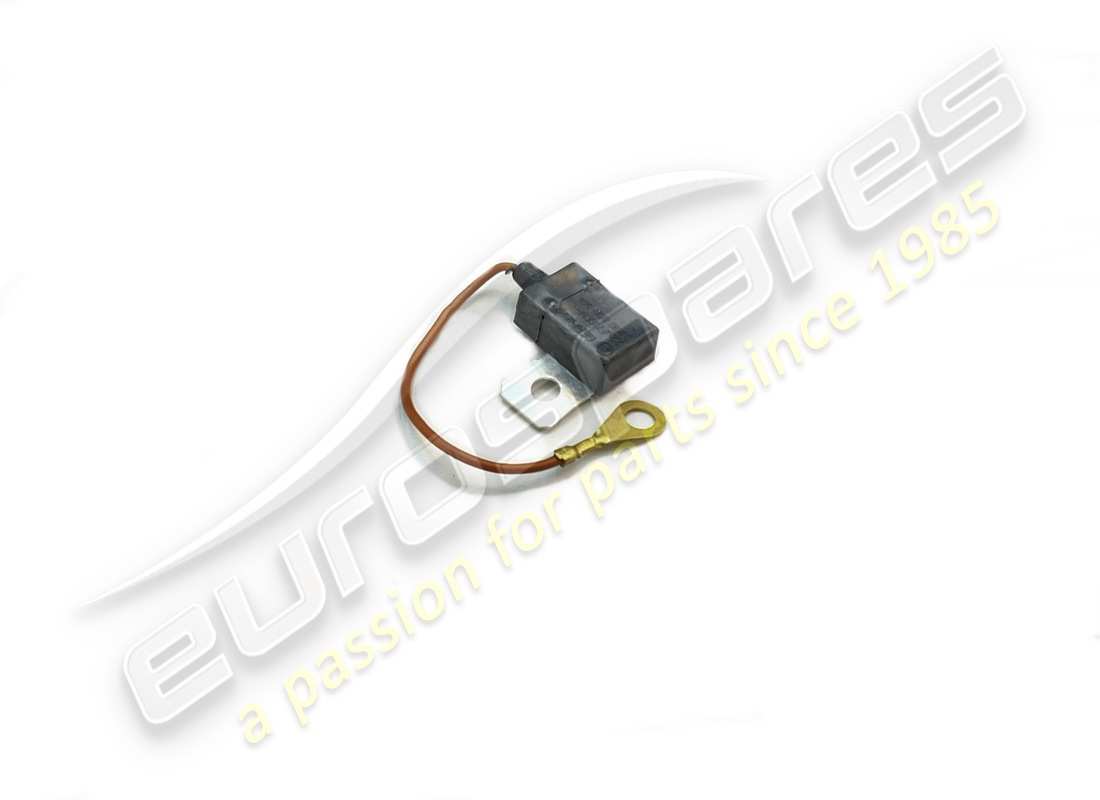

                                                                                                                                                                      CONDENSOR
                                                                                                                                                                      CONDENSOR Genuine Maserati Part - New (to order)
                                                                                                                                                                      # 012
                                                                                                                                                                      MPN: 107ME54442
                                                                                                                                                                      RESISTENZA BOBINA BOSCH
                                                                                                                                                                      RESISTENZA BOBINA BOSCH Genuine Maserati Part - New (to order)
                                                                                                                                                                      # 013
                                                                                                                                                                      MPN: VAT 47371
                                                                                                                                                                      SCREW
                                                                                                                                                                      SCREW Genuine Maserati Part - New (to order)
                                                                                                                                                                      # 014
                                                                                                                                                                      MPN: 107 ME 66181
                                                                                                                                                                      COIL CLAMP
                                                                                                                                                                      COIL CLAMP Genuine Maserati Part - New (to order)
                                                                                                                                                                      # 015
                                                                                                                                                                      MPN: 101/9 ME 53510
                                                                                                                                                                      BRACKET / SUPPORT
                                                                                                                                                                      STAFFS DL FLSSAGGLO SPINTEROGENO Genuine Maserati Part - New (to order)
                                                                                                                                                                      # 016
                                                                                                                                                                      MPN: 107/2 ME 59604
                                                                                                                                                                      FEMALE JOINT FOR GENERATOR TOWING
                                                                                                                                                                      GLUNTO FEMMINA PER TRALNO APINTEROGENO Genuine Maserati Part - New (to order)
                                                                                                                                                                      # 017
                                                                                                                                                                      MPN: 107/2 ME 59606
                                                                                                                                                                      BUSH
                                                                                                                                                                      BUSH Genuine Maserati Part - New (to order)
                                                                                                                                                                      # 018
                                                                                                                                                                      MPN: 107/2 ME 59603
                                                                                                                                                                      GENERATOR CONTROL SHAFT
                                                                                                                                                                      GENERATOR CONTROL SHAFT Genuine Maserati Part - New (to order)
                                                                                                                                                                      # 019
                                                                                                                                                                      MPN: 107/2 ME 59599
                                                                                                                                                                      INGRANAGGIO CONDOTTO COMANDO SPINTEROGENO
                                                                                                                                                                      PIN Genuine Maserati Part - New (to order)
                                                                                                                                                                      # 022
                                                                                                                                                                      MPN: 107 ME 58776
                                                                                                                                                                      STARTER MOTOR PINION
                                                                                                                                                                      Pignone motorino d'avvlamento BOSCH Genuine Maserati Part - New (to order)
                                                                                                                                                                      # 023
                                                                                                                                                                      MPN: 107ME57879
                                                                                                                                                                      MOTORINO D'AVVIAMENTO TP. BOSCH
                                                                                                                                                                      Motorino avviamento Bosch Genuine Maserati Part - New (to order)
                                                                                                                                                                      # 024
                                                                                                                                                                      MPN: 107 ME 58774
                                                                                                                                                                      BRUSH FOR STARTER MOTOR
                                                                                                                                                                      Spazzola per motorino d'avvlamento Genuine Maserati Part - New (to order)
                                                                                                                                                                      # 025
                                                                                                                                                                      MPN: 107 ME 58778
                                                                                                                                                                      INTERRUTTORE ELETTROMAGNETICO INNESTO MOTORINO AVVIAM.
                                                                                                                                                                      BOSCH starter motor engagement electromagnetic switch Genuine Maserati Part - New (to order)
                                                                                                                                                                      # 027
                                                                                                                                                                      MPN: RAT/45680
                                                                                                                                                                      WASHER
                                                                                                                                                                      WASHER Genuine Maserati Part - New (to order)
                                                                                                                                                                      # 028
                                                                                                                                                                      MPN: 107/2 ME 61284
                                                                                                                                                                      SUPPORT FOR ALTERNATOR
                                                                                                                                                                      SUPPORT FOR ALTERNATOR Genuine Maserati Part - New (to order)
                                                                                                                                                                      # 029
                                                                                                                                                                      MPN: BNT 58749
                                                                                                                                                                      BOLT
                                                                                                                                                                      BOLT Genuine Maserati Part - New (to order)
                                                                                                                                                                      # 030
                                                                                                                                                                      MPN: RAT/45680
                                                                                                                                                                      WASHER
                                                                                                                                                                      WASHER Genuine Maserati Part - New (to order)
                                                                                                                                                                      # 031
                                                                                                                                                                      MPN: DN/32634
                                                                                                                                                                      NUT 8X1.25X8
                                                                                                                                                                      NUT 8X1.25X8 Genuine Maserati Part - New (to order)
                                                                                                                                                                      # 032
                                                                                                                                                                      MPN: 107/2 ME 65079

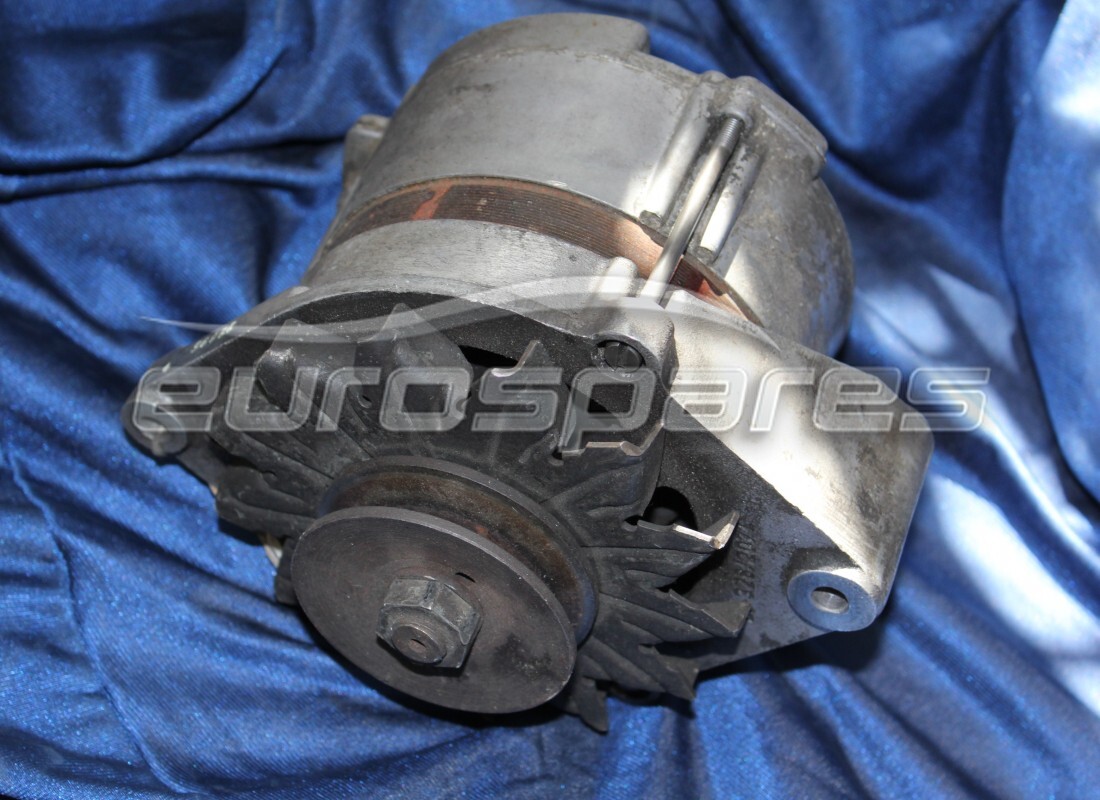

                                                                                                                                                                      ALTERNATORE TP. BOSCH
                                                                                                                                                                      from £729.75
                                                                                                                                                                      from £729.75
                                                                                                                                                                      ALTERNATOR BOSCH COMPLETE WITH FAN Genuine Maserati Part - New (to order)
                                                                                                                                                                      ALTERNATOR BOSCH COMPLETE WITH FAN Genuine Maserati Part - Used In stock
                                                                                                                                                                      PULLEY IS MISSING - REPLACEMENT BRUSHES FITTED
                                                                                                                                                                      # 033
                                                                                                                                                                      MPN: LN49771
                                                                                                                                                                      American tab 4X6 on the alternator
                                                                                                                                                                      American tab 4X6 on the alternator Genuine Maserati Part - New (to order)
                                                                                                                                                                      # 034
                                                                                                                                                                      MPN: 107/2 ME 65080
                                                                                                                                                                      VENTOLA PER ALTERNATORE
                                                                                                                                                                      Fan for alternator. Genuine Maserati Part - New (to order)
                                                                                                                                                                      # 035
                                                                                                                                                                      MPN: 107/2 ,ME 65084
                                                                                                                                                                      Spacer for alternator control pulley
                                                                                                                                                                      Spacer for alternator control pulley Genuine Maserati Part - New (to order)
                                                                                                                                                                      # 036
                                                                                                                                                                      MPN: 107 ME 59675
                                                                                                                                                                      Puleggia comando alternatore Ø 70
                                                                                                                                                                      Puleggia comando alternatore Ø 70 Genuine Maserati Part - New (to order)
                                                                                                                                                                      # 039
                                                                                                                                                                      MPN: 107/2 ME 62927
                                                                                                                                                                      PUNTALINO PER ALTERNATORE
                                                                                                                                                                      PUNTALINO PER ALTERNATORE Genuine Maserati Part - New (to order)
                                                                                                                                                                      # 040
                                                                                                                                                                      MPN: BNT 54081
                                                                                                                                                                      BOLT
                                                                                                                                                                      BOLT Genuine Maserati Part - New (to order)
                                                                                                                                                                      # 041
                                                                                                                                                                      MPN: RNT47075
                                                                                                                                                                      WASHER
                                                                                                                                                                      This part replaces part number 47075
                                                                                                                                                                      Rondetta piana Ø 8 per pompa acqua Genuine Maserati Part - New (to order)
                                                                                                                                                                      # 042
                                                                                                                                                                      MPN: RSN 3 2 6 3 5
                                                                                                                                                                      WASHER
                                                                                                                                                                      WASHER Genuine Maserati Part - New (to order)
                                                                                                                                                                      # 044
                                                                                                                                                                      MPN: CTR55354
                                                                                                                                                                      CINCHIA TRASCINAMENTO ALTERNATORE (SVILUPPO 736)
                                                                                                                                                                      from £73.04
                                                                                                                                                                      from £73.04
                                                                                                                                                                      Alternator driving belt Genuine Maserati Part - New (to order)
                                                                                                                                                                      # 044
                                                                                                                                                                      MPN: MAS2039/16
                                                                                                                                                                      ALTERNATOR BELT
                                                                                                                                                                      use on exhaustion of CTR 55354
                                                                                                                                                                      from £20.64
                                                                                                                                                                      from £20.64
                                                                                                                                                                      ALTERNATOR BELT Genuine Maserati Part - New (to order)
                                                                                                                                                                      # 045
                                                                                                                                                                      MPN: ART 66217
                                                                                                                                                                      RING
                                                                                                                                                                      RING Genuine Maserati Part - New (to order)
                                                                                                                                                                      # 047
                                                                                                                                                                      MPN: ME66182
                                                                                                                                                                      GENERATOR ROTOR CONNECTION
                                                                                                                                                                      from £39.90
                                                                                                                                                                      from £39.90
                                                                                                                                                                      CONNESSLONE ROTORE SPINTEROGENO Genuine Maserati Part - New In stock

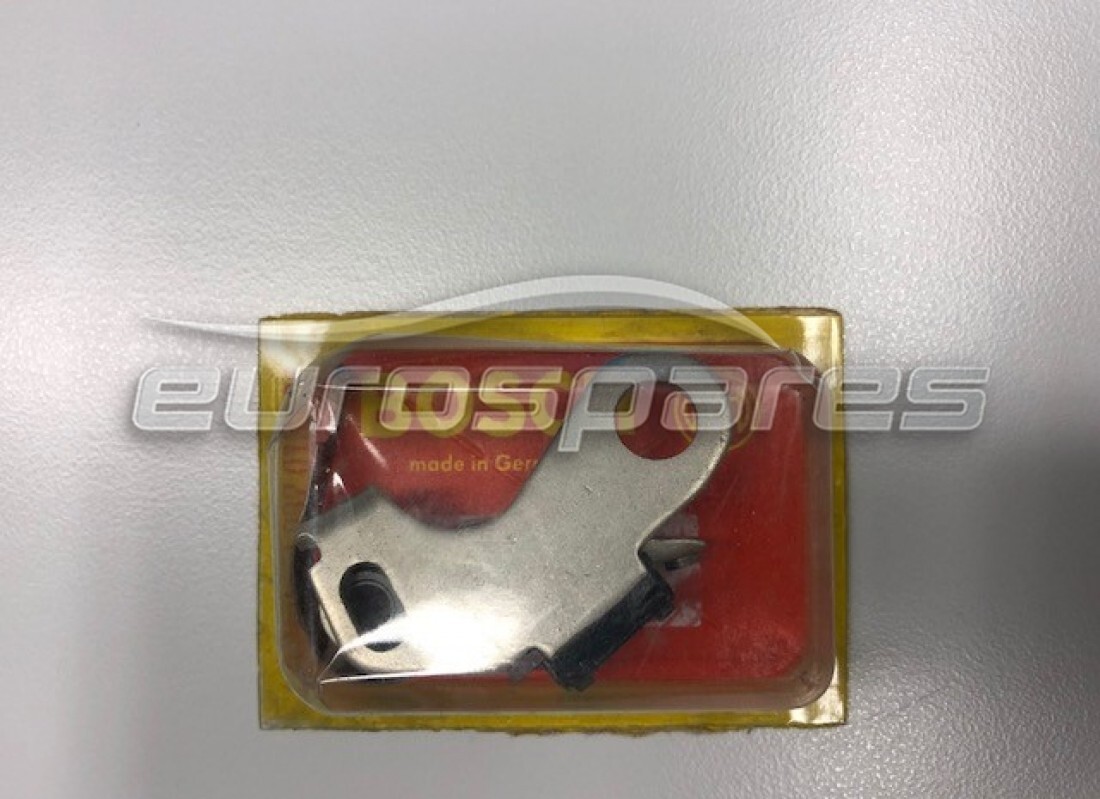

                                                                                                                                                                      # 048
                                                                                                                                                                      MPN: 107/2 ME 66183
                                                                                                                                                                      Plate with contact
                                                                                                                                                                      Plate with contact Genuine Maserati Part - New (to order)
                                                                                                                                                                      # 049
                                                                                                                                                                      MPN: 107/2 ME 66184
                                                                                                                                                                      SPACER BETWEEN CONNECTIONS AND CAMS
                                                                                                                                                                      SPACER BETWEEN CONNECTIONS AND CAMS Genuine Maserati Part - New (to order)
                                                                                                                                                                      # 050
                                                                                                                                                                      MPN: 107 0300 ME 70814
                                                                                                                                                                      CONDENSOR
                                                                                                                                                                      CONDENSOR Genuine Maserati Part - New (to order)
                                                                                                                                                                      # 050
                                                                                                                                                                      MPN: 107 ME 60013
                                                                                                                                                                      CONDENSOR
                                                                                                                                                                      CONDENSOR Genuine Maserati Part - New (to order)
                                                                                                                                                                      # 051
                                                                                                                                                                      MPN: DNT/62557
                                                                                                                                                                      NUT
                                                                                                                                                                      NUT Genuine Maserati Part - New (to order)
                                                                                                                                                                      # 053
                                                                                                                                                                      MPN: G N 66216
                                                                                                                                                                      GASKET OR SEAL
                                                                                                                                                                      GASKET OR SEAL Genuine Maserati Part - New (to order)
                                                                                                                                                                      # 055
                                                                                                                                                                      MPN: 107/2 ME 66186
                                                                                                                                                                      WIRE COMPLETE WITH CONNECTION TERMINALS. CONNECTIONS
                                                                                                                                                                      Complete with connection connection terminals Genuine Maserati Part - New (to order)
                                                                                                                                                                      # 056
                                                                                                                                                                      MPN: BNT 48820
                                                                                                                                                                      BOLT
                                                                                                                                                                      BOLT Genuine Maserati Part - New (to order)
                                                                                                                                                                      # 057
                                                                                                                                                                      MPN: VNT 61862
                                                                                                                                                                      SCREW
                                                                                                                                                                      SCREW Genuine Maserati Part - New (to order)
                                                                                                                                                                      # 058
                                                                                                                                                                      MPN: 107/2 ME 66187
                                                                                                                                                                      LOCKING PLATE FOR CABLE TERMINALS
                                                                                                                                                                      PLASTRINO DL FERMO PER CAPICORDA Genuine Maserati Part - New (to order)
                                                                                                                                                                      # 060
                                                                                                                                                                      MPN: ART 57614
                                                                                                                                                                      RING
                                                                                                                                                                      RING Genuine Maserati Part - New (to order)
                                                                                                                                                                      # 061
                                                                                                                                                                      MPN: 107/2 ME 66188
                                                                                                                                                                      Cam shaft felt
                                                                                                                                                                      Cam shaft felt Genuine Maserati Part - New (to order)
                                                                                                                                                                      # 062
                                                                                                                                                                      MPN: 107/2 ME 66189
                                                                                                                                                                      CAMMA CON FORCELIA
                                                                                                                                                                      PARAGRAPH FOR FORK Genuine Maserati Part - New (to order)
                                                                                                                                                                      # 063
                                                                                                                                                                      MPN: 107/2 ME 66190
                                                                                                                                                                      MOILE RICHIAMO MASSE
                                                                                                                                                                      MOLLS RLCHIAMO MASSE Genuine Maserati Part - New (to order)
                                                                                                                                                                      # 064
                                                                                                                                                                      MPN: 107/2 ME 66191
                                                                                                                                                                      MASS FOR AUTOMATIC ADVANCE
                                                                                                                                                                      MASS FOR AUTOMATIC ADVANCE Genuine Maserati Part - New (to order)
                                                                                                                                                                      # 065
                                                                                                                                                                      MPN: 107/2 ME 66192
                                                                                                                                                                      THICKNESS BETWEEN SHAFT AND GENERATOR BODY
                                                                                                                                                                      THICKNESS BETWEEN SHAFT AND GENERATOR BODY Genuine Maserati Part - New (to order)
                                                                                                                                                                      # 067
                                                                                                                                                                      MPN: 107/2 ME 66194
                                                                                                                                                                      ALBERINO COMANDO SPINTEROCENO
                                                                                                                                                                      Alberino comando spintetrogeno Genuine Maserati Part - New (to order)
                                                                                                                                                                      # 068
                                                                                                                                                                      MPN: 107/2 ME 66195
                                                                                                                                                                      FLANGE FULCRO MANE MASS RECALL
                                                                                                                                                                      FLANGIA FULCRO MOLLS RLCHIAMO MASSY Genuine Maserati Part - New (to order)
                                                                                                                                                                      # 072
                                                                                                                                                                      MPN: 107/2 ME 66196
                                                                                                                                                                      SPRING
                                                                                                                                                                      SPRING Genuine Maserati Part - New (to order)
                                                                                                                                                                      # 072
                                                                                                                                                                      MPN: 107/2 ME 66197
                                                                                                                                                                      MONA TENUTA COPEROHIO SPINTEROGENO SENZA RIFERIMENTO
                                                                                                                                                                      SPRING Genuine Maserati Part - New (to order)
                                                                                                                                                                      # 073
                                                                                                                                                                      MPN: ME 66198

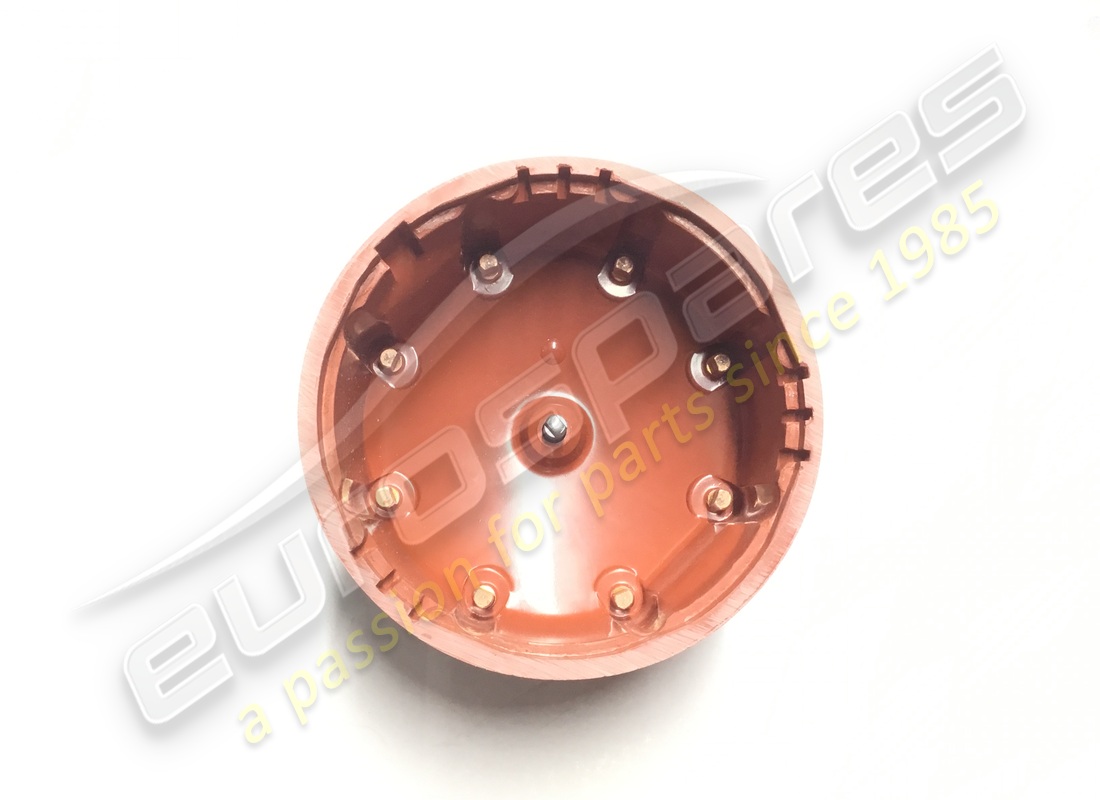

                                                                                                                                                                      COVER
                                                                                                                                                                      from £194.25
                                                                                                                                                                      from £194.25
                                                                                                                                                                      DISTRIBUTOR CAP Genuine Maserati Part - New In stock
                                                                                                                                                                      # 074
                                                                                                                                                                      MPN: 107/2M E 66199
                                                                                                                                                                      CHARCOAL WITH SPRING FOR GENERATOR CAP
                                                                                                                                                                      Carboncino con molla ,per calotta spinterogeno Genuine Maserati Part - New (to order)
                                                                                                                                                                      # 075
                                                                                                                                                                      MPN: ME66200

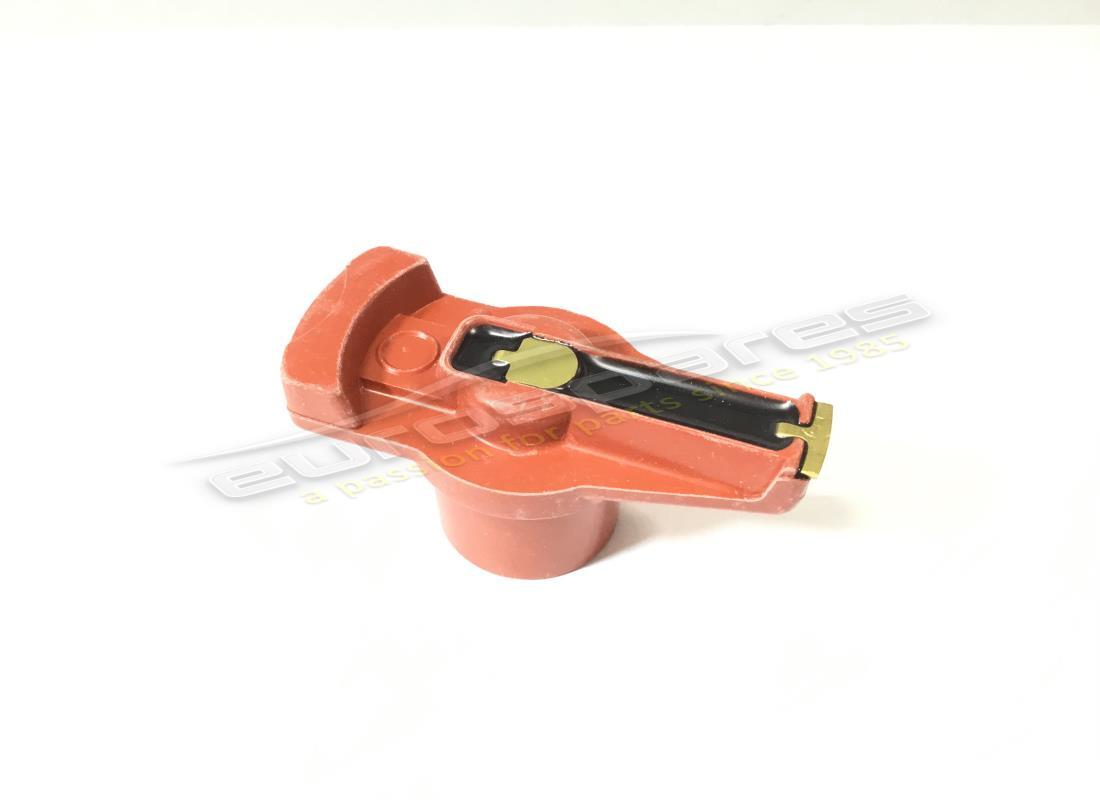

                                                                                                                                                                      ROTOR ARM
                                                                                                                                                                      from £53.72
                                                                                                                                                                      from £53.72
                                                                                                                                                                      ROTOR ARM Genuine Maserati Part - New (to order)
                                                                                                                                                                      ROTOR ARM Original Equipment - New (to order)
                                                                                                                                                                      # 076
                                                                                                                                                                      MPN: 107/2 M E 66201
                                                                                                                                                                      GENERATOR BODY
                                                                                                                                                                      GENERATOR BODY Genuine Maserati Part - New (to order)
                                                                                                                                                                      # 077
                                                                                                                                                                      MPN: GOMM51396
                                                                                                                                                                      RUBBER Ø 21X27X3 ON THE GENERATOR BODY SOCKET
                                                                                                                                                                      Gommino 21-3' per collettore aspirazione Genuine Maserati Part - New (to order)
                                                                                                                                                                      # 078
                                                                                                                                                                      MPN: 101/9 ME 54651
                                                                                                                                                                      SPACER BETWEEN JOINT AND DISTRIBUTOR AND SHAFT
                                                                                                                                                                      Dlstanzlale fraiunto spinterogeno a alberino Genuine Maserati Part - New (to order)
                                                                                                                                                                      # 079
                                                                                                                                                                      MPN: 107/2 ME 59605
                                                                                                                                                                      MALE JOINT ON THE GENERATOR SHAFT
                                                                                                                                                                      Glunto maschio sull'alberino spinterogeno Genuine Maserati Part - New (to order)
                                                                                                                                                                      # 080
                                                                                                                                                                      MPN: 115 ME 67095
                                                                                                                                                                      GRUPPO COMPLETO ACCENS. ELETTRONICA CAPACITATIVA TP. BOSCH
                                                                                                                                                                      from £474.78
                                                                                                                                                                      from £474.78
                                                                                                                                                                      GRUPPO COMPLETO ASCENSLONE ELETTRONLCA CAPACITIVE TIPO BOSCH Genuine Maserati Part - New (to order)
                                                                                                                                                                      # 081
                                                                                                                                                                      MPN: 115 ME 67096
                                                                                                                                                                      BOBINA PER ACCENSIONE ELETTRONICA CAPACITATIVA TP. BOSCH
                                                                                                                                                                      BOBLNA PER ASCENSLONE ELETTRONLCA Genuine Maserati Part - New (to order)
                                                                                                                                                                      # 082
                                                                                                                                                                      MPN: 115 ME 67097
                                                                                                                                                                      Centralino accensione elettronica capacitativa Bosch
                                                                                                                                                                      Centralino accensione elettronica capacitativa Bosch Genuine Maserati Part - New (to order)
                                                                                                                                                                      # 083
                                                                                                                                                                      MPN: 107/2 ME 66754
                                                                                                                                                                      BUSH
                                                                                                                                                                      BUSH Genuine Maserati Part - New (to order)
                                                                                                                                                                      # 084
                                                                                                                                                                      MPN: 107/2 MM 67412
                                                                                                                                                                      Distributor control gear on the crankshaft
                                                                                                                                                                      Distributor control gear on the crankshaft Genuine Maserati Part - New (to order)
