maserati indy 4.2 air intake manifold and filter parts diagram

008 - air intake manifold and filter

Maserati Indy 4.2 Air intake manifold and filter Parts Diagram

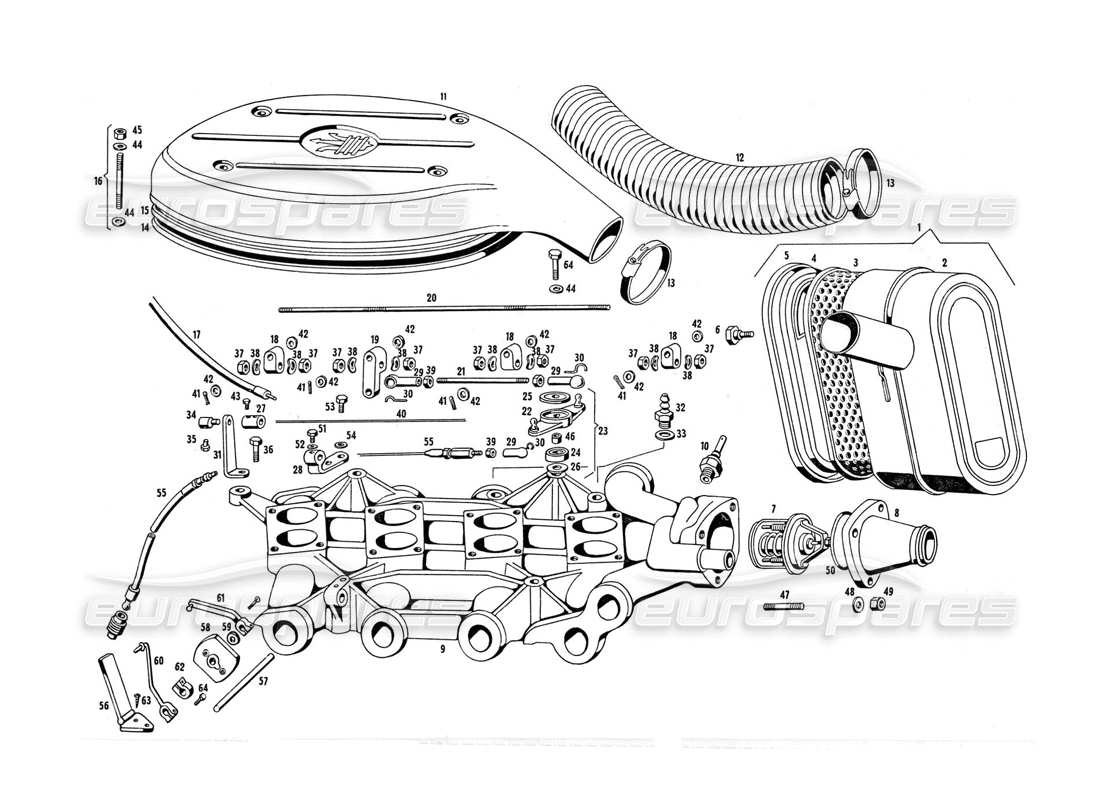

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
#
Part number
Description
Price
# 001
MPN: 115 MC 63566
FILTRO ARIA COMPLETO
# 002
MPN: non fornibile
AIR FILTER CONTAINER BOX
# 003
MPN: 115 MC 63567

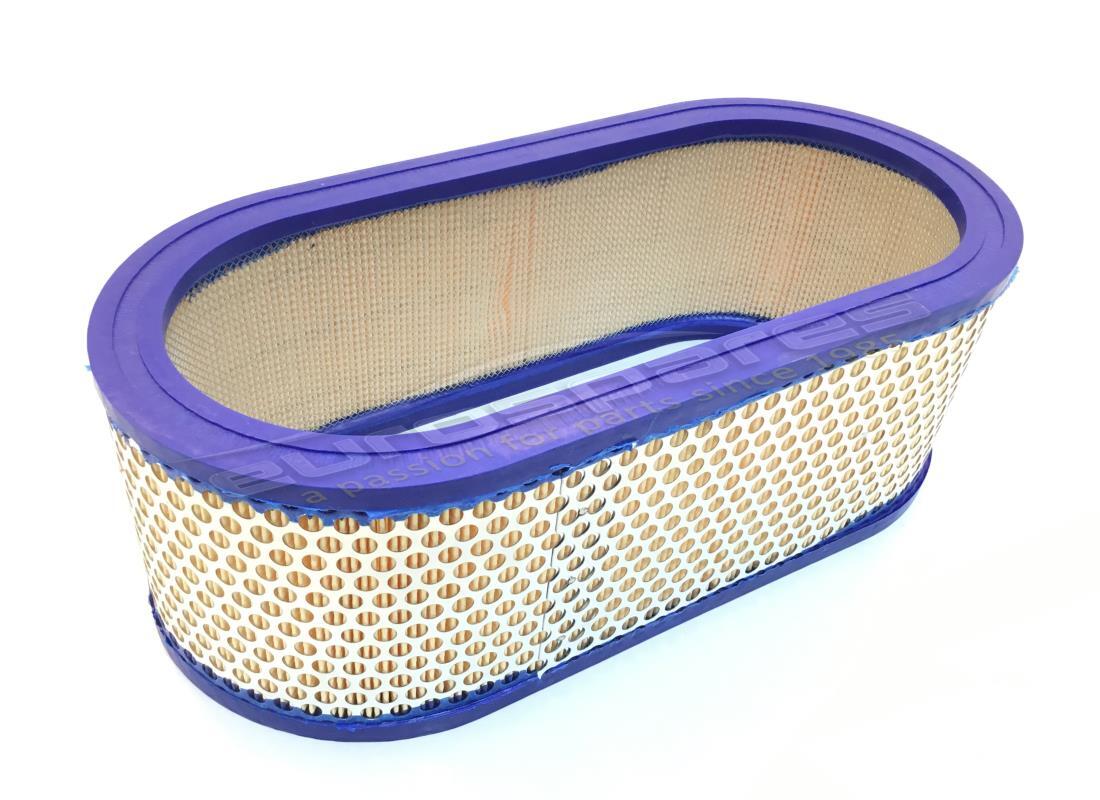

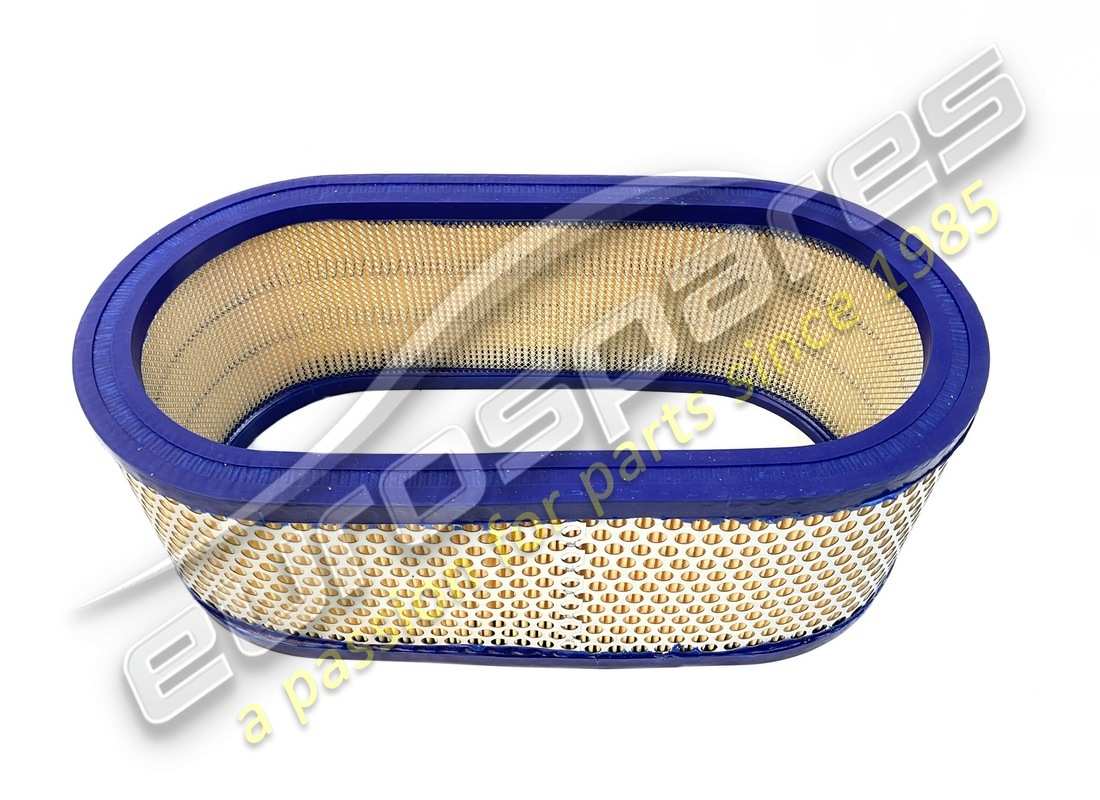

FILTER CARTRIDGE FOR AIR FILTER
from £92.72
from £92.72
# 004
MPN: PRN 66795
GASKET OR SEAL
# 006
MPN: 115 MC 66796
LIFE PER FILTER BOX
# 007
MPN: 107/3 MT 64544
TERMOSTATO
from £118.46
from £118.46
# 008
MPN: 107/3 MT 65801
COVER
# 009
MPN: 107/ MT 65778
Collettore d'aspirazione
# 009
MPN: 116 MT 116004
INTAKE MANIFOLD COMPLETE WITH STUDS
# 011
MPN: 107/3 MC 67538
COVER
# 012
MPN: 115 MC 65897
FLEXIBLE PIPE
# 013
MPN: FRN37835
FASCETTA Ø 70 X 89 PER DETTO
# 014
MPN: 115 MC 67288
PLATE ON CARBURETORS
# 015
MPN: 115 MC 67380
GASKET OR SEAL
# 016
MPN: 107/2 MC 67386
COLUMN ASSEMBLY FOR FIXING THE CARBURETTOR BOX COVER
# 017
MPN: C 114/1 MC 70808
CAVO COMANDO STARTER
# 018
MPN: C 114/1 MC 66897
LEVER ON CARBURETORS
# 019
MPN: C 114/1 MC 66911
LEVER ON THE REAR CARBURETORS
# 020

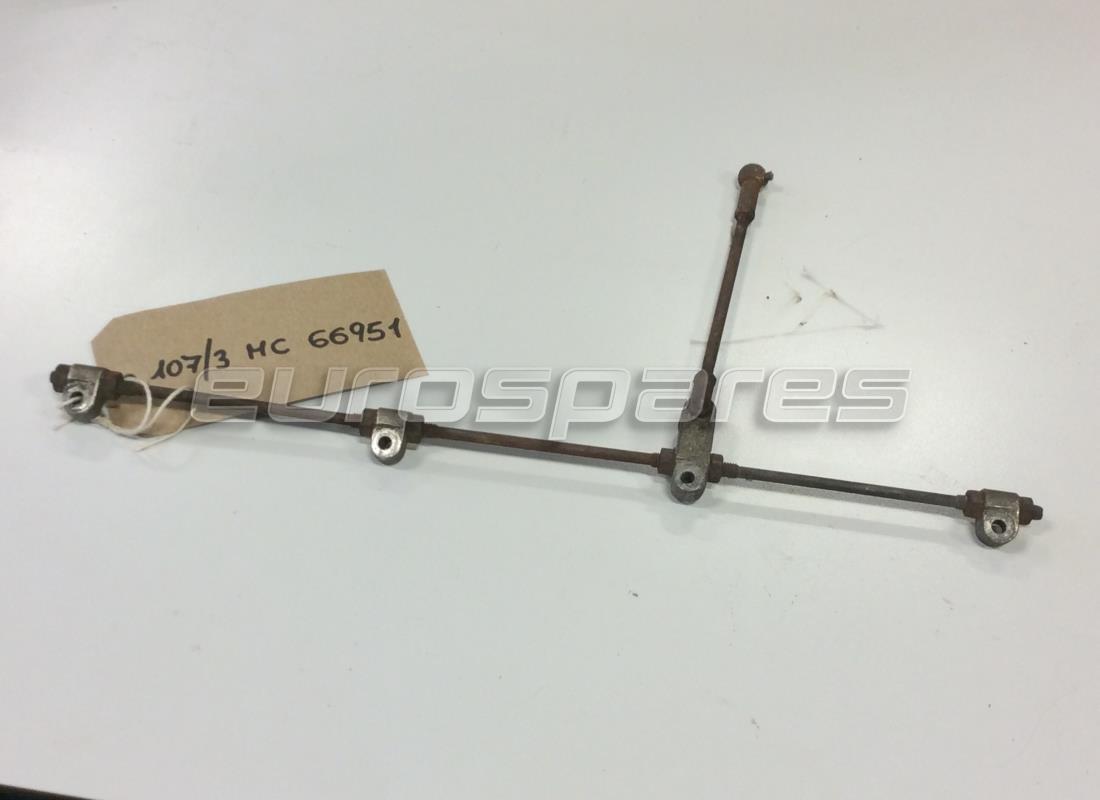

MPN: 107/3 MC 66951
TIE ROD
from £157.50
from £157.50
# 021
MPN: 107/3 MC 66952
TIE ROD
# 022
MPN: 107/3 MC 68623
CARBURETTOR CONTROL RETURN LEVER
# 023
MPN: 107/3 MC 68622
CARBURETTOR CONTROL RETURN LEVER COMPLETE
# 024
MPN: CSC 66910
BEARING FOR SAID
# 025
MPN: 107/3 MC 68615
RING
# 026
MPN: C 114/1 MC 66909
WASHER
# 027
MPN: 107/3 MC 63829
NIPLES PER CAVO COMANDO STARTER
# 028
MPN: 107/3 MC 68624
FERMO GUAINA COMANDO CARB. COMPLETO
# 029
MPN: C 114/1 MC 66896
CORPO PER SNODO ANGOLARE
# 030
MPN: C 114/1 MC 70908
FERMO PER SNODO ANGOLARE
# 031
MPN: 107/3 MC 68625
PLATE
# 032
MPN: RMN 55939
UNION
# 033
MPN: GN 46636
GASKET OR SEAL
# 034
MPN: NPL 48847
NIPLES Ø 6 X 1 X 19 SUL PIASTRINO FERMO GUAINA CORN. STARTER
# 037
MPN: DNT 47047
NUT
# 038
MPN: RAT 46579
WASHER
# 039
MPN: DNT 47046
NUT
This part replaces part number 47046
# 040
MPN: FGN 57260
FILO ACCIAIO Ø 1,2 PER COMANDO STARTER SUI CARBURATORI (LUNGHEZZA MM. 365)
# 041
MPN: CN 64833
COPIGLIA Ø 1,3 X 10 PER LEVA CARBURATORI
# 043
MPN: BNT 57325
BOLT
# 044
MPN: RNT 47074
WASHER
# 046
MPN: GRN 56859
GRAIN 10 X 8,25 X 6 BEARING AND BOLT CENTERING
Supersession
Supersession
# 048
MPN: RNT 6701,1
WASHER
# 049
MPN: DNT 47047
NUT
# 050
MPN: GOM 65802
RUBBER 80,5X83,5X1 UNDER IT THERMOSTAT RETAINING COVER
from £10.30
from £10.30
# 052
MPN: RNT 55379
WASHER
# 055
MPN: 107/3 MC 66554
COMPLETE CABLE FOR LH CARBURETTOR CONTROL
# 055
MPN: 116 FC 70687
CAVO COMPIETO COMANDO ACCELERATORE G.DEX
# 056
MPN: 107/2 MC 61253

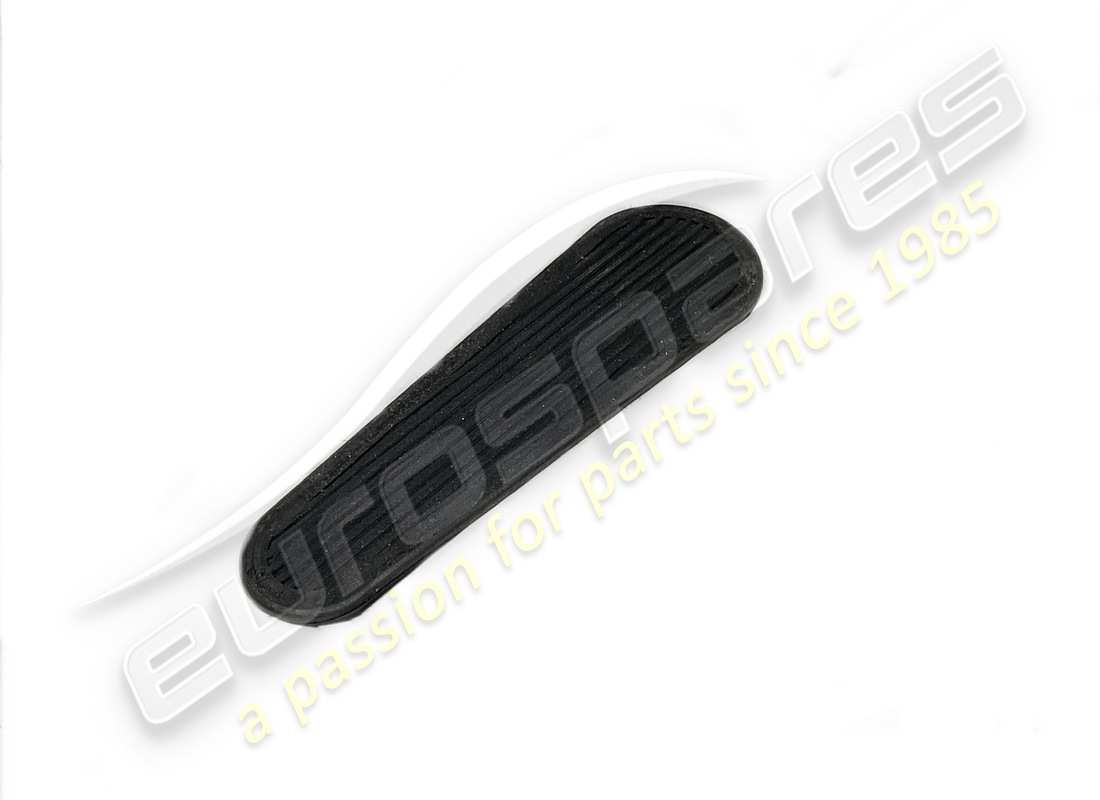

ACCELERATOR CONTROL PEDAL
# 056
MPN: 15300005
Accelerator pedal Rubber
from £19.43
from £19.43
# 057
MPN: 107/2 MC 60237
ACCELERATOR CONTROL SHAFT
# 058
MPN: 107/2 MC 60235
SUPPORT
# 059
MPN: 107/2 MC 60236
BUSH
# 060
MPN: 107/2 MC 60238
LEVER
# 061
MPN: 107/2 MC 61653
LEVER
# 062
MPN: 107/2 MC 57733
ACCELERATOR PEDAL RETAINER ASSEMBLY
# 063
MPN: VNT 61257
SCREW
