maserati indy 4.2 clutch parts diagram

010 - clutch

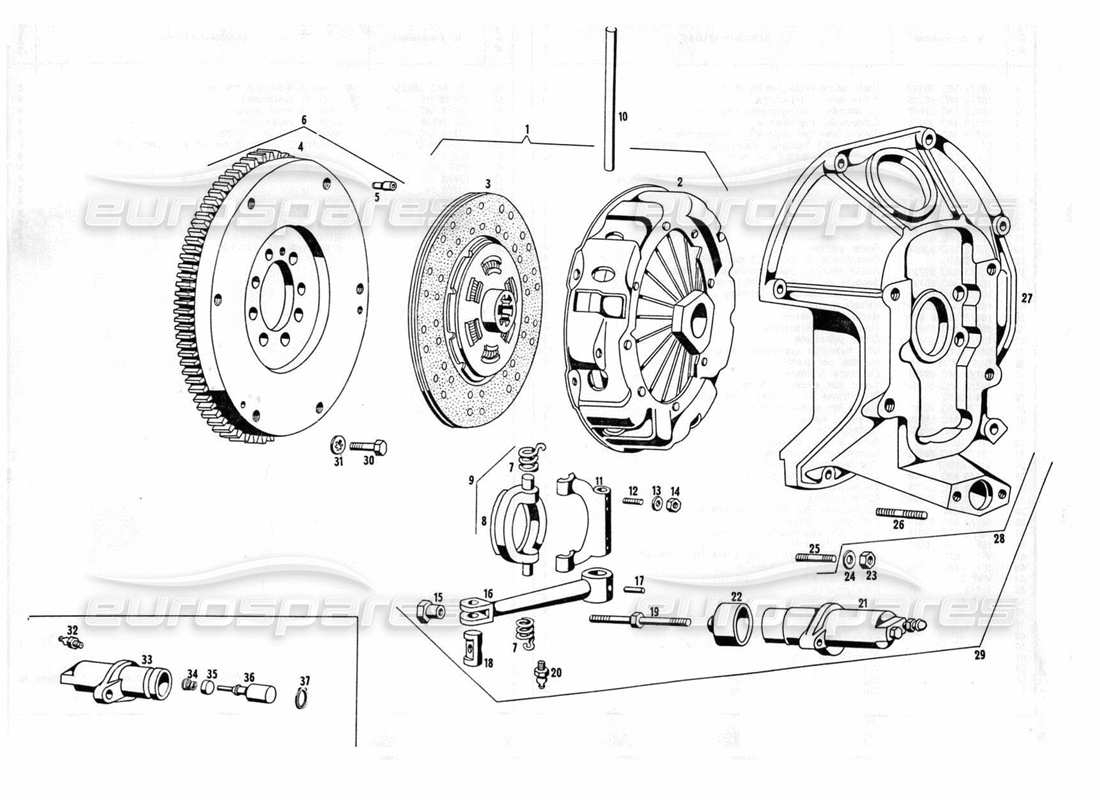

Maserati Indy 4.2 Clutch Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                                                                              #
                                                                              Part number
                                                                              Description
                                                                              Key
                                                                              Price
                                                                              # 001
                                                                              MPN: TF 62335
                                                                              CLUTCH KIT 10.½
                                                                              from £1,267.35
                                                                              from £1,267.35
                                                                              CLUTCH KIT 10.½ Genuine Maserati Part - New (to order)
                                                                              CLUTCH KIT 10.½ Original Equipment - New In stock
                                                                              # 002
                                                                              MPN: TF 67154
                                                                              PRESSURE PLATE 10.5
                                                                              PRESSURE PLATE 10.5 Genuine Maserati Part - New (to order)
                                                                              # 003
                                                                              MPN: TF 67819
                                                                              CLUTCH DISC 10.5''
                                                                              from £251.36
                                                                              from £251.36
                                                                              CLUTCH DISC 10.5'' Genuine Maserati Part - New (to order)
                                                                              CLUTCH DISC 10.5'' Eurospares Approved Part - New (to order)
                                                                              # 004
                                                                              MPN: 107/2 MM 65984
                                                                              ENGINE FLYWHEEL FOR CLUTCH
                                                                              ENGINE FLYWHEEL FOR CLUTCH Genuine Maserati Part - New (to order)
                                                                              # 005
                                                                              MPN: GRN 62551
                                                                              GRAIN 8 X 7 X 23 CLUTCH CENTERING ON THE FLYWHEEL
                                                                              Grub screw Ø 8 x 7 x 23 centering clutch on flywheel Genuine Maserati Part - New (to order)
                                                                              # 006
                                                                              MPN: 116 MM 116007
                                                                              ENGINE FLYWHEEL COMPLETE WITH GRIN
                                                                              ENGINE FLYWHEEL COMPLETE WITH GRIN Genuine Maserati Part - New (to order)
                                                                              # 007
                                                                              MPN: 101/4 TF 51171
                                                                              SPRING
                                                                              from £434.78
                                                                              from £434.78
                                                                              SPRING Genuine Maserati Part - New (to order)
                                                                              # 008
                                                                              MPN: TF 67032
                                                                              Clutch Bearing
                                                                              from £147.00
                                                                              from £147.00
                                                                              Clutch Bearing Genuine Maserati Part - New In stock
                                                                              # 009
                                                                              MPN: 107/A TF 68453
                                                                              SLIDE ASSEMBLY COMPLETE WITH SPRINGS
                                                                              SLIDE ASSEMBLY COMPLETE WITH SPRINGS Genuine Maserati Part - New (to order)
                                                                              # 010
                                                                              MPN: 101/9 TF 55547
                                                                              Clutch control fork shaft
                                                                              Clutch control fork shaft Genuine Maserati Part - New (to order)
                                                                              # 011
                                                                              MPN: 101 TF 48050
                                                                              LEVER
                                                                              LEVER Genuine Maserati Part - New (to order)
                                                                              # 012
                                                                              MPN: SN46652
                                                                              PIN
                                                                              from £26.10
                                                                              from £26.10
                                                                              Taper pin 5x27 holding fork lever on the shaft Genuine Maserati Part - New (to order)
                                                                              # 013
                                                                              MPN: RAT/45678
                                                                              WASHER
                                                                              from £0.86
                                                                              from £0.86
                                                                              This part replaces part number 45678
                                                                              WASHER Genuine Maserati Part - New (to order)
                                                                              # 014
                                                                              MPN: DNT 47046
                                                                              NUT
                                                                              from £0.86
                                                                              from £0.86
                                                                              This part replaces part number 47046
                                                                              Screw nut Genuine Maserati Part - New (to order)
                                                                              # 015
                                                                              MPN: DN/46474
                                                                              NUT
                                                                              from £27.39
                                                                              from £27.39
                                                                              NUT Genuine Maserati Part - New (to order)
                                                                              # 016
                                                                              MPN: 109 TF 57407
                                                                              LEVER
                                                                              from £185.22
                                                                              from £185.22
                                                                              LEVER Genuine Maserati Part - New (to order)
                                                                              # 017
                                                                              MPN: SN/46473
                                                                              PIN
                                                                              from £26.61
                                                                              from £26.61
                                                                              PIN Genuine Maserati Part - New (to order)
                                                                              # 018
                                                                              MPN: 101 TF 48111
                                                                              PIVOT
                                                                              PIVOT Genuine Maserati Part - New (to order)
                                                                              # 019
                                                                              MPN: 107/A TF 67379
                                                                              PUNTALINO COMANDO POMPA SECONDARIA
                                                                              PUNTALINO COMANDO POMPA SECONDARIA Genuine Maserati Part - New (to order)
                                                                              # 020
                                                                              MPN: IN 58389
                                                                              GREASE GREASE 12 X 1,5 ON THE FORK SHAFT
                                                                              from £10.44
                                                                              from £10.44
                                                                              Lubricator Genuine Maserati Part - New (to order)
                                                                              # 021
                                                                              MPN: TF 74201
                                                                              CLUTCH SLAVE CYLINDER
                                                                              from £131.25
                                                                              from £131.25
                                                                              This part replaces part number MT48335 - and 1 more. Click to view details
                                                                              CLUTCH SLAVE CYLINDER Genuine Maserati Part - New In stock
                                                                              # 021A
                                                                              MPN: TM 78201
                                                                              CLUTCH SLAVE CYLINDER REPAIR KIT
                                                                              from £41.95
                                                                              from £41.95
                                                                              CLUTCH SLAVE CYLINDER REPAIR KIT Genuine Maserati Part - New In stock
                                                                              # 022
                                                                              MPN: 101/9 - TF 58735
                                                                              CAPPUCCIO PARAPOLVERE SULLA POMPA
                                                                              Parapolvere sulla pompa frizione Genuine Maserati Part - New (to order)
                                                                              # 023
                                                                              MPN: DNT/47064
                                                                              NUT
                                                                              NUT Genuine Maserati Part - New (to order)
                                                                              # 024
                                                                              MPN: RAT/45680
                                                                              WASHER
                                                                              WASHER Genuine Maserati Part - New (to order)
                                                                              # 025
                                                                              MPN: PN/45832
                                                                              THREADED STUD
                                                                              THREADED STUD Genuine Maserati Part - New (to order)
                                                                              # 026
                                                                              MPN: PN 68975
                                                                              N/A
                                                                              N/A Genuine Maserati Part - New (to order)
                                                                              # 027
                                                                              MPN: 107/A TF 67033
                                                                              CLUTCH BELL SHIFT GEARBOX SUPPORT 5-20
                                                                              CLUTCH BELL SHIFT GEARBOX SUPPORT 5-20 Genuine Maserati Part - New (to order)
                                                                              # 027
                                                                              MPN: 115 TF 63403
                                                                              CLUTCH BELL SHIFT GEARBOX SUPPORT 5-325
                                                                              SUPPORT Genuine Maserati Part - New (to order)
                                                                              # 028
                                                                              MPN: 115 TF 115013
                                                                              CLUTCH BELL COMPLETE L. STUDS 5-325.
                                                                              CLUTCH BELL COMPLETE STUDS S.5-325 Genuine Maserati Part - New (to order)
                                                                              # 028
                                                                              MPN: 116 TF 116027
                                                                              CLUTCH BELL COMPLETE WITH STUDS S.5-20
                                                                              CLUTCH BELL COMPLETE WITH STUDS S.5-20 Genuine Maserati Part - New (to order)
                                                                              # 029
                                                                              MPN: 115 TF 115014
                                                                              L. CLUTCH BELL AND CONTROL ASSEMBLY 5-325
                                                                              L. CLUTCH BELL AND CONTROL ASSEMBLY 5-325 Genuine Maserati Part - New (to order)
                                                                              # 029
                                                                              MPN: 116 TF 1116028
                                                                              L. CLUTCH BELL AND CONTROL ASSEMBLY 5-20
                                                                              L. CLUTCH BELL AND CONTROL ASSEMBLY 5-20 Genuine Maserati Part - New (to order)
                                                                              # 030
                                                                              MPN: BNT. 65421
                                                                              BOLT
                                                                              BOLT Genuine Maserati Part - New (to order)
                                                                              # 033
                                                                              MPN: 101/9TF58731
                                                                              CORPO POMPA (COMPLETO DI BOCCOLA)
                                                                              Corpo pompa secondaria corn. frizione (con bussola) Genuine Maserati Part - New (to order)
                                                                              # 034
                                                                              MPN: 101/9 TF 58732
                                                                              SPRING
                                                                              SPRING Genuine Maserati Part - New (to order)
                                                                              # 035
                                                                              MPN: 101/9TF58733
                                                                              RUBBER ON THE SECONDARY CLUTCH PUMP PISTON
                                                                              Rubber for secondary clutch pump piston Genuine Maserati Part - New (to order)
                                                                              # 037
                                                                              MPN: ART 47043
                                                                              RING
                                                                              RING Genuine Maserati Part - New (to order)
