![maserati indy 4.2 transmission housing parts diagram](/img/CxEAAETdFtv3h5dmKUPOQARFtQzRKDTIdD7OpV8XmWg8KniEjS0DAw%3D%3D/maserati-indy-4.2-part-diagram-011.webp)

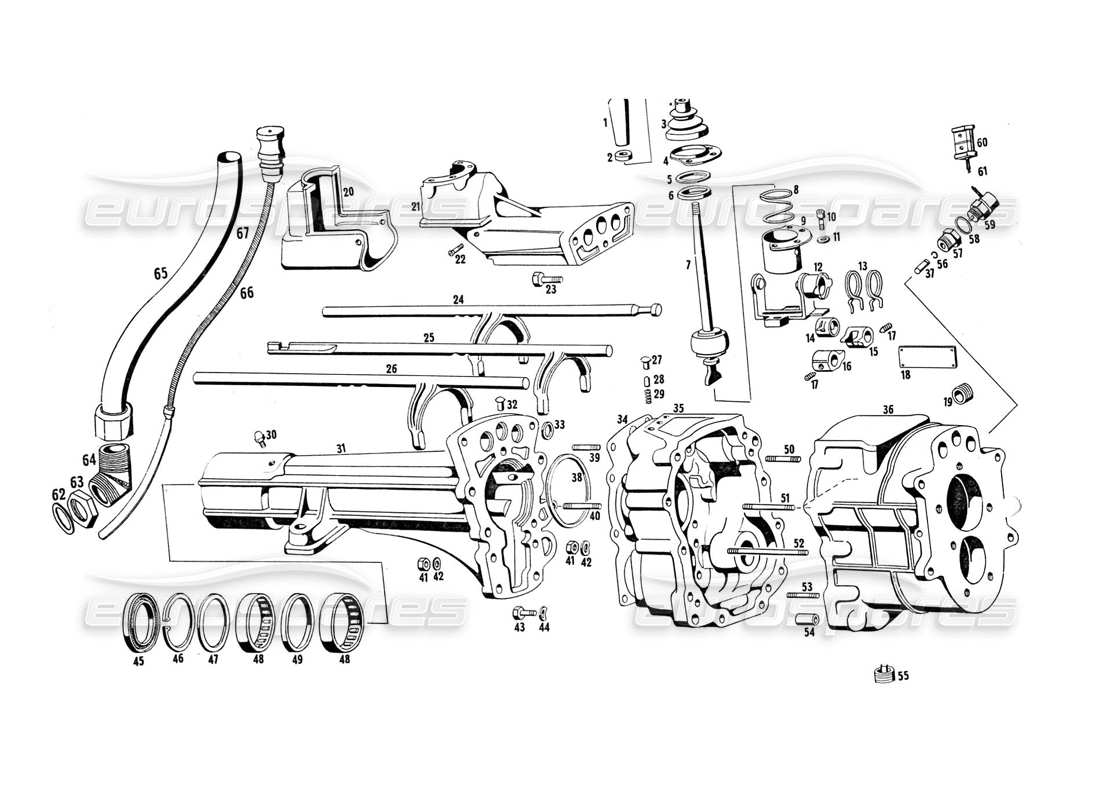

011 - Transmission Housing
Maserati Indy 4.2 Transmission housing Parts Diagram
View the exploded parts diagram to find the part you are looking for
- You can reposition the diagram by dragging it
- You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
- You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
- You can click on a hotspot
in the parts diagram to locate the part in the table
- You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
# 000
MPN: 107/A TC 72441
COVER
Details added regarding front oil seal cover
# 000
MPN: 107/A TC 72442
GASKET OR SEAL
Details added regarding front oil seal cover
# 000
MPN: ANT 66703
SEALING RING
Details added regarding front oil seal cover
# 001
MPN: 115 TC 66653
Pomello per leva comando cambio
# 002
MPN: 107 - TC 57867
LOCK NUT FOR GEAR GEAR LEVER KNOB
# 003
MPN: 101/9 TC 60562
BELLOWS DUST COVER ON THE GEARBOX LEVER
# 004
MPN: 107 - TC 60868
FLANGIA RITEGNO PARAPOLVERE
# 005
MPN: 107 - TC 60869
WASHER
# 006
MPN: 107 - TC 60870
WASHER
# 007
MPN: 107 - TC 60871
LEVER
# 008
MPN: 107 - TC 60872
SPRING
# 009
MPN: 107 - TC 60873
BUSH
# 010
MPN: VNT 61402
SCREW
# 011
MPN: RNT 45679
WASHER
# 012
MPN: 107 - TC 60874
SUPPORT
# 013
MPN: 107 TC 60875
SPRING
# 014
MPN: 107 - TC 60876
Pawl for control rod 5ª and reverse gear
# 015
MPN: 107 TC 60877
Nottolino per asta comando 3ª e 4ª velocity
# 016
MPN: 107 - TC 60878
Nottolino per asta comando 1ª e 2ª velocity
# 017
MPN: 101/9 - TC 60555
GRAIN FOR FIXING PAWLS TO THE RODS
# 018
MPN: 107 TC 60879
IDENTIFICATION PLATE GEAR N.
# 019
MPN: 107 - TC 60890
SIDE OIL INTRODUCTION CAP
# 020
MPN: 107 - TC 60880
COVER
# 021
MPN: 107 TC 60881
SUPPORT
# 022
MPN: VNT 60788
SCREW
# 023
MPN: BNT 46184
BOLT
# 024
MPN: 107 TC 60882
Asta comando 5ª e retromarcia
# 025
MPN: 107 TC 60883
Asta comando 3ª e 4ª velocità
# 026
MPN: 107 - TC 60884
Asta comando 1ª e 2ª velocità
# 027
MPN: 107 - TC 60885
GEAR CONTROL RODS SEALING CAP
# 028
MPN: 107 - TC 60886
ANCHOR FOR CONTROL RODS
# 029
MPN: 107 TC 60887
SPRING
# 030
MPN: 107 TC 60888
VENT ON THE BOX REAR COVER
# 031
MPN: 107 TC 60889
COVER
# 032
MPN: 107 TC 60891
RUBBER CAP ON REAR COVER
# 033
MPN: ANT 60921
SEALING RING
# 034
MPN: 107 TC 60892
GASKET OR SEAL
Supersession
Supersession
# 035
MPN: 107 TC 60893
INTERMEDIATE GEARBOX BODY
# 036
MPN: 107 - TC 60894
SCATOLA CAMBIO
# 037
MPN: 107 TC 60895
MOBILE CRASH FOR REVERSE SWITCH
# 038
MPN: 107 - TC 60896
RING
# 039
MPN: PN 32066
THREADED STUD
# 040
MPN: PN 35631
THREADED STUD
# 041
MPN: DNT 47030
NUT
# 042
MPN: RNT45680
WASHER
# 044
MPN: RNT 45678
WASHER
# 045
MPN: ANT 60922
SEALING RING
# 046
MPN: ART 46754
RING
# 047
MPN: 107 - TC 60897
RING
# 048
MPN: CSC 60923
Cylindrical roller bearing Ø 42 X 62 X 14 for sliding sleeve
# 049
MPN: 107 TC 60898
SPACER FOR BEARINGS ON THE REAR COVER
# 050
MPN: PN 56066
THREADED STUD
# 051
MPN: PN 57237
THREADED STUD
# 052
MPN: PN 43287
THREADED STUD
# 053
MPN: PN 45956
THREADED STUD
# 054
MPN: GRN 51124
CENTERING GRIN Ø 12 X 22 ON THE BOX
# 055
MPN: 107TC58907
TAPPO SCARICO OLIO
# 056
MPN: ART 57614
RING
# 057
MPN: 107 - TC 58105
UNION
# 058
MPN: GN 61700
GASKET OR SEAL
# 059
MPN: 107 TC 60739
SWITCH FOR REVERSE LIGHT LIGHTING
# 060
MPN: 107 TC 60740
REVERSE SWITCH CONNECTION JOINT
# 061
MPN: 107 - TC 60741
SWITCH COMPLETE WITH JOINT AND CABLE
# 062
MPN: GN48059
GASKET OR SEAL
# 063
MPN: DN 62362
NUT
# 064
MPN: 109 - TC 62355
UNION
# 065
MPN: 109 TC 62939
DUCT FOR OIL LEVEL DIPSTICK
# 066
MPN: 109 TC 62377
ASTA LIVELLO OLIO
# 067
MPN: 109 TC 62376
OIL LINE AND DIPSTICK ASSEMBLY
