maserati indy 4.2 transmission gears parts diagram

012 - Transmission Gears

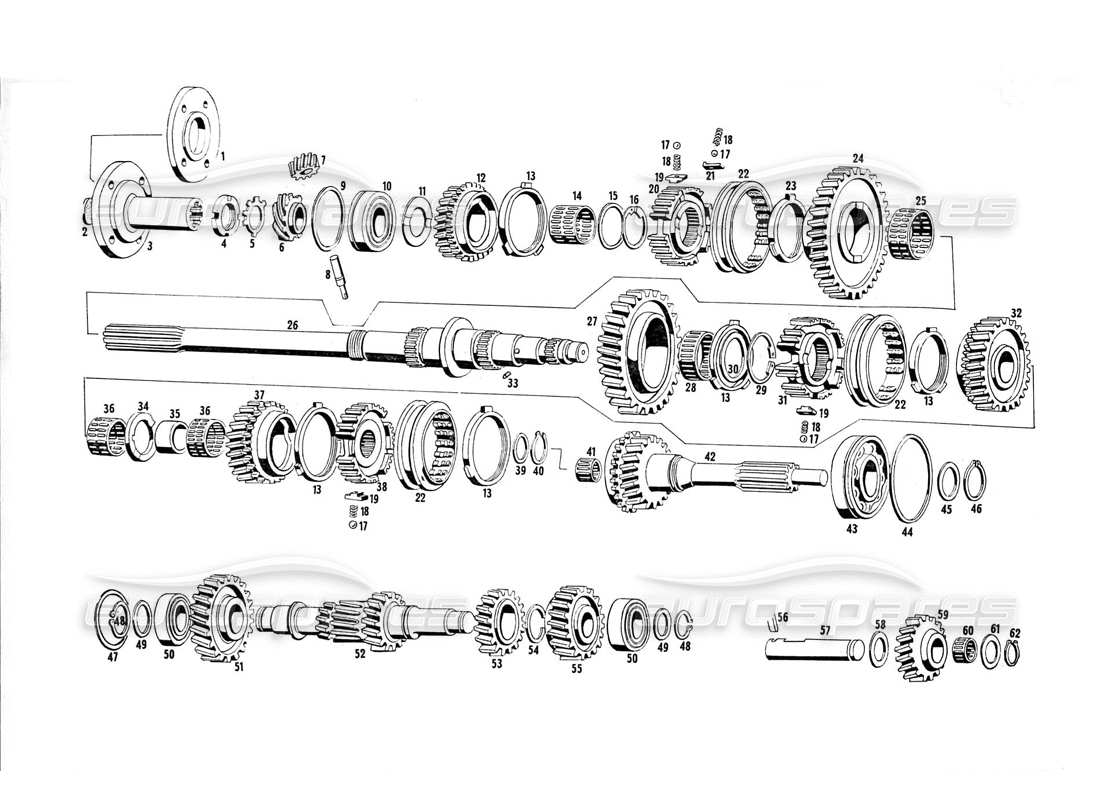

Maserati Indy 4.2 Transmission gears Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                                                                                                                              #
                                                                                                                              Part number
                                                                                                                              Description
                                                                                                                              Key
                                                                                                                              Price
                                                                                                                              # 000
                                                                                                                              MPN: 107 TC 60000
                                                                                                                              BUSH
                                                                                                                              Details added
                                                                                                                              BUSH Genuine Maserati Part - New (to order)
                                                                                                                              # 001
                                                                                                                              MPN: 101/5 - 9549 51243
                                                                                                                              SPACER FLANGE BETWEEN GEARBOX AND DRIVE SHAFT
                                                                                                                              SPACER FLANGE BETWEEN GEARBOX AND DRIVE SHAFT Genuine Maserati Part - New (to order)
                                                                                                                              # 002
                                                                                                                              MPN: TN 38309
                                                                                                                              CAP ON SLIDING SLEEVE FLANGE
                                                                                                                              from £121.74
                                                                                                                              from £121.74
                                                                                                                              CAP ON SLIDING SLEEVE FLANGE Genuine Maserati Part - New (to order)
                                                                                                                              # 003
                                                                                                                              MPN: 107 TC 60946
                                                                                                                              SLIDING SLEEVE FLANGE
                                                                                                                              from £1,495.66
                                                                                                                              from £1,495.66
                                                                                                                              SLIDING SLEEVE FLANGE Genuine Maserati Part - New (to order)
                                                                                                                              # 004
                                                                                                                              MPN: GH 42628
                                                                                                                              Ghiera Ø 35 X 1,5 X 8 sull'albero primario
                                                                                                                              Ghiera Ø 35 X 1,5 X 8 sull'albero primario Genuine Maserati Part - New (to order)
                                                                                                                              # 005
                                                                                                                              MPN: RDL 49574
                                                                                                                              WASHER
                                                                                                                              WASHER Genuine Maserati Part - New (to order)
                                                                                                                              # 006
                                                                                                                              MPN: 101/10 TC 61987
                                                                                                                              PRIMARY GEAR COUNTS KM. Z.9 WITH BRIDGE R. 13/49
                                                                                                                              PRIMARY GEAR COUNTS KM. Z.9 WITH BRIDGE R. 13/49 Genuine Maserati Part - New (to order)
                                                                                                                              # 006
                                                                                                                              MPN: 197 TC 60947
                                                                                                                              PRIMARY GEAR COUNTS KM. Z.9 WITH BRIDGE R. 13/46
                                                                                                                              PRIMARY GEAR COUNTS KM. Z.9 WITH BRIDGE R. 13/46 Genuine Maserati Part - New (to order)
                                                                                                                              # 007
                                                                                                                              MPN: 101/10 TC 61988
                                                                                                                              SECONDARY GEAR COUNTS KM. Z.16 WITH BRIDGE R. 13/49
                                                                                                                              SECONDARY GEAR COUNTS KM. Z.16 WITH BRIDGE R. 13/49 Genuine Maserati Part - New (to order)
                                                                                                                              # 007
                                                                                                                              MPN: 107 TC 60948
                                                                                                                              SECONDARY GEAR COUNTS KM. Z.15 WITH BRIDGE R. 13/46
                                                                                                                              SECONDARY GEAR COUNTS KM. Z.15 WITH BRIDGE R. 13/46 Genuine Maserati Part - New (to order)
                                                                                                                              # 008
                                                                                                                              MPN: 107 TC 60949
                                                                                                                              SHAFT WITH SHEATH FITTING COUNTS KM.
                                                                                                                              SHAFT WITH SHEATH FITTING COUNTS KM. Genuine Maserati Part - New (to order)
                                                                                                                              # 009
                                                                                                                              MPN: 101/9 TC 60789
                                                                                                                              RING
                                                                                                                              RING Genuine Maserati Part - New (to order)
                                                                                                                              # 010
                                                                                                                              MPN: CSC 55093
                                                                                                                              Cuscinetto a sfere Ø 80 X 35 X 21
                                                                                                                              Cuscinetto a sfere Ø 80 X 35 X 21 Genuine Maserati Part - New (to order)
                                                                                                                              # 011
                                                                                                                              MPN: 107 - TC 60950
                                                                                                                              Distanziale per ingranaggio 5ª
                                                                                                                              Distanziale per ingranaggio 5ª Genuine Maserati Part - New (to order)
                                                                                                                              # 012
                                                                                                                              MPN: 107 TC 60951
                                                                                                                              Ingranaggio primario 5ª velocita Z.27
                                                                                                                              Ingranaggio primario 5ª velocita Z.27 Genuine Maserati Part - New (to order)
                                                                                                                              # 013
                                                                                                                              MPN: 107 TC 60952
                                                                                                                              RING
                                                                                                                              RING Genuine Maserati Part - New (to order)
                                                                                                                              # 014
                                                                                                                              MPN: 107 TC 60989
                                                                                                                              BUSH
                                                                                                                              BUSH Genuine Maserati Part - New (to order)
                                                                                                                              # 015
                                                                                                                              MPN: 107 TC 60953
                                                                                                                              WASHER
                                                                                                                              WASHER Genuine Maserati Part - New (to order)
                                                                                                                              # 016
                                                                                                                              MPN: 107 TC 71991
                                                                                                                              RING
                                                                                                                              RING Genuine Maserati Part - New (to order)
                                                                                                                              # 017
                                                                                                                              MPN: SFN 60770
                                                                                                                              SFERA Ø 5,5 PER SINCRONIZZATORI
                                                                                                                              Synchronizer balls Genuine Maserati Part - New (to order)
                                                                                                                              # 018
                                                                                                                              MPN: 107 TC 60954
                                                                                                                              SPRING
                                                                                                                              SPRING Genuine Maserati Part - New (to order)
                                                                                                                              # 019
                                                                                                                              MPN: 107 TC 60955
                                                                                                                              PLUG FOR SYNCHRONIZERS
                                                                                                                              PLUG FOR SYNCHRONIZERS Genuine Maserati Part - New (to order)
                                                                                                                              # 020
                                                                                                                              MPN: 107 - TC 60956
                                                                                                                              HUB FOR SYNCHRONIZER SLEEVE 5ª E R.
                                                                                                                              Synchronizer sleeve hub 5ª and R Genuine Maserati Part - New (to order)
                                                                                                                              # 021
                                                                                                                              MPN: 107 - TC 60957
                                                                                                                              SYNCHRONIZER MATCHING PLATE 5th AND R. ONLY FOR R. GEARBOXES 1th SOLUTION
                                                                                                                              Synchronizer gauge block 5ª and R Genuine Maserati Part - New (to order)
                                                                                                                              # 022
                                                                                                                              MPN: 107 TC 60958
                                                                                                                              Manicotto sincronizzatore 1ª-2ª - 3ª-4ª - 5ª R.
                                                                                                                              MANICOTTO SINCRONIZZATORE 1ª-2ª - 3ª-4ª - 5ª R Genuine Maserati Part - New (to order)
                                                                                                                              # 023
                                                                                                                              MPN: 107 - TC 60959
                                                                                                                              RING
                                                                                                                              from £386.08
                                                                                                                              from £386.08
                                                                                                                              RING Genuine Maserati Part - New (to order)
                                                                                                                              # 024
                                                                                                                              MPN: 107 - TC 60960
                                                                                                                              PRIMARY GEAR FOR RZ33 .
                                                                                                                              Primary gear for RZ33 Genuine Maserati Part - New (to order)
                                                                                                                              # 025
                                                                                                                              MPN: 107 TC 60990
                                                                                                                              BUSH
                                                                                                                              BUSH Genuine Maserati Part - New (to order)
                                                                                                                              # 026
                                                                                                                              MPN: 107 TC 60961
                                                                                                                              ALBERO PRIMARIO
                                                                                                                              ALBERO PRIMARIO Genuine Maserati Part - New (to order)
                                                                                                                              # 027
                                                                                                                              MPN: 107 - TC 60962
                                                                                                                              INGRANAGGIO PRIMARIO 1ª VELOCITÀ Z.31
                                                                                                                              Ingranaggio primario 1ª velocita Z.31 Genuine Maserati Part - New (to order)
                                                                                                                              # 028
                                                                                                                              MPN: 107 - TC 60991
                                                                                                                              BUSH
                                                                                                                              BUSH Genuine Maserati Part - New (to order)
                                                                                                                              # 029
                                                                                                                              MPN: 107 TC 71995
                                                                                                                              RING
                                                                                                                              RING Genuine Maserati Part - New (to order)
                                                                                                                              # 030
                                                                                                                              MPN: 107 - TC 60963
                                                                                                                              WASHER
                                                                                                                              WASHER Genuine Maserati Part - New (to order)
                                                                                                                              # 031
                                                                                                                              MPN: 107 TC 60964
                                                                                                                              Mozzo per manicotto sincronizzatore 1ª e 2ª
                                                                                                                              Mozzo per manicotto sincronizzatore 1ª e 2ª Genuine Maserati Part - New (to order)
                                                                                                                              # 032
                                                                                                                              MPN: 107 - TC 60965
                                                                                                                              Ingranaggio primario 2ª velocita Z.38
                                                                                                                              Ingranaggio primario 2ª velocita Z.38 Genuine Maserati Part - New (to order)
                                                                                                                              # 033
                                                                                                                              MPN: GRN 45859
                                                                                                                              Locking screw on the main shaft
                                                                                                                              Locking screw on the main shaft Genuine Maserati Part - New (to order)
                                                                                                                              # 034
                                                                                                                              MPN: 107 - TC 60966
                                                                                                                              DISTANZIALE INGRANAGGIO 2ª VELOCITÀ
                                                                                                                              Distanziale ingranaggio 2ª velocita Genuine Maserati Part - New (to order)
                                                                                                                              # 035
                                                                                                                              MPN: 107 TC 60967
                                                                                                                              BUSH
                                                                                                                              BUSH Genuine Maserati Part - New (to order)
                                                                                                                              # 036
                                                                                                                              MPN: 107 TC 60992
                                                                                                                              BUSH
                                                                                                                              BUSH Genuine Maserati Part - New (to order)
                                                                                                                              # 037
                                                                                                                              MPN: 107 TC 60968
                                                                                                                              Ingranaggio primario 3ª velocita Z.33
                                                                                                                              Ingranaggio primario 3ª velocita Z.33 Genuine Maserati Part - New (to order)
                                                                                                                              # 038
                                                                                                                              MPN: 107 - TC 60969
                                                                                                                              Mozzo per manicotto sincronizzatore 3ª e 4ª
                                                                                                                              Mozzo per manicotto sincronizzatore 3ª e 4ª Genuine Maserati Part - New (to order)
                                                                                                                              # 039
                                                                                                                              MPN: 107 - TC 60970
                                                                                                                              WASHER
                                                                                                                              WASHER Genuine Maserati Part - New (to order)
                                                                                                                              # 040
                                                                                                                              MPN: ART 58451
                                                                                                                              RING
                                                                                                                              RING Genuine Maserati Part - New (to order)
                                                                                                                              # 041
                                                                                                                              MPN: GRL 67679
                                                                                                                              BUSH
                                                                                                                              BUSH Genuine Maserati Part - New (to order)
                                                                                                                              # 042
                                                                                                                              MPN: 107 TC 60971/1
                                                                                                                              Albero sempre in presa con ingranaggio 4' velocita Z.30
                                                                                                                              Albero sempre in presa con ingranaggio 4' velocita Z.30 Genuine Maserati Part - New (to order)
                                                                                                                              # 043
                                                                                                                              MPN: CSC 60779
                                                                                                                              BALL BEARING Ø 80X35X21 ON THE SHAFT ALWAYS ENGAGED
                                                                                                                              Ball bearing on the main shaft Genuine Maserati Part - New (to order)
                                                                                                                              # 044
                                                                                                                              MPN: 101/9 TC 60789
                                                                                                                              RING
                                                                                                                              RING Genuine Maserati Part - New (to order)
                                                                                                                              # 045
                                                                                                                              MPN: 107 TC 60972
                                                                                                                              RING
                                                                                                                              RING Genuine Maserati Part - New (to order)
                                                                                                                              # 046
                                                                                                                              MPN: ART. 58972
                                                                                                                              RING
                                                                                                                              RING Genuine Maserati Part - New (to order)
                                                                                                                              # 047
                                                                                                                              MPN: 107 - TC 60973
                                                                                                                              WASHER
                                                                                                                              WASHER Genuine Maserati Part - New (to order)
                                                                                                                              # 048
                                                                                                                              MPN: ART. 53117
                                                                                                                              RING
                                                                                                                              RING Genuine Maserati Part - New (to order)
                                                                                                                              # 049
                                                                                                                              MPN: 107 TC 60974
                                                                                                                              WASHER
                                                                                                                              WASHER Genuine Maserati Part - New (to order)
                                                                                                                              # 050
                                                                                                                              MPN: CSC 60212
                                                                                                                              Tapered roller bearing Ø 31,75X 59,15 X15,85 on the secondary shaft
                                                                                                                              Tapered roller bearing Ø 31,75X 59,15 X15,85 on the secondary shaft Genuine Maserati Part - New (to order)
                                                                                                                              # 051
                                                                                                                              MPN: 107 TC 60975
                                                                                                                              Ingranaggio secondario 5ª velocità Z.37
                                                                                                                              Ingranaggio secondario 5ª velocità Z.37 Genuine Maserati Part - New (to order)
                                                                                                                              # 052
                                                                                                                              MPN: 107 TC 60976
                                                                                                                              Albero secondario con ingranaggio 1ª Z.12 e 2ª Z.26
                                                                                                                              Albero secondario con ingranaggio 1ª Z.12 e 2ª Z.26 Genuine Maserati Part - New (to order)
                                                                                                                              # 053
                                                                                                                              MPN: 107 TC 60977
                                                                                                                              Ingranaggio secondario 3ª velocità Z.31
                                                                                                                              Ingranaggio secondario 3ª velocità Z.31 Genuine Maserati Part - New (to order)
                                                                                                                              # 054
                                                                                                                              MPN: 107 TC 60978
                                                                                                                              RING
                                                                                                                              RING Genuine Maserati Part - New (to order)
                                                                                                                              # 055
                                                                                                                              MPN: 107 - TC 60979
                                                                                                                              Ingranaggio secondario 4ª velocità Z.35
                                                                                                                              Ingranaggio secondario 4ª velocita Z.35 Genuine Maserati Part - New (to order)
                                                                                                                              # 056
                                                                                                                              MPN: 107 - TC 60980
                                                                                                                              PLUG ON THE SECONDARY GEAR SHAFT
                                                                                                                              Anchor on secondary gear shaft R Genuine Maserati Part - New (to order)
                                                                                                                              # 057
                                                                                                                              MPN: 107 TC 60981
                                                                                                                              SHAFT FOR SECONDARY GEAR R.
                                                                                                                              SHAFT FOR SECONDARY GEAR R. Genuine Maserati Part - New (to order)
                                                                                                                              # 058
                                                                                                                              MPN: 107 TC 60982
                                                                                                                              WASHER
                                                                                                                              WASHER Genuine Maserati Part - New (to order)
                                                                                                                              # 059
                                                                                                                              MPN: 107 - TC 60983
                                                                                                                              SECONDARY REVERSE GEAR Z.21
                                                                                                                              SECONDARY REVERSE GEAR Z.21 Genuine Maserati Part - New (to order)
                                                                                                                              # 061
                                                                                                                              MPN: 101/9 TC 60760
                                                                                                                              WASHER
                                                                                                                              WASHER Genuine Maserati Part - New (to order)
                                                                                                                              # 062
                                                                                                                              MPN: ART 53993
                                                                                                                              RING
                                                                                                                              RING Genuine Maserati Part - New (to order)
