maserati indy 4.2 transmission control parts diagram

013 - transmission control

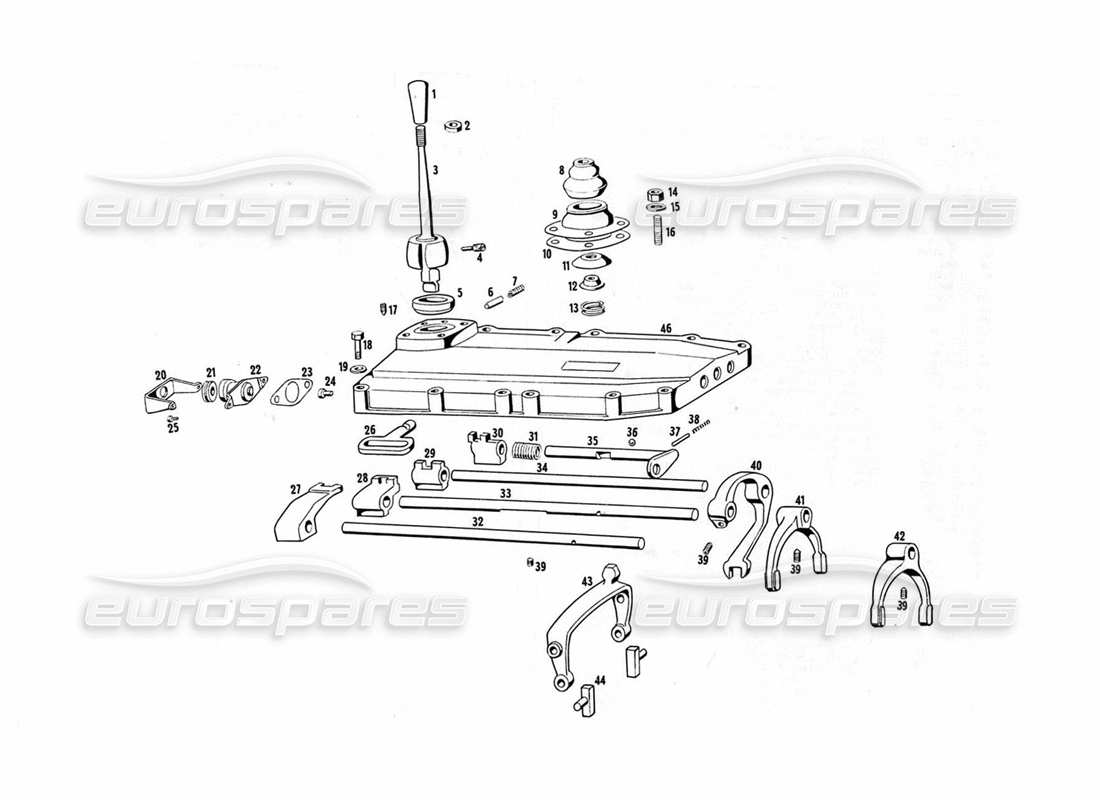

Maserati Indy 4.2 Transmission control Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                                                                                            #
                                                                                            Part number
                                                                                            Description
                                                                                            Key
                                                                                            Price
                                                                                            # 000
                                                                                            MPN: GOMM 42229
                                                                                            Gommino sulla leva cambio Ø 11X16X2,5
                                                                                            Details without numbers at the bottom of the illustrative table
                                                                                            Gommino sulla leva cambio Ø 11X16X2,5 Genuine Maserati Part - New (to order)
                                                                                            # 001
                                                                                            MPN: 115 TC 66653
                                                                                            POMELLO PER IEVA COMANDO CAMBIO
                                                                                            Pomello per leva comando cambio Genuine Maserati Part - New (to order)
                                                                                            # 002
                                                                                            MPN: 107 - TC 57867
                                                                                            CONTRODADO PER POMELLO
                                                                                            LOCK NUT FOR GEAR GEAR LEVER KNOB Genuine Maserati Part - New (to order)
                                                                                            # 003
                                                                                            MPN: 115 TC 66449/1
                                                                                            LAVA COMANDO CAMBIO
                                                                                            LAVA COMANDO CAMBIO Genuine Maserati Part - New (to order)
                                                                                            # 004
                                                                                            MPN: 107 TC 59020
                                                                                            PIN
                                                                                            PIN Genuine Maserati Part - New (to order)
                                                                                            # 005
                                                                                            MPN: 107 TC 58838
                                                                                            LOWER HEMISPHERE
                                                                                            LOWER HEMISPHERE Genuine Maserati Part - New (to order)
                                                                                            # 006
                                                                                            MPN: 107TC58839
                                                                                            GRIN FOR PAWL TO HOLD LEVER IN NEUTRAL
                                                                                            GRIN FOR PAWL TO HOLD LEVER IN NEUTRAL Genuine Maserati Part - New (to order)
                                                                                            # 008
                                                                                            MPN: 107 TC 58841
                                                                                            PARAPOLVERE PER LEVA COMANDO
                                                                                            Parapolvere per levy comando Genuine Maserati Part - New (to order)
                                                                                            # 009
                                                                                            MPN: 107TC58842
                                                                                            FLANGIA TENUTA PARAPOLVERE
                                                                                            FLANGIA TENUTA PARAPOLVERE Genuine Maserati Part - New (to order)
                                                                                            # 010
                                                                                            MPN: 107 TC 58843
                                                                                            GASKET OR SEAL
                                                                                            GASKET OR SEAL Genuine Maserati Part - New (to order)
                                                                                            # 011
                                                                                            MPN: 107 TC 58844
                                                                                            CONTROL LEVER SPRING SEAL CAP
                                                                                            CONTROL LEVER SPRING SEAL CAP Genuine Maserati Part - New (to order)
                                                                                            # 012
                                                                                            MPN: 107 TC 58845
                                                                                            DISC FOR CONTROL LEVER SPRING
                                                                                            DISC FOR CONTROL LEVER SPRING Genuine Maserati Part - New (to order)
                                                                                            # 013
                                                                                            MPN: 107 TC 58846
                                                                                            SPRING
                                                                                            SPRING Genuine Maserati Part - New (to order)
                                                                                            # 014
                                                                                            MPN: DNT. 47031
                                                                                            NUT
                                                                                            NUT Genuine Maserati Part - New (to order)
                                                                                            # 017
                                                                                            MPN: 107TC58847
                                                                                            LOCK PIN ON THE LEVER
                                                                                            Grano di fermo sulla levy Genuine Maserati Part - New (to order)
                                                                                            # 018
                                                                                            MPN: BNT/47014
                                                                                            BOLT
                                                                                            BOLT Genuine Maserati Part - New (to order)
                                                                                            # 020
                                                                                            MPN: 101/7TC54522
                                                                                            LAMIERINO TENUTA PASSAFILO INTERRUTTORE RETROMARCIA
                                                                                            LAMIERINO TENUTA PASSAFILO INTERRUTTORE RETROMARCIA Genuine Maserati Part - New (to order)
                                                                                            # 022
                                                                                            MPN: 8828 49536
                                                                                            INTERRUTTORE RETROMARCIA
                                                                                            INTERRUTTORE RETROMARCIA Genuine Maserati Part - New (to order)
                                                                                            # 023
                                                                                            MPN: 107 TC 58848
                                                                                            GASKET OR SEAL
                                                                                            GASKET OR SEAL Genuine Maserati Part - New (to order)
                                                                                            # 024
                                                                                            MPN: 107 TC 56542
                                                                                            EXTENSION FOR SWITCH CONTROL
                                                                                            EXTENSION FOR SWITCH CONTROL Genuine Maserati Part - New (to order)
                                                                                            # 026
                                                                                            MPN: 107TC58849
                                                                                            PAWL FOR GEARBOX CONTROL LEVER
                                                                                            PAWL FOR GEARBOX CONTROL LEVER Genuine Maserati Part - New (to order)
                                                                                            # 027
                                                                                            MPN: 107 TC 58850
                                                                                            NOTTOLINO PER 5ª VELOCITA
                                                                                            Nottolino per 5ª velocity Genuine Maserati Part - New (to order)
                                                                                            # 028
                                                                                            MPN: 107 TC 58851
                                                                                            Nottolino per 3ª - 4ª velocità
                                                                                            Nottolino per 3ª - 4ª velocity Genuine Maserati Part - New (to order)
                                                                                            # 029
                                                                                            MPN: 107 TC 58852
                                                                                            Nottolino per 1ª - 2ª velocità
                                                                                            Nottolino per 1ª - 2ª velocità Genuine Maserati Part - New (to order)
                                                                                            # 030
                                                                                            MPN: 107TC58853
                                                                                            PAWL FOR REVERSE GEAR
                                                                                            PAWL FOR REVERSE GEAR Genuine Maserati Part - New (to order)
                                                                                            # 031
                                                                                            MPN: 107 TC 58854
                                                                                            SPRING
                                                                                            SPRING Genuine Maserati Part - New (to order)
                                                                                            # 032
                                                                                            MPN: 107 TC 58855
                                                                                            REVERSE CONTROL ROD
                                                                                            Asta corn. retromarcia Genuine Maserati Part - New (to order)
                                                                                            # 033
                                                                                            MPN: 107 TC 58856
                                                                                            ASTA COMANDO 1ª - 2ª VELOCITÀ
                                                                                            Asta comando la - 2a velocity Genuine Maserati Part - New (to order)
                                                                                            # 034
                                                                                            MPN: 107 TC 58857
                                                                                            ASTA COMANDO 3ª - 4ª VELOCITÀ
                                                                                            Asta comando 3ª - 4ª velocity Genuine Maserati Part - New (to order)
                                                                                            # 035
                                                                                            MPN: 107TC58858
                                                                                            ASTA COMANDO 5ª VELOCITÀ
                                                                                            Asta comando 5a velocity Genuine Maserati Part - New (to order)
                                                                                            # 036
                                                                                            MPN: SFN 44745
                                                                                            Sphere on the rods
                                                                                            Sphere on the rods Genuine Maserati Part - New (to order)
                                                                                            # 037
                                                                                            MPN: 107 TC 58859
                                                                                            GRAIN ROD STOP
                                                                                            GRAIN ROD STOP Genuine Maserati Part - New (to order)
                                                                                            # 038
                                                                                            MPN: 107 TC 58860
                                                                                            SPRING
                                                                                            SPRING Genuine Maserati Part - New (to order)
                                                                                            # 039
                                                                                            MPN: 107 TC 58861
                                                                                            Grub for gear control pawls
                                                                                            Grub for gear control pawls Genuine Maserati Part - New (to order)
                                                                                            # 040
                                                                                            MPN: 107TC58862
                                                                                            SELECTOR FORK REVERSE
                                                                                            Reverse control fork Genuine Maserati Part - New (to order)
                                                                                            # 041
                                                                                            MPN: 107TC58863
                                                                                            SELECTOR FORK 1ª - 2ª SPEED
                                                                                            Forcella comando l a - 2 a velocit y Genuine Maserati Part - New (to order)
                                                                                            # 042
                                                                                            MPN: 107TC58864
                                                                                            SELECTOR FORK 3ª - 4ª SPEED
                                                                                            Forcella comando 3a - 4a velocity Genuine Maserati Part - New (to order)
                                                                                            # 043
                                                                                            MPN: 107TC58865
                                                                                            SELECTOR FORK 5ª SPEED
                                                                                            Forcella comando 5 a velocit y Genuine Maserati Part - New (to order)
                                                                                            # 044
                                                                                            MPN: 107 TC 58866
                                                                                            Tasselli sulla forcella 5ª velocità
                                                                                            Tasselli sulla forcella 5ª velocità Genuine Maserati Part - New (to order)
                                                                                            # 046
                                                                                            MPN: 107 TC 58867
                                                                                            COVER
                                                                                            COVER Genuine Maserati Part - New (to order)
