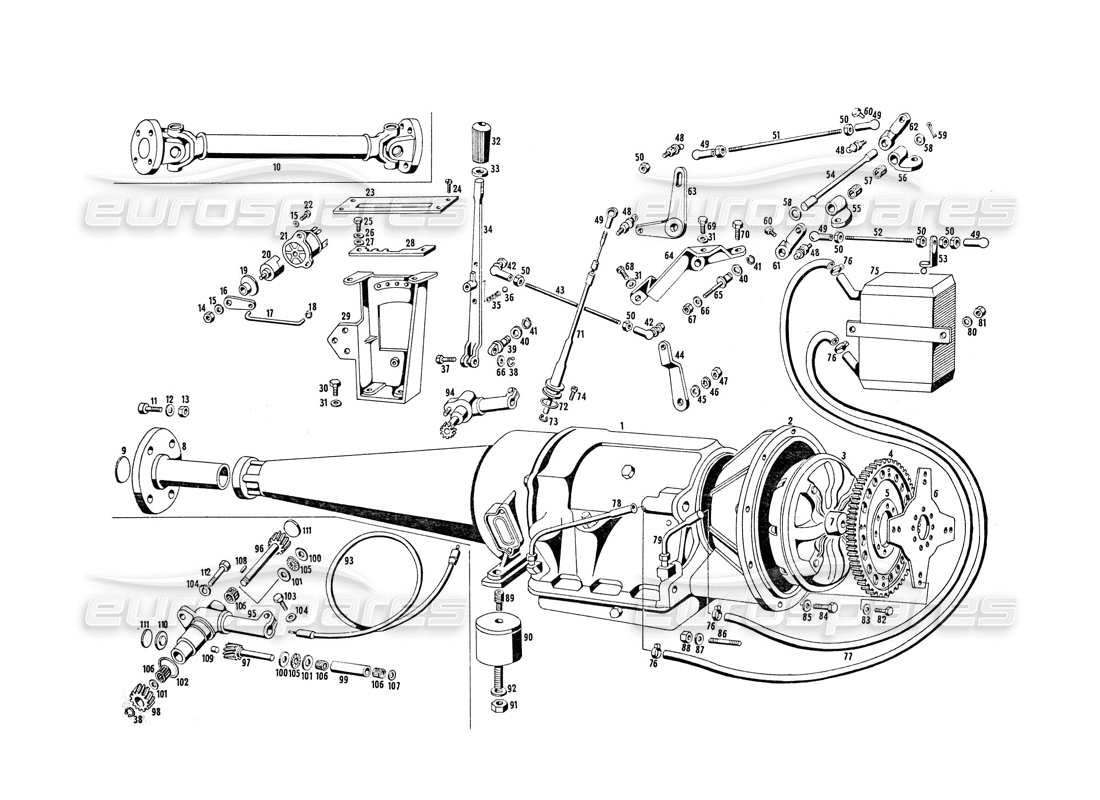

Maserati Indy 4.2 Automatic Transmission Parts Diagram
View the exploded parts diagram to find the part you are looking for
- You can reposition the diagram by dragging it
- You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
- You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
- You can click on a hotspot in the parts diagram to locate the part in the table
- You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
#
001
MPN:
107 TA 59419
FULL AUTOMATIC TRANSMISSION
#
002
MPN:
107 TA 57319
AUTOMATIC GEARBOX SUPPORT BELL
#
002
MPN:
116 TF 116068
AUTOMATIC GEARBOX SUPPORT BELL COMPLETE WITH STUDS
#
003
MPN:
107 TA 57244
TORQUE CONVERTER
#
004
MPN:
107/2 TA 67853
STARTER MOTOR ENGAGEMENT REAR GEAR
#
005
MPN:
107/2 TA 68038
SPACER FOR CONVERTER TOW PLATE
#
006
MPN:
107/2 TA 67584
CONVERTER TOW PLATE
#
007
MPN:
107/2 TA 65299
RING
#
008
MPN:
101/9 TA 57179
FLANGE WITH TOOTHED FITTING FOR AUTOMATIC GEARBOX OUTPUT
#
009
MPN:
TN51459
CAP Ø 38 FOR TOOTHED CLUTCH FLANGE
#
010
MPN:
116 TA 68590
ALBERO DI TRASMISSIONE
#
012
MPN:
RAT 66404
WASHER
#
013
MPN:
D N 33540
NUT
#
014
MPN:
DNT 47446
NUT
#
015
MPN:
RNT54507
WASHER
#
016
MPN:
101/9 TA 57397
LEVER
#
017
MPN:
109 TA 59317
CONNECTION ROD FOR SWITCH CONTROL
#
018
MPN:
ART. 44746
SEEGER RING
#
019
MPN:
101/9 TA 57398
BUSH
#
020
MPN:
101/9 TA 57399
PIVOT
#
021
MPN:
101/9 TA 57404
SWITCH FOR START AND REVERSE CONTROL
#
022
MPN:
VNT-48796
VITO 4 X 0,7 X 8 SWITCH FIXING
#
023
MPN:
107/A TA 64758
PLATE ON THE TUNNEL WITH REFERENCES FOR GEAR GEAR CONTROL WASHER
#
024
MPN:
VAT 59185
Vito autofilettante fiss. piastrino sul tunnel!
#
025
MPN:
BNT47392
BOLT
#
026
MPN:
RNT 47074
WASHER
#
027
MPN:
RSN/32690
WASHER
#
028
MPN:
109 TA 59314
Gear selection sector
#
029
MPN:
109 TA 49360
SUPPORT
#
030
MPN:
BNT. 47015
BOLT
#
031
MPN:
RSN 3 2 6 3 5
WASHER
#
032
MPN:
101 /7 TC 54380
Pomello per leva comando cambio
from
£455.66
from
£455.66
#
033
MPN:
107TC58836
CONTRODADO PER POMELLO
#
034
MPN:
115 TA 64756
LEVER
#
035
MPN:
101/7 TC 50352
SPRING
#
036
MPN:
SFN 48454
SFERA Ø 5/16 SULLA LEVA COMANDO CAMBLO
#
037
MPN:
109 TA 59315
PIVOT
#
038
MPN:
ART. 52389
SEEGER RING
#
039
MPN:
109 TA 59316
FOCUS ON THE SUPPORT FOR THE GEAR GEAR CONTROL WASHER
#
040
MPN:
RN 43842
WASHER
#
041
MPN:
ART. 55361
SEEGER RING
#
042
MPN:
103 6270 50660
Complete angular joint on the coupling tie rod
#
043
MPN:
107 TA 59318
TIE ROD
#
044
MPN:
107 TA 57400
LEVER
#
045
MPN:
RNT52733
WASHER
#
046
MPN:
RDI 48337
WASHER
#
047
MPN:
DNT57406
NUT
#
048
MPN:
C 114 MC 66904
SPHERICAL PIVOT
#
049
MPN:
C 114 MC 66896
CORPO PER SNODO ANGOLARE
#
050
MPN:
DNT 47046
NUT
from
£0.84
from
£0.84
This part replaces part number 47046
#
051
MPN:
107/3 MC 67441
TIE ROD
#
052
MPN:
107/3 MC 67440
TIE ROD
#
053
MPN:
107/3 MC 70791
COMPLETE SHEET FOR ACCELERATOR CONTROL ATTACHMENT
#
054
MPN:
107/3 MC 67439
ALBERO PORTS !EVE COMANDO KICKDAWN
#
055
MPN:
107/3 MC 67438
SUPPORT
#
056
MPN:
107/3 MC 67437
SUPPORT
#
057
MPN:
GRL/47155
ROLLER CAGE Ø 12 X 16 X 11 FOR WASH HOLDER SHAFT
#
058
MPN:
RN 67445
WASHER
#
059
MPN:
CN 33065
COPIGLIA Ø 3 X 20 TENUTA ALBERO PORTALEVE
#
060
MPN:
BNT 51436
BOLT
#
061
MPN:
101 - 6063 47167
LEVETTA SULL'ALBERO PORTALEVE COMANDO KICKDAWN LATO DESTRO
#
062
MPN:
101/7 6063 52232
Levetta sull'albero portaleve comando Kickdawn lato sinistro
#
063
MPN:
107/A TA 65426
LEVER
#
064
MPN:
107/3 TA 67427
SUPPORT
#
065
MPN:
107 TA 59567
PORN ON THE ASP COLLECTOR. FOR RETURN LAVA
#
066
MPN:
ANT 67011
WASHER
#
067
MPN:
DST 51417
NUT
#
068
MPN:
BNT 67443
BOLT
#
069
MPN:
BNT 67015
BOLT
#
070
MPN:
BNT57199
BOLT
#
071
MPN:
107 TA 59554
CAVO COMPLETO PER COMANDO KICKDAWN
#
072
MPN:
GOM 58804
RUBBER Ø 14 X 17,56 X 1,78 OIL SEAL ON THE SHEATH TERMINAL
#
073
MPN:
101/9 TA 58881
SPRING
#
074
MPN:
VNT 70956
Vita normale Ø 1/4 X 20 UNF X 12 fiss. cavo Kickdawn sul cambio
#
075
MPN:
115 TA 67464
RADLATORE OLIO PER CAMBIO AUTOMATICO
#
076
MPN:
FRN 37824
MTO CLAMP FOR FIXING GEARBOX AND RADIATOR HOSES
#
077
MPN:
MN 54780
SLEEVE 10 X 15,87 FOR OIL DELIVERY
This part replaces part number 54780
#
078
MPN:
107/A TC 68802
REAR PIPE FOR OIL ARRIVAL FROM THE RADIATOR TO THE GEARBOX
#
079
MPN:
107/A TC 68801
FRONT PIPE FOR OIL DELIVERY FROM GEARBOX TO RADIATOR
#
080
MPN:
RDI55990
WASHER
#
081
MPN:
DNT. 47031
NUT
#
082
MPN:
BN 57194
BOLT
#
083
MPN:
RDI54211
WASHER
#
084
MPN:
BN 68030
BOLT
#
085
MPN:
RDI 48337
WASHER
#
086
MPN:
PN 55398
PRIGLONIERO Ø 11 X 1.5 X 56 FISS. CAMBIO AUTOMATICO AL SUPPORTO
#
087
MPN:
RNT/47084
WASHER
#
088
MPN:
DN 48127
NUT
#
089
MPN:
PN 57175
THREADED STUD
#
090
MPN:
SLN 54269
SUPPORT
#
091
MPN:
DNT47024
NUT
#
092
MPN:
RDI54211
WASHER
#
093
MPN:
115 TA 65223
GUAINA FLESSIBILE COMANDO CONTA KM
#
094
MPN:
109/A TA 64665
OVERALL KM COUNT CONTROL RETURN
#
095
MPN:
109/A TA 64666
SUPPORT
#
096
MPN:
109/A TA 64667
PRIMARY GEAR KM COUNTER COMMAND. Z.11
#
097
MPN:
109/A TA 64668
SECONDARY GEAR CONTROL TONTA KM. Z.7
#
098
MPN:
109/A TA 64669
SECONDARY GEAR KM COUNTER COMMAND. Z.21 WITH R. AT THE BRIDGE 13/43
#
098
MPN:
109/A TA 67928
SECONDARY GEAR KM COUNTER COMMAND. Z.21 WITH R. AT THE BRIDGE 13/46
#
099
MPN:
109/A TA 64670
BUSSOLA PER GABBLE RULLINI INGR. SECONDARIO
#
100
MPN:
109/A TA 64671
RING
#
101
MPN:
109/A TA 64672
RING
#
102
MPN:
GOM58430
RUBBER 15,55 X 20,85 X 2.65 OIL SEAL ON THE TRANSMISSION COUNTS KM.
#
103
MPN:
BNT. 53968
BOLT
#
104
MPN:
RAT/45679
WASHER
#
105
MPN:
GRL 64312
GABBIA RULLINI ASSIALI Ø 1/4 X 0,067 X 0.078 PER ALBERINI RINVIO CONTA KM.
#
106
MPN:
GRL 64311
GABBIA RULLINI Ø 1 /4 X 7/16 X 5/16 PER DETTO
#
107
MPN:
ANT 64310
SEALING RING
#
108
MPN:
LN/42318
TAB 3 X 10 INPUT SEAL KM COUNT COMMAND.
#
109
MPN:
TN 60417
Oil seal cap Ø 4 X 4.5 X 10 on the Km counter transmission output shaft.
#
110
MPN:
TN 68794
THRUST CAP Ø 20 CLOSING THE OUTPUT SIDE TRANSMISSION HOLE
#
111
MPN:
TN 69300
EXPANSION PLUG
#
112
MPN:
VNT 49952
Normal life 1/4 X 20 X 22 fixing of transmission unit, Km. counter at gearbox
