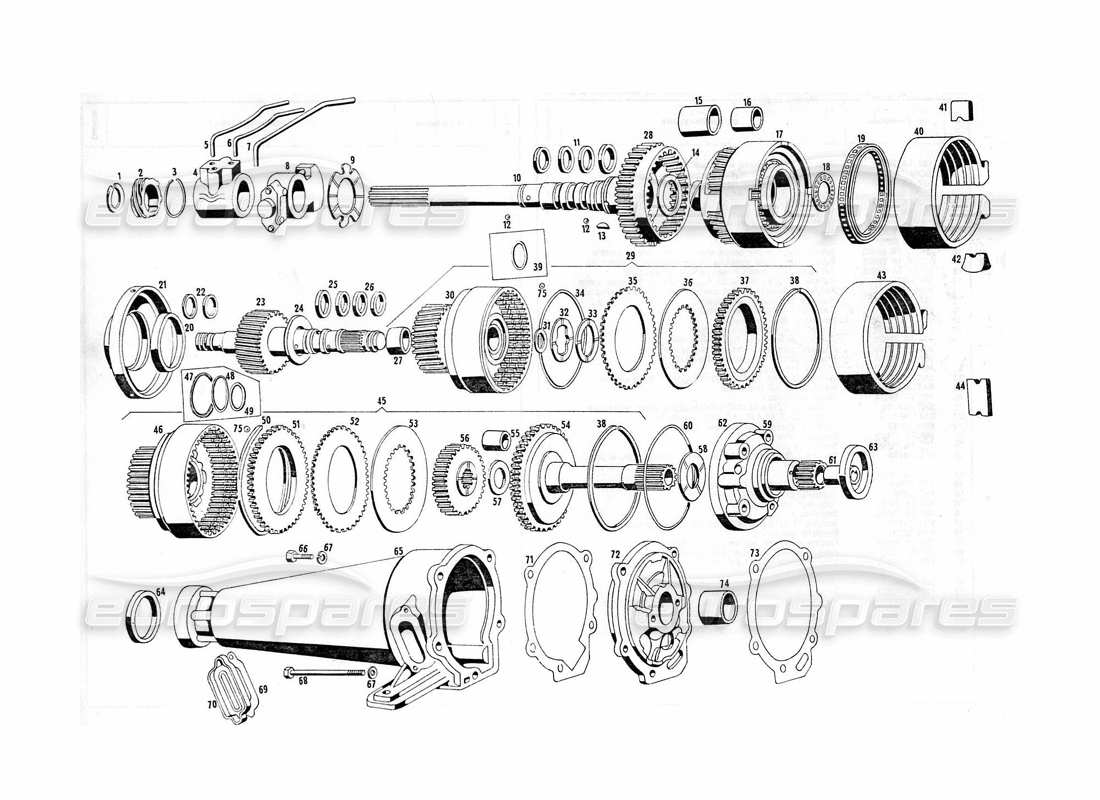

Maserati Indy 4.2 Automatic Transmission Gears Parts Diagram

Odometer primary gear on primary shaft Genuine Maserati Part - New (to order)

# 002

MPN: 101/9 TA 59715

Odometer primary gear on primary shaft

# 003

MPN: 107 TA 72024

RING

Oil collector on the main shaft Genuine Maserati Part - New (to order)

# 004

MPN: 107 TA 72022

Oil collector on the main shaft

# 005

MPN: 107 TA 70039

TUBO ANTER. SUL COLLETTORE OLIO

Front pipe on oil manifold Genuine Maserati Part - New (to order)

# 006

MPN: 107 TA 70040

INTERMEDIATE PIPE FOR SAID

INTERMEDIATE PIPE FOR SAID Genuine Maserati Part - New (to order)

# 007

MPN: 107 TA 70041

REAR TUBE FOR SAID

REAR TUBE FOR SAID Genuine Maserati Part - New (to order)

# 008

MPN: 107 TA 70021

VALVOLA REGOLATRICE CONTRIFUGA

VALVOLA REGOLATRICE CONTRIFUGA Genuine Maserati Part - New (to order)

# 009

MPN: 107 TA 72025

RING

ALBERO PRIMARIO Genuine Maserati Part - New (to order)

# 010

MPN: 107 TA 72023

ALBERO PRIMARIO

# 011

MPN: 107 TA 72074

SEEGER RING

Sfera Ø 1/4 sull'albero primario Genuine Maserati Part - New (to order)

# 012

MPN: SFN 46699

Sfera Ø 1/4 sull'albero primario

# 013

MPN: LN 71963

REAR OIL PUMP DRIVING TAB

REAR OIL PUMP DRIVING TAB Genuine Maserati Part - New (to order)

# 014

MPN: 107 TA 72091

RING

# 015

MPN: 107 TA 72079

BUSH

# 016

MPN: 107 TA 72080

BUSH

PLANETARY GROUP COMPLETE WITH DRUM Genuine Maserati Part - New (to order)

# 017

MPN: 107 TA 72081

PLANETARY GROUP COMPLETE WITH DRUM

# 018

MPN: 107 TA 72076

THRUST BEARING BETWEEN PLANETARY GROUP AND INPUT. CENTRAL

Thrust bearing between epicyclic group and central gear Genuine Maserati Part - New (to order)

# 019

MPN: 107 TA 70462

RING

BUSH FOR CENTRAL SUPPORT Genuine Maserati Part - New (to order)

# 020

MPN: 107 TA 72082

BUSH FOR CENTRAL SUPPORT

# 021

MPN: 107 TA 72083

SUPPORT

SUPPORT Genuine Maserati Part - New (to order)

# 022

MPN: 107 TA 70030

SEEGER RING

COMPLETE CENTRAL GEAR Genuine Maserati Part - New (to order)

# 023

MPN: 107 TA 72077

COMPLETE CENTRAL GEAR

# 024

MPN: 107 TA 72084

RING

# 025

MPN: 107 TA 72085

SEEGER RING

# 026

MPN: 107 TA 72086

SEEGER RING

# 027

MPN: 107 TA 72087

BUSH

Gear on the main shaft Genuine Maserati Part - New (to order)

# 028

MPN: 107 TA 72088

Gear on the main shaft

# 029

MPN: 107 TA 70461

REAR CLUTCH ASSEMBLY COMPLETE WITH DRUM

REAR CLUTCH ASSEMBLY COMPLETE WITH DRUM Genuine Maserati Part - New (to order)

# 030

MPN: 107 TA 70062

BARE FRONT DRUM

BARE FRONT DRUM Genuine Maserati Part - New (to order)

# 030

MPN: 107 TA 72089

COMPLETE FRONT DRUM

COMPLETE FRONT DRUM Genuine Maserati Part - New (to order)

# 031

MPN: GRL 72090

BUSH

WASHER Genuine Maserati Part - New (to order)

# 032

MPN: 107 TA 72092

WASHER

# 033

MPN: 107 TA 72093

WASHER

WASHER Genuine Maserati Part - New (to order)

# 034

MPN: 107 TA 70031

RING

External rear clutch disc Genuine Maserati Part - New (to order)

# 035

MPN: 107 TA 70032

EXTERNAL DISC FOR REAR CLUTCH.

# 036

MPN: 107 TA 70033

INTERNAL DISC FOR REAR CLUTCH.

INTERNAL DISC FOR POSTER CLUTCH Genuine Maserati Part - New (to order)

# 037

MPN: 107 TA 70034

REAR CLUTCH PRESSURE DISC

REAR CLUTCH PRESSURE DISC Genuine Maserati Part - New (to order)

# 038

MPN: 107 TA 70035

SEEGER RING

Gommino Ø 3.5 x 36.5 x 43.5 sulla frizione posteriore Genuine Maserati Part - New (to order)

# 039

MPN: GOM 70060

GOMMINO Ø 3,5 X 36,5 X 43,5 SULLA FRIZIONE POSTERIORE

# 040

MPN: 107 TA 70022

REAR BRAKE BAND

REAR BRAKE BAND Genuine Maserati Part - New (to order)

# 041

MPN: 107 TA 72194

TOP PLUSH FOR REAR TAPE.

UPPER PLUG FOR POSTER TAPE Genuine Maserati Part - New (to order)

# 042

MPN: 107 TA 72195

LOWER PLUSH FOR REAR TAPE.

Tassello inferiore per nastro posterlore Genuine Maserati Part - New (to order)

# 043

MPN: 107 TA 70050

FRONT BRAKE BAND

FRONT BRAKE BAND Genuine Maserati Part - New (to order)

# 044

MPN: 107 TA 72196

ANCHOR FOR FRONT BELT

ANCHOR FOR FRONT BELT Genuine Maserati Part - New (to order)

# 045

MPN: 107 TA 72095

FRONT CLUTCH ASSEMBLY COMPLETE WITH CYLINDER

Front clutch assembly complete with cylinder Genuine Maserati Part - New (to order)

# 046

MPN: 107 TA 71197

CILINDRO FRIZIONE ANTER. COMPLETO

CILINDRO FRIZIONE ANTER. COMPLETO Genuine Maserati Part - New (to order)

# 047

MPN: 107 TA 70036

RING

# 048

MPN: 107 TA 72199

RING

Gommino Ø 40x32,95x3,53 di tenuta sulla boccola interna Genuine Maserati Part - New (to order)

# 049

MPN: GOM 67775

GOMMINO Ø 3,5 X 32,93 X 39,99 FRA PISTONE E CILINDRO ANTER.

# 050

MPN: 107 TA 72198

SEEGER RING

FRONT CLUTCH PRESSURE PLATE Genuine Maserati Part - New (to order)

# 051

MPN: 107 TA 72200

FRONT CLUTCH PRESSURE PLATE

# 052

MPN: 107 TA 72202

OUTER FRONT CLUTCH DISC

OUTER FRONT CLUTCH DISC Genuine Maserati Part - New (to order)

# 053

MPN: 107 TA 72201

INTERNAL FRONT CLUTCH DISC

INTERNAL FRONT CLUTCH DISC Genuine Maserati Part - New (to order)

# 054

MPN: 107 TA 72203

FRONT PICKUP SHAFT COMPLETE WITH BUSHING

FRONT PICKUP SHAFT COMPLETE WITH BUSHING Genuine Maserati Part - New (to order)

# 055

MPN: 107 TA 72204

BUSH

FRONT CLUTCH HUB Genuine Maserati Part - New (to order)

# 056

MPN: 107 TA 72205

FRONT CLUTCH HUB

# 057

MPN: 107 TA 72206

SPACER BETWEEN HUB AND OUTPUT SHAFT

SPACER BETWEEN HUB AND OUTPUT SHAFT Genuine Maserati Part - New (to order)

# 058

MPN: 107 TA 72207

SPACER BETWEEN PICKUP SHAFT AND GEARBOX

SPACER BETWEEN PICKUP SHAFT AND GEARBOX Genuine Maserati Part - New (to order)

# 059

MPN: 107 TA 72208

COMPLETE FRONT PUMP

COMPLETE FRONT PUMP Genuine Maserati Part - New (to order)

# 060

MPN: 107 TA 70028

RING

# 061

MPN: 107 TA 72209

BUSH

SUPPORT Genuine Maserati Part - New (to order)

# 062

MPN: 107 TA 72210

SUPPORT

# 063

MPN: ANT 70027

SEALING RING

SEALING RING Genuine Maserati Part - New (to order)

# 064

MPN: ANT 70044

SEALING RING

SEALING RING Genuine Maserati Part - New (to order)

# 065

MPN: 107 TA 72211

COVER

COVER Genuine Maserati Part - New (to order)

# 066

MPN: BN 56976

BOLT

BOLT Genuine Maserati Part - New (to order)

# 067

MPN: RSN 65748

WASHER

WASHER Genuine Maserati Part - New (to order)

# 068

MPN: BN 71964

BOLT

BOLT Genuine Maserati Part - New (to order)

# 069

MPN: 107 TA 70045

GASKET OR SEAL

GASKET OR SEAL Genuine Maserati Part - New (to order)

# 070

MPN: 107 TA 72236

COPERCHIETTO PER COPERCHIO POSTERIORE

COPERCHIETTO PER COPERCHIO POSTERIORE Genuine Maserati Part - New (to order)

# 071

MPN: 107 TA 72237

GASKET OR SEAL

GASKET OR SEAL Genuine Maserati Part - New (to order)

# 072

MPN: 107 TA 70038

COMPLETE REAR OIL PUMP

COMPLETE REAR OIL PUMP Genuine Maserati Part - New (to order)

# 073

MPN: 107 TA 70042

GASKET OR SEAL

GASKET OR SEAL Genuine Maserati Part - New (to order)

# 074

MPN: 107 TA 72238

BUSH
