019 - Differential and Propeller Shafts

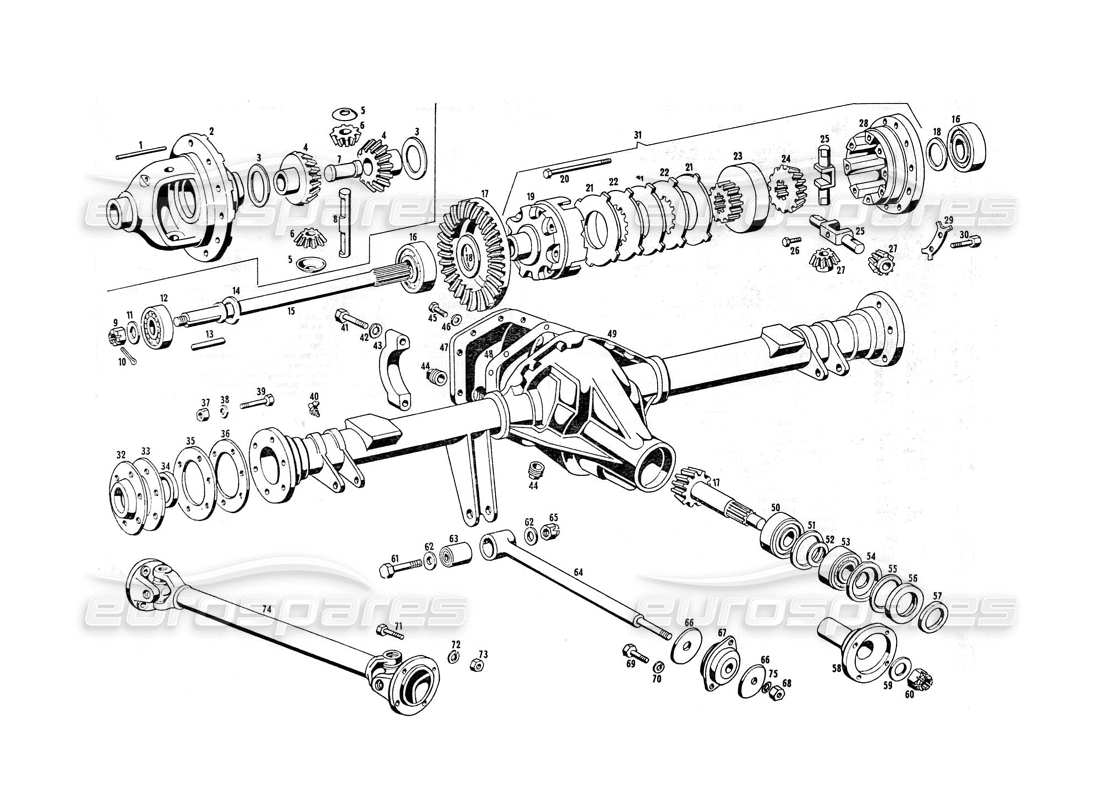

Maserati Indy 4.2 Differential and propeller shafts Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                                                                                                                                                        #
                                                                                                                                                        Part number
                                                                                                                                                        Description
                                                                                                                                                        Price
                                                                                                                                                        # 002
                                                                                                                                                        MPN: 101 10500 48289
                                                                                                                                                        Differential box for R 13/43 and 13/46
                                                                                                                                                        # 002
                                                                                                                                                        MPN: 10110500 51121
                                                                                                                                                        Differential box for R 13/49 and 11/45
                                                                                                                                                        # 003
                                                                                                                                                        MPN: 101 - 10564 48295
                                                                                                                                                        WASHER
                                                                                                                                                        # 004
                                                                                                                                                        MPN: 101 10562 48294
                                                                                                                                                        PLANETARY FOR DIFFERENTIAL
                                                                                                                                                        # 005
                                                                                                                                                        MPN: 101 - 10534 48291
                                                                                                                                                        WASHER
                                                                                                                                                        # 006
                                                                                                                                                        MPN: 101 - 10536 48292
                                                                                                                                                        Satellite per differenziale
                                                                                                                                                        # 007
                                                                                                                                                        MPN: 101 - 10540 48293
                                                                                                                                                        Spacer on satellite shaft
                                                                                                                                                        # 008
                                                                                                                                                        MPN: 101 10530 48290
                                                                                                                                                        POST FOR SATELLITE
                                                                                                                                                        # 009
                                                                                                                                                        MPN: DCN 48282
                                                                                                                                                        NUT
                                                                                                                                                        # 010
                                                                                                                                                        MPN: CN 48284
                                                                                                                                                        COPIGLIA PER DETTO
                                                                                                                                                        # 011
                                                                                                                                                        MPN: RN 48283
                                                                                                                                                        WASHER
                                                                                                                                                        # 012
                                                                                                                                                        MPN: CSC 48266
                                                                                                                                                        Bearing for axle shaft on the outside
                                                                                                                                                        # 013
                                                                                                                                                        MPN: LN 48288
                                                                                                                                                        TAB ON THE HALF-SHAFTS FOR TOWING HUBS
                                                                                                                                                        # 014
                                                                                                                                                        MPN: ANT/48277
                                                                                                                                                        SEALING RING
                                                                                                                                                        # 015
                                                                                                                                                        MPN: 116 TP 70807
                                                                                                                                                        BRIDGE HALF SHAFT
                                                                                                                                                        # 016
                                                                                                                                                        MPN: CSC 48297
                                                                                                                                                        Bearing on the differential case
                                                                                                                                                        # 017
                                                                                                                                                        MPN: 115 TP 71045
                                                                                                                                                        Crown and pinion paired for R. 13/43
                                                                                                                                                        from £0.47
                                                                                                                                                        from £0.47
                                                                                                                                                        # 017
                                                                                                                                                        MPN: 115 TP 71046
                                                                                                                                                        Crown and pinion paired for R. 13/46
                                                                                                                                                        from £3,589.74
                                                                                                                                                        from £3,589.74
                                                                                                                                                        # 017
                                                                                                                                                        MPN: 115 TP 71047
                                                                                                                                                        Crown and pinion paired for R. 13/49
                                                                                                                                                        # 017
                                                                                                                                                        MPN: 115 TP 71048
                                                                                                                                                        Crown and pinion paired for R. 11/45
                                                                                                                                                        # 017
                                                                                                                                                        MPN: 115 TP 71049
                                                                                                                                                        Crown and pinion paired for R. 14/43
                                                                                                                                                        # 022
                                                                                                                                                        MPN: 101/7 - TP 54009
                                                                                                                                                        RING
                                                                                                                                                        # 023
                                                                                                                                                        MPN: 109TP55915
                                                                                                                                                        SELF-LOCKING CLUTCH RING HOLDER FLANGE
                                                                                                                                                        # 024
                                                                                                                                                        MPN: 109TP55944
                                                                                                                                                        PLANETARIO PER SCATOLA DIFFERENZIALE AUTOBOLCCANTE
                                                                                                                                                        # 025
                                                                                                                                                        MPN: 109TP55916
                                                                                                                                                        Self-locking cross shaft
                                                                                                                                                        # 026
                                                                                                                                                        MPN: 109 TP 55918
                                                                                                                                                        AXLE SHAFT SPACER ON THE SELF-LOCKING CRUISE
                                                                                                                                                        # 027
                                                                                                                                                        MPN: 109TP55917
                                                                                                                                                        Satellite for self-locking differential box
                                                                                                                                                        # 028
                                                                                                                                                        MPN: 109 - TP 55913
                                                                                                                                                        Self-locking box crown holder flange for R. 13/49 - 11/45
                                                                                                                                                        # 028
                                                                                                                                                        MPN: 109TP55912
                                                                                                                                                        Self-locking box crown holder flange for R. 13/46 - 13/43
                                                                                                                                                        # 029
                                                                                                                                                        MPN: RDL 48310
                                                                                                                                                        WASHER
                                                                                                                                                        # 031
                                                                                                                                                        MPN: 109 - TP 51308
                                                                                                                                                        COMPLETE SELF-LOCKING BOX FOR R. 13/49 - 11/45 WITHOUT REPORTS
                                                                                                                                                        # 031
                                                                                                                                                        MPN: 109 TP 51309
                                                                                                                                                        COMPLETE SELF-LOCKING BOX FOR R. 13/46 - 13/43 WITHOUT REPORTS
                                                                                                                                                        # 032
                                                                                                                                                        MPN: 101 10127 48279
                                                                                                                                                        REDUCTION BUSH ANGUS SEAL ON THE HUB
                                                                                                                                                        # 033
                                                                                                                                                        MPN: 101 10128 48280
                                                                                                                                                        RING
                                                                                                                                                        # 035
                                                                                                                                                        MPN: GN 47672
                                                                                                                                                        GASKET OR SEAL
                                                                                                                                                        # 036
                                                                                                                                                        MPN: 101 10096 48278
                                                                                                                                                        SPACER FOR BEARING ON THE SIDE FLANGE
                                                                                                                                                        # 037
                                                                                                                                                        MPN: DN 48287
                                                                                                                                                        NUT
                                                                                                                                                        # 038
                                                                                                                                                        MPN: RN 48286
                                                                                                                                                        WASHER
                                                                                                                                                        # 039
                                                                                                                                                        MPN: BN 48285
                                                                                                                                                        BOLT
                                                                                                                                                        # 040
                                                                                                                                                        MPN: IN 48268
                                                                                                                                                        GREASE GREASE ON Tubi SIDES
                                                                                                                                                        # 042
                                                                                                                                                        MPN: RSN 48273
                                                                                                                                                        WASHER
                                                                                                                                                        # 043
                                                                                                                                                        MPN: 101 - 10011 48271
                                                                                                                                                        CAP SEALS THE DIFFERENTIAL BOX TO THE AXLE BOX
                                                                                                                                                        # 044
                                                                                                                                                        MPN: TN 48274
                                                                                                                                                        PLUG FOR DRAIN INLET AND OIL LEVEL
                                                                                                                                                        # 046
                                                                                                                                                        MPN: RSN 48276
                                                                                                                                                        WASHER
                                                                                                                                                        # 047
                                                                                                                                                        MPN: 101-10052-48262
                                                                                                                                                        COVER
                                                                                                                                                        # 048
                                                                                                                                                        MPN: 101-10054-48263
                                                                                                                                                        GASKET OR SEAL
                                                                                                                                                        # 049
                                                                                                                                                        MPN: 116 TP 69970
                                                                                                                                                        COMPLETE REAR AXLE R.13/43
                                                                                                                                                        # 049
                                                                                                                                                        MPN: 116 TP 71073
                                                                                                                                                        COMPLETE REAR AXLE R. 13/46
                                                                                                                                                        # 049
                                                                                                                                                        MPN: 116 TP 71923
                                                                                                                                                        COMPLETE REAR AXLE R.13/49
                                                                                                                                                        # 049
                                                                                                                                                        MPN: 116 TP 71924
                                                                                                                                                        COMPLETE REAR AXLE R.14/43
                                                                                                                                                        # 050
                                                                                                                                                        MPN: CSC 71010
                                                                                                                                                        Bearing on the pinion
                                                                                                                                                        # 051
                                                                                                                                                        MPN: 101 - 10571 48300
                                                                                                                                                        WASHER
                                                                                                                                                        # 052
                                                                                                                                                        MPN: 115 TP 70571
                                                                                                                                                        WASHER
                                                                                                                                                        # 053
                                                                                                                                                        MPN: CSC 71011
                                                                                                                                                        BEARING ON THE FLANGE SIDE PINION
                                                                                                                                                        # 054
                                                                                                                                                        MPN: 101 10741 48304
                                                                                                                                                        Oil seal disc on the pinion.
                                                                                                                                                        # 056
                                                                                                                                                        MPN: ANT 48270
                                                                                                                                                        SEAL
                                                                                                                                                        from £145.30
                                                                                                                                                        from £145.30
                                                                                                                                                        # 057
                                                                                                                                                        MPN: 101 - 10042 48269
                                                                                                                                                        STOPPING DISC SEAL RING ON THE DRIVE SHAFT FLANGE
                                                                                                                                                        # 058
                                                                                                                                                        MPN: 101 10740 48305
                                                                                                                                                        FLANGE ON THE PINION FOR FIXING THE DRIVE SHAFT
                                                                                                                                                        # 059
                                                                                                                                                        MPN: RN 48308
                                                                                                                                                        WASHER
                                                                                                                                                        # 061
                                                                                                                                                        MPN: BNT 62256
                                                                                                                                                        BOLT
                                                                                                                                                        # 062
                                                                                                                                                        MPN: RNT 47091
                                                                                                                                                        WASHER
                                                                                                                                                        # 064
                                                                                                                                                        MPN: 116 TP 65373
                                                                                                                                                        REAR AXLE BOX REACTION STRUT
                                                                                                                                                        # 065
                                                                                                                                                        MPN: DST 62315
                                                                                                                                                        NUT
                                                                                                                                                        # 066
                                                                                                                                                        MPN: RN 66660
                                                                                                                                                        WASHER
                                                                                                                                                        # 067
                                                                                                                                                        MPN: SLN 49441
                                                                                                                                                        SUPPORT
                                                                                                                                                        from £316.24
                                                                                                                                                        from £316.24
                                                                                                                                                        # 067
                                                                                                                                                        MPN: SLN 50757
                                                                                                                                                        SUPPORT
                                                                                                                                                        # 069
                                                                                                                                                        MPN: BNT. 47015
                                                                                                                                                        BOLT
                                                                                                                                                        # 070
                                                                                                                                                        MPN: RSN 3 2 6 3 5
                                                                                                                                                        WASHER
                                                                                                                                                        # 073
                                                                                                                                                        MPN: D N 33540
                                                                                                                                                        NUT
                                                                                                                                                        # 074
                                                                                                                                                        MPN: 116 TA 65909
                                                                                                                                                        DRIVE SHAFT WITH GEARBOX S5 20 AND S5 325
                                                                                                                                                        # 075
                                                                                                                                                        MPN: RDI 54347
                                                                                                                                                        WASHER
                                                                                                                                                        Translating Select View All Diagrams Search Most relevant Price descending Price ascending Translating 7 days days Stock Order Urgent Order
