maserati indy 4.2 rear suspension parts diagram

022 - Rear Suspension

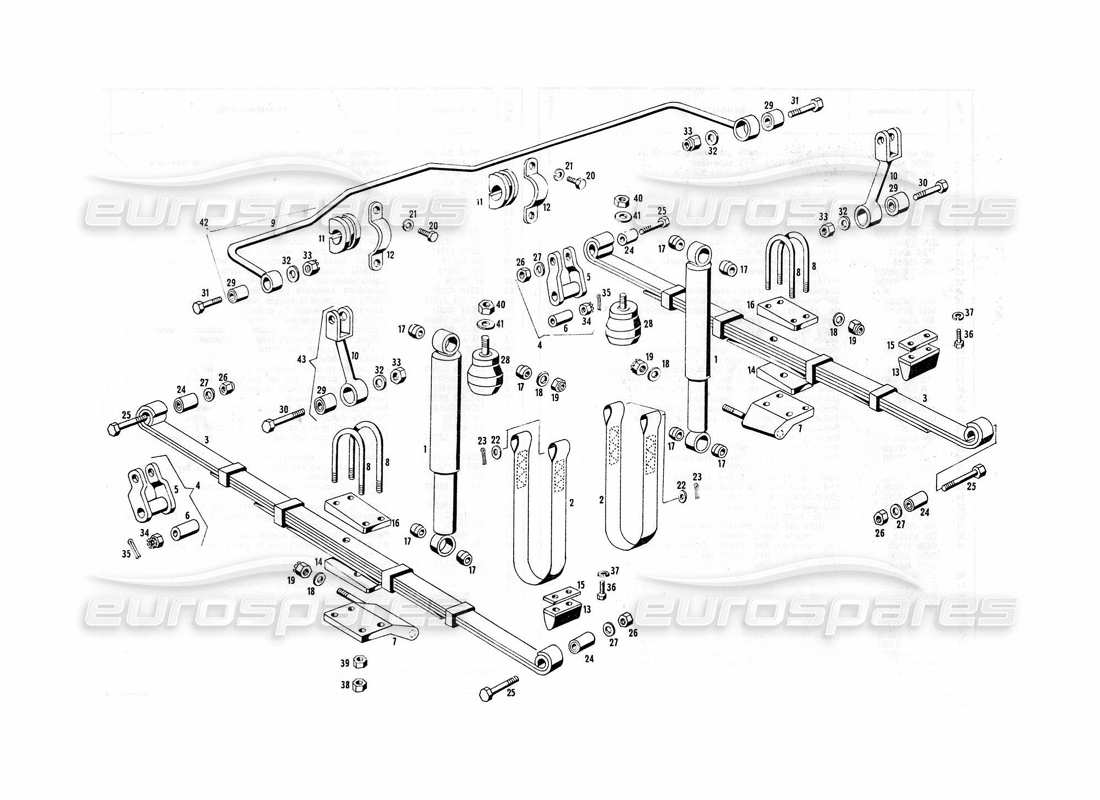

Maserati Indy 4.2 Rear suspension Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                                                                                        #
                                                                                        Part number
                                                                                        Description
                                                                                        Key
                                                                                        Price
                                                                                        # 001
                                                                                        MPN: 116 SP 68020
                                                                                        AMMORTIZZATORE POSTERIORE RIV. N. 808.3010.516
                                                                                        AMMORTIZZATORE POSTERIORE RIV. N. 808.3010.516 Genuine Maserati Part - New (to order)
                                                                                        # 002
                                                                                        MPN: 116 SP 66948
                                                                                        BRACES FOR LOWER SHAKE
                                                                                        BRACES FOR LOWER SHAKE Genuine Maserati Part - New (to order)
                                                                                        # 003
                                                                                        MPN: 116 SP 71382
                                                                                        SPRING
                                                                                        SPRING Genuine Maserati Part - New (to order)
                                                                                        # 003
                                                                                        MPN: 116 SU 67168
                                                                                        SPRING
                                                                                        SPRING Genuine Maserati Part - New (to order)
                                                                                        # 004
                                                                                        MPN: 116 SP 116063
                                                                                        BISCOTTINO PER BALESTRA (COMPLESSIVO)
                                                                                        BISCOTTINO PER BALESTRA (COMPLESSIVO) Genuine Maserati Part - New (to order)
                                                                                        # 005
                                                                                        MPN: 101 11537 47976
                                                                                        BISCOTTINO PER BALESTRA (PARTICOLARE)
                                                                                        Crossbow biscuit. Genuine Maserati Part - New (to order)
                                                                                        # 006
                                                                                        MPN: SLN 42573
                                                                                        SUPPORT
                                                                                        from £152.35
                                                                                        from £152.35
                                                                                        SUPPORT Genuine Maserati Part - New (to order)
                                                                                        # 007
                                                                                        MPN: 116 SP 66471
                                                                                        PLATE FOR FIXING SHOCK ABSORBER WITH RIGHT SPRING
                                                                                        PLATE FOR FIXING SHOCK ABSORBER WITH RIGHT SPRING Genuine Maserati Part - New (to order)
                                                                                        # 007
                                                                                        MPN: 116 SP 66472
                                                                                        PLATE FOR FIXING SHOCK ABSORBER WITH LEFT SPRING
                                                                                        PLATE FOR FIXING SHOCK ABSORBER WITH LEFT SPRING Genuine Maserati Part - New (to order)
                                                                                        # 008
                                                                                        MPN: 115 SP 66641
                                                                                        BRACKET FOR FIXING THE SPRING SUPPORT PLATE TO THE BRIDGE
                                                                                        BRACKET FOR FIXING THE SPRING SUPPORT PLATE TO THE BRIDGE Genuine Maserati Part - New (to order)
                                                                                        # 009
                                                                                        MPN: 116 SP 66470
                                                                                        Barra stabilizzatrice post. Ø 18 (fino ad esaurimento)
                                                                                        Barra stabilizzatrice post. Ø 18 (fino ad esaurimento) Genuine Maserati Part - New (to order)
                                                                                        # 009
                                                                                        MPN: 116 SP 68479
                                                                                        Barra stabilizzatrice posteriore Ø 19 (sostituisce Sp. 66470 Ø 18 - fino ad esaurimento)
                                                                                        Barra stabilizzatrice posteriore Ø 19 (sostituisce Sp. 66470 Ø 18 - fino ad esaurimento) Genuine Maserati Part - New (to order)
                                                                                        # 010
                                                                                        MPN: 101/70 SP 58092
                                                                                        BIELLETTE PER BARRA STABILIZZATRICE POST
                                                                                        BIELLETTE PER BARRA STABILIZZATRICE POST Genuine Maserati Part - New (to order)
                                                                                        # 011
                                                                                        MPN: 107/A SA 62830
                                                                                        ELASTIC PLUSH FOR REAR STABILIZER BAR. FOR BAR FROM Ø 18 TO 19
                                                                                        Elastic gusset for stability bar support Genuine Maserati Part - New (to order)
                                                                                        # 012
                                                                                        MPN: A6.G 54.12572.44117
                                                                                        SUPPORT
                                                                                        SUPPORT Genuine Maserati Part - New (to order)
                                                                                        # 013
                                                                                        MPN: 116 SP 68566
                                                                                        CROSSBOW LIMIT SWITCH BUFFER
                                                                                        Buffer for upper shaking limit switch Genuine Maserati Part - New (to order)
                                                                                        # 014
                                                                                        MPN: 116 SP 68804
                                                                                        SPACER BETWEEN SPRING SPRING AND SHOCK ABSORBER SUPPORT
                                                                                        SPACER BETWEEN SPRING SPRING AND SHOCK ABSORBER SUPPORT Genuine Maserati Part - New (to order)
                                                                                        # 015
                                                                                        MPN: 116 SP 68805
                                                                                        SPACER FOR SPRING LIMIT SWITCH BUFFER
                                                                                        SPACER FOR SPRING LIMIT SWITCH BUFFER Genuine Maserati Part - New (to order)
                                                                                        # 016
                                                                                        MPN: 116 SP 66475
                                                                                        SPACER BETWEEN SPRING SPRING AND SHOCK ABSORBER FIXING PLATE TO THE BRIDGE
                                                                                        SPACER BETWEEN SPRING SPRING AND SHOCK ABSORBER FIXING PLATE TO THE BRIDGE Genuine Maserati Part - New (to order)
                                                                                        # 017
                                                                                        MPN: GOM 52764
                                                                                        GOMMINO Ø 16 X 30 X 18 PER AMMORTIZZATORE POST.
                                                                                        from £6.96
                                                                                        from £6.96
                                                                                        Rubber for rear shock absorbers Genuine Maserati Part - New (to order)
                                                                                        # 018
                                                                                        MPN: RNT 47091
                                                                                        WASHER
                                                                                        WASHER Genuine Maserati Part - New (to order)
                                                                                        # 019
                                                                                        MPN: DST 62315
                                                                                        NUT
                                                                                        NUT Genuine Maserati Part - New (to order)
                                                                                        # 021
                                                                                        MPN: RSN/33112
                                                                                        WASHER
                                                                                        from £1.74
                                                                                        from £1.74
                                                                                        WASHER Genuine Maserati Part - New (to order)
                                                                                        # 023
                                                                                        MPN: CN. 43776
                                                                                        COPIGLIA 2X 15 FOR SAID
                                                                                        from £1.74
                                                                                        from £1.74
                                                                                        Copiglia Ø 2 x 15 Genuine Maserati Part - New (to order)
                                                                                        # 024
                                                                                        MPN: SLN/47969
                                                                                        SUPPORT
                                                                                        from £72.35
                                                                                        from £72.35
                                                                                        Silentblok per molla e bbalestra sospensione posteriore Genuine Maserati Part - New (to order)
                                                                                        # 025
                                                                                        MPN: BNT 59990
                                                                                        BOLT
                                                                                        BOLT Genuine Maserati Part - New (to order)
                                                                                        # 027
                                                                                        MPN: RDI 54347
                                                                                        WASHER
                                                                                        WASHER Genuine Maserati Part - New (to order)
                                                                                        # 028
                                                                                        MPN: SLN 68984
                                                                                        RUBBER BUFFER 90 X 90 FOR UPPER LIMIT SWITCH
                                                                                        RUBBER BUFFER 90 X 90 FOR UPPER LIMIT SWITCH Genuine Maserati Part - New (to order)
                                                                                        # 029
                                                                                        MPN: SLN34748
                                                                                        SUPPORT
                                                                                        from £50.18
                                                                                        from £50.18
                                                                                        Silentbloc per tirante watt Genuine Maserati Part - New (to order)
                                                                                        Bush Kit (pack or 4) Eurospares Approved Part - New (to order)
                                                                                        # 032
                                                                                        MPN: RNT47085
                                                                                        WASHER
                                                                                        from £3.48
                                                                                        from £3.48
                                                                                        Rondella piana Ø 12 per cappelli albero motore Genuine Maserati Part - New (to order)
                                                                                        # 033
                                                                                        MPN: DST 65794
                                                                                        NUT
                                                                                        NUT Genuine Maserati Part - New (to order)
                                                                                        # 034
                                                                                        MPN: DCN 47106
                                                                                        NUT
                                                                                        NUT Genuine Maserati Part - New (to order)
                                                                                        # 035
                                                                                        MPN: CN 32723
                                                                                        Copiglie per detto
                                                                                        Copiglie per detto Genuine Maserati Part - New (to order)
                                                                                        # 036
                                                                                        MPN: BNT 32673
                                                                                        BOLT
                                                                                        BOLT Genuine Maserati Part - New (to order)
                                                                                        # 037
                                                                                        MPN: RSN 3 2 6 3 5
                                                                                        WASHER
                                                                                        WASHER Genuine Maserati Part - New (to order)
                                                                                        # 042
                                                                                        MPN: 116 SP 116060
                                                                                        STABILIZER BAR COMPLETE WITH ANTI-VIBRATION SUPPORT
                                                                                        STABILIZER BAR COMPLETE WITH ANTI-VIBRATION SUPPORT Genuine Maserati Part - New (to order)
                                                                                        # 043
                                                                                        MPN: 116 SP 116062
                                                                                        BIELLETTA PER BARRA STABILIZZATRICE COMPLETA DI SUPPORTO ANTIVIBRATORE
                                                                                        BIELLETTA PER BARRA STABILIZZATRICE COMPLETA DI SUPPORTO ANTIVIBRATORE Genuine Maserati Part - New (to order)
