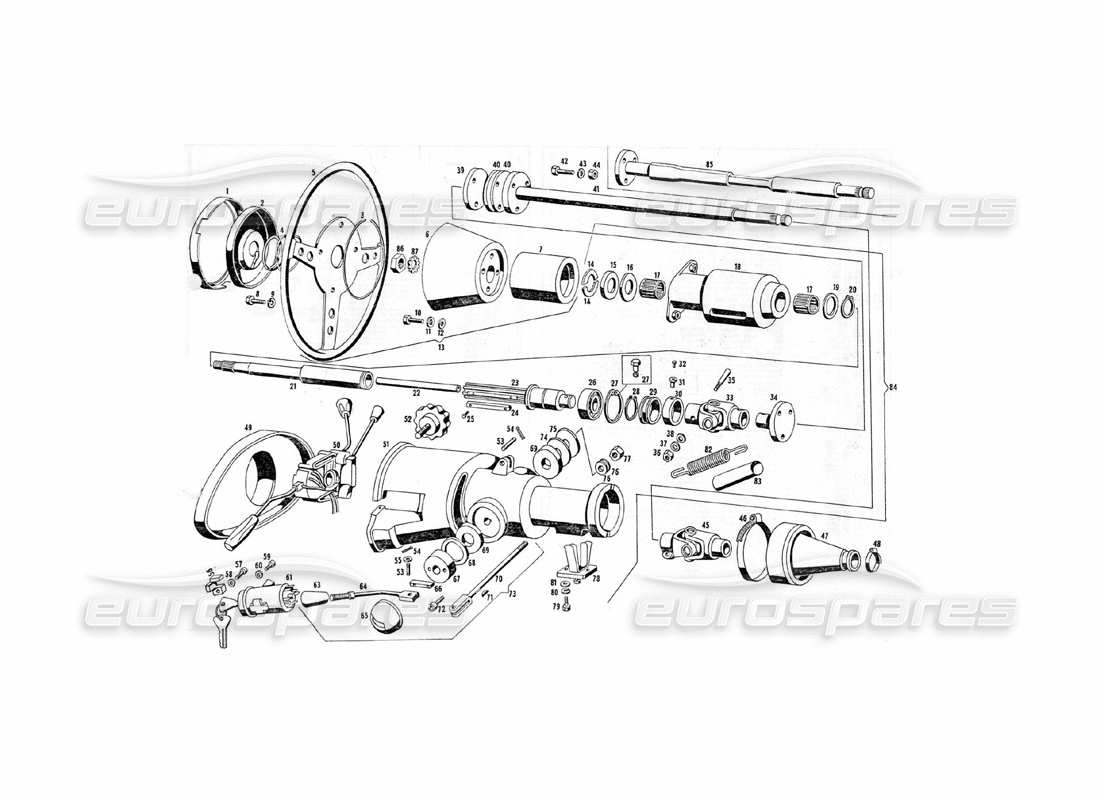

024 - Steering parts (USA)
Maserati Indy 4.2 Steering parts (USA) Parts Diagram
View the exploded parts diagram to find the part you are looking for
- You can reposition the diagram by dragging it
- You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
- You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
- You can click on a hotspot
in the parts diagram to locate the part in the table
- You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
# 001
MPN: 116 GS 72347
Bussola per bottone awisatore acustico
(solo USA) (non USA vedi Tavola 23)
from £230.16
from £230.16
# 002
MPN: 116 GS 72336
HORN BUTTON ONLY BUTTON
(solo USA) (non USA vedi Tavola 23)
# 002
MPN: 116 GS 72380
Bottone avvisatore acustico completo molla
(solo USA)
from £258.63
from £258.63
# 003
MPN: 116 GS 72348
RING
(solo USA)
from £27.58
from £27.58
# 004
MPN: 116 GS 71778
SPRING
# 005
MPN: 116/A GS 70589
Volante
(solo razza) (USA) (non USA vedi Tay. 23)
# 006
MPN: 115/A GS 70646
ASSEMBLY ASSEMBLY DEFORMABLE PLASTIC COATED SLEEVE
(solo USA)
# 006
MPN: 115/A GS 70980
CORPO COPRIMANICOTTO DEFORMABILE
(solo USA)
# 007
MPN: 115/A GS 70621
STEERING WHEEL HUB
(solo USA) (non USA vedi Tay. 23)
# 008
MPN: BNT47021
BOLT
from £1.80
from £1.80
This part replaces part number 47021
# 009
MPN: RSN 36690
WASHER
# 011
MPN: ROI 58544
WASHER
# 012
MPN: RNT 52530
WASHER
# 013
MPN: 116 GS 66586
STEERING WHEEL ASSEMBLY AND DEFORMABLE ASSEMBLY WITH HUB
# 013
MPN: 116/A GS 70619
STEERING WHEEL ASSEMBLY AND DEFORMABLE ASSEMBLY AND HUB
(solo USA)
# 014
MPN: 116 GS 66629
SEMIANELLO DI TENUTA MANICOTTO PORTACOMANDI IUCI
# 015
MPN: 116 GS 66628
RING
# 016
MPN: 116 GS 66901
RING
# 017
MPN: GRL 59167
ROLLER CAGE Ø 30 X 37 X 20 ON THE SLIDING SLEEVE
# 018
MPN: 115/A GS 69883
SLIDING SLEEVE FOR STEERING WHEEL ADJUSTMENT AND LIGHT CONTROL SEAL
# 018
MPN: 116 GS 71069
SLIDING SLEEVE FOR STEERING WHEEL ADJUSTMENT AND IUCI GD CONTROL SEAL
# 019
MPN: 107/A GS 65895
RING
# 020
MPN: ART. 43121
RING
# 021
MPN: 116 GS 66623
STEERING WHEEL COLUMN ASSEMBLY
# 022
MPN: 107/A GS 65304
Condotto cavo per claxson
# 023
MPN: 116 GS 66389
COLUMN TERMINAL ON THE SUPPORT
# 024
MPN: LN56547
TAB 4,5 X 5,2 X 61 FOR SAYING
# 025
MPN: VN 56553
SCREW
# 026
MPN: CSC 66304
RADIAL BEARING 25 X 52 X 18 ON THE STEERING COLUMN END
# 027
MPN: ART 43992
RING
# 027
MPN: BN 66818
BOLT
# 028
MPN: ART 43993
RING
# 029
MPN: 116 GS 67332
RUBBER COLLECTOR FOR HORN
# 030
MPN: 116 GS 66613
BUSH
# 031
MPN: 101/7 ME 66616
INSULATING BUSHING FOR SLIDING CONTACT CABLE
# 032
MPN: RVN/30898
MANIFOLD FIXING RIVET FOR SIGNAL
# 033
MPN: 116 GS 67265
GIUNTO FRA I PIANTONI STERZO
# 034
MPN: 116 GS 67262
Flangla di collegamento giunto cardanico
# 035
MPN: SN 59538
PIN
# 036
MPN: DNT 47046
NUT
from £0.86
from £0.86
This part replaces part number 47046
# 037
MPN: RDI 58544
WASHER
# 038
MPN: RNT 52530
WASHER
# 039
MPN: 116 GS 69077
CLAMPING SPACER BETWEEN JOINT AND INTERMEDIATE COLUMN.
# 040
MPN: 116 GS 67264
DISTANZIALE DI RASAMENTO FRA GIUNTO E PIANTONE INTEREMDIO (SPESSORI VARI)
# 041
MPN: 116 GI 71134
INTERMEDIATE COLUMN ASSEMBLY
(solo guida idraulica) non USA
# 041
MPN: 116 GS 71132
INTERMEDIATE COLUMN ASSEMBLY
(solo guide sinistra) non USA
# 041
MPN: 116 GS 71170
COMPLESSIVO PIANTONE INTERMEDLO
(solo guida destra) non USA
# 042
MPN: BNT 47351
BOLT
# 042
MPN: BNT/47396
BOLT
# 043
MPN: RDI53899
WASHER
# 044
MPN: DNT 47047
NUT
# 045
MPN: 101 GS 47083
GLUNTO PER PLANTONE GUIDA
# 046
MPN: FRN37835
FASCETTA TENUTA CUFFIA PLANTONE TELAIO
# 047
MPN: 116 GS 69909
CUFFIA TENUTA PLANTONE AL TELAIO
# 048
MPN: FRN 71003
FASCETTA TENUTA CUFFLA AL PLANTONE
# 049
MPN: 115/A GS 70995
CALOTTA SULLA PARTE SUPERLORE PLANTONE
(solo USA)
# 049
MPN: 116 GS 67537
CAP ON THE TOP PART OF THE SEAT GS ONLY
(non USA)
# 049
MPN: 116 GS 71097
CALOTTA SULLA PARTTE SUPERLORE PIANTONE SOLO G.D
# 050
MPN: 116 GS 68988
Gruppo comando luci tergi guida destra
from £827.58
from £827.58
# 050
MPN: 116 GS 70568
Left-hand drive wiper light control unit
# 051
MPN: 115/A GS 70957
SUPPORT
# 051
MPN: 116 GS 68968
SUPPORT
# 052
MPN: 116 GS 67521
Manopola di bloccaggio volante
# 053
MPN: SN 67409
PIN
# 054
MPN: CN. 43776
Copiglia Ø 1,8 X 15 per detto
from £0.86
from £0.86
# 055
MPN: RAT/45679
WASHER
# 056
MPN: 116 GS 68789
Bloccretto copertura bloccosterzo guida sinistra
# 056
MPN: 116 GS 69017
BLOCCHETTO COPERTURA BLOCCOSTERZO GUIDA DESTRA
# 057
MPN: BNT 60196
SCREW
# 058
MPN: RDI 58544
WASHER
# 059
MPN: VNT 61402
SCREW
# 060
MPN: RDI53899
WASHER
# 061
MPN: 116 GS 69979
COMMUTATORE CON ANTIFURTO
# 061
MPN: GS 70768
Ignition Lock Set
(non USA)
# 062
MPN: GS 70768
Ignition Lock Set
# 063
MPN: 109 B? 67415
Knob on the eccentric lever controlling the stop sleeve
# 064
MPN: 115/A GS 69904
LEVER
# 065
MPN: 116 GS 67414
CUFF IA DI PROTEZIONE LEVA COMANDO POSIZIONAMENTO VOLANTE
# 066
MPN: 116 GS 67406
PLATE
# 067
MPN: 115/A GS 69900
Spacer for steering wheel positioning stop pin
# 068
MPN: 115/A GS 70660
RIGHT EXTERNAL CLUTCH DISC FOR STEERING WHEEL POSITIONING ADJUSTMENT
# 069
MPN: 115/A GS 69902
INTERNAL CLUTCH DISC FOR STEERING WHEEL POSITIONING ADJUSTMENT
# 070
MPN: 115/A GS 69896
PIVOT
# 071
MPN: LN 69908
AMERICAN TONGUE 2,5 X 3.7 X 9,66 FOR SAID
# 072
MPN: VNT 67740
SCREW
# 073
MPN: 115/A GS 115057
ASSEMBLAGGIO POSIZIONAMENTO VOLANTE (ESCLUSI PARTICOLARI 69 E 71)
# 074
MPN: 115/A GS 69901
LEFT EXTERNAL CLUTCH DISC FOR STEERING WHEEL POSITIONING ADJUSTMENT
# 075
MPN: 115/A GS 69917
D)STANZIALE PER REGISTRO POSIZIONAMENTO VOLANTE
# 076
MPN: RAT 61309
WASHER
# 077
MPN: DST 53396
NUT
# 078
MPN: 116 GS 66619
Contatto strisciante per avvisatore acustico completo
# 080
MPN: RSN 3 2 4 9 7
WASHER
# 081
MPN: RNT 52530
WASHER
# 082
MPN: 116 GS 67418
SPRING
# 083
MPN: TVN 51194
TUBO VIPPLA Ø 22 I = 120 MM. PER DETTO
# 084
MPN: 115/A GS 115056
COMPLESSIVO PIANTONE STERZO (NON USA) PER GUIDA SINISTRA
# 084
MPN: 116 GS 68144
LEFT-HAND GUIDE COLUMN UPPER PART ASSEMBLY
# 084
MPN: 116 GS 69093
Right driving column upper part assembly
# 084
MPN: 116/A GS 115212
STEERING COLUMN ASSEMBLY
(per vett. USA)
# 085
MPN: 115/A GS 70835
INTERMEDIATE STEERING COLUMN ASSEMBLY
(solo USA) con servosterzo
# 085
MPN: 115/A GS 71430
COMPLESSIVO PIANTONE STENO INTERMEDIO
(solo USA) senza servosterzo
# 086
MPN: GH 53874
Ghiero fissaggio volante piantone
# 087
MPN: RL53873
WASHER
