027 - hydraulic steering pump

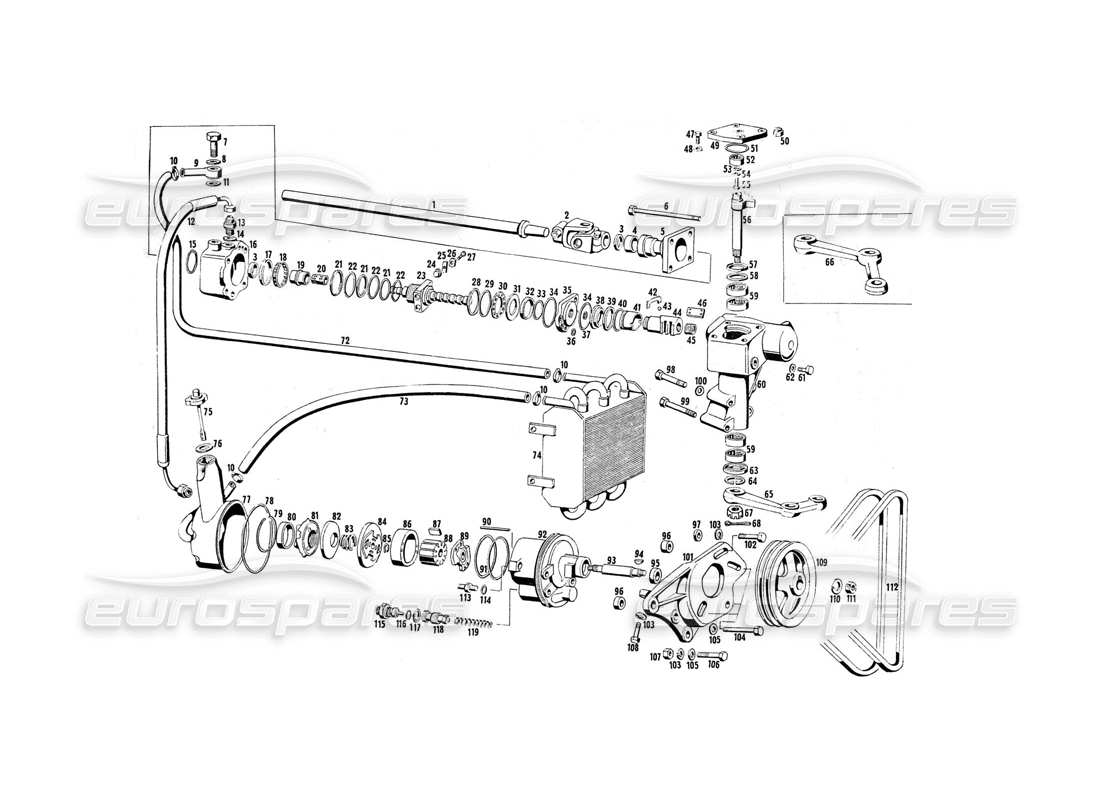

Maserati Indy 4.2 Hydraulic steering pump Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                                                                                                                                    #
                                                                                                                                    Part number
                                                                                                                                    Description
                                                                                                                                    Key
                                                                                                                                    Price
                                                                                                                                    # 001
                                                                                                                                    MPN: 115/A GI 69211
                                                                                                                                    POWER STEERING PUMP COMPLETE WITH NUT - WASHER AND KEY
                                                                                                                                    POWER STEERING PUMP COMPLETE WITH NUT - WASHER AND KEY Genuine Maserati Part - New (to order)
                                                                                                                                    # 001
                                                                                                                                    MPN: 115/A GI 72333
                                                                                                                                    CORPO POMPA
                                                                                                                                    CORPO POMPA Genuine Maserati Part - New (to order)
                                                                                                                                    # 002
                                                                                                                                    MPN: ART 72005
                                                                                                                                    RING
                                                                                                                                    RING Genuine Maserati Part - New (to order)
                                                                                                                                    # 003
                                                                                                                                    MPN: 115/A GI 72055
                                                                                                                                    COVER
                                                                                                                                    COVER Genuine Maserati Part - New (to order)
                                                                                                                                    # 004
                                                                                                                                    MPN: 115/A GI 72056
                                                                                                                                    SPRING
                                                                                                                                    SPRING Genuine Maserati Part - New (to order)
                                                                                                                                    # 005
                                                                                                                                    MPN: GOM 72057
                                                                                                                                    Rubber Ø 69,52 X 2,65 rear pump cover oil seal
                                                                                                                                    Rubber Ø 69,52 X 2,65 rear pump cover oil seal Genuine Maserati Part - New (to order)
                                                                                                                                    # 007
                                                                                                                                    MPN: GRL 72184
                                                                                                                                    Gabbia arullini Ø 17 X 25X 16
                                                                                                                                    Gabbia arullini Ø 17 X 25X 16 Genuine Maserati Part - New (to order)
                                                                                                                                    # 008
                                                                                                                                    MPN: ANT 72185
                                                                                                                                    SEALING RING
                                                                                                                                    SEALING RING Genuine Maserati Part - New (to order)
                                                                                                                                    # 009
                                                                                                                                    MPN: CSC 72026
                                                                                                                                    Cuscinetto Ø 20X 42X12
                                                                                                                                    Cuscinetto Ø 20X 42X12 Genuine Maserati Part - New (to order)
                                                                                                                                    # 010
                                                                                                                                    MPN: ART 72064
                                                                                                                                    RING
                                                                                                                                    RING Genuine Maserati Part - New (to order)
                                                                                                                                    # 011
                                                                                                                                    MPN: TN 72054
                                                                                                                                    Conical plug Ø 14 X 1,5 for pump oil filling
                                                                                                                                    Conical plug Ø 14 X 1,5 for pump oil filling Genuine Maserati Part - New (to order)
                                                                                                                                    # 012
                                                                                                                                    MPN: 115/A GI 69089
                                                                                                                                    Belt tensioner adjustment flange
                                                                                                                                    Belt tensioner adjustment flange Genuine Maserati Part - New (to order)
                                                                                                                                    # 013
                                                                                                                                    MPN: BNT. 47015
                                                                                                                                    BOLT
                                                                                                                                    BOLT Genuine Maserati Part - New (to order)
                                                                                                                                    # 015
                                                                                                                                    MPN: RNT47075
                                                                                                                                    WASHER
                                                                                                                                    This part replaces part number 47075
                                                                                                                                    Rondetta piana Ø 8 per pompa acqua Genuine Maserati Part - New (to order)
                                                                                                                                    # 017
                                                                                                                                    MPN: BNT 47017
                                                                                                                                    BOLT
                                                                                                                                    BOLT Genuine Maserati Part - New (to order)
                                                                                                                                    # 018
                                                                                                                                    MPN: DNT. 47031
                                                                                                                                    NUT 8 X 1.25
                                                                                                                                    NUT Genuine Maserati Part - New (to order)
                                                                                                                                    # 019
                                                                                                                                    MPN: 115/A GI 69090
                                                                                                                                    SUPPORT
                                                                                                                                    SUPPORT Genuine Maserati Part - New (to order)
                                                                                                                                    # 020
                                                                                                                                    MPN: 115/A GI 69221
                                                                                                                                    Spacer under pulley
                                                                                                                                    Spacer under pulley Genuine Maserati Part - New (to order)
                                                                                                                                    # 021
                                                                                                                                    MPN: 116 GI 71303
                                                                                                                                    PULEGGIA TRAINO POMPA SERVOSTERZO (SINO ALLA VETTURA)
                                                                                                                                    PULEGGIA TRAINO POMPA SERVOSTERZO (SINO ALLA VETTURA) Genuine Maserati Part - New (to order)
                                                                                                                                    # 022
                                                                                                                                    MPN: RAT 53217
                                                                                                                                    PULEGGIA TRAINO POMPA PER SERVOSTERZO (DALLA VETT.)
                                                                                                                                    PULEGGIA TRAINO POMPA PER SERVOSTERZO (DALLA VETT.) Genuine Maserati Part - New (to order)
                                                                                                                                    # 023
                                                                                                                                    MPN: DNT 72063
                                                                                                                                    NUT
                                                                                                                                    NUT Genuine Maserati Part - New (to order)
                                                                                                                                    # 024
                                                                                                                                    MPN: 116 GI 71317
                                                                                                                                    PUNTALINO TENDICINGHIA ALTERNATORE
                                                                                                                                    PUNTALINO TENDICINGHIA ALTERNATORE Genuine Maserati Part - New (to order)
                                                                                                                                    # 025
                                                                                                                                    MPN: 116 GI 71416
                                                                                                                                    PIVOT
                                                                                                                                    PIVOT Genuine Maserati Part - New (to order)
                                                                                                                                    # 026
                                                                                                                                    MPN: CTR 71575
                                                                                                                                    TOW BELT FOR POWER STEERING PUMP AND AIR CONDITIONER COMPRESSOR 13 X 8 X 995 (UP TO CAR N.)
                                                                                                                                    TOW BELT FOR POWER STEERING PUMP AND AIR CONDITIONER COMPRESSOR 13 X 8 X 995 (UP TO CAR N.) Genuine Maserati Part - New (to order)
                                                                                                                                    # 027
                                                                                                                                    MPN: RTN 70663
                                                                                                                                    UNION
                                                                                                                                    UNION Genuine Maserati Part - New (to order)
                                                                                                                                    # 029
                                                                                                                                    MPN: 107GC57917
                                                                                                                                    OIL DELIVERY PIPE FROM PUMP TO STEERING BOX
                                                                                                                                    OIL DELIVERY PIPE FROM PUMP TO VALVE BOX Genuine Maserati Part - New (to order)
                                                                                                                                    # 030
                                                                                                                                    MPN: TN 72061
                                                                                                                                    Tappo Ø 22 X 1,5 per valvolina regolazione pressione olio
                                                                                                                                    Tappo Ø 22 X 1,5 per valvolina regolazione pressione olio Genuine Maserati Part - New (to order)
                                                                                                                                    # 031
                                                                                                                                    MPN: GN 72062
                                                                                                                                    GASKET OR SEAL
                                                                                                                                    GASKET OR SEAL Genuine Maserati Part - New (to order)
                                                                                                                                    # 032
                                                                                                                                    MPN: 115/A GI 72058
                                                                                                                                    SPRING
                                                                                                                                    SPRING Genuine Maserati Part - New (to order)
                                                                                                                                    # 033
                                                                                                                                    MPN: 115/A GI 72059
                                                                                                                                    COMPLETE VALVE FOR OIL PRESSURE ADJUSTMENT
                                                                                                                                    COMPLETE VALVE FOR OIL PRESSURE ADJUSTMENT Genuine Maserati Part - New (to order)
                                                                                                                                    # 034
                                                                                                                                    MPN: 115/A GI 69212
                                                                                                                                    OIL TANK FOR POWER STEERING PUMP COMPLETE
                                                                                                                                    OIL TANK FOR POWER STEERING PUMP COMPLETE Genuine Maserati Part - New (to order)
                                                                                                                                    # 035
                                                                                                                                    MPN: GN 72073
                                                                                                                                    GASKET OR SEAL
                                                                                                                                    GASKET OR SEAL Genuine Maserati Part - New (to order)
                                                                                                                                    # 036
                                                                                                                                    MPN: 115/A GI 72060
                                                                                                                                    COVER
                                                                                                                                    COVER Genuine Maserati Part - New (to order)
                                                                                                                                    # 037
                                                                                                                                    MPN: DNT 72068
                                                                                                                                    NUT
                                                                                                                                    NUT Genuine Maserati Part - New (to order)
                                                                                                                                    # 038
                                                                                                                                    MPN: RTN 70713
                                                                                                                                    UNION
                                                                                                                                    UNION Genuine Maserati Part - New (to order)
                                                                                                                                    # 039
                                                                                                                                    MPN: GN 67376
                                                                                                                                    GASKET OR SEAL
                                                                                                                                    GASKET OR SEAL Genuine Maserati Part - New (to order)
                                                                                                                                    # 040
                                                                                                                                    MPN: FRN 63331
                                                                                                                                    Clamp Ø 22 fixing the oil pipe from the tank to the pump
                                                                                                                                    Clamp Ø 22 fixing the oil pipe from the tank to the pump Genuine Maserati Part - New (to order)
                                                                                                                                    # 041
                                                                                                                                    MPN: MN 71608
                                                                                                                                    Sleeve Ø 16 X 23 X 700 from the tank to the pump
                                                                                                                                    Sleeve Ø 16 X 23 X 700 from the tank to the pump Genuine Maserati Part - New (to order)
                                                                                                                                    # 042
                                                                                                                                    MPN: 115/A GI 70927
                                                                                                                                    OIL TANK FIXING CLAMP
                                                                                                                                    OIL TANK FIXING CLAMP Genuine Maserati Part - New (to order)
                                                                                                                                    # 044
                                                                                                                                    MPN: VAT 67485
                                                                                                                                    Self-tapping screw Ø 4,2 X 6,35 fixing oil tank to the frame
                                                                                                                                    Self-tapping screw Ø 4,2 X 6,35 fixing oil tank to the frame Genuine Maserati Part - New (to order)
                                                                                                                                    # 046
                                                                                                                                    MPN: MN 52424
                                                                                                                                    SLEEVE Ø 12 X 18 X 1200 FROM THE TANK TO THE RADIATOR
                                                                                                                                    Manicotto Ø 20 x 14 x 270 dal coll. aspiraz. al tubo per starter Genuine Maserati Part - New (to order)
                                                                                                                                    # 047
                                                                                                                                    MPN: FRN 37824
                                                                                                                                    FASCETTA MTOO 0 12 X20 PER DETTO
                                                                                                                                    Manifold fixing clamp Genuine Maserati Part - New (to order)
                                                                                                                                    # 048
                                                                                                                                    MPN: 107/A BR 64546
                                                                                                                                    LAMIERINO SOSTEGNO Tubi RADIATORE OLIO (DA ADATTARE IN OPERA)
                                                                                                                                    Oil suction pipe support eyelet from the tank Genuine Maserati Part - New (to order)
                                                                                                                                    # 049
                                                                                                                                    MPN: PFN 54410
                                                                                                                                    GROMMET
                                                                                                                                    GROMMET Genuine Maserati Part - New (to order)
                                                                                                                                    # 050
                                                                                                                                    MPN: BNT 72307
                                                                                                                                    BOLT
                                                                                                                                    BOLT Genuine Maserati Part - New (to order)
                                                                                                                                    # 051
                                                                                                                                    MPN: GRF 72314
                                                                                                                                    Moltetta di fermo per vite Ø 6
                                                                                                                                    Moltetta di fermo per vite Ø 6 Genuine Maserati Part - New (to order)
                                                                                                                                    # 052
                                                                                                                                    MPN: 115/A GI 72297
                                                                                                                                    FILTER CARTRIDGE
                                                                                                                                    FILTER CARTRIDGE Genuine Maserati Part - New (to order)
                                                                                                                                    # 053
                                                                                                                                    MPN: 115/A GI 72322
                                                                                                                                    COVER
                                                                                                                                    COVER Genuine Maserati Part - New (to order)
                                                                                                                                    # 054
                                                                                                                                    MPN: 115/A GI 72323
                                                                                                                                    SPRING
                                                                                                                                    SPRING Genuine Maserati Part - New (to order)
                                                                                                                                    # 055
                                                                                                                                    MPN: 115/A GI 72324
                                                                                                                                    PIASTRA LATERALE (POST.)
                                                                                                                                    PIASTRA LATERALE (POST.) Genuine Maserati Part - New (to order)
                                                                                                                                    # 056
                                                                                                                                    MPN: 115/A GI 72327
                                                                                                                                    PIN
                                                                                                                                    PIN Genuine Maserati Part - New (to order)
                                                                                                                                    # 057
                                                                                                                                    MPN: 115/A GI 72328
                                                                                                                                    ROTORE COMPLETO (COMPOSTO DA 13 PEZZI COMPRESE LE 10 PALETTE)
                                                                                                                                    ROTORE COMPLETO (COMPOSTO DA 13 PEZZI COMPRESE LE 10 PALETTE) Genuine Maserati Part - New (to order)
                                                                                                                                    # 058
                                                                                                                                    MPN: 115/A GI 72329
                                                                                                                                    PIASTRA LATERALE (ANT.)
                                                                                                                                    PIASTRA LATERALE (ANT.) Genuine Maserati Part - New (to order)
                                                                                                                                    # 059
                                                                                                                                    MPN: GOM 72190
                                                                                                                                    Gommino Ø 20,29 X 2,65
                                                                                                                                    Gommino Ø 20,29 X 2,65 Genuine Maserati Part - New (to order)
                                                                                                                                    # 060
                                                                                                                                    MPN: ART 72306
                                                                                                                                    RING
                                                                                                                                    RING Genuine Maserati Part - New (to order)
                                                                                                                                    # 061
                                                                                                                                    MPN: 115/A GI 72330
                                                                                                                                    ROTOR HOLDER SHAFT
                                                                                                                                    ROTOR HOLDER SHAFT Genuine Maserati Part - New (to order)
                                                                                                                                    # 062
                                                                                                                                    MPN: GRF 72313
                                                                                                                                    Retaining clip for screw Ø 6
                                                                                                                                    Retaining clip for screw Ø 6 Genuine Maserati Part - New (to order)
                                                                                                                                    # 063
                                                                                                                                    MPN: GOM 72316
                                                                                                                                    INTERMEDIATE RUBBER 0 66,35 X 2,62
                                                                                                                                    INTERMEDIATE RUBBER 0 66,35 X 2,62 Genuine Maserati Part - New (to order)
                                                                                                                                    # 064
                                                                                                                                    MPN: GOM 72319
                                                                                                                                    Gommino Ø anteriore
                                                                                                                                    Gommino Ø anteriore Genuine Maserati Part - New (to order)
                                                                                                                                    # 065
                                                                                                                                    MPN: 115/A GI 72331
                                                                                                                                    BOBINA
                                                                                                                                    BOBINA Genuine Maserati Part - New (to order)
