028 - Front Cooled Brakes

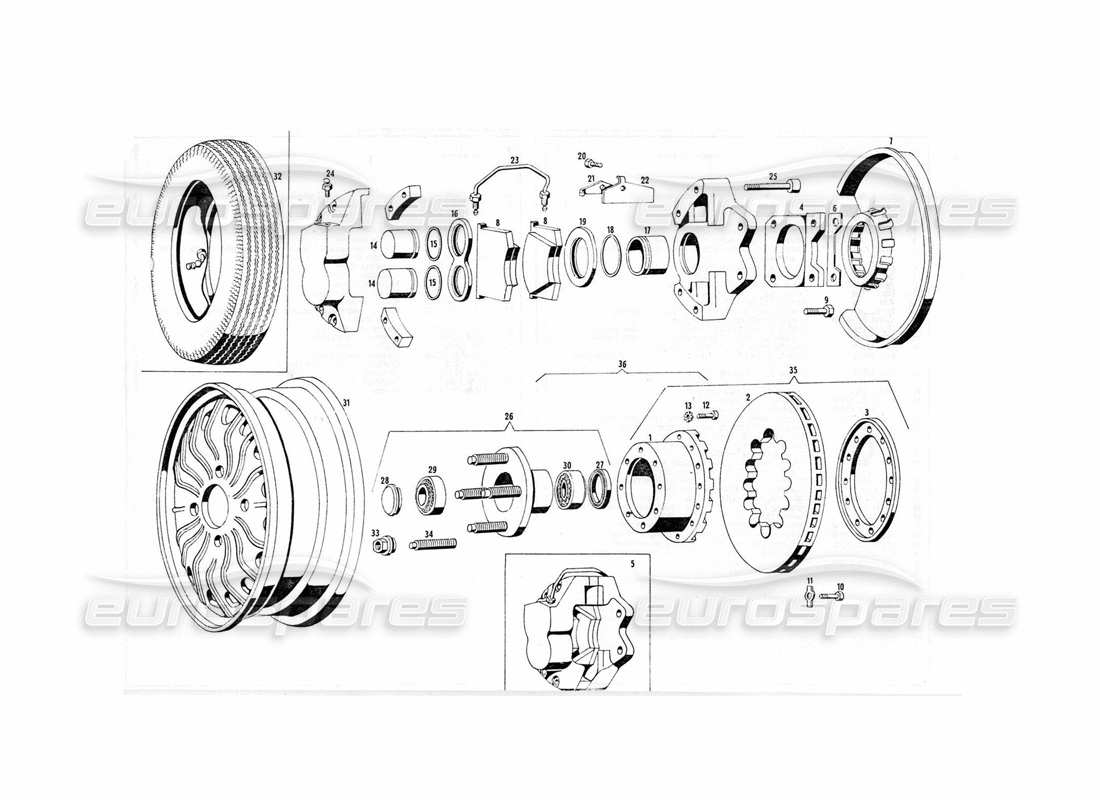

Maserati Indy 4.2 Front cooled brakes Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
#
Part number
Description
Price
# 001
MPN: 116 FA 65870
BELL FOR FRONT BRAKE DISC. VENTILATED
# 002
MPN: 116 FA 65872
PLATE FOR FRONT BRAKE DISC. VENTILATED
# 003
MPN: 116 FA 65873
FLANGE SEALING VENTILATED DISC TO THE FRONT BELL.
# 004
MPN: 116 FA 65874
SUPPORT
# 004
MPN: 116 FA 65875
SUPPORT
# 005
MPN: 116 FA 65069
CALIPER ANT. SIN.
# 006
MPN: 101/2 14554 49514
PIASTRINO DI FERMO PER BULLONE FISS. CALIPER ANT. AL SUPPORTO
# 007
MPN: 116 FA 65876
LAMIERA PROTEZIONE DISCO FRENO ANT. DEX.
# 007
MPN: 116 FA 65877
FRONT BRAKE DISC PROTECTION PLATE SIN.
# 008
MPN: 116 FA 71163
TASSELLI FRENANTI ANT.
from £126.60
from £126.60
# 009
MPN: BN 65720
BOLT
# 010
MPN: BNT/47370
BOLT
from £3.28
from £3.28
This part replaces part number 47370
# 011
MPN: RDL 42638
WASHER
from £2.52
from £2.52
# 012
MPN: BNT 64468
BOLT
# 014
MPN: 107 FA 58694
PISTON WITH SMALL EXTERNAL DIAMETER
# 015
MPN: 107 FA 58449
RUBBER FOR SMALL DIAMETER PISTON
# 016
MPN: 107 FA 58695
GOMMINO PARAPOLVERE PER DETTO
# 017
MPN: 107 FA 58697
LARGE DIAMETER PISTON
# 018
MPN: 107 FA 55094
RUBBER FOR LARGE DIAMETER PISTON
# 019
MPN: 107 FA 58696
RUBBER DUST COVER FOR LARGE DIAMETER PISTON
# 020
MPN: BNT/58614
BOLT
# 021
MPN: 115 FA 67729
PLATE FOR SHEET TO HOLD ANCHORS
# 022
MPN: 115 FA 67728
SHEET METAL TO HOLD ANCHORS
# 023
MPN: 115 FA 61491
TUBO UNIONE SEMIPINZE
# 024
MPN: 107FA58458
AIR VENT CAP
# 025
MPN: BN 61493
BOLT
# 026
MPN: 116 SA 116054
Complete front hub for turbo wheels 7½ X 14
# 027
MPN: ANT 62631
SEALING RING
# 028
MPN: 101/12216 48230
CAP ON THE FRONT HUB. GREASE HOLD
# 029
MPN: CSC 48232
TAPERED ROLLER BEARING ON THE OUTER SIDE OF THE FRONT HUB
# 030
MPN: CSC/48233
TAPERED ROLLER BEARING ON THE INSIDE OF THE FRONT HUB
# 031
MPN: 116 SR 67420
Ruota Borrani Dial 7½ X 14
# 032
MPN: PNM 67817
PNEUMATICI PIRELLI CINTURATO 205 VR 14 (IN ALTERNATIVA CON MICHELIN)
# 032
MPN: PNM 67818
Inner tube for said 47.A.14.SS
# 032
MPN: PNM 69202
PNEUMATICO MICHELIN 205.VR.14 (MONTARE CON PREFERENZA)
# 032
MPN: PNM 69203
Camera d'aria Michelin per detto
# 032
MPN: PNM 69984
PNEUMATICO PIRELLI G.70.VR.14 (IN ALTERN. CON 67817.69202)
# 032
MPN: PNM 69985
Camera d'aria Pirelli per detto
# 033
MPN: DN 46400
NUT
# 034
MPN: SA 71370
COLUMN FOR WHEEL HUB
# 035
MPN: 116 FA 65870
Front brake ventilated disc assembly
# 036
MPN: 116 SA 116055
FRONT HUB ASSEMBLY AND VENTILATED DISC
