032 - Fuel Tank and Pump

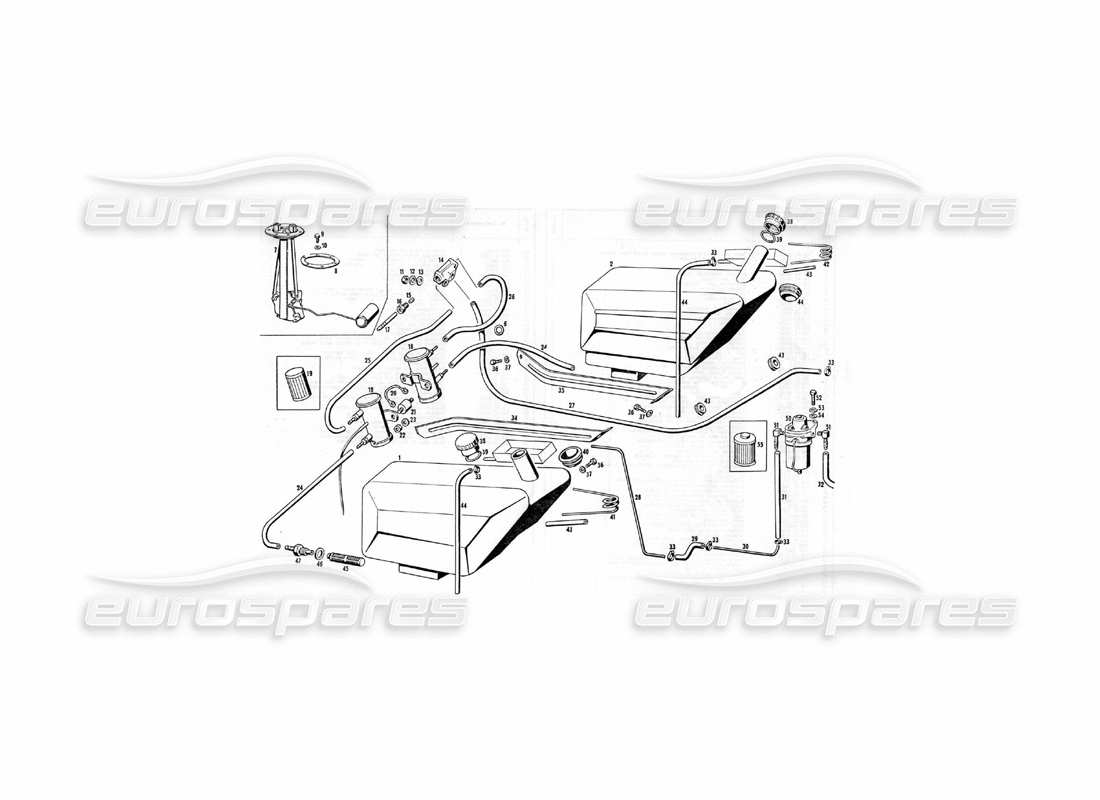

Maserati Indy 4.2 Fuel tank and pump Parts Diagram
View the exploded parts diagram to find the part you are looking for
- You can reposition the diagram by dragging it
- You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
- You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
-
You can click on a hotspot
in the parts diagram to locate the part in the table
- You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
#
000
MPN:
107 CS 71261

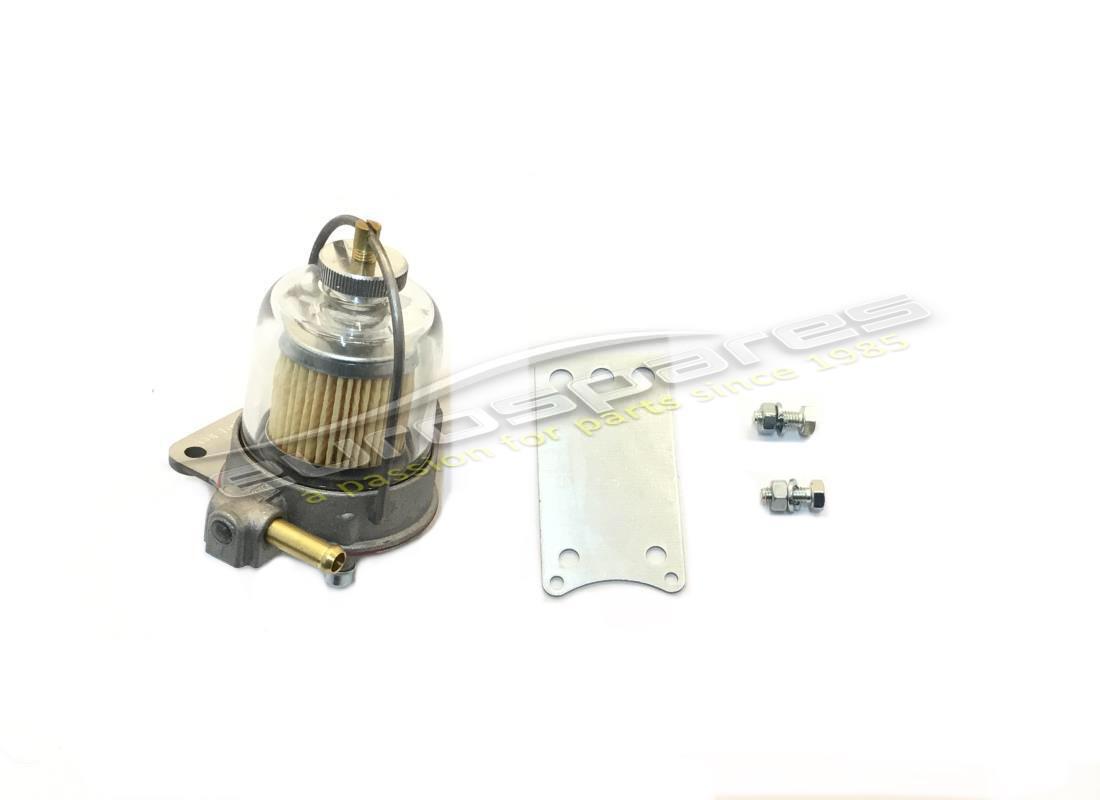

FUEL FILTER CUP
Details without numbers at the bottom of the illustrative table
#
001
MPN:
116 CS 66296
SERBATOIO DEX. COMPLETO (SOLUZIONE GHIA)
#
001
MPN:
116 CS 67966
SERBATOIO DEX. COMPLETO (SOLUZIONE VIGNALE)
#
002
MPN:
116 CS 66297
SERBATOIO SIN. COMPLETO (SOLUZIONE GHIA)
#
002
MPN:
116 CS 67967
SERBATOIO SIN. COMPLETO (SOLUZIONE VIGNALE)
#
006
MPN:
GOM 64629
Gommino Ø 25,4 X 29,5 X 34 X 3 sul galleggiante
#
007
MPN:
115 CS 65221
REOSTATO CON GALLEGGIANTE SMITHS LIVELLO BENZINA BORLETTI
#
008
MPN:
115 CS 66048
GASKET OR SEAL
#
009
MPN:
BNT 61985
BOLT
#
011
MPN:
DNT 47047
NUT
#
011
MPN:
RNT54507
WASHER
#
012
MPN:
RSN/32690
WASHER
#
013
MPN:
RNT 47074
WASHER
#
014
MPN:
107CS56189
UNION
#
015
MPN:
RC 56116
UNION
#
016
MPN:
DR56117
NUT
#
017
MPN:
RNN 56115
UNION
#
018
MPN:
001304213
fuel pump
USE 100245
from
£295.00
from
£295.00
#
019
MPN:
107/A CS 62936
FILTRO SULLE POMPE BENZINA TP. BENDIX
#
020
MPN:
107/A BL 62615
CAVO MASSA PER POMPE BENDIX
#
021
MPN:
SLN 62135
SUPPORT
#
022
MPN:
DNT 47047
NUT
#
023
MPN:
RDI53899
WASHER
#
024
MPN:
MN 64444
MANICOTTO Ø 8X 15 X 660 PER' TUBAZIONI BENZINA DAI SERBATOI ALLE POMPE
#
025
MPN:
MN 64444
MANICOTTO Ø 8X15X420 DALLA POMPA DEX. ALLA VALVOLA 3 VIE
#
026
MPN:
MN 64444
Manicotto Ø 8x15x820 dalla pompa sin. alla valvola 3 vie
#
027
MPN:
MN 64444
SLEEVE Ø 8X15X1180 FROM THE 2 WAY VALVE TO THE COPPER TUBE
#
028
MPN:
TRN 62404
TUBO DI RAME Ø 6 X 8 X 1960 SOTTO AT LONGHERONE
#
029
MPN:
MN 64444
SLEEVE Ø 8X 15 X 120 FOR COPPER JOINT Tubi
#
030
MPN:
TRN 62404
Tubo di rame Ø 6 x 8 x 715 sotto at parafango
#
031
MPN:
MN 64444
MANICOTTO Ø 8X15X740 DAL TUBO DI RAME AT FILTRO REGOLATORE
#
032
MPN:
MN 64444
SLEEVE Ø 8X15X1080 FROM FILTER REGULATOR TO CARBURETORS
#
033
MPN:
FRN 63330
Fascetta Ø 15 fissaggio manicotti
#
034
MPN:
116 CS 68248
FASCIA TENUTA SERBATOIO DEX
#
035
MPN:
116 CS 68249
LEFT TANK SEAL BAND
#
036
MPN:
BNT 47018
BOLT
#
037
MPN:
RSN 3 2 6 3 5
WASHER
#
038
MPN:
TN 33811
NORMAL CAP Ø 50X2,5 FOR FUEL TANK
#
039
MPN:
GOM 50656
NORMAL RUBBER FOR SAID
#
040
MPN:
PFN56119
GROMMET
#
041
MPN:
115 CS 64694
Spiral hose for right fuel tank vent
#
042
MPN:
115 CS 64695
SPIRAL HOSE FOR LEFT FUEL TANK VENT
#
043
MPN:
MN 60537
Tubo Ø 5X9X120 per detto
#
044
MPN:
TPN 50992
TUBO IN PLASTICA Ø 10X14X1110 SCARICO BENZINA DAL BOCCH
#
045
MPN:
101/9 CS 54666
FILTER IN THE FUEL TANK TANK
#
046
MPN:
GN 51444
GASKET OR SEAL
#
047
MPN:
RMN 62949
UNION
#
050
MPN:
122 CS 80495
FUEL FILTER REGULATOR
from
£131.25
from
£131.25
#
051
MPN:
107 CS 58399
UNION
#
052
MPN:
BNT. 53968
BOLT
#
053
MPN:
RDI53899
WASHER
#
054
MPN:
RNT 47074
WASHER
#
055
MPN:
006223974
FUEL FILTER
from
£25.40
from
£25.40
