036 - Electrical equipment

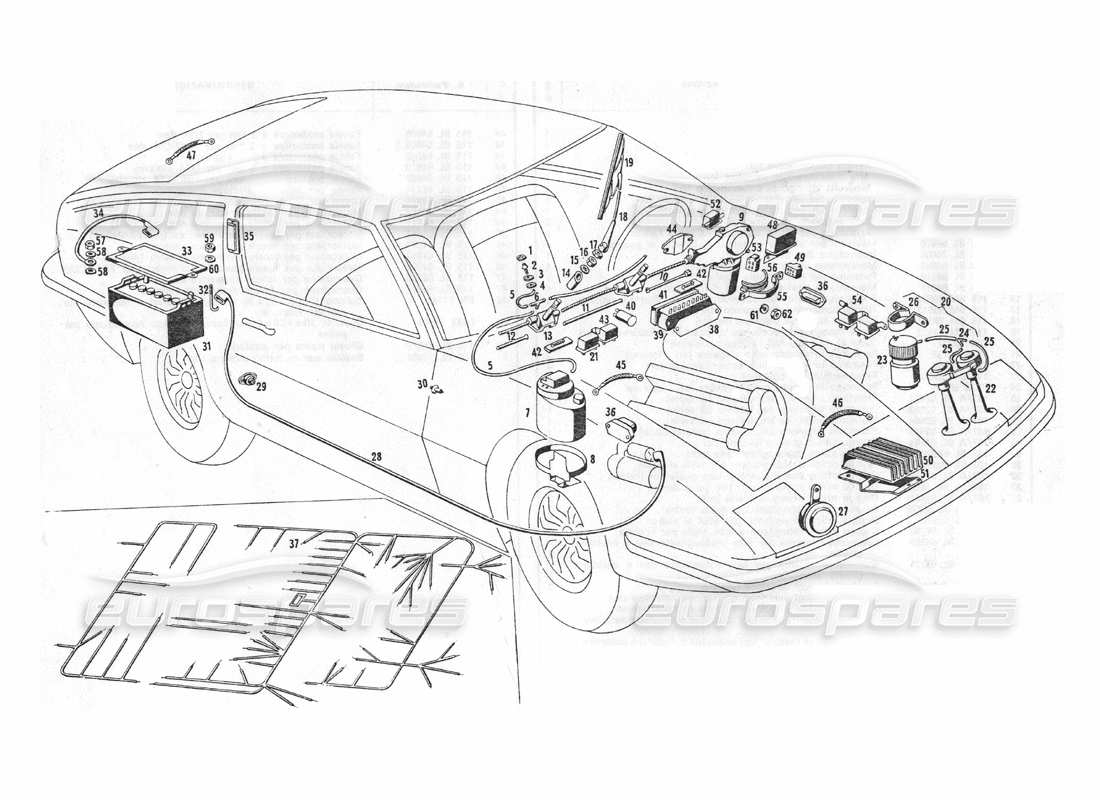

Maserati Indy 4.2 Electrical equipment Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                                                                                                                              #
                                                                                                                              Part number
                                                                                                                              Description
                                                                                                                              Key
                                                                                                                              Price
                                                                                                                              # 001
                                                                                                                              MPN: 115 BL 70286
                                                                                                                              CHROME UPPER BASE LUCAS SPRAYERS N. 295067
                                                                                                                              CHROME UPPER BASE LUCAS SPRAYERS N. 295067 Genuine Maserati Part - New (to order)
                                                                                                                              # 002
                                                                                                                              MPN: 115 BL 70285
                                                                                                                              SPRUZZATORE LAVACRISTALLO
                                                                                                                              from £41.74
                                                                                                                              from £41.74
                                                                                                                              SPRUZZATORE LAVACRISTALLO Genuine Maserati Part - New (to order)
                                                                                                                              # 003
                                                                                                                              MPN: 115 BL 70287
                                                                                                                              SOTTOBASETTA INFERIORE SPRUZZATORI LUCAS N. 295068
                                                                                                                              SOTTOBASETTA INFERIORE SPRUZZATORI LUCAS N. 295068 Genuine Maserati Part - New (to order)
                                                                                                                              # 004
                                                                                                                              MPN: 115 BL 70288
                                                                                                                              RUBBER BASE FOR LUCAS WINDSHIELD WASHER SPRAYER
                                                                                                                              RUBBER BASE FOR LUCAS WINDSHIELD WASHER SPRAYER Genuine Maserati Part - New (to order)
                                                                                                                              # 005
                                                                                                                              MPN: TPN 58276
                                                                                                                              Tubo in plastica Ø 55 X 3 X 1375
                                                                                                                              Tubo in plastica Ø 55 x 3 x 550 Genuine Maserati Part - New (to order)
                                                                                                                              # 005
                                                                                                                              MPN: TPN 58276
                                                                                                                              Tubo in plastica Ø 55 x 3 x 550
                                                                                                                              Tubo in plastica Ø 55 x 3 x 550 Genuine Maserati Part - New (to order)
                                                                                                                              # 006
                                                                                                                              MPN: 115 BL 66814
                                                                                                                              UNION
                                                                                                                              UNION Genuine Maserati Part - New (to order)
                                                                                                                              # 007
                                                                                                                              MPN: 115 BL 69815
                                                                                                                              WINDSHIELD WASHER FLUID RESERVOIR
                                                                                                                              Supersession
                                                                                                                              Supersession
                                                                                                                              Genuine Maserati Part (no longer available to order)
                                                                                                                              # 008
                                                                                                                              MPN: 116 BL 70446
                                                                                                                              SUPPORT
                                                                                                                              SUPPORT Genuine Maserati Part - New (to order)
                                                                                                                              # 009
                                                                                                                              MPN: 116 BL 68145
                                                                                                                              16 W 120° wiper control motor complete with hose, base, U-bolt and connector
                                                                                                                              16 W 120° wiper control motor complete with hose, base, U-bolt and connector Genuine Maserati Part - New (to order)
                                                                                                                              # 010
                                                                                                                              MPN: 116 BL 68685
                                                                                                                              TUBO SUL MOTORINO PER FLESSIBILE COMANDO TERGI L = 274 MM.
                                                                                                                              TUBO SUL MOTORINO PER FLESSIBILE COMANDO TERGI L = 274 MM Genuine Maserati Part - New (to order)
                                                                                                                              # 011
                                                                                                                              MPN: 116 BL 68157
                                                                                                                              TUBO CENTRALE PER FLESSIBILE COMANDO TERGI L = 605 MM.
                                                                                                                              TUBO CENTRALE PER FLESSIBILE COMANDO TERGI L = 605 MM Genuine Maserati Part - New (to order)
                                                                                                                              # 012
                                                                                                                              MPN: 107BL59640
                                                                                                                              TUBO TERMINALE PER FLESSIBILE COMANDO TERGI I =
                                                                                                                              TERMINAL TUBE FOR FLEXIBLE SHEATH Genuine Maserati Part - New (to order)
                                                                                                                              # 013
                                                                                                                              MPN: 107 BL 59649
                                                                                                                              COMPLETE BOX FOR WIPER CONTROL SHAFT
                                                                                                                              Supersession
                                                                                                                              Supersession
                                                                                                                              This part replaces part number 107 BL 59490
                                                                                                                              Genuine Maserati Part (no longer available to order)
                                                                                                                              # 014
                                                                                                                              MPN: 107 BL 59646
                                                                                                                              Distanziale sull'alberino comando tergi LUCAS
                                                                                                                              Distanziale sull'alberino comando tergi LUCAS Genuine Maserati Part - New (to order)
                                                                                                                              # 016
                                                                                                                              MPN: 107 BL 59645
                                                                                                                              Coprimozzo esterno alberino comando tergi « Lucas »
                                                                                                                              Coprimozzo esterno alberino comando tergi « Lucas » Genuine Maserati Part - New (to order)
                                                                                                                              # 017
                                                                                                                              MPN: DNT 59475
                                                                                                                              NUT
                                                                                                                              NUT Genuine Maserati Part - New (to order)
                                                                                                                              # 018
                                                                                                                              MPN: 116 BL 68686
                                                                                                                              ARM FOR WIPER BLADES
                                                                                                                              ARM FOR WIPER BLADES Genuine Maserati Part - New (to order)
                                                                                                                              # 018
                                                                                                                              MPN: 116 BL 70322
                                                                                                                              ARM FOR WIPER BLADES
                                                                                                                              ARM FOR WIPER BLADES Genuine Maserati Part - New (to order)
                                                                                                                              # 019
                                                                                                                              MPN: 116 BL 68687
                                                                                                                              SPAZZOLE PER TERGI
                                                                                                                              SPAZZOLE PER TERGI Genuine Maserati Part - New (to order)
                                                                                                                              # 019
                                                                                                                              MPN: 116 BL 70323
                                                                                                                              SPAZZOLE PER TERGI
                                                                                                                              SPAZZOLE PER TERGI Genuine Maserati Part - New (to order)
                                                                                                                              # 020
                                                                                                                              MPN: 116 BL 67061
                                                                                                                              ONE SOUND HORN COMPRESSOR COMPLETE WITH SCREWS, CLAMPS
                                                                                                                              Compressors trombe ad un suonp complato Genuine Maserati Part - New (to order)
                                                                                                                              # 021
                                                                                                                              MPN: 1,16 BL 67757
                                                                                                                              RELE PER COMANDO TROMBE PNEUMATICO
                                                                                                                              RELE PER COMANDO TROMBE PNEUMATICHE Genuine Maserati Part - New (to order)
                                                                                                                              # 022
                                                                                                                              MPN: 116 BL 70075
                                                                                                                              Trombe pneumatiche complete ad 1 suono
                                                                                                                              Trombe pneumatiche complete ad 1 suono Genuine Maserati Part - New (to order)
                                                                                                                              # 023
                                                                                                                              MPN: 101/7 17349 52102
                                                                                                                              COMPRESSOR FOR PNEUMATIC HORNS
                                                                                                                              ONE SOUND PNEUMATIC HORN COMPRESSOR Genuine Maserati Part - New (to order)
                                                                                                                              # 024
                                                                                                                              MPN: 107 - BL 58684
                                                                                                                              UNION
                                                                                                                              UNION Genuine Maserati Part - New (to order)
                                                                                                                              # 025
                                                                                                                              MPN: TPN 58683
                                                                                                                              PLASTIC COMPRESSOR HOSE AT 3 WAY
                                                                                                                              Tubo plasttCa dal compressors al 3 vie Genuine Maserati Part - New (to order)
                                                                                                                              # 025
                                                                                                                              MPN: TPN 58683
                                                                                                                              PLASTIC PIPE FROM 3 WAY TO THE HORNS
                                                                                                                              Tubo plasttCa dal compressors al 3 vie Genuine Maserati Part - New (to order)
                                                                                                                              # 026
                                                                                                                              MPN: 107 - BL 58685
                                                                                                                              Fascetta per fissaggio compressore trombe
                                                                                                                              Fascetta per fissaggio compressore trombe Genuine Maserati Part - New (to order)
                                                                                                                              # 028
                                                                                                                              MPN: 107 BL 57185
                                                                                                                              Cable from battery to starter motor
                                                                                                                              Cable from battery to starter motor Genuine Maserati Part - New (to order)
                                                                                                                              # 029
                                                                                                                              MPN: 107 - BL 55888
                                                                                                                              FANALINO SEGNALAZIONE APERTURA PORTIERE
                                                                                                                              FanalIno per segnalazione portiera Genuine Maserati Part - New (to order)
                                                                                                                              # 030
                                                                                                                              MPN: 101/9 BL 55109
                                                                                                                              INTERRUTTORE A PULSANTE PER LUCI APERTURA PORTIERE
                                                                                                                              from £14.78
                                                                                                                              from £14.78
                                                                                                                              BUTTON SWITCH FOR DOOR AND CEILING LIGHTS Genuine Maserati Part - New (to order)
                                                                                                                              # 031
                                                                                                                              MPN: 101/5 17430 51457
                                                                                                                              Batteria d'aiimentazione da 72 A
                                                                                                                              Batteria d'aiimentazione da 72 A Genuine Maserati Part - New (to order)
                                                                                                                              # 032
                                                                                                                              MPN: 116 BL 67755
                                                                                                                              TIE ROD
                                                                                                                              TIE ROD Genuine Maserati Part - New (to order)
                                                                                                                              # 033
                                                                                                                              MPN: 107 BL 56601
                                                                                                                              FRAME TO HOLD THE BATTERY TO THE FRAME
                                                                                                                              FRAME TO HOLD THE BATTERY TO THE FRAME Genuine Maserati Part - New (to order)
                                                                                                                              # 034
                                                                                                                              MPN: 104 BL 56619
                                                                                                                              CAVO COMPLETO PER MASSA BATTERIA SUL TELAIO
                                                                                                                              CAVO COMPLETO PER MASSA BATTERIA SUL TELAIO Genuine Maserati Part - New (to order)
                                                                                                                              # 035
                                                                                                                              MPN: 116 BL 68742
                                                                                                                              INTERNAL LIGHTING CEILING LIGHT
                                                                                                                              INTERNAL LIGHTING CEILING LIGHT Genuine Maserati Part - New (to order)
                                                                                                                              # 036
                                                                                                                              MPN: 109 - BL 56628
                                                                                                                              ENGINE COMPARTMENT LIGHTING CEILING LIGHT
                                                                                                                              Porta lampada per illuminazione cofano motore Genuine Maserati Part - New (to order)
                                                                                                                              # 037
                                                                                                                              MPN: 116 BL 67621
                                                                                                                              ELECTRICAL SYSTEM COMPLETE WITH TERMINAL VALVE BOX AND GS TERMINAL BLOCKS
                                                                                                                              COMPLETE ELECTRICAL SYSTEM WITH VALVE BOX, TERMINALS AND GS TERMINAL BLOCKS Genuine Maserati Part - New (to order)
                                                                                                                              # 037
                                                                                                                              MPN: 116 BL 68282
                                                                                                                              ELECTRICAL SYSTEM COMPLETE WITH VALVE BOX, TERMINALS AND TERMINAL BLOCKS FOR GD
                                                                                                                              ELECTRICAL SYSTEM COMPLETE WITH VALVE BOX, TERMINALS AND TERMINAL BLOCKS FOR GD Genuine Maserati Part - New (to order)
                                                                                                                              # 038
                                                                                                                              MPN: 107/A BL 62995
                                                                                                                              PROTECTIVE BASE BETWEEN VALVE BOX AND FRAME
                                                                                                                              VALVE BOX PROTECTION BASE Genuine Maserati Part - New (to order)
                                                                                                                              # 039
                                                                                                                              MPN: 116 BL 68084
                                                                                                                              Scatola valvole find alla 250ª vettura
                                                                                                                              Scatola valvole find alla 250ª vettura Genuine Maserati Part - New (to order)
                                                                                                                              # 039
                                                                                                                              MPN: 116 BL 71340
                                                                                                                              Valve box from the 251th car onwards
                                                                                                                              Valve box from the 251th car onwards Genuine Maserati Part - New (to order)
                                                                                                                              # 040
                                                                                                                              MPN: 107 - BL 57278
                                                                                                                              FLASHING DEVICE FOR DIRECTION LIGHTS
                                                                                                                              Intermittenza per luci di direzione Genuine Maserati Part - New (to order)
                                                                                                                              # 040
                                                                                                                              MPN: 116 BL 67764
                                                                                                                              FLASHING FIXTURE FOR DIRECTION LIGHTS FOR USA AND GERMANY
                                                                                                                              FLASHING FIXTURE FOR DIRECTION LIGHTS FOR USA AND GERMANY Genuine Maserati Part - New (to order)
                                                                                                                              # 041
                                                                                                                              MPN: 116 BL 69903
                                                                                                                              COVER
                                                                                                                              COVER Genuine Maserati Part - New (to order)
                                                                                                                              # 042
                                                                                                                              MPN: 116 BL 68741
                                                                                                                              PLAFONIERA INF. PER CRUSCOTTO
                                                                                                                              from £102.60
                                                                                                                              from £102.60
                                                                                                                              CEILING LIGHT ON THE LOWER SIDE DASHBOARD Genuine Maserati Part - New (to order)
                                                                                                                              # 043
                                                                                                                              MPN: 116 BL 56288
                                                                                                                              REID INVERTITORE PER ACCENSIONE MEZZE IUCI CON ABBAGLIANTI
                                                                                                                              REID INVERTITORE PER ACCENSIONE MEZZE IUCI CON ABBAGLIANTI Genuine Maserati Part - New (to order)
                                                                                                                              # 044
                                                                                                                              MPN: 116 BL 71914
                                                                                                                              RUBBER BASE FOR FIXING THE WIPER MOTOR
                                                                                                                              RUBBER BASE FOR FIXING THE WIPER MOTOR Genuine Maserati Part - New (to order)
                                                                                                                              # 045
                                                                                                                              MPN: 101/9 - BL 55209
                                                                                                                              COMPLETE BRAIDED CABLE FOR EARTH BETWEEN RADIATOR AND FRAME
                                                                                                                              CAVO COMPLETE PER RNASSA MOTORE Genuine Maserati Part - New (to order)
                                                                                                                              # 046
                                                                                                                              MPN: 109 BL 56620
                                                                                                                              Complete ground cable between radiator and frame
                                                                                                                              Complete ground cable between radiator and frame Genuine Maserati Part - New (to order)
                                                                                                                              # 047
                                                                                                                              MPN: 107/A BL 62615
                                                                                                                              EARTH CABLE FOR FUEL PUMP
                                                                                                                              Cavo per massa pompa benzina Genuine Maserati Part - New (to order)
                                                                                                                              # 048
                                                                                                                              MPN: 107 - ME 58568
                                                                                                                              REGOLATORE PER ALTERNATORE
                                                                                                                              VOLTAGE REGULATOR FOR BOSCH ALTERNATOR Genuine Maserati Part - New (to order)
                                                                                                                              # 049
                                                                                                                              MPN: 107 ME 58024
                                                                                                                              TERMINAL BLOCK FOR ALTERNATOR AND REGULATOR
                                                                                                                              Connector for vacuum control solenoid valve Genuine Maserati Part - New (to order)
                                                                                                                              # 050
                                                                                                                              MPN: 115 ME 67097
                                                                                                                              COMPLETE ELECTRONIC IGNITION AMPLIFIER
                                                                                                                              Centralino accensione elettronica capacitativa Bosch Genuine Maserati Part - New (to order)
                                                                                                                              # 051
                                                                                                                              MPN: 115 ME 68340
                                                                                                                              AMPLIFIER SUPPORT BASE
                                                                                                                              AMPLIFIER SUPPORT BASE Genuine Maserati Part - New (to order)
                                                                                                                              # 052
                                                                                                                              MPN: 109/A BL 62873
                                                                                                                              REID POWER EXCLUSION FLASHING HEADLIGHTS, ENGINE FANS AND HEATING FANS
                                                                                                                              from £60.00
                                                                                                                              from £60.00
                                                                                                                              Relit controllo ventola abitacolo Genuine Maserati Part - New (to order)
                                                                                                                              # 053
                                                                                                                              MPN: 107/A BL 65361
                                                                                                                              WIPER TERMINAL HOLDER BLOCK
                                                                                                                              WIPER TERMINAL HOLDER BLOCK Genuine Maserati Part - New (to order)
                                                                                                                              # 054
                                                                                                                              MPN: 107/R BL 62865
                                                                                                                              Relé comando ventole motore (ad esaurimento montare e particolare N. 52 52873)
                                                                                                                              Relé comando ventole motore (ad esaurimento montare e particolare N. 52 52873) Genuine Maserati Part - New (to order)
                                                                                                                              # 055
                                                                                                                              MPN: 116 BL 71915
                                                                                                                              WIPER MOTOR SEAL CLAMP
                                                                                                                              WIPER MOTOR SEAL CLAMP Genuine Maserati Part - New (to order)
                                                                                                                              # 056
                                                                                                                              MPN: 116 BL 71916
                                                                                                                              SOTTOFASCETTA PER TENUTA MOTORINO TERGI
                                                                                                                              SOTTOFASCETTA PER TENUTA MOTORINO TERGI Genuine Maserati Part - New (to order)
                                                                                                                              # 059
                                                                                                                              MPN: DNT 47047
                                                                                                                              NUT
                                                                                                                              NUT Genuine Maserati Part - New (to order)
                                                                                                                              # 060
                                                                                                                              MPN: RN 32025
                                                                                                                              WASHER
                                                                                                                              WASHER Genuine Maserati Part - New (to order)
                                                                                                                              # 062
                                                                                                                              MPN: RSN 3 2 6 3 5
                                                                                                                              WASHER
                                                                                                                              WASHER Genuine Maserati Part - New (to order)
