037 - Front Body

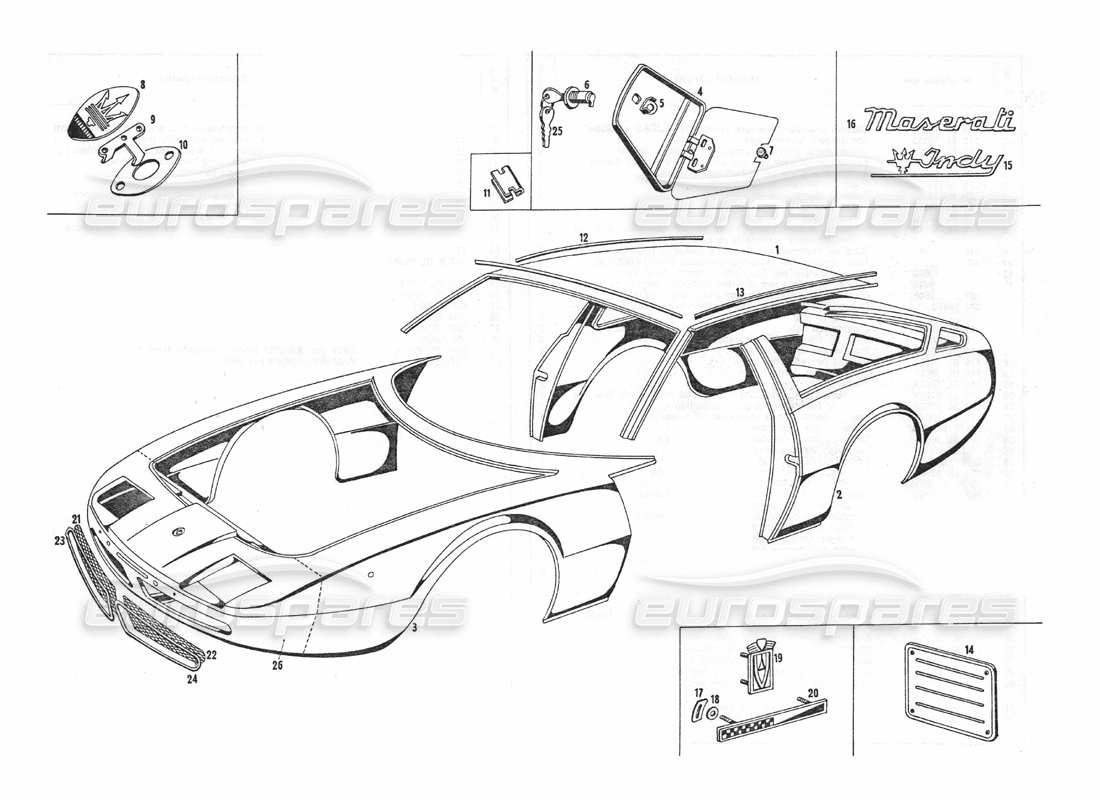

Maserati Indy 4.2 Front body Parts Diagram
View the exploded parts diagram to find the part you are looking for
- You can reposition the diagram by dragging it
- You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
- You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
- You can click on a hotspot
in the parts diagram to locate the part in the table
- You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
# 001
MPN: 116 BT 69242
ROOF COMPLETE WITH WINDSHIELD COLUMNS
# 002
MPN: 116 BT 69243
ASSEMBLED REAR FENDER UNIT COMPLETE WITH DOOR COMPARTMENT COLUMNS
# 002
MPN: 116 BT 72639
REAR FENDER ASSEMBLED GROUP. COMPLETE WITH DOOR COMPARTMENT COLUMNS (WITH RECESSED REAR HOLES) FROM CAR N. 700
# 003
MPN: 116 BT 69244
ASSEMBLED FRONT FENDERS COMPLETE WITH DOOR COMPARTMENT COLUMNS
# 004
MPN: 116 BT 69245
LEFT FUEL FILLER DOOR WITH HINGE
# 004
MPN: 116 BT 69246
RIGHT FUEL FILLER DOOR WITH HINGE
# 005
MPN: 116 BM 69247
FUEL FILLER DOOR LOCK FIXING PLATE
# 006
MPN: 116 BC 67792
FUEL LOCK BLOCK COMPLETE WITH RING
# 007
MPN: PCN 69517
RUBBER BUFFER FOR FUEL FILLER DOOR
# 008
MPN: TRG 32573
DISTINTIVO Maserati COPRIFORO LEVA EMERGENZA ALZACRISTALLI
from £95.00
from £95.00
# 009
MPN: 116 BM 69248
CLIP
# 010
MPN: 116 BM 69249
Base for emergency lever hole cover badge
# 011
MPN: GRF 70551
GRAFFETTA FISSAGGIO COPRIGRONDA
# 012
MPN: 116 BT 69250
COPRIGRONDA DESTRA
# 013
MPN: 116 BT 69251
COPRIGRONDA SINISTRA
# 014
MPN: 116 BM 70604
PORTATARGA POSTERIORE
# 015

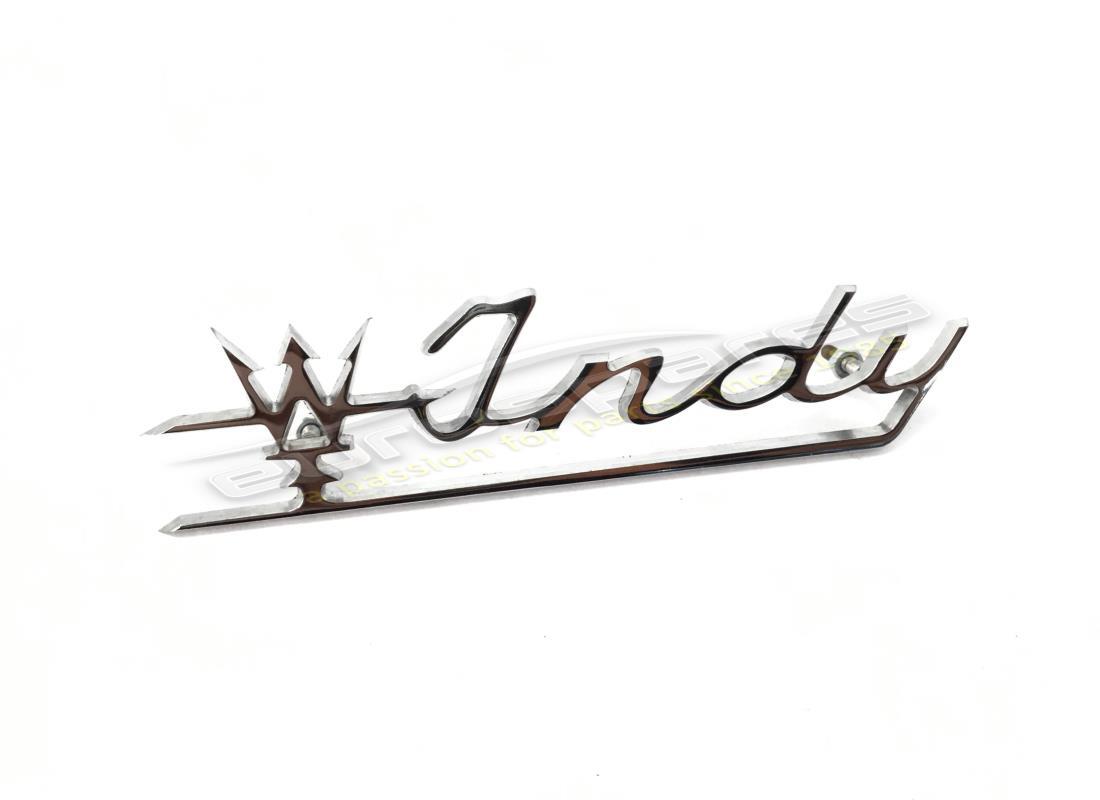

MPN: 116 BM 68293
SCRITTA CROMATA POSTERIORE « INDY »
from £89.25
from £89.25
# 016
MPN: 107 BV 57591
SCRITTA CROMATA « Maserati »
from £52.50
from £52.50
# 017
MPN: GRF 70553
Graffetta fissaggio stemma « Vignale »
# 018
MPN: GN 70552
RUBBER GASKET
# 019
MPN: TRG 67683
STEMMA « VIGNALE »
# 020
MPN: TRG 70440
Targhetta sotto to stemma « Vignale »
# 021
MPN: 116 BA 69252
RETE DEX PER MASCHERA ANTERIORE
# 022
MPN: 116 BA 69253
LEFT NET FOR FRONT MASK
# 023
MPN: 116 BA 71412
CORNICE DEX PER GRIGLIA PRESA ARIA ANT
# 024
MPN: 116 BA 71413
LEFT FRAME FOR FRONT AIR INTAKE GRILLE
# 025
MPN: 107/A BO 70396
CHIAVE GREZZA PER BOCCHETTONE BENZINA (DESIGN. N° CHIAVE)
# 026
MPN: 116 BT 70391
MUSETTO ANTERIORE COMPLETO (PARTE TRATTEGGIATA)
