maserati indy 4.2 bumpers and glasses parts diagram

039 - Bumpers and Glasses

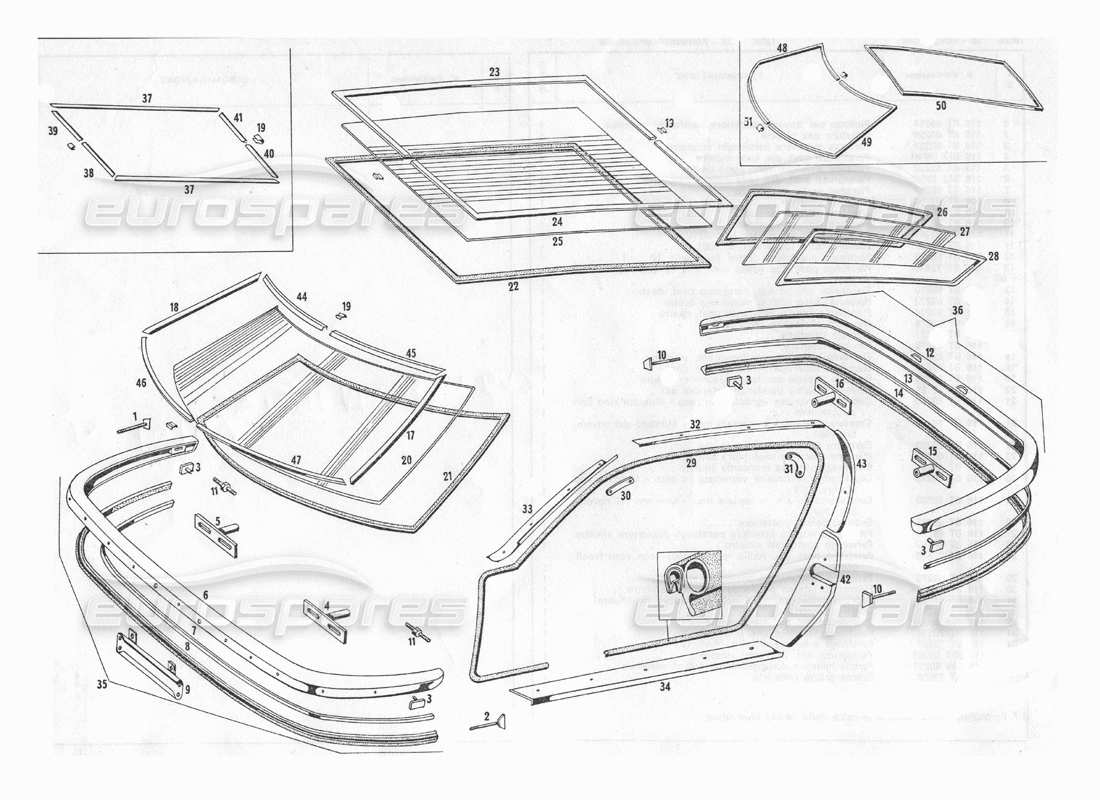

Maserati Indy 4.2 Bumpers and glasses Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                                                                                                    #
                                                                                                    Part number
                                                                                                    Description
                                                                                                    Price
                                                                                                    # 000
                                                                                                    MPN: 109 BO 56655
                                                                                                    RUBBER DOOR STOP
                                                                                                    Details without numbers at the bottom of the illustrative table
                                                                                                    # 000
                                                                                                    MPN: 109 BO 56687
                                                                                                    DOOR STOP FEEDBACK
                                                                                                    # 000
                                                                                                    MPN: VNT 65543
                                                                                                    Vite Ø 5X0,8X10
                                                                                                    # 001
                                                                                                    MPN: 116 BA 69230
                                                                                                    INTESTATURA DEX PER PARAURTI ANT
                                                                                                    # 002
                                                                                                    MPN: 116 BA 69231
                                                                                                    INTESTATURA SIN. PER PARAURTI ANT
                                                                                                    # 003
                                                                                                    MPN: 116 BA 69232
                                                                                                    SPECIAL VITA BUMPER RUBBER FIXING
                                                                                                    # 004
                                                                                                    MPN: 116 BA 69233
                                                                                                    SUPPORT
                                                                                                    # 005
                                                                                                    MPN: 116 BA 69234
                                                                                                    SUPPORT
                                                                                                    # 006
                                                                                                    MPN: 116 BA 69235
                                                                                                    LAMA PARAURTI ANT
                                                                                                    # 007
                                                                                                    MPN: 116 BA 69236
                                                                                                    FIXED RUBBER BUFFER INSERT FOR FRONT BUMPER
                                                                                                    # 008
                                                                                                    MPN: PRN 69918
                                                                                                    PROFILATO IN GOMMA PARAURTI ANT. - 1=2530 MM.
                                                                                                    # 009
                                                                                                    MPN: 116 BA 69238
                                                                                                    PORTATARGA ANTERIORE
                                                                                                    # 010
                                                                                                    MPN: 116 BA 69338
                                                                                                    REAR BUMPER TRIM
                                                                                                    # 011
                                                                                                    MPN: 116 BA 70455
                                                                                                    BOLT
                                                                                                    # 011
                                                                                                    MPN: BN 71141
                                                                                                    BOLT
                                                                                                    # 012
                                                                                                    MPN: 116 BA 69239
                                                                                                    REAR BUMPER BLADE
                                                                                                    # 013
                                                                                                    MPN: 116 BA 69240
                                                                                                    FIXED INSERT FOR RUBBER BUMPERS
                                                                                                    # 014
                                                                                                    MPN: PRM 69918
                                                                                                    PROFILATO IN GOMMA NERA PER PARAURTI - 1=2650 MM.
                                                                                                    # 015
                                                                                                    MPN: 116 BA 69339
                                                                                                    SUPPORT
                                                                                                    # 016
                                                                                                    MPN: 116 BA 69340
                                                                                                    SUPPORT
                                                                                                    # 017
                                                                                                    MPN: 116 BC 69341
                                                                                                    CORNICE CROMATA SINISTRA .PARABREZZA (FINO VETT. N. 498)
                                                                                                    from £224.14
                                                                                                    from £224.14
                                                                                                    # 018
                                                                                                    MPN: 116 BC 69342
                                                                                                    CORNICE CROMATA DEX PARABREZZA (FINO VETT. N. 498)
                                                                                                    # 019
                                                                                                    MPN: 116 BC 69343
                                                                                                    COPRIGIUNTO PER CORNICI PARABR. E LUNOTTO (FINO VETT. N. 500)
                                                                                                    Supersession
                                                                                                    Supersession
                                                                                                    # 020
                                                                                                    MPN: 116 BC 66260
                                                                                                    FRONT WINDSHIELD
                                                                                                    # 021
                                                                                                    MPN: 116 BC 69344
                                                                                                    STAMPATO GAMMA PARABREZZA (DALLA VETT. N. 488)
                                                                                                    USE PART No; 15319100 for Q insert OR 15319101 for T insert.
                                                                                                    # 021
                                                                                                    MPN: 116 BC 71888
                                                                                                    STAMPATO GAMMA PARABREZZA (DALLA VETT. N. 500)
                                                                                                    USE PART No; 15319100 for Q insert OR 15319101 for T insert.
                                                                                                    # 021
                                                                                                    MPN: 15319100
                                                                                                    FRONT SCREEN RUBBER
                                                                                                    Valid for Omega insert trim
                                                                                                    # 021
                                                                                                    MPN: 15319101
                                                                                                    FRONT SCREEN RUBBER
                                                                                                    Valid for T instert trim
                                                                                                    # 022
                                                                                                    MPN: 116 BT 69345
                                                                                                    REAR SCREEN RUBBER (FINO VETT. N. 498)
                                                                                                    USE PART No; 15319110 for Q insert OR 15319111 for T insert.
                                                                                                    # 022
                                                                                                    MPN: 116 BT 71889
                                                                                                    REAR SCREEN RUBBER (DALLA VETT. N. 500)
                                                                                                    USE PART No; 15319110 for Q insert OR 15319111 for T insert.
                                                                                                    # 022
                                                                                                    MPN: 15319110
                                                                                                    REAR SCREEN RUBBER
                                                                                                    Valid for Omega insert trim
                                                                                                    from £309.75
                                                                                                    from £309.75
                                                                                                    # 022
                                                                                                    MPN: 15319111
                                                                                                    REAR SCREEN RUBBER
                                                                                                    Valid for T insert trim
                                                                                                    from £393.75
                                                                                                    from £393.75
                                                                                                    # 023
                                                                                                    MPN: 116 BT 69346
                                                                                                    CORNICE CROMATA DEX LUNOTTO (FINO AL 31-10-69)
                                                                                                    # 024
                                                                                                    MPN: 116 BT 69347
                                                                                                    CORNICE CROMATA SIN. LUNOTTO (FINO AL 31-10-69)
                                                                                                    # 025
                                                                                                    MPN: 116 BT 66261
                                                                                                    LUNOTTO POSTERIORE TERMOVIS
                                                                                                    # 026
                                                                                                    MPN: 116 BT 69348
                                                                                                    STAMPATO GOMMA VOLETTO POST. DEX
                                                                                                    # 026
                                                                                                    MPN: 116 BT 69349
                                                                                                    STAMPATO GOMMA VOLETTO POST. SIN
                                                                                                    # 027
                                                                                                    MPN: 116 BT 66266
                                                                                                    VETRO VOLETTO POST. DEX
                                                                                                    # 027
                                                                                                    MPN: 116 BT 66267
                                                                                                    Vetro voletto post. Sin
                                                                                                    # 028
                                                                                                    MPN: 116 BT 69350
                                                                                                    CORNICE VETRO VOLETTO POST. DEX
                                                                                                    # 028
                                                                                                    MPN: 116 BT 69351
                                                                                                    CORNICE VETRO VOLETTO POST. SIN
                                                                                                    # 029
                                                                                                    MPN: PRM 71020
                                                                                                    PROFILO GOMMA TENUTA VANO PORTA (SOSTITUIRE IT PRECEDENTE PRN 70596 SU AMBO LE PORTIERE) MT. 4
                                                                                                    # 030
                                                                                                    MPN: 116 RO 69352
                                                                                                    FRONT PLATE DOOR COMPARTMENT RUBBER FIXING
                                                                                                    # 031
                                                                                                    MPN: 116 BO 69353
                                                                                                    REAR PLATE DOOR COMPARTMENT RUBBER FIXING
                                                                                                    # 032
                                                                                                    MPN: 116 BO 69354
                                                                                                    MOLURA SOTTO COPRIGRONDA SUPER. DEX
                                                                                                    # 032
                                                                                                    MPN: 116 BO 69355
                                                                                                    MOLURA SOTTO COPRIGRONDA SUPER. SIN
                                                                                                    # 033
                                                                                                    MPN: 116 BO 69356
                                                                                                    COPRIMONTANTE ANT. DEX
                                                                                                    # 033
                                                                                                    MPN: 116 BO 69357
                                                                                                    COPRIMONTANTE ANT. SIN
                                                                                                    # 034
                                                                                                    MPN: 116 BO 69358
                                                                                                    Batticalcagno dex
                                                                                                    # 034
                                                                                                    MPN: 116 BO 69359
                                                                                                    BATTICALCAGNO SIN
                                                                                                    # 035
                                                                                                    MPN: 116 BA 69621
                                                                                                    PARAURTI ANT. COMPLETO DI GOMMA
                                                                                                    # 036
                                                                                                    MPN: 116 BA 69567
                                                                                                    REAR BUMPER COMPLETE WITH RUBBER
                                                                                                    # 037
                                                                                                    MPN: 116 BT 70590
                                                                                                    MOLURA LATERALE LUNOTTO (MONTATA DAL 25508 AL VETT. N. 500 CARROZZ. 1258)
                                                                                                    # 038
                                                                                                    MPN: 116 BT 70591
                                                                                                    MOLURA SUPERIORE SINISTRA LUNOTTO (MONTATA DAL 1-1169 AL 23-4-70 VETT. N. 500 CARROZZ. 1258)
                                                                                                    # 039
                                                                                                    MPN: 116 BT 70592
                                                                                                    MOLURA SUPERIORE DESTRA LUNOTTO (MONTATA DAL 1-11-69 AL 234-70 VETT. N. 500 CARROZZ. 1258)
                                                                                                    # 040
                                                                                                    MPN: 116 BT 70593
                                                                                                    MOLURA INFERIORE SINISTRA LUNOTTO (MONTATA DAL 1-11-69 AL 23-4-70 VETT. N. 500 CARROZZ. 1258)
                                                                                                    # 041
                                                                                                    MPN: 116 BT 70594
                                                                                                    MOLURA INFERIORE DESTRA LUNOTTO (MONTATA DAL 1-11-69) (VETT. N. 500)
                                                                                                    # 042
                                                                                                    MPN: 116 BO 71780
                                                                                                    MODANATURA INOX INF. DORS. PORTA DEX. (SINO AT 31-10-69)
                                                                                                    # 042
                                                                                                    MPN: 116 BO 71781
                                                                                                    MODANATURA INOX INF. DORS. PORTA SIN. (SINO AT 31-10-69)
                                                                                                    # 042
                                                                                                    MPN: 116 BO 72632
                                                                                                    MODANATURA INOX INF. DORS. PORTA DEX (MONTATA DAL 1-11-69 VETT. N. 500) (CON SCANSO PER TASSELLO GOMMA
                                                                                                    # 042
                                                                                                    MPN: 116 BO 72633
                                                                                                    MODANATURA INOV INF. DORS. PORTA SIN. (MONTATA DAL 1-11-69 VETT. N. 500) (CON SCANSO PER TASSELLO GOMMA
                                                                                                    # 043
                                                                                                    MPN: 116 BD 71783
                                                                                                    MODANATURA INOX SUP. DORS. PORTA SIN. (MONTATA DAL 1-11-69)
                                                                                                    # 043
                                                                                                    MPN: 116 BO 71782
                                                                                                    MODANATURA INOX SUP. DORS. PORTA DEX. (MONTATA DAL 1-11-69)
                                                                                                    # 044
                                                                                                    MPN: 116 BC 71890
                                                                                                    TRAVERSA SUP. DEX. CORNICE PARABREZZA (FINO VETT. N. 498)
                                                                                                    # 045
                                                                                                    MPN: 116 BC 71891
                                                                                                    TRAVERSA SUP. SIN. CORNICE PARABREZZA (FINO VETT. N. 498)
                                                                                                    from £224.14
                                                                                                    from £224.14
                                                                                                    # 046
                                                                                                    MPN: 116 BC 71892
                                                                                                    TRAVERSA INF. DEX. CORNICE PARABREZZA (FINO VETT. N. 498)
                                                                                                    # 047
                                                                                                    MPN: 116 BC 71893
                                                                                                    TRAVERSA INF. SIN. CORNICE PARABREZZA (FINO VETT. N. 498)
                                                                                                    from £224.14
                                                                                                    from £224.14
                                                                                                    # 048
                                                                                                    MPN: 116 BC 71894
                                                                                                    CORNICE PARABREZZA (DALLA VETT. N. 500) DEX
                                                                                                    # 049
                                                                                                    MPN: 116 BC 71895
                                                                                                    CORNICE PARABREZZA (DALLA VETT. N. 500) SIN
                                                                                                    from £48.28
                                                                                                    from £48.28
                                                                                                    # 050
                                                                                                    MPN: 116 BT 71952
                                                                                                    CORNICE LUNOTTO (DALLA VETT. N. 500)
                                                                                                    # 051
                                                                                                    MPN: 115 BC 65005
                                                                                                    JOINT COVER FOR WINDSHIELD FRAME
                                                                                                    from £866.38
                                                                                                    from £866.38
