maserati indy 4.2 doors parts diagram

042 - Doors

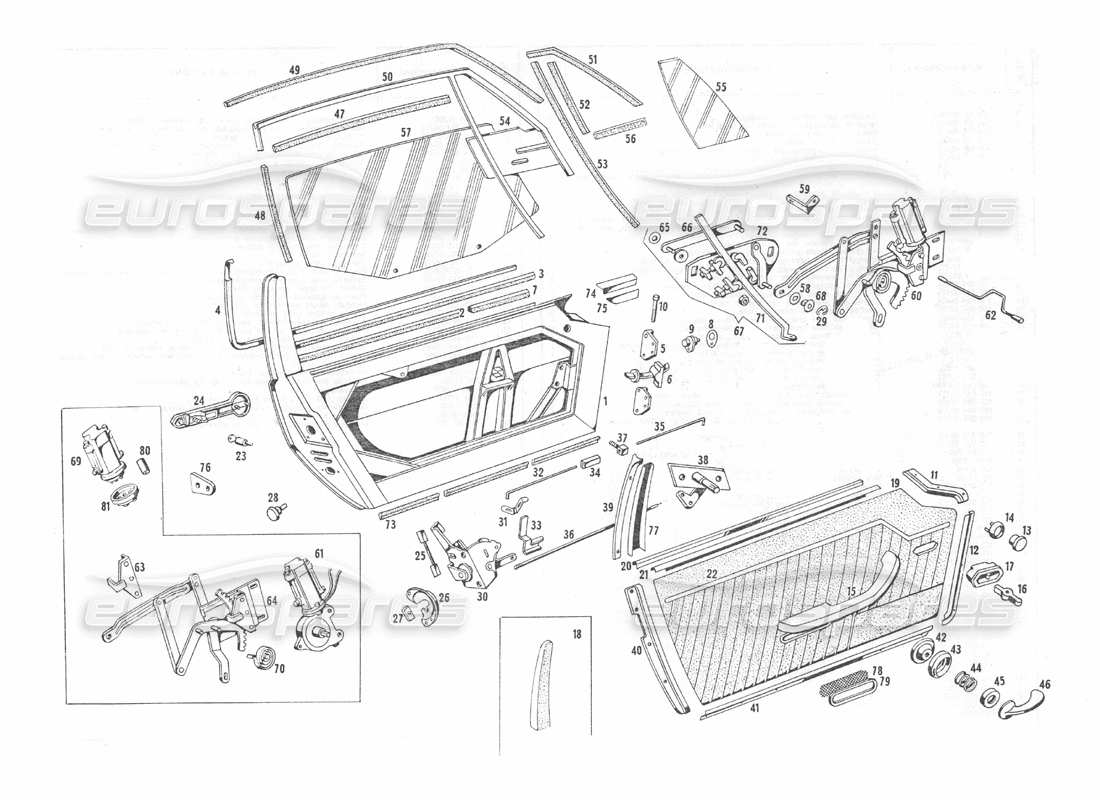

Maserati Indy 4.2 Doors Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                                                                                                                                                                    #
                                                                                                                                                                    Part number
                                                                                                                                                                    Description
                                                                                                                                                                    Price
                                                                                                                                                                    # 001
                                                                                                                                                                    MPN: 116 BT 69286
                                                                                                                                                                    PORTIERA DEX GREZZA
                                                                                                                                                                    # 001
                                                                                                                                                                    MPN: 116 BT 69287
                                                                                                                                                                    LEFT DOOR RAW
                                                                                                                                                                    # 002
                                                                                                                                                                    MPN: PRN 70546
                                                                                                                                                                    PROFILATO VELLUTATO GOCCIOLATOIO VETRI SCENDENTI I = 0.800 MM. - ESTERNO
                                                                                                                                                                    # 003
                                                                                                                                                                    MPN: PRN 58530
                                                                                                                                                                    PROFILATO GOMMA RASCHIA ACQUA - I = 1,100 MM
                                                                                                                                                                    # 004
                                                                                                                                                                    MPN: 116 80 69288
                                                                                                                                                                    MOLURA ESTERNA VETRI PORTIERA DEX.
                                                                                                                                                                    Supersession
                                                                                                                                                                    Supersession
                                                                                                                                                                    # 004
                                                                                                                                                                    MPN: 116 BO 69289
                                                                                                                                                                    MOLURA ESTERNA VETRI PORTIERA SINISTRA
                                                                                                                                                                    # 005
                                                                                                                                                                    MPN: 116 BO 69290
                                                                                                                                                                    DOOR HINGE
                                                                                                                                                                    # 006
                                                                                                                                                                    MPN: 107 - BO 60028
                                                                                                                                                                    DOOR STOP DEVICE
                                                                                                                                                                    from £8.34
                                                                                                                                                                    from £8.34
                                                                                                                                                                    # 007
                                                                                                                                                                    MPN: PRN 70546
                                                                                                                                                                    PROFILATO VELLUTATO GOCCIOLATOIO ROLETTO 280 MM. - ESTERNO
                                                                                                                                                                    # 008
                                                                                                                                                                    MPN: 107/A BL 62658
                                                                                                                                                                    DOOR LIGHT SWITCH PROTECTION BASE
                                                                                                                                                                    # 009
                                                                                                                                                                    MPN: 101/9 BL 55109
                                                                                                                                                                    DOOR LIGHT SWITCH
                                                                                                                                                                    from £14.78
                                                                                                                                                                    from £14.78
                                                                                                                                                                    # 010
                                                                                                                                                                    MPN: 116 BO 69291
                                                                                                                                                                    PIVOT
                                                                                                                                                                    # 011
                                                                                                                                                                    MPN: 116 BO 69292
                                                                                                                                                                    FRONT UPPER RIGHT DOOR MOLDING
                                                                                                                                                                    # 011
                                                                                                                                                                    MPN: 116 BO 69293
                                                                                                                                                                    MODANATURA ANTERIORE SUPERIORE PORTIERA SINLSTRA
                                                                                                                                                                    # 012
                                                                                                                                                                    MPN: 116 BO 69294
                                                                                                                                                                    FRONT SIDE RIGHT DOOR MOLDING
                                                                                                                                                                    # 012
                                                                                                                                                                    MPN: 116 BO 69295
                                                                                                                                                                    LEFT DOOR SIDE MOLDING
                                                                                                                                                                    # 013
                                                                                                                                                                    MPN: 107/A BO 62423
                                                                                                                                                                    Window lifter emergency crank hole plug
                                                                                                                                                                    # 014
                                                                                                                                                                    MPN: 107/A BO 70605
                                                                                                                                                                    RING
                                                                                                                                                                    # 015
                                                                                                                                                                    MPN: 116 BO 69296
                                                                                                                                                                    PASSENGER DOOR ARM REST FOR GS
                                                                                                                                                                    # 015
                                                                                                                                                                    MPN: 116 BO 69297
                                                                                                                                                                    PASSENGER DOOR ARMREST FOR GD
                                                                                                                                                                    # 015
                                                                                                                                                                    MPN: 116 BO 69300
                                                                                                                                                                    APPOGGIABRACCIO PILOTA PER GUIDA DESTRA
                                                                                                                                                                    # 015
                                                                                                                                                                    MPN: 116 BO 69301
                                                                                                                                                                    APPOGGIABRACCIO PILOTA PER GUIDA SINISTRA
                                                                                                                                                                    # 016
                                                                                                                                                                    MPN: 116 BO 69298
                                                                                                                                                                    Levetta comando sicura portlera
                                                                                                                                                                    # 017
                                                                                                                                                                    MPN: 116 BO 69299
                                                                                                                                                                    CAP FOR DOOR SAFETY CONTROL LEVER
                                                                                                                                                                    # 018
                                                                                                                                                                    MPN: 116 BO 69322
                                                                                                                                                                    RAW RIGHT DOOR COLUMN FINISH PANEL
                                                                                                                                                                    # 018
                                                                                                                                                                    MPN: 116 BO 69323
                                                                                                                                                                    RAW LEFT DOOR COLUMN FINISHING PANEL
                                                                                                                                                                    # 018
                                                                                                                                                                    MPN: 116 BO 69324
                                                                                                                                                                    RIGHT DOOR COLUMN FINISHING PANEL COATED COLOR TO BE SPECIFIED
                                                                                                                                                                    # 018
                                                                                                                                                                    MPN: 116 BO 69325
                                                                                                                                                                    LEFT DOOR COLUMN FINISHING PANEL COATED COLOR TO BE SPECIFIED
                                                                                                                                                                    # 019
                                                                                                                                                                    MPN: 116 BO 69302
                                                                                                                                                                    INTERNAL RIGHT DOOR PANEL FOR GS COMPLETE WITH COVERING - COLOR TO BE SPECIFIED
                                                                                                                                                                    # 019
                                                                                                                                                                    MPN: 116 BP 60306
                                                                                                                                                                    INTERNAL RIGHT DOOR PANEL FOR GS RAW
                                                                                                                                                                    # 019
                                                                                                                                                                    MPN: 116 BP 69303
                                                                                                                                                                    INTERNAL LEFT DOOR PANEL FOR GS COMPLETE WITH COVERING - COLOR TO BE SPECIFIED
                                                                                                                                                                    # 019
                                                                                                                                                                    MPN: 116 BP 69304
                                                                                                                                                                    INTERNAL RIGHT DOOR PANEL FOR GD COMPLETE WITH COVERING - COLOR TO BE SPECIFIED
                                                                                                                                                                    # 019
                                                                                                                                                                    MPN: 116 BP 69305
                                                                                                                                                                    INTERNAL LEFT DOOR PANEL FOR GD COMPLETE WITH COVERING - COLOR TO BE SPECIFIED
                                                                                                                                                                    # 019
                                                                                                                                                                    MPN: 116 BP 69307
                                                                                                                                                                    INTERNAL LEFT DOOR PANEL FOR GS RAW
                                                                                                                                                                    # 019
                                                                                                                                                                    MPN: 116 BP 69308
                                                                                                                                                                    INTERNAL RIGHT DOOR PANEL FOR GD RAW
                                                                                                                                                                    # 019
                                                                                                                                                                    MPN: 116 BP 69309
                                                                                                                                                                    INTERNAL LEFT DOOR PANEL FOR GD RAW
                                                                                                                                                                    # 021
                                                                                                                                                                    MPN: 116 BO 69310
                                                                                                                                                                    RIGHT DOOR GLASS DRIP FINISHING ROD
                                                                                                                                                                    # 021
                                                                                                                                                                    MPN: 116 BO 70544
                                                                                                                                                                    LEFT DOOR GLASS DRIP FINISHING ROD
                                                                                                                                                                    # 022
                                                                                                                                                                    MPN: 116 BO 69311
                                                                                                                                                                    MOLURA FINIZIONE PANNELLO PORTIERA SINISTRA
                                                                                                                                                                    # 022
                                                                                                                                                                    MPN: 116 BO 69312
                                                                                                                                                                    MOLURA FINIZIONE PANNELLO PORTIERA DESTRA
                                                                                                                                                                    # 023
                                                                                                                                                                    MPN: 116 BO 69313
                                                                                                                                                                    LOCK WITH DOOR HANDLE KEYS
                                                                                                                                                                    # 024
                                                                                                                                                                    MPN: 116 BO 67768
                                                                                                                                                                    RIGHT EXTERNAL HANDLE WITH KEY LOCK
                                                                                                                                                                    from £1,004.34
                                                                                                                                                                    from £1,004.34
                                                                                                                                                                    # 024
                                                                                                                                                                    MPN: 116 BO 67769
                                                                                                                                                                    LEFT EXTERNAL HANDLE WITH KEY LOCK
                                                                                                                                                                    from £669.56
                                                                                                                                                                    from £669.56
                                                                                                                                                                    # 025
                                                                                                                                                                    MPN: 116 80 69314
                                                                                                                                                                    TIE ROD
                                                                                                                                                                    # 026
                                                                                                                                                                    MPN: 116 BO 70625
                                                                                                                                                                    RISCONTRO SERRATURA PORTA SINISTRA
                                                                                                                                                                    from £94.78
                                                                                                                                                                    from £94.78
                                                                                                                                                                    # 026
                                                                                                                                                                    MPN: 116 BO 70626
                                                                                                                                                                    RISCONTRO SERRATURA PORTA DESTRA
                                                                                                                                                                    # 027
                                                                                                                                                                    MPN: PCN 69518
                                                                                                                                                                    RUBBER BUFFER ON THE DOOR LOCK STRIKER
                                                                                                                                                                    # 028
                                                                                                                                                                    MPN: 107 Bt. 55888
                                                                                                                                                                    DOOR SIGNAL LIGHT COMPLETE WITH RUBBER BASE
                                                                                                                                                                    # 029
                                                                                                                                                                    MPN: ART 70497
                                                                                                                                                                    RING
                                                                                                                                                                    # 030
                                                                                                                                                                    MPN: 116 BO 71185
                                                                                                                                                                    LEFT DOOR LOCK
                                                                                                                                                                    from £120.86
                                                                                                                                                                    from £120.86
                                                                                                                                                                    # 030
                                                                                                                                                                    MPN: 116 BO 71186
                                                                                                                                                                    RIGHT DOOR LOCK
                                                                                                                                                                    # 031
                                                                                                                                                                    MPN: GRF 58491
                                                                                                                                                                    CLIP FOR DOOR LOCK TIE ROD
                                                                                                                                                                    # 032
                                                                                                                                                                    MPN: 116 8O 69315
                                                                                                                                                                    TIE ROD
                                                                                                                                                                    # 033
                                                                                                                                                                    MPN: 116 80 69316
                                                                                                                                                                    EXTENSION FOR DOOR LOCK
                                                                                                                                                                    # 034
                                                                                                                                                                    MPN: 116 BO 59317
                                                                                                                                                                    GLUNZIONE PER TIRANTE SERRATURA PORTLERA
                                                                                                                                                                    # 035
                                                                                                                                                                    MPN: 116 80 69318
                                                                                                                                                                    TIE ROD
                                                                                                                                                                    # 036
                                                                                                                                                                    MPN: 116 BO 69319
                                                                                                                                                                    TIE ROD
                                                                                                                                                                    # 037
                                                                                                                                                                    MPN: 116 BO 69320
                                                                                                                                                                    DOOR LOCK CONTROL ROD GOES THROUGH
                                                                                                                                                                    # 038
                                                                                                                                                                    MPN: 116 BO 69321
                                                                                                                                                                    MECCANISMO RIMANDO SERRATURA PORTAL DESTRA
                                                                                                                                                                    # 038
                                                                                                                                                                    MPN: 116 BO 69479
                                                                                                                                                                    MECCANISMO RIMANDO SERRATURA PORTS SINISTRA
                                                                                                                                                                    # 039
                                                                                                                                                                    MPN: 116 80 71139
                                                                                                                                                                    MODANATURA INOX PIANTONE PORTIERA SINISTRA (SECONDO TIPO)
                                                                                                                                                                    # 039
                                                                                                                                                                    MPN: 116 BO 71140
                                                                                                                                                                    MODANATURA INOX PIANTONE PORTIERA DESTRA (SECONDO TIPO)
                                                                                                                                                                    # 039
                                                                                                                                                                    MPN: 116 BO 71176
                                                                                                                                                                    MODANATURA INOX PIANTONE PORTIERA DESTRA (PRIMO TIPO)
                                                                                                                                                                    # 039
                                                                                                                                                                    MPN: 116 BO 71177
                                                                                                                                                                    MODANATURA INOX PIANTONE PORTIERA SINISTRA (PRIMO TIPO)
                                                                                                                                                                    # 040
                                                                                                                                                                    MPN: 116 BO 69326
                                                                                                                                                                    REAR RIGHT DOOR SIDE MOLDING
                                                                                                                                                                    # 040
                                                                                                                                                                    MPN: 116 BO 69327
                                                                                                                                                                    MODANATURA POSTERIORS LATERALE PORTIERA SINISTRA
                                                                                                                                                                    # 041
                                                                                                                                                                    MPN: 116 BO 69328
                                                                                                                                                                    LOWER DOOR MOLDING
                                                                                                                                                                    # 042
                                                                                                                                                                    MPN: 107 BO 57687
                                                                                                                                                                    SPONGE RUBBER BUFFER FOR DOOR COUNTER HANDLE
                                                                                                                                                                    # 043
                                                                                                                                                                    MPN: 107 BO 57301
                                                                                                                                                                    PIATTELLO PER CONTROMANIGLIA PORTIERA
                                                                                                                                                                    # 044
                                                                                                                                                                    MPN: 107 BO 57774
                                                                                                                                                                    MONA CONTROMANIGLIA PORTIERA
                                                                                                                                                                    # 045
                                                                                                                                                                    MPN: 107 BO 57773
                                                                                                                                                                    ROSONE CONTROMANIGLIA PORTIERA
                                                                                                                                                                    # 046
                                                                                                                                                                    MPN: 107 BO 57772
                                                                                                                                                                    CONTROMANIGLIA PORTIERA
                                                                                                                                                                    # 047
                                                                                                                                                                    MPN: PRN 56402
                                                                                                                                                                    CANALINO VELLUTATO SUPERIORE VETRO SCENDENTE I = 650 MM.
                                                                                                                                                                    # 048
                                                                                                                                                                    MPN: PRN 56404
                                                                                                                                                                    CANALINO VELLUTATO POSTERIORE LATERALE VETRO SCENDENTE I = 650 MM.
                                                                                                                                                                    # 049
                                                                                                                                                                    MPN: 116 BO 69329
                                                                                                                                                                    STAMPATO GOMMA TELARINO PORTIERE
                                                                                                                                                                    # 050
                                                                                                                                                                    MPN: 116 BO 69330
                                                                                                                                                                    TELARINO PORTIERA DESTRA SENZA VETRO VOLETTO
                                                                                                                                                                    # 050
                                                                                                                                                                    MPN: 116 BO 69331
                                                                                                                                                                    TELARINO PORTIERA SINISTRA SENZA VETRO VOLETTO
                                                                                                                                                                    # 050
                                                                                                                                                                    MPN: 116 BO 70272
                                                                                                                                                                    TELARINO PORTIERA DESTRA CON VETRO VOLETTO
                                                                                                                                                                    # 050
                                                                                                                                                                    MPN: 116 BO 70273
                                                                                                                                                                    TELARINO PORTIERA SINISTRA CON VETRO VOLETTO
                                                                                                                                                                    # 051
                                                                                                                                                                    MPN: 116 BO 69332
                                                                                                                                                                    STAMPATO GOMMA AUT. VOLETTO AUT
                                                                                                                                                                    # 052
                                                                                                                                                                    MPN: PRN 69150
                                                                                                                                                                    Profilo gomma posteriore voletto aut. I = 480 mm.
                                                                                                                                                                    # 053
                                                                                                                                                                    MPN: PRN 56402
                                                                                                                                                                    CANALINO VELLUTATO AUT. VETRO SCENDENTE I = 800 MM.
                                                                                                                                                                    # 054
                                                                                                                                                                    MPN: 116 BO 69333
                                                                                                                                                                    MOVING PLATE FOR WINDOW REGULATOR
                                                                                                                                                                    # 055
                                                                                                                                                                    MPN: 116 BO 66264
                                                                                                                                                                    VETRO VOLETTO AUT. DESTRO
                                                                                                                                                                    Supersession
                                                                                                                                                                    Supersession
                                                                                                                                                                    # 055
                                                                                                                                                                    MPN: 116 BO 66265
                                                                                                                                                                    VETRO VOLETTO AUT. SINISTRO
                                                                                                                                                                    # 056
                                                                                                                                                                    MPN: PRN 70565
                                                                                                                                                                    PROF HATO IN GOMMA TENUTA INFERIORE VOLETTO I = 270 MM.
                                                                                                                                                                    # 057
                                                                                                                                                                    MPN: 116 BO 66162
                                                                                                                                                                    CRISTALLO SCENDENTE DESTRO
                                                                                                                                                                    from £315.00
                                                                                                                                                                    from £315.00
                                                                                                                                                                    # 057
                                                                                                                                                                    MPN: 116 BO 66263
                                                                                                                                                                    CRISTALLO SCENDENTE SINISTRO
                                                                                                                                                                    Supersession
                                                                                                                                                                    Supersession
                                                                                                                                                                    # 058
                                                                                                                                                                    MPN: 116 BO 70495
                                                                                                                                                                    WASHER
                                                                                                                                                                    # 059
                                                                                                                                                                    MPN: 116 BO 69519
                                                                                                                                                                    BRACKET / SUPPORT
                                                                                                                                                                    # 060
                                                                                                                                                                    MPN: 116 BL 70466
                                                                                                                                                                    RIGHT DOOR WINDOW REGULATOR DEVICE
                                                                                                                                                                    # 060
                                                                                                                                                                    MPN: 116 BL 70467
                                                                                                                                                                    Dispositivo alzacristallo' portiera sinistra
                                                                                                                                                                    # 061
                                                                                                                                                                    MPN: 112 BL 68980
                                                                                                                                                                    WINDOW MOTOR COMPLETE WITH RIGHT DOOR REDUCTIONS
                                                                                                                                                                    # 061
                                                                                                                                                                    MPN: 112 BL 68981
                                                                                                                                                                    WINDOW MOTOR COMPLETE WITH LEFT DOOR REDUCTIONS
                                                                                                                                                                    # 062
                                                                                                                                                                    MPN: 112 BL 68502
                                                                                                                                                                    EMERGENCY WINDOW HANDLE
                                                                                                                                                                    # 063
                                                                                                                                                                    MPN: 112 BL 70606
                                                                                                                                                                    INTERUTTORE FINE CORSA ALZACRISTALLO
                                                                                                                                                                    # 064
                                                                                                                                                                    MPN: 116 BL 70607
                                                                                                                                                                    MECHANICAL PART LEFT DOOR WINDOW REGULATOR DEVICE
                                                                                                                                                                    # 064
                                                                                                                                                                    MPN: 116 BL 70608
                                                                                                                                                                    MECHANICAL PART OF THE RIGHT DOOR WINDOW REGULATOR DEVICE
                                                                                                                                                                    # 065
                                                                                                                                                                    MPN: GN 70579
                                                                                                                                                                    WASHER
                                                                                                                                                                    # 066
                                                                                                                                                                    MPN: 116 BO 69334
                                                                                                                                                                    BRACKET / SUPPORT
                                                                                                                                                                    # 067
                                                                                                                                                                    MPN: 116 BO 69335
                                                                                                                                                                    LEFT DOOR WINDOW GUIDE AND TROLLEY
                                                                                                                                                                    # 067
                                                                                                                                                                    MPN: 116 BO 69336
                                                                                                                                                                    RIGHT DOOR WINDOW REGULATOR GUIDE AND TROLLEY
                                                                                                                                                                    # 068
                                                                                                                                                                    MPN: 116 BO 70494
                                                                                                                                                                    BUSH
                                                                                                                                                                    # 069
                                                                                                                                                                    MPN: 112 BL 69670
                                                                                                                                                                    MIRAGLIO WINDOW MOTOR
                                                                                                                                                                    Supersession
                                                                                                                                                                    Supersession
                                                                                                                                                                    # 070
                                                                                                                                                                    MPN: 112 BL 68896
                                                                                                                                                                    SPRING
                                                                                                                                                                    # 071
                                                                                                                                                                    MPN: 116 BO 70915
                                                                                                                                                                    GUIDE FOR LEFT WINDOW TROLLEY
                                                                                                                                                                    # 071
                                                                                                                                                                    MPN: 116 BO 70916
                                                                                                                                                                    GUIDE FOR RIGHT WINDOW TROLLEY
                                                                                                                                                                    # 072
                                                                                                                                                                    MPN: 116 BO 70919
                                                                                                                                                                    BRACKET / SUPPORT
                                                                                                                                                                    # 072
                                                                                                                                                                    MPN: 116 BO 70920
                                                                                                                                                                    BRACKET / SUPPORT
                                                                                                                                                                    # 073
                                                                                                                                                                    MPN: PRN 71112
                                                                                                                                                                    RUBBER PROFILE SPONGE DOOR LOWER SEAL I =
                                                                                                                                                                    # 074
                                                                                                                                                                    MPN: PRN 58530
                                                                                                                                                                    Profilo gomma tenuta scolo acqua ant. portiere I = 0,190 int.
                                                                                                                                                                    # 075
                                                                                                                                                                    MPN: 116 BO 71113
                                                                                                                                                                    MOLURA TENUTA PROFILO GOMMA TENUTA SCOLO ACQUA ANT. PORTIERA SINISTRA
                                                                                                                                                                    # 075
                                                                                                                                                                    MPN: 116 BO 71114
                                                                                                                                                                    MOLURA TENUTA PROFILO GOMMA TENUTA SCOLO ACQUA ANT. PORTIERA DESTRA
                                                                                                                                                                    # 076
                                                                                                                                                                    MPN: 116 BO 71551
                                                                                                                                                                    RUBBER BUFFER FOR DOOR CENTERING
                                                                                                                                                                    # 077
                                                                                                                                                                    MPN: 116 BO 71879
                                                                                                                                                                    RAW RIGHT DOOR COLUMN FINISH PANEL
                                                                                                                                                                    # 077
                                                                                                                                                                    MPN: 116 BO 71880
                                                                                                                                                                    RAW LEFT DOOR COLUMN FLINITION PANEL
                                                                                                                                                                    # 077
                                                                                                                                                                    MPN: 116 BO 71881
                                                                                                                                                                    RIGHT DOOR COLUMN FINISH PANEL COVERED COLOR TO BE SPECIFIED
                                                                                                                                                                    # 077
                                                                                                                                                                    MPN: 116 BO 71882
                                                                                                                                                                    LEFT DOOR COLUMN FINISH PANEL COVERED COLOR TO BE SPECIFIED
                                                                                                                                                                    # 078
                                                                                                                                                                    MPN: 116 BO 71774
                                                                                                                                                                    INSTALLMENTS FOR DOOR INTERIOR VACUUM AIR INTAKE
                                                                                                                                                                    # 079
                                                                                                                                                                    MPN: 116 BO 71775
                                                                                                                                                                    FRAME FOR INTERIOR DOOR AIR PRESS VACUUM RATE
                                                                                                                                                                    # 080
                                                                                                                                                                    MPN: 116 BO 72005
                                                                                                                                                                    TOW JOINT FOR WINDOW MOTOR
                                                                                                                                                                    # 081
                                                                                                                                                                    MPN: 112 81 71081
                                                                                                                                                                    BASE FOR WINDOW REGULATOR MOTOR TYPE MIRAGLIO
