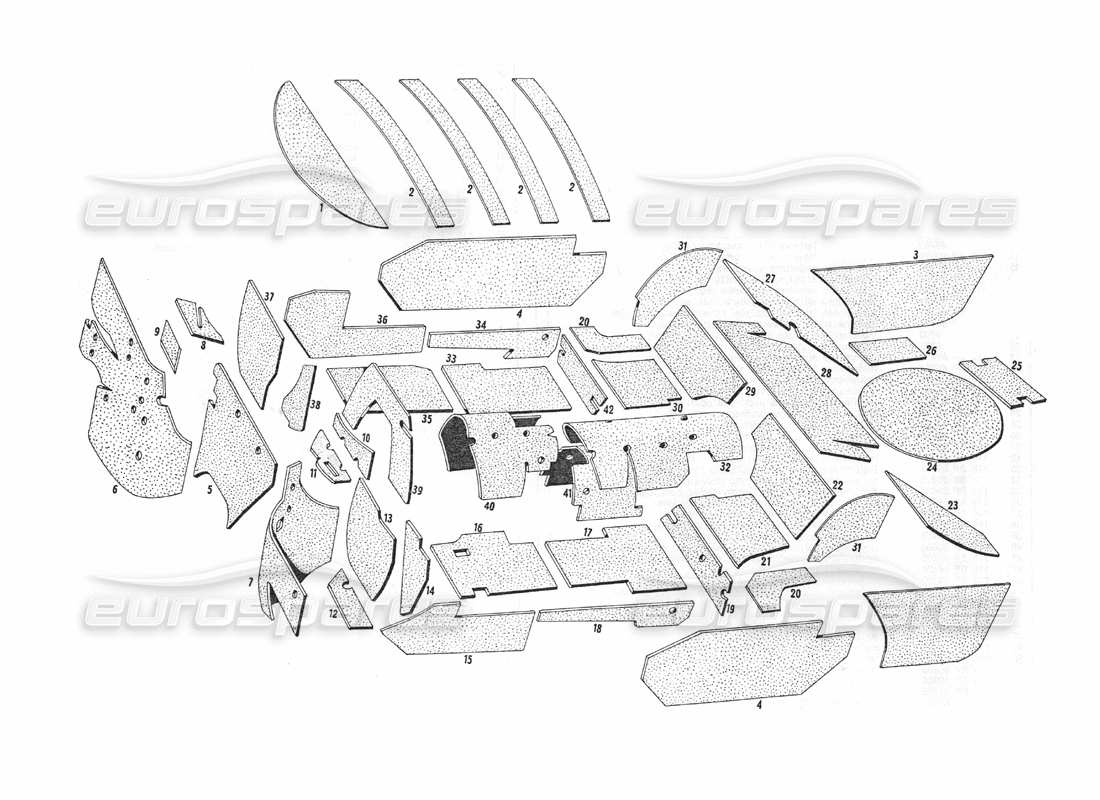

Maserati Indy 4.2 Insulation 2A Tp. Parts Diagram
View the exploded parts diagram to find the part you are looking for
- You can reposition the diagram by dragging it
- You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
- You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
- You can click on a hotspot
in the parts diagram to locate the part in the table
- You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
# 001
MPN: 116 BP 71518
Isolamento cielo (I° elemento)
# 002
MPN: 116 BP 71519
Isolamento cielo (II°, III°, IV° e V° elemento)
# 003
MPN: 116 BP 71520
Tank compartment wall insulation
# 004
MPN: 116 BP 71521
Goalkeeper insulation
# 005
MPN: 116 BP 71522
Engine compartment front insulation
# 006
MPN: 116 BP 71523
RIGHT SIDE INSULATION OF THE PASSENGER PAN IN THE ENGINE COMPARTMENT
# 007
MPN: 116 BP 71524
LEFT SIDE INSULATION ENGINE COMPARTMENT PILOT TRAY
# 008
MPN: 116 BP 71525
ISOLAMENTO PIANETTO SUP. VASCHETTA PASSEGGERO VANO MOT.
# 009
MPN: 116 BP 71526
ISOLAMENTO PIANETTO INF. VASCHETTA PASSEGGERO VANO MOT.
# 010
MPN: 116 BP 71527
Isolamento pianetto vaschetta pilota (elemento sup.)
# 011
MPN: 116 BP 71528
Isolamento pianetto vaschetta pilota vano motore (elemento intermedio)
# 012
MPN: 116 BP 71529
ISOLAMENTO PIANETTO VASCHETTA PILOTA VANO MOTORE (ELEMENTO INFERIORE)
# 013
MPN: 116 BP 71530
FRONT INSULATION OF PILOT FOOT TRAY
# 014
MPN: 116 BP 71531
Right side insulation of pilot foot tray
# 015
MPN: 116 BP 71532
LEFT SIDE INSULATION PILOT FOOTBOX
# 016
MPN: 116 BP 71533
BOTTOM INSULATION OF THE PILOT FOOT TRAY
# 017
MPN: 116 BP 71534
REAR PASSENGER FOOT TRAY BOTTOM INSULATION SIN.
# 018
MPN: 116 BP 71535
Left side member insulation
# 019
MPN: 116 BP 71536
ISOLAMENT OFRONTE POSTERIORE VASCHETTA PIEDI PASSEGGERO POST. SIN.
# 020
MPN: 116 BP 71537
REAR SEAT TRAY EXTERNAL INSULATION
# 021
MPN: 116 BP 71538
Rear seat tray bottom insulation. left
# 022
MPN: 116 BP 71539
INSULATION UNDER THE REAR BACKREST. SIN.
# 023
MPN: 116 BP 71540
ISOLAMENTO PASSARUOTA SIN. VANO BAULE
# 024
MPN: 116 BP 71541
Spare wheel tray bottom insulation
# 025
MPN: 116 BP 71542
WALL INSULATION BEHIND PETROL PUMPS
# 026
MPN: 116 BP 71543
Battery tray bottom insulation
# 027
MPN: 116 BP 71544
Isolamento passaruota dex. vano baule
# 028
MPN: 116 BP 71545
Bridge insulation
# 029
MPN: 116 BP 71546
Isolamento sottoschienale post. dex
# 030
MPN: 116 BP 71547
Isolamento fondo vaschetta post. Dex
# 031
MPN: 116 BP 71548
Isolamento fianco post. dex. e sin. sotto voletto post.
# 032
MPN: 116 BP 71549
REAR INSULATION TUNNEL
# 033
MPN: 116 BP 71550
Isolamento fondo vaschetta sedile ant. dex.
# 034
MPN: 116 BP 71763
ISOLAMENTO LONGHERONE LATERALE DEX.
# 035
MPN: 116 BP 71764
Isolamento vaschetta piedi ant. dex.
# 036
MPN: 116 BP 71765
Isolamento laterale dex. vaschetta ant. dex.
# 037
MPN: 116 BP 71766
Isolamento frontale sin. vaschetta ant. dex.
# 038
MPN: 116 BP 71767
Isolamento laterale sin. vaschetta ant. dex.
# 039
MPN: 116 BP 71768
Isolamento frontale tunnel (interno abitacolo)
# 040
MPN: 116 BP 71769
Isolamento ant. tunnel cambio
# 041
MPN: 116 BP 71770
Isolamento vano tunnel (est.)
# 042
MPN: 116 BP 71771
Right rear passenger foot tray front and rear insulation
