maserati indy 4.2 heating and conditioning parts diagram

046 - Heating and Conditioning

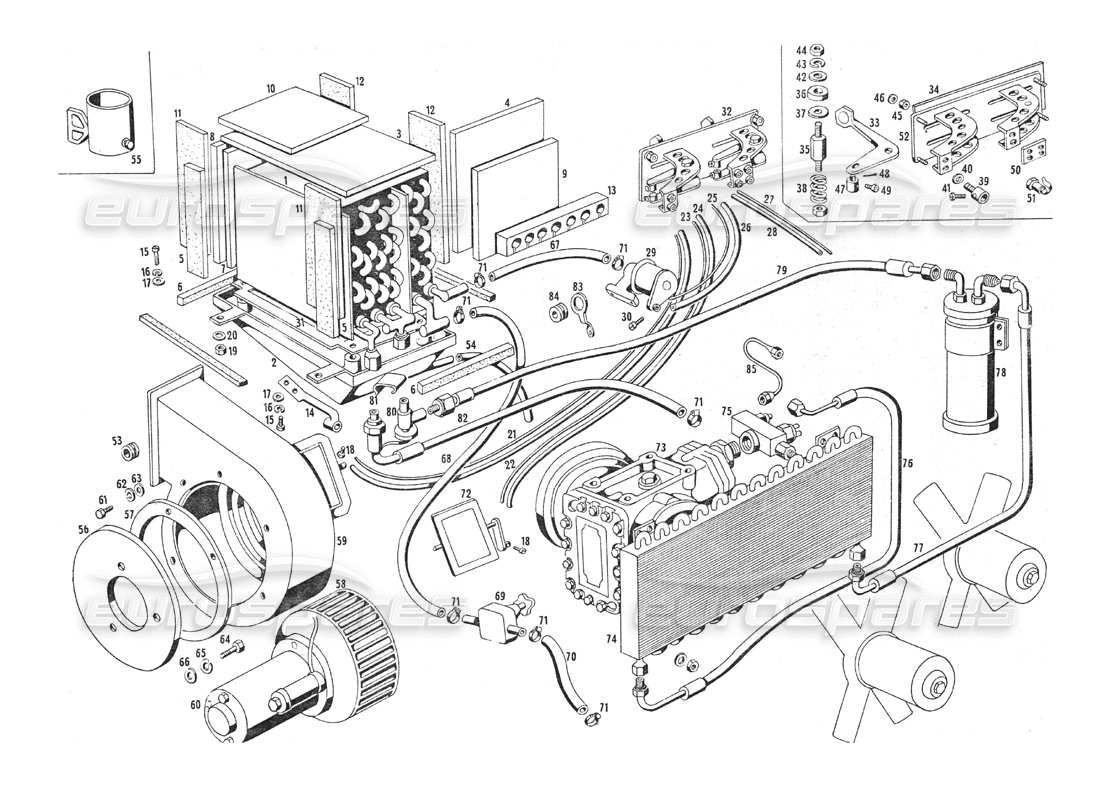

Maserati Indy 4.2 Heating and conditioning Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
#
Part number
Description
Price
# 001
MPN: 116 BV 66252
DOUBLE RANG RADIATOR AND EVAPORATOR FOR LEFT DRIVE
from £1,600.34
from £1,600.34
# 001
MPN: 116 BV 68992
DOUBLE RANG RADIATOR AND EVAPORATOR FOR RIGHT HAND DRIVE
# 002
MPN: 116 BV 66284
EVAPORATOR SUPPORT BOX LEFT DRIVE
# 002
MPN: 116 BV 68993
EVAPORATOR SUPPORT BOX RIGHT DRIVE
# 003
MPN: 116 CT 65791
UPPER ANTI-CONDENSATION BULKHEAD TO BE GLUED ON THE COVER
# 004
MPN: 116 CT 66439
ANTI-CONDENSATION FRONT SIDE TO BE GLUED ON THE COVER
# 005
MPN: 116 CT 66441
RUBBER GASKET
# 006
MPN: PRN 59041
PROFILE FOR CONDENSATION COVER GASKET REAR AND FRONT I = 161 MM.
# 006
MPN: PRN 59041
Profile for side part condensation cover gasket I = 286 mm.
# 007
MPN: 116 CT 66440
REAR SIDE ANTICONDENSATION TO BE GLUED TO THE CENTINA
# 008
MPN: 116 CT 66482
INSULATING PLATE (ARMAFLEX) ON THE EVAPORATOR BOX SIDE
# 009
MPN: 116 CT 66481
INSULATING PLATE (ARMAFLEX) ON THE OUTLET SIDE Tubi EVAPORATOR
# 010
MPN: 116 CT 66480
INSULATING PLATE (ARMAFLEX) ON THE EVAPORATOR BOX COVER
# 011
MPN: PRN 67951
Sponge rubber profile 3 X 35 X 175 glued to the right side evaporator
# 012
MPN: 116 CT 66442
SPALLATURA ANTICONDENSA SULLA SCATOLA EVAPORATORE LATO USCITA ARIA
# 013
MPN: 116 BV 68365
AIR SEAL PLUGE BETWEEN EVAPORATOR AND LEFT DRIVE SIDE
# 013
MPN: 116 BV 68994
AIR SEAL PLUG BETWEEN EVAPORATOR AND RIGHT DRIVE SIDE
# 014
MPN: 116 BV 67152
CIRCULATION BUTTERFLY SHEATH STOP
# 016
MPN: RSN 3 2 4 9 7
WASHER
# 018
MPN: VNT 32689
SCREW
# 019
MPN: DST 61417
NUT
# 020
MPN: RNT 47074
WASHER
# 021
MPN: FGN 57260
CIRCULATION THROTTLE CONTROL CABLE I = 115 CM
# 022
MPN: GFN 57259
SHEATH FOR SAID I = 97 CM
# 023
MPN: FGN 57260
CAVO EPR FARFALLA SULLA TRAVE ANT. DESTRA I = 125 CM
# 024
MPN: GFN 57259
SHEATH FOR SAID I = 105 CM
# 025
MPN: FGN 57260
WATER CIRCULATION VALVE CONTROL CABLE CM. 80
# 026
MPN: GFN 57259
Guaina per detto I = cm. 65
# 027
MPN: FGN 57260
CAVO COMANDO STARTER I = CM. 75
# 028
MPN: GFN 57259
SHEATH FOR SAID CM. 57
# 029
MPN: 107/03 MT 7167
HOT WATER REGULATOR VALVE
# 030
MPN: BNT 50309
BUILONE Ø 5 X 0,8 X 8 PER DETTO
# 031
MPN: 116 BV 67952
LAMIERA TENUTA ARIA FRA EVAPORATORE E SCATOLA (GUIDA SINISTRA)
# 031
MPN: 116 BV 68996
LAMIERA TENUTA ARIA FRA EVAPORATORE E SCATOLA (GUIDA DESTRA)
# 032
MPN: 116 BV 67823
GRUPPO COMPLETO COMANDO RISCALDAMENTO STARTER
# 033
MPN: 107 BV 56401
LAVA COMANDO RISCALDAMENTO STARTER
from £126.00
from £126.00
# 034
MPN: 116 BV 68222
PLEXIGLASS SHEET FOR GROUP FINISHING
# 035
MPN: 107 BV 55637
Alberino pre gruppo comando riscaldamento
# 036
MPN: 107 - BV 55687
RING
# 037
MPN: 101 - 20411 48810
RING
# 038
MPN: 101 20417 48818
SPRING
# 039
MPN: NPL 48847
Niples sulle staffe
# 040
MPN: RNT 6701,1
WASHER
# 041
MPN: VNT 32689
SCREW
# 043
MPN: RSN/32690
WASHER
# 044
MPN: DNT 47047
NUT
# 045
MPN: DNT/62557
NUT
# 047
MPN: NPL 55688
NAPLES SULFA FARFALLA E SUITE LEVE COMANDO
# 048
MPN: CN 64833
COPIGILA 1,5 X 10 SULLE LEVE E SULFA FARFALLA RICIRCOLAZIONE
# 049
MPN: VN 57637
SCREW
# 050
MPN: 107 BV 56980
PLASTRINO FISSAGGIO INTERRUTTORE STARTER
# 052
MPN: 116 BV 67824
PLATE COMPLETE WITH BRACKETS FOR HEATING LEVERS
# 053
MPN: PFN 45173
GROMMET
# 054
MPN: MN 54688
RUBBER HOSE. CONDENSER EVAPORATOR WATER DRAIN Ø 14 X 20 X 500
# 055
MPN: 107/A BV 68558
DISCO FISSAGGIO MOTORINO PER LMPIANTO VENT. CONDLZIONATORE
# 055
MPN: 116 BV 67798
BUTTERFLY ON THE RIDER AND PASSENGER'S FEET
# 057
MPN: 107/A BV 61983
SEALING RING
# 058
MPN: 107/A BV 61401
Impeller for left-hand drive heating and air conditioning system
# 058
MPN: 116 BV 71284
IMPELLER FOR HEATING AND AIR CONDITIONING SYSTEM, RIGHT DRIVE
# 059
MPN: 107/A BV 60906
LEFT DRIVE NUT WELDING ASSEMBLY
# 059
MPN: 116 BV 71328
RIGHT GUIDE NUT WELDING ASSEMBLY
# 060
MPN: 116 BL 68283
IMPELLER FAN MOTOR
# 064
MPN: BMT 34770
BOLT
# 065
MPN: RSM 32497
WASHER
# 066
MPN: RMT 52530
WASHER
# 067
MPN: 116 BV 67054
Water pipe from valve to evaporator left hand drive
# 067
MPN: 116 BV 68999
Water pipe from valve to evaporator right hand drive
# 068
MPN: 116 BV 67055
Water return pipe from the evaporator ally hand operated valve GS
# 068
MPN: MM 48324
Water return sleeve from the evaporator right guides
# 069
MPN: 101/2 20370 50336
Valvola regolatrice acqua riscaldamento (comandata a mano)
# 070
MPN: MM 54688
Sleeve Ø 14 X 20 X 130 heating water return from the radiator
# 071
MPN: FRM 37825
FASCETTA MTO PER DETTO
# 072
MPN: 116 CT 68102
FRONT RIGHT BUTTERFLY BEAM
# 073
MPN: 107/9 BR 67720
AIR CONDITIONER COMPRESSOR
# 074
MPN: 107/A BR 66003
CONDENSOR
# 074
MPN: 116 BR 67858
CONDENSOR
# 075
MPN: 115/A BR 71719
ISOBARIC VALVE (INTERCHANGEABLE WITH IS 66180 FOR ALL CARS EXCEPT FOR USA WITH GI)
# 076
MPN: 116 BR 67935
FLEXIBLE PIPE
# 077
MPN: 116 BR 67475
FLEXIBLE PIPE
# 078
MPN: 116 BR 67037
FILTER TANK
# 079
MPN: 116 BR 67478
FLEXIBLE PIPE
# 079
MPN: 116 BR 69003
FLEXIBLE PIPE
# 080
MPN: 107/A BR 61311
VALVOLA DI ESPANSIONE
# 082
MPN: 116 BR 67040
FLEXIBLE PIPE
# 082
MPN: 116 BR 69004
FLEXIBLE PIPE
# 083
MPN: 107/A BR 64548
PLATE SUPPORTING PIPE FROM EVAPORATOR TO COMPRESSOR
# 084
MPN: PFN 55212
GROMMET
# 085
MPN: 107/A BR 66842
LUBO COLLEGAMENTO VALVOLA ISOBARICA COMPRESSORE
