047 - Conditioning Compressor

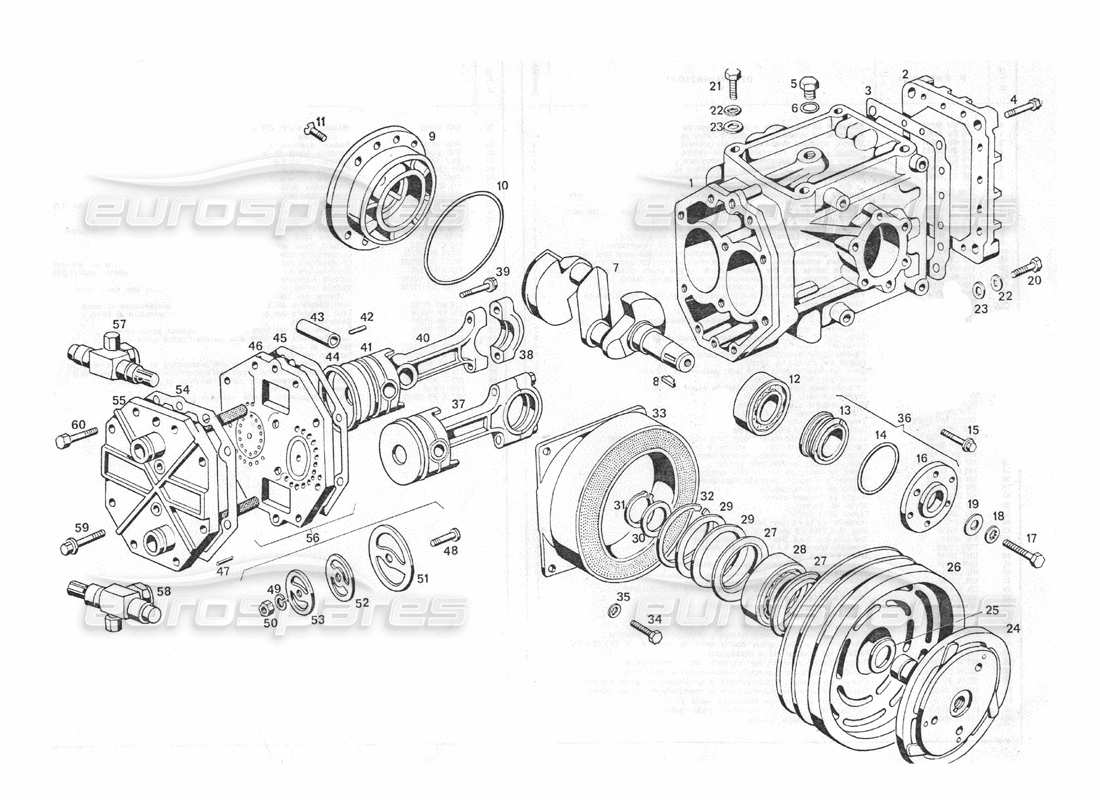

Maserati Indy 4.2 Conditioning compressor Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                                                                                                                          #
                                                                                                                          Part number
                                                                                                                          Description
                                                                                                                          Key
                                                                                                                          Price
                                                                                                                          # 001
                                                                                                                          MPN: Non fornibile sep.
                                                                                                                          CORPO COMPRESSORE
                                                                                                                          Spinotto per biella Genuine Maserati Part - New (to order)
                                                                                                                          # 002
                                                                                                                          MPN: 107 BR 66056
                                                                                                                          COVER
                                                                                                                          COVER Genuine Maserati Part - New (to order)
                                                                                                                          # 004
                                                                                                                          MPN: BNT 66113
                                                                                                                          BOLT
                                                                                                                          BOLT Genuine Maserati Part - New (to order)
                                                                                                                          # 005
                                                                                                                          MPN: BNT 66103
                                                                                                                          Tappo Ø 3/8-24 X 1/2 UNF livello olio
                                                                                                                          Tappo Ø 3/8-24 X 1/2 UNF livello olio Genuine Maserati Part - New (to order)
                                                                                                                          # 006
                                                                                                                          MPN: GOM 61051
                                                                                                                          GOMMINO Ø 9,25 X 1,78 PER DETTO
                                                                                                                          Gommino Ø 9.6 x 12,7 sul rinvio tergl Genuine Maserati Part - New (to order)
                                                                                                                          # 007
                                                                                                                          MPN: 116 BR 67722
                                                                                                                          ALBERO MANOVELLA
                                                                                                                          ALBERO MANOVELLA Genuine Maserati Part - New (to order)
                                                                                                                          # 008
                                                                                                                          MPN: LN 66108
                                                                                                                          Key
                                                                                                                          Key Genuine Maserati Part - New (to order)
                                                                                                                          # 009
                                                                                                                          MPN: 107 BR 66083
                                                                                                                          COVER
                                                                                                                          COVER Genuine Maserati Part - New (to order)
                                                                                                                          # 010
                                                                                                                          MPN: GOM 66109
                                                                                                                          GOMMINO Ø 3 1/4X 1/16 PER DETTO
                                                                                                                          Gommino Ø 31/4x1/16 per detto Genuine Maserati Part - New (to order)
                                                                                                                          # 011
                                                                                                                          MPN: VNT 66104
                                                                                                                          SCREW
                                                                                                                          SCREW Genuine Maserati Part - New (to order)
                                                                                                                          # 012
                                                                                                                          MPN: CSC 66105
                                                                                                                          CUSCINETTO Ø 25 X 52 X 12 SULL'ALBERO MANOVELLA
                                                                                                                          Cuscinetto Ø 25x 52 x 12 sull'albero manovella Genuine Maserati Part - New (to order)
                                                                                                                          # 013
                                                                                                                          MPN: Non fornibile sep.
                                                                                                                          SEAL
                                                                                                                          Spinotto per biella Genuine Maserati Part - New (to order)
                                                                                                                          # 014
                                                                                                                          MPN: GOM 66096
                                                                                                                          Gommino quadro Ø 54 X 1,6 tenuta coperchio posteriore
                                                                                                                          Gommino quadro Ø 54 X 1,6 tenuta coperchio posteriore Genuine Maserati Part - New (to order)
                                                                                                                          # 015
                                                                                                                          MPN: BNT 66097
                                                                                                                          BOLT
                                                                                                                          BOLT Genuine Maserati Part - New (to order)
                                                                                                                          # 016
                                                                                                                          MPN: Non fornibile sep.
                                                                                                                          COVER
                                                                                                                          Spinotto per biella Genuine Maserati Part - New (to order)
                                                                                                                          # 020
                                                                                                                          MPN: BNT 55118
                                                                                                                          BOLT
                                                                                                                          BOLT Genuine Maserati Part - New (to order)
                                                                                                                          # 021
                                                                                                                          MPN: BNT 55,117
                                                                                                                          BOLT
                                                                                                                          BOLT Genuine Maserati Part - New (to order)
                                                                                                                          # 024
                                                                                                                          MPN: 107 BR 66084
                                                                                                                          Disco d'innesto per elettrocalamita
                                                                                                                          Disco d'innesto per elettrocalamita Genuine Maserati Part - New (to order)
                                                                                                                          # 025
                                                                                                                          MPN: 107 BR 66085
                                                                                                                          Disco di rasamento tra puleggia e disco d'innesto
                                                                                                                          Disco di rasamento tra puleggia e disco d'innesto Genuine Maserati Part - New (to order)
                                                                                                                          # 026
                                                                                                                          MPN: 107 BR 66098
                                                                                                                          PULLEY FOR ELECTROMAGNETIC CLUTCH
                                                                                                                          PULLEY FOR ELECTROMAGNETIC CLUTCH Genuine Maserati Part - New (to order)
                                                                                                                          # 027
                                                                                                                          MPN: ANT 45425
                                                                                                                          PARAPOLVERE Ø 36,3 X 62 X 3 PER CUSCINETTO
                                                                                                                          Parapolvere Ø 36,5x62x3 per cuscinetto Genuine Maserati Part - New (to order)
                                                                                                                          # 028
                                                                                                                          MPN: CSC 43387
                                                                                                                          CUSCINETTO Ø 30 X 62 X 20 PER DETTO
                                                                                                                          Cuscinetto Ø 30x62x20 per detto Genuine Maserati Part - New (to order)
                                                                                                                          # 029
                                                                                                                          MPN: 107 BR 66086
                                                                                                                          DISCO DI RASAMENTO TRA ANELLO DI ARRESTO E PARAPOLVERE
                                                                                                                          DISCO DI RASAMENTO TRA ANELLO DI ARRESTO E PARAPOLVERE Genuine Maserati Part - New (to order)
                                                                                                                          # 030
                                                                                                                          MPN: 107 BR 66087
                                                                                                                          DISCO DI RASAMENTO TRA ANELLO DI ARRESTO E PARAPOLVERE
                                                                                                                          DISCO DI RASAMENTO TRA ANELLO DI ARRESTO E PARAPOLVERE Genuine Maserati Part - New (to order)
                                                                                                                          # 031
                                                                                                                          MPN: ART 47848
                                                                                                                          RING
                                                                                                                          RING Genuine Maserati Part - New (to order)
                                                                                                                          # 032
                                                                                                                          MPN: ART 46754
                                                                                                                          RING
                                                                                                                          RING Genuine Maserati Part - New (to order)
                                                                                                                          # 033
                                                                                                                          MPN: Non fornibile sep.
                                                                                                                          ELETTROMAGNETE
                                                                                                                          Spinotto per biella Genuine Maserati Part - New (to order)
                                                                                                                          # 034
                                                                                                                          MPN: BNT 49969
                                                                                                                          BOLT
                                                                                                                          BOLT Genuine Maserati Part - New (to order)
                                                                                                                          # 036
                                                                                                                          MPN: 107 BR 66100
                                                                                                                          COMPLESSIVO GUARNIZIONI TENUTA ALBERO MOTORE
                                                                                                                          COMPLESSIVO GUARNIZIONI TENUTA ALBERO MOTORE Genuine Maserati Part - New (to order)
                                                                                                                          # 037
                                                                                                                          MPN: 116 BR 67721
                                                                                                                          COMPLESSIVO BIELLA, PISTONE, SPINOTTO E RASCHIAOLIO
                                                                                                                          COMPLESSIVO BIELLA, PISTONE, SPINOTTO E RASCHIAOLIO Genuine Maserati Part - New (to order)
                                                                                                                          # 038
                                                                                                                          MPN: Non fornibile sep.
                                                                                                                          BEARING CAP
                                                                                                                          Spinotto per biella Genuine Maserati Part - New (to order)
                                                                                                                          # 039
                                                                                                                          MPN: Non fornibile sep.
                                                                                                                          BOLT
                                                                                                                          Spinotto per biella Genuine Maserati Part - New (to order)
                                                                                                                          # 040
                                                                                                                          MPN: Non fornibile sep.
                                                                                                                          CORPO DI BIELLA
                                                                                                                          Spinotto per biella Genuine Maserati Part - New (to order)
                                                                                                                          # 041
                                                                                                                          MPN: Non fornibile sep.
                                                                                                                          PISTONE
                                                                                                                          Spinotto per biella Genuine Maserati Part - New (to order)
                                                                                                                          # 042
                                                                                                                          MPN: Non fornibile sep.
                                                                                                                          PIVOT
                                                                                                                          Spinotto per biella Genuine Maserati Part - New (to order)
                                                                                                                          # 043
                                                                                                                          MPN: Non fornibile sep.
                                                                                                                          Spinotto per biella
                                                                                                                          Spinotto per biella Genuine Maserati Part - New (to order)
                                                                                                                          # 044
                                                                                                                          MPN: Non fornibile sep.
                                                                                                                          RASCHIAOLIO
                                                                                                                          Spinotto per biella Genuine Maserati Part - New (to order)
                                                                                                                          # 046
                                                                                                                          MPN: Non fornibile sep.
                                                                                                                          CORPO INTERMEDIO PORTA VALVOLE
                                                                                                                          Spinotto per biella Genuine Maserati Part - New (to order)
                                                                                                                          # 047
                                                                                                                          MPN: GRN 66089
                                                                                                                          Grano Ø 3,2 X 12,5 per detto
                                                                                                                          Grano Ø 3,2 X 12,5 per detto Genuine Maserati Part - New (to order)
                                                                                                                          # 048
                                                                                                                          MPN: Non fornibile sep.
                                                                                                                          PIVOT
                                                                                                                          Spinotto per biella Genuine Maserati Part - New (to order)
                                                                                                                          # 049
                                                                                                                          MPN: RSN 3 2 4 9 7
                                                                                                                          WASHER
                                                                                                                          WASHER Genuine Maserati Part - New (to order)
                                                                                                                          # 050
                                                                                                                          MPN: DNT 61459
                                                                                                                          NUT
                                                                                                                          NUT Genuine Maserati Part - New (to order)
                                                                                                                          # 051
                                                                                                                          MPN: Non fornibile sep.
                                                                                                                          DISCO INFERIORE VALVOLA
                                                                                                                          Spinotto per biella Genuine Maserati Part - New (to order)
                                                                                                                          # 052
                                                                                                                          MPN: Non fornibile sep.
                                                                                                                          DISCO SUPERIORE VALVOLA
                                                                                                                          Spinotto per biella Genuine Maserati Part - New (to order)
                                                                                                                          # 053
                                                                                                                          MPN: Non fornibile sep.
                                                                                                                          SEAL
                                                                                                                          Spinotto per biella Genuine Maserati Part - New (to order)
                                                                                                                          # 055
                                                                                                                          MPN: 107 BR 66092
                                                                                                                          CYLINDER HEAD COMPLETE
                                                                                                                          CYLINDER HEAD COMPLETE Genuine Maserati Part - New (to order)
                                                                                                                          # 056
                                                                                                                          MPN: 107 BR 66093
                                                                                                                          COMPLESSIVO CORPO INTERMEDIO PORTA VALVOLE INCLUSE LE GUARNIZIONI
                                                                                                                          COMPLESSIVO CORPO INTERMEDIO PORTA VALVOLE INCLUSE LE GUARNIZIONI Genuine Maserati Part - New (to order)
                                                                                                                          # 057
                                                                                                                          MPN: 115 BR 71719
                                                                                                                          VALVOLA ISOBARICA
                                                                                                                          VALVOLA ISOBARICA Genuine Maserati Part - New (to order)
                                                                                                                          # 058
                                                                                                                          MPN: 107 BR 66095
                                                                                                                          VALVOLA ROTALOCK DA 1/2
                                                                                                                          Valvola Rotalock de 1/2 Genuine Maserati Part - New (to order)
                                                                                                                          # 059
                                                                                                                          MPN: BNT 66101
                                                                                                                          BOLT
                                                                                                                          BOLT Genuine Maserati Part - New (to order)
                                                                                                                          # 060
                                                                                                                          MPN: BNT 66102
                                                                                                                          BOLT
                                                                                                                          BOLT Genuine Maserati Part - New (to order)
