040 - Conditioning Compressor

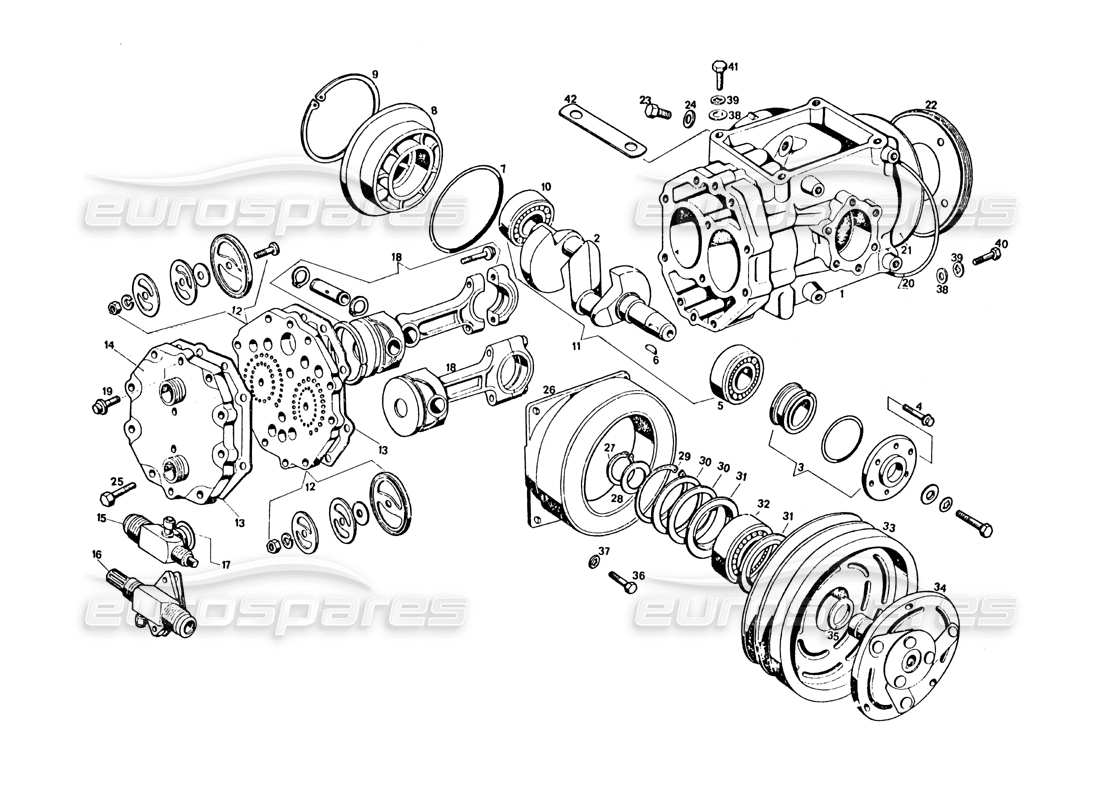

Maserati Khamsin Conditioning compressor Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                                                                                      #
                                                                                      Part number
                                                                                      Description
                                                                                      Key
                                                                                      Price
                                                                                      # 001
                                                                                      MPN: 116/8 BR 82087
                                                                                      Compressore completo Tp. ASPERA HG 700 AP
                                                                                      Compressore completo Tp. ASPERA HG 700 AP Genuine Maserati Part - New (to order)
                                                                                      # 001
                                                                                      MPN: 120 BR 84601
                                                                                      SUPPORT
                                                                                      SUPPORT Genuine Maserati Part - New (to order)
                                                                                      # 002
                                                                                      MPN: 120 BR 84579
                                                                                      CRANKSHAFT
                                                                                      CRANKSHAFT Genuine Maserati Part - New (to order)
                                                                                      # 003
                                                                                      MPN: 120 BR 84580
                                                                                      OVERALL SEALING KIT
                                                                                      OVERALL SEALING KIT Genuine Maserati Part - New (to order)
                                                                                      # 004
                                                                                      MPN: VNT 84581
                                                                                      SCREW
                                                                                      SCREW Genuine Maserati Part - New (to order)
                                                                                      # 005
                                                                                      MPN: CSC 84582
                                                                                      CUSCINETTO ANTERIORE
                                                                                      CUSCINETTO ANTERIORE Genuine Maserati Part - New (to order)
                                                                                      # 006
                                                                                      MPN: 120 BR 84583
                                                                                      Key
                                                                                      Key Genuine Maserati Part - New (to order)
                                                                                      # 007
                                                                                      MPN: GOM 84605
                                                                                      REAR PLATE RUBBER
                                                                                      REAR PLATE RUBBER Genuine Maserati Part - New (to order)
                                                                                      # 008
                                                                                      MPN: 120 BR 84585
                                                                                      REAR COVER PLATE
                                                                                      REAR COVER PLATE Genuine Maserati Part - New (to order)
                                                                                      # 009
                                                                                      MPN: ART 84586
                                                                                      REAR PLATE ELASTIC RING
                                                                                      REAR PLATE ELASTIC RING Genuine Maserati Part - New (to order)
                                                                                      # 010
                                                                                      MPN: CSC 84587
                                                                                      REAR BEARING
                                                                                      REAR BEARING Genuine Maserati Part - New (to order)
                                                                                      # 011
                                                                                      MPN: 120 BR 84588
                                                                                      CRANKSHAFT AND BEARING KIT
                                                                                      CRANKSHAFT AND BEARING KIT Genuine Maserati Part - New (to order)
                                                                                      # 012
                                                                                      MPN: 120 BR 84589
                                                                                      VALVE PLATE KIT
                                                                                      VALVE PLATE KIT Genuine Maserati Part - New (to order)
                                                                                      # 013
                                                                                      MPN: 120 BR 84590
                                                                                      GASKET OR SEAL
                                                                                      GASKET OR SEAL Genuine Maserati Part - New (to order)
                                                                                      # 014
                                                                                      MPN: 120 BR 84591
                                                                                      TESTA CILINDRO PER VALVOLE ROTALOCK
                                                                                      TESTA CILINDRO PER VALVOLE ROTALOCK Genuine Maserati Part - New (to order)
                                                                                      # 015
                                                                                      MPN: 120 BR 84592
                                                                                      CORREDO VALVOLA ASPIRAZIONE ROTALOCK
                                                                                      CORREDO VALVOLA ASPIRAZIONE ROTALOCK Genuine Maserati Part - New (to order)
                                                                                      # 016
                                                                                      MPN: 120 BR 84593
                                                                                      CORREDO VALVOLA FLANGIATA COMPLETA (A RICHIESTA)
                                                                                      CORREDO VALVOLA FLANGIATA COMPLETA (A RICHIESTA) Genuine Maserati Part - New (to order)
                                                                                      # 017
                                                                                      MPN: 120 BR 84594
                                                                                      GASKET OR SEAL
                                                                                      GASKET OR SEAL Genuine Maserati Part - New (to order)
                                                                                      # 018
                                                                                      MPN: 120 BR 84595
                                                                                      CORREDO BIELLA PISTONO (NORMALE)
                                                                                      CORREDO BIELLA PISTONO (NORMALE) Genuine Maserati Part - New (to order)
                                                                                      # 018
                                                                                      MPN: 120 BR 84596
                                                                                      CORREDO BIELLA PISTONE (MAGGIORATA)
                                                                                      CORREDO BIELLA PISTONE (MAGGIORATA) Genuine Maserati Part - New (to order)
                                                                                      # 019
                                                                                      MPN: VNT 84597
                                                                                      VITA TESTA CILINDRO VALVOLA ROTALOCK
                                                                                      VITA TESTA CILINDRO VALVOLA ROTALOCK Genuine Maserati Part - New (to order)
                                                                                      # 020
                                                                                      MPN: GOM 84598
                                                                                      LOWER PLATE RUBBER
                                                                                      LOWER PLATE RUBBER Genuine Maserati Part - New (to order)
                                                                                      # 021
                                                                                      MPN: 120 BR 84599
                                                                                      LOWER PLATE
                                                                                      LOWER PLATE Genuine Maserati Part - New (to order)
                                                                                      # 022
                                                                                      MPN: 120 BR 84600
                                                                                      Bottom plate fixing ring nut
                                                                                      Bottom plate fixing ring nut Genuine Maserati Part - New (to order)
                                                                                      # 023
                                                                                      MPN: VNT 84602
                                                                                      SCREW
                                                                                      SCREW Genuine Maserati Part - New (to order)
                                                                                      # 024
                                                                                      MPN: 120 BR 84603
                                                                                      GASKET OR SEAL
                                                                                      GASKET OR SEAL Genuine Maserati Part - New (to order)
                                                                                      # 025
                                                                                      MPN: VNT 84604
                                                                                      SCREW
                                                                                      SCREW Genuine Maserati Part - New (to order)
                                                                                      # 026
                                                                                      MPN: 107 BR 54534
                                                                                      FRIZIONE ELETTROMAGNETICA TP. BARUFFALDI COMPLETA
                                                                                      CLUTCH FOR AIR CONDITIONING COMPRESSOR Genuine Maserati Part - New (to order)
                                                                                      # 027
                                                                                      MPN: ART 47848
                                                                                      ANELLO D'ARRESTO Ø 28 PER DETTO
                                                                                      RING Genuine Maserati Part - New (to order)
                                                                                      # 028
                                                                                      MPN: 107 BR 66087
                                                                                      DISCO DI RASAMENTO TRA ANELLO DI ARRESTO E PARAPOLVERE
                                                                                      DISCO DI RASAMENTO TRA ANELLO DI ARRESTO E PARAPOLVERE Genuine Maserati Part - New (to order)
                                                                                      # 029
                                                                                      MPN: ART 46754
                                                                                      INTERNAL Ø 62 STOPPING RING FOR SAID
                                                                                      RING Genuine Maserati Part - New (to order)
                                                                                      # 030
                                                                                      MPN: 107 BR 66086
                                                                                      DISCO DI RASAMENTO TRA ANELLO DI ARRESTO E PARAPOLVERE
                                                                                      DISCO DI RASAMENTO TRA ANELLO DI ARRESTO E PARAPOLVERE Genuine Maserati Part - New (to order)
                                                                                      # 031
                                                                                      MPN: ANT 45425
                                                                                      Parapolvere Ø 36,5X62X3 per cuscinetto
                                                                                      Parapolvere Ø 36,5X62X3 per cuscinetto Genuine Maserati Part - New (to order)
                                                                                      # 032
                                                                                      MPN: CSC 43387
                                                                                      Cuscinetto Ø 30X62X20 per detto
                                                                                      Cuscinetto Ø 30X62X20 per detto Genuine Maserati Part - New (to order)
                                                                                      # 034
                                                                                      MPN: 107 BR 66084
                                                                                      Disco d'innesto per elettrocalamita
                                                                                      Disco d'innesto per elettrocalamita Genuine Maserati Part - New (to order)
                                                                                      # 035
                                                                                      MPN: 107 BR 66085
                                                                                      Disco di rasamento tra puleggia e disco d'innesto
                                                                                      Disco di rasamento tra puleggia e disco d'innesto Genuine Maserati Part - New (to order)
                                                                                      # 036
                                                                                      MPN: BNT 49969
                                                                                      BOLT
                                                                                      BOLT Genuine Maserati Part - New (to order)
                                                                                      # 040
                                                                                      MPN: BNT 55118
                                                                                      BOLT
                                                                                      BOLT Genuine Maserati Part - New (to order)
                                                                                      # 041
                                                                                      MPN: BNT 55,117
                                                                                      BOLT
                                                                                      BOLT Genuine Maserati Part - New (to order)
                                                                                      # 042
                                                                                      MPN: 107 BR 66548
                                                                                      SPACER FOR AIR CONDITIONING COMPRESSOR
                                                                                      SPACER FOR AIR CONDITIONING COMPRESSOR Genuine Maserati Part - New (to order)
