maserati kyalami rear suspension parts diagram

018 - Rear Suspension

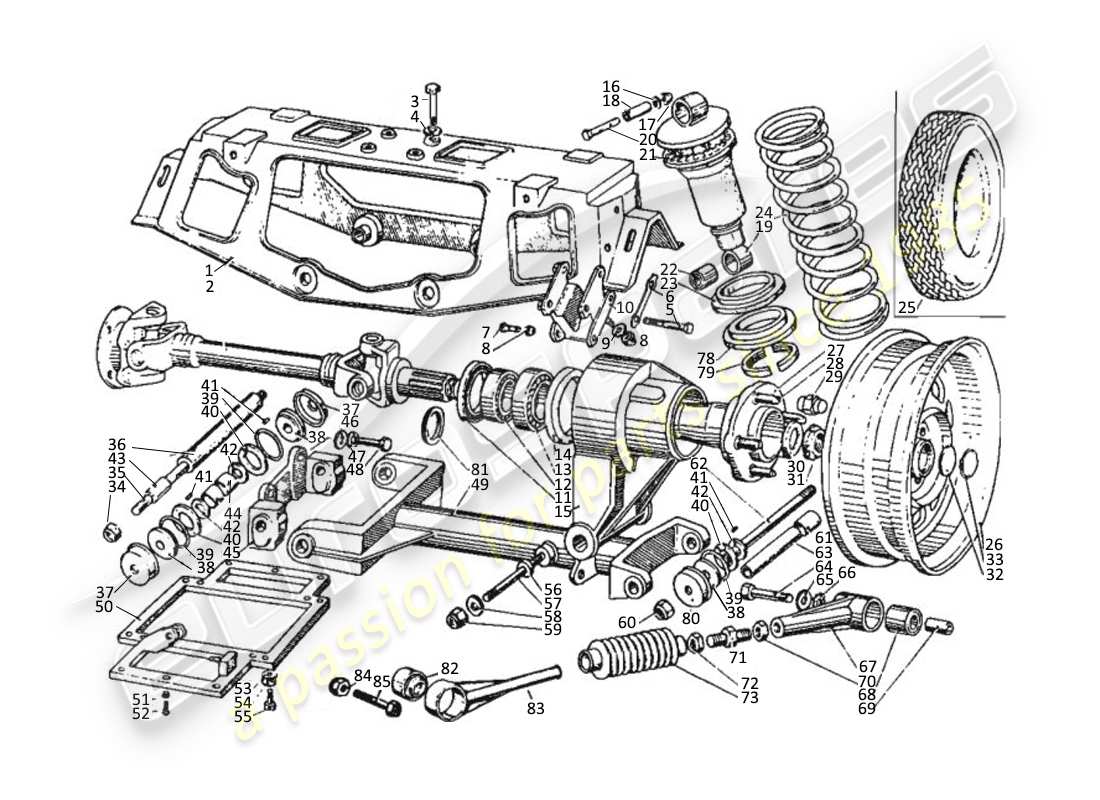

Maserati Kyalami Rear suspension Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                                                                                                                                                                    #
                                                                                                                                                                    Part number
                                                                                                                                                                    Description
                                                                                                                                                                    Key
                                                                                                                                                                    Price
                                                                                                                                                                    # 001
                                                                                                                                                                    MPN: 329-17-55-00
                                                                                                                                                                    REAR CROSS MEMBER
                                                                                                                                                                    REAR CROSS MEMBER Genuine Maserati Part - New (to order)
                                                                                                                                                                    # 002
                                                                                                                                                                    MPN: 329173100
                                                                                                                                                                    AXLE SHAFT
                                                                                                                                                                    from £334.01
                                                                                                                                                                    from £334.01
                                                                                                                                                                    AXLE SHAFT Genuine Maserati Part - New (to order)
                                                                                                                                                                    AXLE SHAFT Genuine Ferrari Part - New (to order)
                                                                                                                                                                    # 003
                                                                                                                                                                    MPN: BNT 90438
                                                                                                                                                                    DIFFERENTIAL FIXING BOLT
                                                                                                                                                                    DIFFERENTIAL FIXING BOLT Genuine Maserati Part - New (to order)
                                                                                                                                                                    # 006
                                                                                                                                                                    MPN: 329-18-62-00
                                                                                                                                                                    RETAINER
                                                                                                                                                                    RETAINER Genuine Maserati Part - New (to order)
                                                                                                                                                                    # 007
                                                                                                                                                                    MPN: BNT. 47015
                                                                                                                                                                    BOLT
                                                                                                                                                                    BOLT Genuine Maserati Part - New (to order)
                                                                                                                                                                    # 008
                                                                                                                                                                    MPN: DST 53397
                                                                                                                                                                    STUD NUT 8X1.25
                                                                                                                                                                    This part replaces part number 53397
                                                                                                                                                                    Stud nut Ø 8x1.25 Genuine Maserati Part - New (to order)
                                                                                                                                                                    # 010
                                                                                                                                                                    MPN: 329173900
                                                                                                                                                                    LH SUPPORT
                                                                                                                                                                    from £58.72
                                                                                                                                                                    from £58.72
                                                                                                                                                                    LH SUPPORT Genuine Maserati Part - New (to order)
                                                                                                                                                                    LH SUPPORT Genuine Ferrari Part - New (to order)
                                                                                                                                                                    # 010
                                                                                                                                                                    MPN: 329174000
                                                                                                                                                                    RH SUPPORT
                                                                                                                                                                    from £58.72
                                                                                                                                                                    from £58.72
                                                                                                                                                                    RH SUPPORT Genuine Maserati Part - New (to order)
                                                                                                                                                                    RH SUPPORT Genuine Ferrari Part - New (to order)
                                                                                                                                                                    # 011
                                                                                                                                                                    MPN: 000.54.092
                                                                                                                                                                    INTERNAL SEALING RING
                                                                                                                                                                    INTERNAL SEALING RING Genuine Maserati Part - New (to order)
                                                                                                                                                                    # 012
                                                                                                                                                                    MPN: 000.54.009
                                                                                                                                                                    INTERNAL BEARING
                                                                                                                                                                    INTERNAL BEARING Genuine Maserati Part - New (to order)
                                                                                                                                                                    # 013
                                                                                                                                                                    MPN: 000.54.010
                                                                                                                                                                    EXTERNAL BEARING
                                                                                                                                                                    EXTERNAL BEARING Genuine Maserati Part - New (to order)
                                                                                                                                                                    # 014
                                                                                                                                                                    MPN: 000.54.089
                                                                                                                                                                    EXT. SEALING RING
                                                                                                                                                                    EXTERIOR SEALING RING Genuine Maserati Part - New (to order)
                                                                                                                                                                    # 015
                                                                                                                                                                    MPN: 329.17.10.00
                                                                                                                                                                    RIGHT HUB HOLDER
                                                                                                                                                                    RIGHT HUB HOLDER Genuine Maserati Part - New (to order)
                                                                                                                                                                    # 015
                                                                                                                                                                    MPN: 329.17.11.00
                                                                                                                                                                    LEFT HUB HOLDER
                                                                                                                                                                    LEFT HUB HOLDER Genuine Maserati Part - New (to order)
                                                                                                                                                                    # 016
                                                                                                                                                                    MPN: DST 65851
                                                                                                                                                                    Rear suspension fixing nut
                                                                                                                                                                    This part replaces part number DST 68049
                                                                                                                                                                    Rear suspension fixing nut Genuine Maserati Part - New (to order)
                                                                                                                                                                    # 018
                                                                                                                                                                    MPN: 329.42.71.00
                                                                                                                                                                    REDUCTION BUSH
                                                                                                                                                                    REDUCTION BUSH Genuine Maserati Part - New (to order)
                                                                                                                                                                    # 019
                                                                                                                                                                    MPN: 329-42-65-00
                                                                                                                                                                    REAR SHOCK ABSORBER
                                                                                                                                                                    REAR SHOCK ABSORBER Genuine Maserati Part - New (to order)
                                                                                                                                                                    # 020
                                                                                                                                                                    MPN: BNT 65441
                                                                                                                                                                    Shock absorber fixing bolt
                                                                                                                                                                    Shock absorber fixing bolt Genuine Maserati Part - New (to order)
                                                                                                                                                                    # 021
                                                                                                                                                                    MPN: 329-42-68-00
                                                                                                                                                                    RETAINING RING
                                                                                                                                                                    RETAINING RING Genuine Maserati Part - New (to order)
                                                                                                                                                                    # 022
                                                                                                                                                                    MPN: 50621040
                                                                                                                                                                    SILENT BLOCK
                                                                                                                                                                    from £28.93
                                                                                                                                                                    from £28.93
                                                                                                                                                                    PART Genuine Maserati Part - New (to order)
                                                                                                                                                                    SILENT BLOC Genuine Ferrari Part - New (to order)
                                                                                                                                                                    # 023
                                                                                                                                                                    MPN: 329-42-69-00
                                                                                                                                                                    SPRING RETAINER
                                                                                                                                                                    SPRING RETAINER Genuine Maserati Part - New (to order)
                                                                                                                                                                    # 024
                                                                                                                                                                    MPN: 329.42.78.00
                                                                                                                                                                    SPRING FOR SHOCK ABSORBER
                                                                                                                                                                    SPRING FOR SHOCK ABSORBER Genuine Maserati Part - New (to order)
                                                                                                                                                                    # 025
                                                                                                                                                                    MPN: PNM 90216
                                                                                                                                                                    FRONT TIRE AND POST 205/70 VR 15 X RIGHT
                                                                                                                                                                    FRONT TIRE AND POST 205/70 VR 15 X RIGHT Genuine Maserati Part - New (to order)
                                                                                                                                                                    # 026
                                                                                                                                                                    MPN: 329.44.01.00
                                                                                                                                                                    WHEEL
                                                                                                                                                                    WHEEL Genuine Maserati Part - New (to order)
                                                                                                                                                                    # 027
                                                                                                                                                                    MPN: 329.17.06.00
                                                                                                                                                                    REAR HUB
                                                                                                                                                                    REAR HUB Genuine Maserati Part - New (to order)
                                                                                                                                                                    # 028
                                                                                                                                                                    MPN: 329-17-24-00
                                                                                                                                                                    WHEEL STUD
                                                                                                                                                                    WHEEL STUD Genuine Maserati Part - New (to order)
                                                                                                                                                                    # 029
                                                                                                                                                                    MPN: 50322014
                                                                                                                                                                    WHEEL FIXING NUT
                                                                                                                                                                    from £6.97
                                                                                                                                                                    from £6.97
                                                                                                                                                                    DADO FISS.RUOTA DTM Genuine Maserati Part - New (to order)
                                                                                                                                                                    # 030
                                                                                                                                                                    MPN: 329-17-80-00
                                                                                                                                                                    RETAINING NUT WASHER
                                                                                                                                                                    RETAINING NUT WASHER Genuine Maserati Part - New (to order)
                                                                                                                                                                    # 031
                                                                                                                                                                    MPN: 000.51.047
                                                                                                                                                                    RING
                                                                                                                                                                    RING Genuine Maserati Part - New (to order)
                                                                                                                                                                    # 032
                                                                                                                                                                    MPN: 329.44.12.00
                                                                                                                                                                    HOLE COVER
                                                                                                                                                                    SPINDLE COVER Genuine Maserati Part - New (to order)
                                                                                                                                                                    # 033
                                                                                                                                                                    MPN: 322-44-15-00
                                                                                                                                                                    STOP RING
                                                                                                                                                                    STOP RING Genuine Maserati Part - New (to order)
                                                                                                                                                                    # 034
                                                                                                                                                                    MPN: DST 68392
                                                                                                                                                                    PIN NUT
                                                                                                                                                                    PIN NUT Genuine Maserati Part - New (to order)
                                                                                                                                                                    # 035
                                                                                                                                                                    MPN: 329-42-20-00
                                                                                                                                                                    LINK PIN
                                                                                                                                                                    LINK PIN Genuine Maserati Part - New (to order)
                                                                                                                                                                    # 036
                                                                                                                                                                    MPN: 329-42-87-00
                                                                                                                                                                    LINK SPACER
                                                                                                                                                                    LINK SPACER Genuine Maserati Part - New (to order)
                                                                                                                                                                    # 037
                                                                                                                                                                    MPN: 329-17-23-00
                                                                                                                                                                    CAP
                                                                                                                                                                    CAP Genuine Maserati Part - New (to order)
                                                                                                                                                                    # 038
                                                                                                                                                                    MPN: 329175400
                                                                                                                                                                    WASHER
                                                                                                                                                                    from £17.13
                                                                                                                                                                    from £17.13
                                                                                                                                                                    WASHER Genuine Maserati Part - New (to order)
                                                                                                                                                                    # 039
                                                                                                                                                                    MPN: 329179900
                                                                                                                                                                    RING
                                                                                                                                                                    from £3.65
                                                                                                                                                                    from £3.65
                                                                                                                                                                    RING Genuine Maserati Part - New (to order)
                                                                                                                                                                    RING Genuine Ferrari Part - New (to order)
                                                                                                                                                                    # 040
                                                                                                                                                                    MPN: 329-42-59-00
                                                                                                                                                                    WASHER
                                                                                                                                                                    WASHER Genuine Maserati Part - New (to order)
                                                                                                                                                                    # 041
                                                                                                                                                                    MPN: 329-42-89-00
                                                                                                                                                                    PIN
                                                                                                                                                                    from £4.24
                                                                                                                                                                    from £4.24
                                                                                                                                                                    This part replaces part number GRN 48095
                                                                                                                                                                    PIN Genuine Maserati Part - New In stock
                                                                                                                                                                    # 043
                                                                                                                                                                    MPN: 329-42-14-00
                                                                                                                                                                    LINK BUSH
                                                                                                                                                                    LINK BUSH Genuine Maserati Part - New (to order)
                                                                                                                                                                    # 044
                                                                                                                                                                    MPN: 329429300
                                                                                                                                                                    BUSH
                                                                                                                                                                    from £3.65
                                                                                                                                                                    from £3.65
                                                                                                                                                                    Maserati PART 329429300 Genuine Maserati Part - New (to order)
                                                                                                                                                                    BUSH Genuine Ferrari Part - New (to order)
                                                                                                                                                                    # 045
                                                                                                                                                                    MPN: 329-17-02-00
                                                                                                                                                                    RH LOWER ARM BRACKET
                                                                                                                                                                    RH LOWER ARM BRACKET Genuine Maserati Part - New (to order)
                                                                                                                                                                    # 045
                                                                                                                                                                    MPN: 329-17-01-00
                                                                                                                                                                    LH LOWER ARM BRACKET
                                                                                                                                                                    LH LOWER ARM BRACKET Genuine Maserati Part - New (to order)
                                                                                                                                                                    # 046
                                                                                                                                                                    MPN: RNT/47084
                                                                                                                                                                    WASHER
                                                                                                                                                                    WASHER Genuine Maserati Part - New (to order)
                                                                                                                                                                    # 048
                                                                                                                                                                    MPN: BNT 90439
                                                                                                                                                                    BOLT
                                                                                                                                                                    BOLT Genuine Maserati Part - New (to order)
                                                                                                                                                                    # 049
                                                                                                                                                                    MPN: 329420300
                                                                                                                                                                    ARM
                                                                                                                                                                    from £732.34
                                                                                                                                                                    from £732.34
                                                                                                                                                                    ARM Genuine Maserati Part - New (to order)
                                                                                                                                                                    ARM Genuine Ferrari Part - New (to order)
                                                                                                                                                                    # 050
                                                                                                                                                                    MPN: 329.18.48.00
                                                                                                                                                                    CROSSBAR CLOSING PLATE
                                                                                                                                                                    CROSSBAR CLOSING PLATE Genuine Maserati Part - New (to order)
                                                                                                                                                                    # 051
                                                                                                                                                                    MPN: DST 52500
                                                                                                                                                                    FIX NUT, CLOSING PLATE 6X1
                                                                                                                                                                    FIX NUT, CLOSING PLATE 6X1 Genuine Maserati Part - New (to order)
                                                                                                                                                                    # 052
                                                                                                                                                                    MPN: BNT 84149
                                                                                                                                                                    SCREW FIXING FOR BLADE SHROUD 6X1X16
                                                                                                                                                                    Screw fixing fah blade shroud Ø 6x1x16 Genuine Maserati Part - New (to order)
                                                                                                                                                                    # 054
                                                                                                                                                                    MPN: RSN 3 2 6 3 5
                                                                                                                                                                    WASHER
                                                                                                                                                                    WASHER Genuine Maserati Part - New (to order)
                                                                                                                                                                    # 055
                                                                                                                                                                    MPN: BNT. 47015
                                                                                                                                                                    BOLT
                                                                                                                                                                    BOLT Genuine Maserati Part - New (to order)
                                                                                                                                                                    # 056
                                                                                                                                                                    MPN: 329-42-70-00
                                                                                                                                                                    SHOCK ABSORBER FIXING BUSH
                                                                                                                                                                    SHOCK ABSORBER FIXING BUSH Genuine Maserati Part - New (to order)
                                                                                                                                                                    # 057
                                                                                                                                                                    MPN: 329-42-31-00
                                                                                                                                                                    PIN
                                                                                                                                                                    PIN Genuine Maserati Part - New (to order)
                                                                                                                                                                    # 058
                                                                                                                                                                    MPN: RNT 88658
                                                                                                                                                                    WASHER 12X24X3
                                                                                                                                                                    Washer Ø 12x24x3 Genuine Maserati Part - New (to order)
                                                                                                                                                                    # 059
                                                                                                                                                                    MPN: DST 65851
                                                                                                                                                                    Rear suspension fixing nut
                                                                                                                                                                    This part replaces part number DST 68049
                                                                                                                                                                    Rear suspension fixing nut Genuine Maserati Part - New (to order)
                                                                                                                                                                    # 060
                                                                                                                                                                    MPN: DST 54896
                                                                                                                                                                    NUT FIXING BELT STRETCHER PULLEY 14X1.5
                                                                                                                                                                    Nut fixing belt stretcher pulley Ø 14x1.5 Genuine Maserati Part - New (to order)
                                                                                                                                                                    # 061
                                                                                                                                                                    MPN: 329429200
                                                                                                                                                                    BUSH
                                                                                                                                                                    from £5.12
                                                                                                                                                                    from £5.12
                                                                                                                                                                    BUSH Genuine Maserati Part - New (to order)
                                                                                                                                                                    BUSH Genuine Ferrari Part - New (to order)
                                                                                                                                                                    # 062
                                                                                                                                                                    MPN: 329429400
                                                                                                                                                                    JOINT
                                                                                                                                                                    from £21.85
                                                                                                                                                                    from £21.85
                                                                                                                                                                    Maserati PART 329429400 Genuine Maserati Part - New (to order)
                                                                                                                                                                    JOINT Genuine Ferrari Part - New (to order)
                                                                                                                                                                    # 063
                                                                                                                                                                    MPN: 329429100
                                                                                                                                                                    BUSH
                                                                                                                                                                    from £23.65
                                                                                                                                                                    from £23.65
                                                                                                                                                                    BUSH Genuine Maserati Part - New (to order)
                                                                                                                                                                    BUSH Genuine Ferrari Part - New (to order)
                                                                                                                                                                    # 064
                                                                                                                                                                    MPN: BNT 65442
                                                                                                                                                                    FIXING BOLT
                                                                                                                                                                    FIXING BOLT Genuine Maserati Part - New (to order)
                                                                                                                                                                    # 065
                                                                                                                                                                    MPN: RNT 88658
                                                                                                                                                                    WASHER 12X24X3
                                                                                                                                                                    Washer Ø 12x24x3 Genuine Maserati Part - New (to order)
                                                                                                                                                                    # 067
                                                                                                                                                                    MPN: 329185400
                                                                                                                                                                    ARM
                                                                                                                                                                    from £15.48
                                                                                                                                                                    from £15.48
                                                                                                                                                                    ARM Genuine Maserati Part - New (to order)
                                                                                                                                                                    ARM Genuine Ferrari Part - New (to order)
                                                                                                                                                                    # 068
                                                                                                                                                                    MPN: 329186000
                                                                                                                                                                    JOINT
                                                                                                                                                                    from £57.15
                                                                                                                                                                    from £57.15
                                                                                                                                                                    JOINT Genuine Maserati Part - New (to order)
                                                                                                                                                                    JOINT Genuine Ferrari Part - New (to order)
                                                                                                                                                                    # 069
                                                                                                                                                                    MPN: 329186100
                                                                                                                                                                    BUSH
                                                                                                                                                                    from £5.12
                                                                                                                                                                    from £5.12
                                                                                                                                                                    BUSH Genuine Maserati Part - New (to order)
                                                                                                                                                                    BUSH Genuine Ferrari Part - New (to order)
                                                                                                                                                                    # 070
                                                                                                                                                                    MPN: DNT 48671
                                                                                                                                                                    NUT
                                                                                                                                                                    NUT Genuine Maserati Part - New (to order)
                                                                                                                                                                    # 071
                                                                                                                                                                    MPN: 329-18-58-00
                                                                                                                                                                    ADJUSTING PIN
                                                                                                                                                                    ADJUSTING PIN Genuine Maserati Part - New (to order)
                                                                                                                                                                    # 072
                                                                                                                                                                    MPN: DN 48672
                                                                                                                                                                    LEFT THREADED NUT
                                                                                                                                                                    LEFT THREADED NUT Genuine Maserati Part - New (to order)
                                                                                                                                                                    # 073
                                                                                                                                                                    MPN: 329185900
                                                                                                                                                                    CASING
                                                                                                                                                                    from £5.85
                                                                                                                                                                    from £5.85
                                                                                                                                                                    CASING Genuine Maserati Part - New (to order)
                                                                                                                                                                    # 078
                                                                                                                                                                    MPN: 329-42-66-00
                                                                                                                                                                    LOWER RING
                                                                                                                                                                    LOWER RING Genuine Maserati Part - New (to order)
                                                                                                                                                                    # 079
                                                                                                                                                                    MPN: 329-42-67-00
                                                                                                                                                                    RING RETAINERS
                                                                                                                                                                    RING RETAINERS Genuine Maserati Part - New (to order)
                                                                                                                                                                    # 080
                                                                                                                                                                    MPN: 329.17.26.00
                                                                                                                                                                    RETAINING COVER
                                                                                                                                                                    RETAINING COVER Genuine Maserati Part - New (to order)
                                                                                                                                                                    # 081
                                                                                                                                                                    MPN: 329-17-22-00
                                                                                                                                                                    REAR HUB SPACER
                                                                                                                                                                    REAR HUB SPACER Genuine Maserati Part - New (to order)
                                                                                                                                                                    # 082
                                                                                                                                                                    MPN: 329186800
                                                                                                                                                                    HYPERBLOC
                                                                                                                                                                    from £229.78
                                                                                                                                                                    from £229.78
                                                                                                                                                                    HIPEWRBLOC Genuine Maserati Part - New In stock
                                                                                                                                                                    HIPER BLOC Genuine Ferrari Part - New (to order)
                                                                                                                                                                    # 083
                                                                                                                                                                    MPN: 329-18-64-00
                                                                                                                                                                    FRONT ARM
                                                                                                                                                                    FRONT ARM Genuine Maserati Part - New (to order)
                                                                                                                                                                    # 084
                                                                                                                                                                    MPN: DST 68392
                                                                                                                                                                    PIN NUT
                                                                                                                                                                    PIN NUT Genuine Maserati Part - New (to order)
