maserati kyalami exhaust pipes and air pump parts diagram

022 - Exhaust Pipes and Air Pump

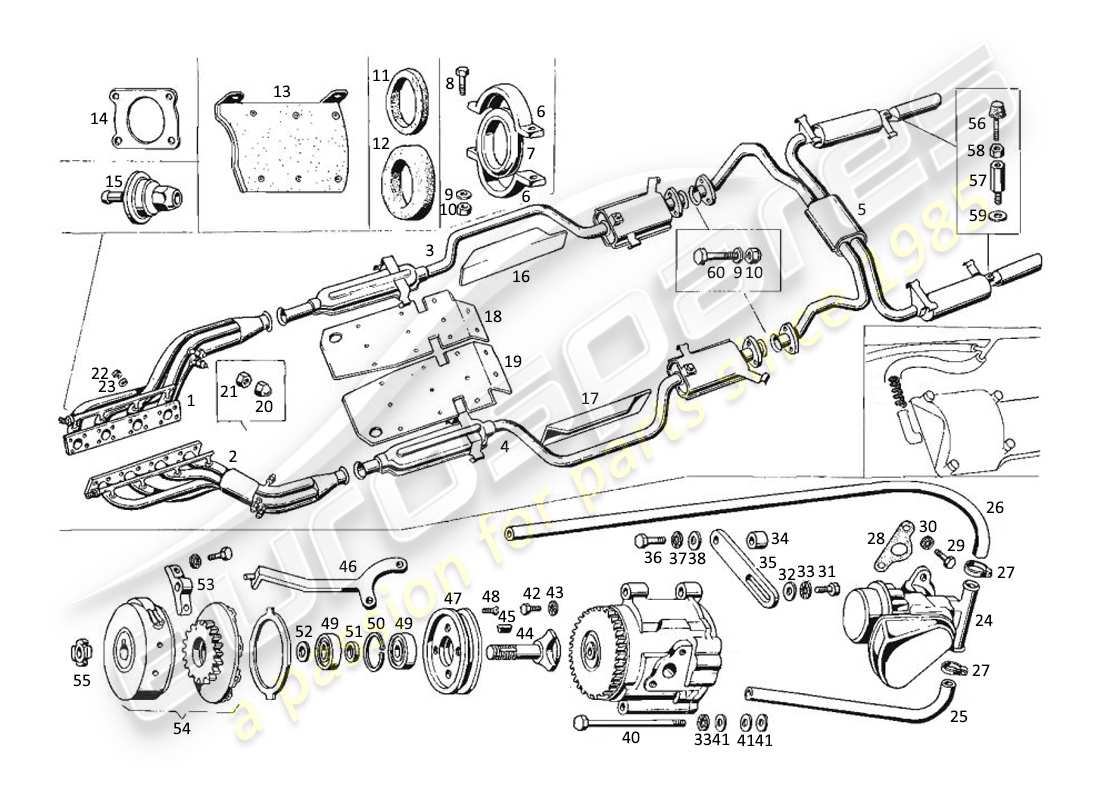

Maserati Kyalami Exhaust pipes and air pump Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                                                                                                                                #
                                                                                                                                Part number
                                                                                                                                Description
                                                                                                                                Price
                                                                                                                                # 001
                                                                                                                                MPN: 329.30.02.00
                                                                                                                                EXHAUST MANIFOLD COMPLETE WITH RIGHT COVERING
                                                                                                                                # 002
                                                                                                                                MPN: 329.30.01.00
                                                                                                                                EXHAUST MANIFOLD COMPLETE WITH LEFT COVERING
                                                                                                                                # 003
                                                                                                                                MPN: 329.30.34.00
                                                                                                                                RIGHT SIDE SILENCER
                                                                                                                                # 004
                                                                                                                                MPN: 329.30.35.00
                                                                                                                                LEFT SIDE SILENCER
                                                                                                                                # 005
                                                                                                                                MPN: 329303700
                                                                                                                                REAR SILENCER
                                                                                                                                from £477.22
                                                                                                                                from £477.22
                                                                                                                                # 006
                                                                                                                                MPN: 307-30-19-00
                                                                                                                                CLAMP
                                                                                                                                # 007
                                                                                                                                MPN: 309.30.18.00
                                                                                                                                CONICAL RING
                                                                                                                                # 008
                                                                                                                                MPN: BNT 78023
                                                                                                                                CLAMP BOLT 8X1.25X40
                                                                                                                                # 009
                                                                                                                                MPN: RNT 87234
                                                                                                                                WASHER
                                                                                                                                This part replaces part number 87234
                                                                                                                                # 010
                                                                                                                                MPN: DST/48101
                                                                                                                                NUT
                                                                                                                                # 011
                                                                                                                                MPN: 329301800
                                                                                                                                RING
                                                                                                                                from £2.48
                                                                                                                                from £2.48
                                                                                                                                # 012
                                                                                                                                MPN: 329307400
                                                                                                                                RUBBER RING
                                                                                                                                from £2.48
                                                                                                                                from £2.48
                                                                                                                                # 013
                                                                                                                                MPN: 329.20.27.00
                                                                                                                                STARTER MOTOR PROTECTION BULKHEAD ASSEMBLY
                                                                                                                                # 013
                                                                                                                                MPN: 239.30.27.60
                                                                                                                                STARTER MOTOR PROTECTION BULKHEAD ASSEMBLY RHD
                                                                                                                                # 014
                                                                                                                                MPN: 307-30-08-00
                                                                                                                                EXHAUST MANIFOLD GASKET
                                                                                                                                # 015
                                                                                                                                MPN: 315.32.23.00
                                                                                                                                NON-RETURN FLAME VALVE ON THE EXHAUST MANIFOLD
                                                                                                                                # 016
                                                                                                                                MPN: 329.21.60.00
                                                                                                                                BULKHEAD EXTENSION ASSEMBLY FOR RIGHT EXHAUST PIPE PROTECTION
                                                                                                                                # 017
                                                                                                                                MPN: 329.21.61.00
                                                                                                                                BULKHEAD EXTENSION ASSEMBLY FOR LEFT EXHAUST PIPE PROTECTION
                                                                                                                                # 018
                                                                                                                                MPN: 329.22.70.00
                                                                                                                                BULKHEAD ASSEMBLY UNDER THE FRONT FLOOR TO PROTECT THE RIGHT EXHAUST PIPE
                                                                                                                                # 019
                                                                                                                                MPN: 329.22.69.00
                                                                                                                                BULKHEAD ASSEMBLY UNDER THE FRONT FLOOR TO PROTECT THE LEFT EXHAUST PIPE
                                                                                                                                # 020
                                                                                                                                MPN: DRN 69934
                                                                                                                                NUT
                                                                                                                                # 021
                                                                                                                                MPN: DN 78940
                                                                                                                                NUT 10X1.25
                                                                                                                                # 023
                                                                                                                                MPN: RAT/45680
                                                                                                                                WASHER
                                                                                                                                # 024
                                                                                                                                MPN: 315.32.24.00
                                                                                                                                DIVERTER VALVE ON THE AIR PUMP
                                                                                                                                # 025
                                                                                                                                MPN: 322-38-52-00
                                                                                                                                RUBBER TUBE, AIR PUMP TO RH EXHAUST MANIFOLD
                                                                                                                                # 026
                                                                                                                                MPN: 329-32-41-00
                                                                                                                                RUBBER TUBE, AIR PUMP TO LH EXHAUST MANIFOLD
                                                                                                                                # 028
                                                                                                                                MPN: 420-32-24-00
                                                                                                                                AIR PUMP VALVE
                                                                                                                                # 030
                                                                                                                                MPN: RDI 72811
                                                                                                                                WASHER 6.5X12X0.6
                                                                                                                                # 031
                                                                                                                                MPN: BNT 68563
                                                                                                                                BOLT
                                                                                                                                # 032
                                                                                                                                MPN: RN 75853
                                                                                                                                WASHER 10.5
                                                                                                                                # 033
                                                                                                                                MPN: RDI 87239
                                                                                                                                WASHER 10
                                                                                                                                # 034
                                                                                                                                MPN: 420-32-38-00
                                                                                                                                SPACER
                                                                                                                                # 035
                                                                                                                                MPN: 420-32-33-00
                                                                                                                                BRACKET
                                                                                                                                # 036
                                                                                                                                MPN: BNT 78074
                                                                                                                                Universal joint bolt
                                                                                                                                # 037
                                                                                                                                MPN: RDI55990
                                                                                                                                WASHER 8X15X0.8 FOR FIXING BRAKE AND CLUTCH PUMPS
                                                                                                                                # 039
                                                                                                                                MPN: 315-32-26-00
                                                                                                                                AIR PUMP
                                                                                                                                # 041
                                                                                                                                MPN: RNT 87233
                                                                                                                                WASHER 10.5X22X2.5
                                                                                                                                # 043
                                                                                                                                MPN: RDI 72811
                                                                                                                                WASHER 6.5X12X0.6
                                                                                                                                # 044
                                                                                                                                MPN: 317-32-28-00
                                                                                                                                AIR PUMP CLUTCH SHAFT
                                                                                                                                # 046
                                                                                                                                MPN: VNT 74596
                                                                                                                                SCREW
                                                                                                                                # 048
                                                                                                                                MPN: 315-32-30-00
                                                                                                                                DAMPING BRACKET
                                                                                                                                # 049
                                                                                                                                MPN: CSC 72283
                                                                                                                                BEARING 17 X 35 X 10 FOR ELECTROMAGNETIC CLUTCH
                                                                                                                                # 050
                                                                                                                                MPN: ART 46960
                                                                                                                                RING
                                                                                                                                # 051
                                                                                                                                MPN: 315-32-37-00
                                                                                                                                SUPPORT WASHER
                                                                                                                                # 052
                                                                                                                                MPN: 315-32-36-00
                                                                                                                                SUPPORT WASHER
                                                                                                                                # 053
                                                                                                                                MPN: 315-32-77-00
                                                                                                                                SUPPORT
                                                                                                                                # 054
                                                                                                                                MPN: 315-32-27-00
                                                                                                                                ELECTROMAGNETIC CLUTCH ASSY
                                                                                                                                # 055
                                                                                                                                MPN: GH 72288
                                                                                                                                STOP ELASTIC RING NUT Ø 17 X 1 FOR ELECTROMAGNETIC CLUTCH
                                                                                                                                # 056
                                                                                                                                MPN: 329307600
                                                                                                                                SILENCER RING
                                                                                                                                from £1.66
                                                                                                                                from £1.66
                                                                                                                                # 057
                                                                                                                                MPN: 420-00-23-00
                                                                                                                                STUD BOLT FOR A.C. TUBES AND CABLES CARRIER
                                                                                                                                # 058
                                                                                                                                MPN: DNT 80338
                                                                                                                                THREADED ROD NUT 6X1
                                                                                                                                # 060
                                                                                                                                MPN: BNT 83884
                                                                                                                                MUFFLERS CONNECTING BOLT
                                                                                                                                This part replaces part number 83884
