Valid from assembly: 0 - 6053786. (valid for: 3.0 BT V6 4WD 350 HP, 3.0 BT V6 4WD 430 HP | CHILE, EUROPE, JAPAN, USA)

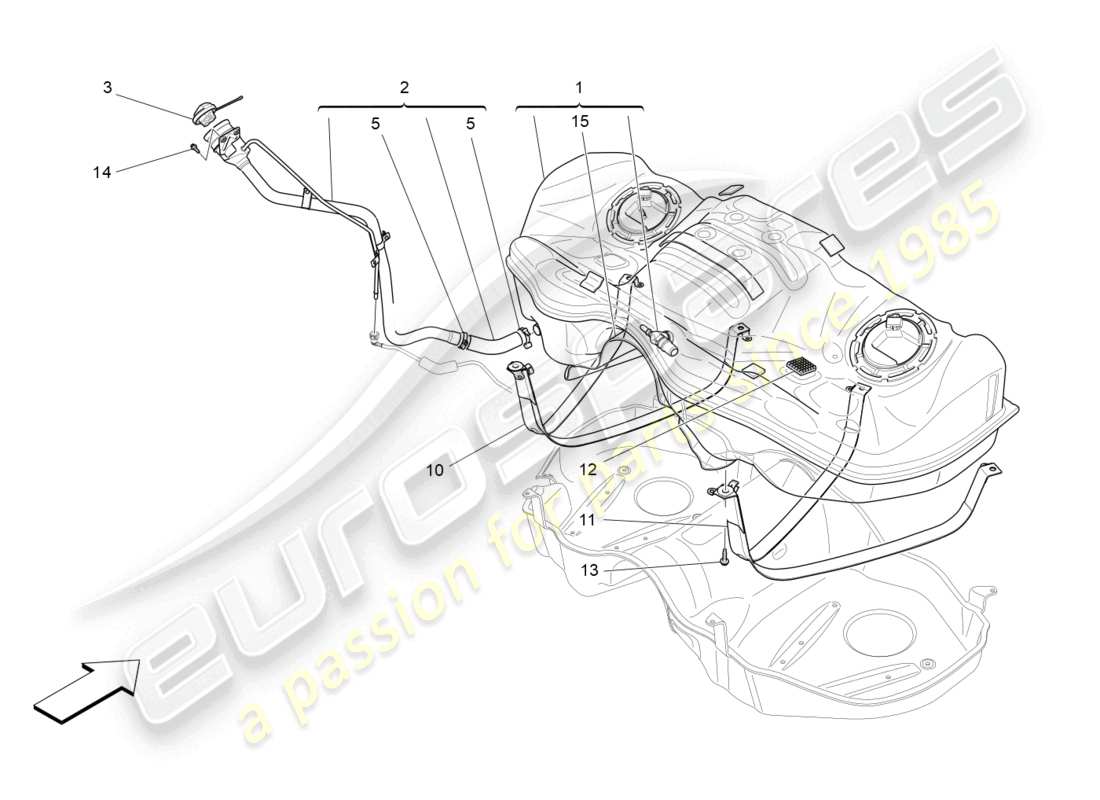

Maserati Levante (2017) FUEL TANK Parts Diagram

01.42.1 - FUEL TANK

Maserati Levante (2017) FUEL TANK Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
#
Part number
Description
Price
# 001
MPN: 670036131
FUEL TANK ASSEMBLY
Valid from assembly: 0 - 6035537. Not for cars with: REQUIREMENTS FOR EXTRA HOT WEATHER COUNTRIES. Suitable for: 3.0 BT V6 4WD 350 HP, 3.0 BT V6 4WD 430 HP | CHILE, EUROPE, JAPAN
from £1,910.71
from £1,910.71
This part replaces part number 670003257
# 001
MPN: 670038248
FUEL TANK ASSEMBLY
Valid from assembly: 0 - 6035537. Not for cars with: REQUIREMENTS FOR EXTRA HOT WEATHER COUNTRIES. Suitable for: 3.0 BT V6 4WD 350 HP, 3.0 BT V6 4WD 430 HP | EUROPE, USA
from £1,339.92
from £1,339.92
# 001
MPN: 670038248
FUEL TANK ASSEMBLY
Valid from assembly: 0 - 6035537. Suitable for cars with: REQUIREMENTS FOR EXTRA HOT WEATHER COUNTRIES. Suitable for: 3.0 BT V6 4WD 350 HP, 3.0 BT V6 4WD 430 HP | EUROPE, USA
from £1,339.92
from £1,339.92
# 002
MPN: 670031929
FUEL FILLER NECK ASSEMBLY
Valid from assembly: 0 - 6002920. Suitable for: 3.0 BT V6 4WD 350 HP, 3.0 BT V6 4WD 430 HP | CHILE, EUROPE
Supersession
Supersession
# 002
MPN: 670101190
FUEL FILLER NECK ASSEMBLY
Valid from assembly: 0 - 6002920. Suitable for: 3.0 BT V6 4WD 350 HP, 3.0 BT V6 4WD 430 HP | CHILE, EUROPE, JAPAN, USA
from £98.54
from £98.54
This part replaces part number 670031929
# 002
MPN: 670101190
FUEL FILLER NECK ASSEMBLY
Valid from assembly: 6002921. Suitable for: 3.0 BT V6 4WD 350 HP, 3.0 BT V6 4WD 430 HP | CHILE, EUROPE, JAPAN, USA
from £98.54
from £98.54
This part replaces part number 670031929
# 003
MPN: 675000636
TANK PLUG
Valid from assembly: 0 - 6035537. Suitable for: 3.0 BT V6 4WD 350 HP, 3.0 BT V6 4WD 430 HP | USA
from £38.13
from £38.13
# 003
MPN: 675000663
TANK PLUG
Suitable for: 3.0 BT V6 4WD 350 HP, 3.0 BT V6 4WD 430 HP | CHILE, EUROPE, JAPAN
from £38.13
from £38.13
# 005
MPN: 11417670
SCREW COLLAR
Suitable for: 3.0 BT V6 4WD 350 HP, 3.0 BT V6 4WD 430 HP | CHILE, EUROPE, JAPAN, USA
from £6.50
from £6.50
This part replaces part number 675000094 - and 2 more. Click to view details
# 010
MPN: 670007868
LH FUEL TANK FASTENING STRAP
Suitable for: 3.0 BT V6 4WD 350 HP, 3.0 BT V6 4WD 430 HP | CHILE, EUROPE, JAPAN, USA
from £62.56
from £62.56
# 011
MPN: 670007867
RH FUEL TANK FASTENING STRAP
Suitable for: 3.0 BT V6 4WD 350 HP, 3.0 BT V6 4WD 430 HP | CHILE, EUROPE, JAPAN, USA
from £66.87
from £66.87
# 012
MPN: 670003729
PAD
Suitable for: 3.0 BT V6 4WD 350 HP, 3.0 BT V6 4WD 430 HP | CHILE, EUROPE, JAPAN, USA
from £3.80
from £3.80
# 013
MPN: 675000041
SCREW
Suitable for: 3.0 BT V6 4WD 350 HP, 3.0 BT V6 4WD 430 HP | CHILE, EUROPE, JAPAN, USA
from £1.48
from £1.48
# 014
MPN: 675000144
SCREW
Suitable for: 3.0 BT V6 4WD 350 HP, 3.0 BT V6 4WD 430 HP | CHILE, EUROPE, JAPAN, USA
from £2.35
from £2.35
# 015
-
TANK HEAT SHIELD #FOR THESE COMPONENTS REFER TO TABLE 9.63-2#
