Maserati Levante (2017) FRONT STRUCTURAL FRAMES AND SHEET PANELS Parts Diagram

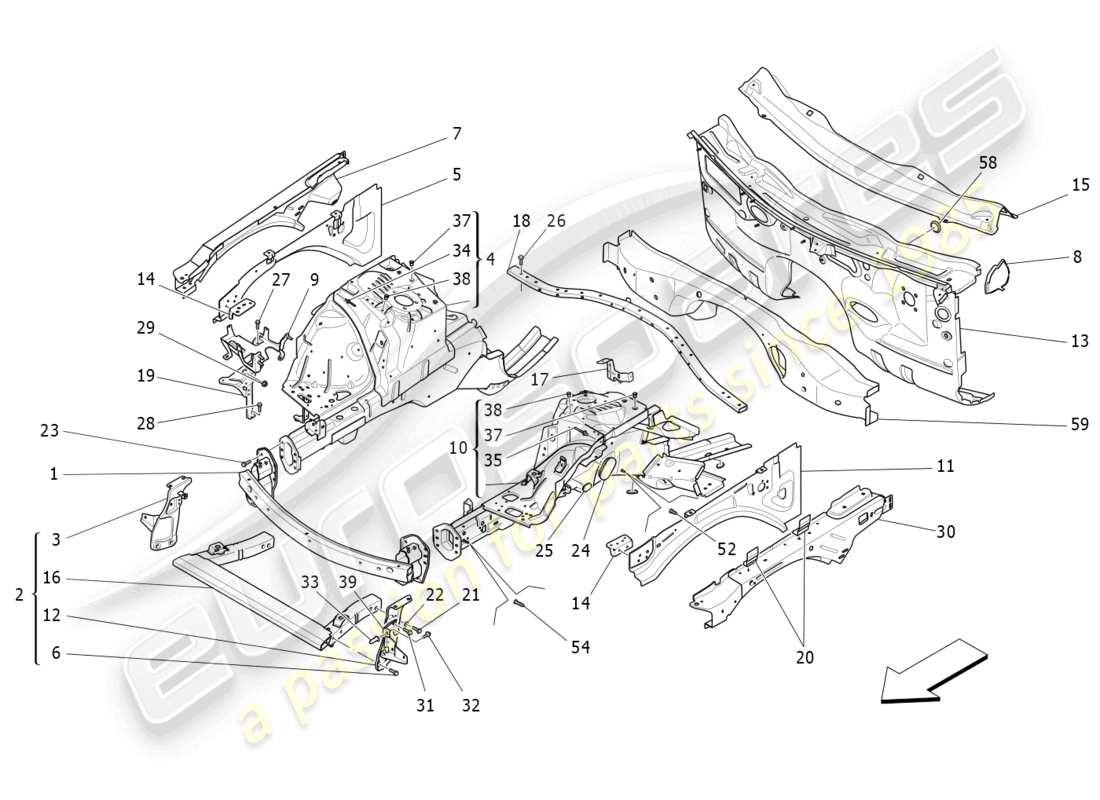

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
#
Part number
Description
Key
Price
# 001
MPN: 673007200
FRONT CROSS MEMBER ASS.
Suitable for: AUSTRALIA, CHILE, EUROPE, ITALY, JAPAN, JAPAN (RH DRIVE), UNITED KINGDOM, USA
from £312.23
from £312.23
FRONT CROSSMEMBER COMPLETE M161 Genuine Maserati Part - New In stock
# 002
MPN: 670032498
THIRD LOAD PATH CROSS MEMBER #CPL CROSS MEMBER NO LONGER AVAILABLE. PLEASE, ORDER SUB-COMPONENTS IN POS.3/16/12/6 INDIVIDUALLY#
Valid from assembly: 0 - 6079466. Suitable for: AUSTRALIA, CHILE, EUROPE, ITALY, JAPAN, JAPAN (RH DRIVE), UNITED KINGDOM, USA
from £151.04
from £151.04
THIRD LOAD PATH CROSS MEMBER Genuine Maserati Part - New (to order)
# 003
MPN: 670033907
RH BRACKET
Valid from assembly: 0 - 6087716. Suitable for: AUSTRALIA, CHILE, EUROPE, ITALY, JAPAN, JAPAN (RH DRIVE), UNITED KINGDOM, USA
Supersession
Supersession
Genuine Maserati Part (no longer available to order)
# 004
MPN: 673005685
RH COMPLETE FRONT STRUT
Valid from assembly: 0 - 6035699. Suitable for: AUSTRALIA, CHILE, EUROPE, ITALY, JAPAN, JAPAN (RH DRIVE), UNITED KINGDOM, USA
Supersession
Supersession
This part replaces part number 673004560
Genuine Maserati Part (no longer available to order)
# 005
MPN: 673005729
COMPLETE RH UPPER STRUT BOX SECTION
Suitable for: AUSTRALIA, CHILE, EUROPE, ITALY, JAPAN, JAPAN (RH DRIVE), UNITED KINGDOM, USA
from £107.04
from £107.04
SCATOLAMENTO PUNTONE SUPERIO Genuine Maserati Part - New (to order)
# 006
MPN: 675000469
SCREW [M8]
Suitable for: AUSTRALIA, CHILE, EUROPE, ITALY, JAPAN, JAPAN (RH DRIVE), UNITED KINGDOM, USA
from £1.10
from £1.10
SCREW Genuine Maserati Part - New (to order)
# 007
MPN: 673005655
RH UPPER STRUT
Valid from assembly: 0 - 6074123. Suitable for: AUSTRALIA, CHILE, EUROPE, ITALY, JAPAN, JAPAN (RH DRIVE), UNITED KINGDOM, USA
from £107.04
from £107.04
SCATOL. PUNT. SUP.DX COMPLETE CAT Genuine Maserati Part - New (to order)
# 008
MPN: 670033829
DIAPHRAGM
Valid from assembly: 0 - 6079466. Suitable for: CHILE, EUROPE, ITALY, JAPAN, USA
from £19.43
from £19.43
DIAPHRAGM Genuine Maserati Part - New (to order)
# 008
MPN: 670034098
DIAPHRAGM
Suitable for: 3.0 TDS V6 4WD 275 HP | AUSTRALIA, JAPAN (RH DRIVE), UNITED KINGDOM
DIAPHRAGM Genuine Maserati Part - New (to order)
# 009
MPN: 670004050
FUSE BOX MOUNTING BRACKET
Valid from assembly: 0 - 6041782. Suitable for: 3.0 BT V6 4WD 350 HP, 3.0 BT V6 4WD 430 HP | CHILE, EUROPE, JAPAN, USA
Supersession
Supersession
Genuine Maserati Part (no longer available to order)
# 009
MPN: 670004881
FUSE BOX MOUNTING BRACKET
Valid from assembly: 0 - 6041781. Suitable for: 3.0 TDS V6 4WD 250 HP, 3.0 TDS V6 4WD 275 HP | AUSTRALIA, CHILE, EUROPE, ITALY, JAPAN (RH DRIVE), UNITED KINGDOM
Supersession
Supersession
Genuine Maserati Part (no longer available to order)
# 009
MPN: 670036939
FUSE BOX MOUNTING BRACKET
Suitable for: 3.0 TDS V6 4WD 250 HP, 3.0 TDS V6 4WD 275 HP | AUSTRALIA, CHILE, EUROPE, ITALY, JAPAN (RH DRIVE), UNITED KINGDOM
from £12.33
from £12.33
This part replaces part number 670004881 - and 1 more. Click to view details
STAFFA SCATOLA FUSIBILI E RE Genuine Maserati Part - New (to order)
STAFFA SCATOLA FUSIBILI E RE Genuine Maserati Part - Used In stock
# 010
MPN: 673005684
LH COMPLETE FRONT STRUT
Valid from assembly: 0 - 6025421. Suitable for: AUSTRALIA, CHILE, EUROPE, ITALY, JAPAN, JAPAN (RH DRIVE), UNITED KINGDOM, USA
Supersession
Supersession
This part replaces part number 673004559
Genuine Maserati Part (no longer available to order)
# 010
MPN: 673008180
LH COMPLETE FRONT STRUT
Valid from assembly: 0 - 6045351. Suitable for: AUSTRALIA, CHILE, EUROPE, ITALY, JAPAN, JAPAN (RH DRIVE), UNITED KINGDOM, USA
Supersession
Supersession
This part replaces part number 673005684
Genuine Maserati Part (no longer available to order)
# 011
MPN: 673005658
COMPLETE LH UPPER STRUT BOX SECTION
Suitable for: AUSTRALIA, CHILE, EUROPE, ITALY, JAPAN, JAPAN (RH DRIVE), UNITED KINGDOM, USA
from £115.12
from £115.12
SCATOL.PUNT. SUP.SX COMPLETE CAT Genuine Maserati Part - New (to order)
# 012
MPN: 670034077
LH BRACKET
Valid from assembly: 0 - 6087716. Suitable for: AUSTRALIA, CHILE, EUROPE, ITALY, JAPAN, JAPAN (RH DRIVE), UNITED KINGDOM, USA
Supersession
Supersession
Genuine Maserati Part (no longer available to order)
# 013
MPN: 673005660
LOWER INSTRUMENT PANEL
Valid from assembly: 0 - 6045163. Suitable for: CHILE, EUROPE, ITALY, JAPAN, USA
from £286.21
from £286.21
CRUSCOTTO INFERIORE CAT M161 Genuine Maserati Part - New (to order)
# 013
MPN: 673005661
LOWER INSTRUMENT PANEL
Valid from assembly: 0 - 6045242. Suitable for: 3.0 TDS V6 4WD 275 HP | AUSTRALIA, JAPAN (RH DRIVE), UNITED KINGDOM
Supersession
Supersession
Genuine Maserati Part (no longer available to order)
# 014
MPN: 670034251
REINFORCEMENT BRACKET
Suitable for: AUSTRALIA, CHILE, EUROPE, ITALY, JAPAN, JAPAN (RH DRIVE), UNITED KINGDOM, USA
from £18.48
from £18.48
STAFFA RINFORZO PORTAFARI Genuine Maserati Part - New (to order)
# 015
MPN: 673005662
WINDSCREEN LOWER CROSS MEMBER
Suitable for: CHILE, EUROPE, ITALY, JAPAN, USA
from £52.69
from £52.69
TRAVERSA INF.PARAB. CAT M161 Genuine Maserati Part - New (to order)
# 015
MPN: 673005663
WINDSCREEN LOWER CROSS MEMBER
Suitable for: 3.0 TDS V6 4WD 275 HP | AUSTRALIA, JAPAN (RH DRIVE), UNITED KINGDOM
from £31.03
from £31.03
TRAVERSA INF.PARAB. CAT M161 Genuine Maserati Part - New (to order)
# 016
MPN: 670034080
CROSS MEMBER
Valid from assembly: 0 - 6087199. Suitable for: AUSTRALIA, CHILE, EUROPE, ITALY, JAPAN, JAPAN (RH DRIVE), UNITED KINGDOM, USA
Supersession
Supersession
Genuine Maserati Part (no longer available to order)
# 017
MPN: 670004846
24-WAY HOLDER BRACKET
Valid from assembly: 0 - 6079466. Suitable for: AUSTRALIA, CHILE, EUROPE, ITALY, JAPAN, JAPAN (RH DRIVE), UNITED KINGDOM, USA
from £3.71
from £3.71
This part replaces part number 673005664
STAFFA TRATT. 24 VIE Genuine Maserati Part - New (to order)
# 018
MPN: 670032499
SUSPENSION STRUT CONNECTING CROSS MEMBER ASS.
Valid from assembly: 0 - 6035537. Suitable for: CHILE, EUROPE, ITALY, JAPAN, USA
Supersession
Supersession
Genuine Maserati Part (no longer available to order)
# 018
MPN: 670036990
SUSPENSION STRUT CONNECTING CROSS MEMBER ASS.
Valid from assembly: 0 - 6035537. Suitable for: 3.0 TDS V6 4WD 275 HP | AUSTRALIA, JAPAN (RH DRIVE), UNITED KINGDOM
from £43.52
from £43.52
This part replaces part number 673005687 - and 1 more. Click to view details
Genuine Maserati Part (no longer available to order)
RHD SUSPENSION CONNECTING CR Genuine Maserati Part - Used In stock
# 019
MPN: 670031030
REINFORCEMENT BRACKET
Valid from assembly: 0 - 6041782. Suitable for: 3.0 BT V6 4WD 350 HP, 3.0 BT V6 4WD 430 HP | CHILE, EUROPE, JAPAN, USA
from £36.44
from £36.44
This part replaces part number 673001744 - and 1 more. Click to view details
STAFFA SCATOLA FUSIBILI E RE Genuine Maserati Part - New (to order)
STAFFA SCATOLA FUSIBILI E RE Genuine Maserati Part - Used In stock
# 020
MPN: 670034858
FIXING BRACKET
Suitable for: AUSTRALIA, CHILE, EUROPE, ITALY, JAPAN, JAPAN (RH DRIVE), UNITED KINGDOM, USA
from £1.97
from £1.97
STAFFA FISS. PARAFANGO Genuine Maserati Part - New (to order)
# 021
MPN: 670036974
SCREW
Suitable for: AUSTRALIA, CHILE, EUROPE, ITALY, JAPAN, JAPAN (RH DRIVE), UNITED KINGDOM, USA
from £3.24
from £3.24
VITE(SPECIALE) - - Genuine Maserati Part - New (to order)
# 022
MPN: 675000105
WASHER [D.12X24]
Suitable for: AUSTRALIA, CHILE, EUROPE, ITALY, JAPAN, JAPAN (RH DRIVE), UNITED KINGDOM, USA
from £1.18
from £1.18
WASHER 12X24X3 Genuine Maserati Part - New (to order)
# 023
MPN: 670035227
SCREW AND WASHER
Suitable for: AUSTRALIA, CHILE, EUROPE, ITALY, JAPAN, JAPAN (RH DRIVE), UNITED KINGDOM, USA
from £1.58
from £1.58
This part replaces part number 675000515
VITE E ROND.IMPERDIBILE Genuine Maserati Part - New In stock
# 024
MPN: 670004843
PLUG
Suitable for: AUSTRALIA, CHILE, EUROPE, ITALY, JAPAN, JAPAN (RH DRIVE), UNITED KINGDOM, USA
from £2.37
from £2.37
TAPPO PER ASOLA PIANA 50X95 Genuine Maserati Part - New (to order)
# 025
MPN: 670004844
PLUG
Suitable for: AUSTRALIA, CHILE, EUROPE, ITALY, JAPAN, JAPAN (RH DRIVE), UNITED KINGDOM, USA
from £1.97
from £1.97
TAPPO PER ASOLA PIANA 36X25 Genuine Maserati Part - New (to order)
# 026
MPN: 675000470
SCREW
Suitable for: AUSTRALIA, CHILE, EUROPE, ITALY, JAPAN, JAPAN (RH DRIVE), UNITED KINGDOM, USA
from £0.71
from £0.71
VITE PER TRAVERSA Genuine Maserati Part - New (to order)
# 027
MPN: 675000382
SCREW [M6X16]
Suitable for: AUSTRALIA, CHILE, EUROPE, ITALY, JAPAN, JAPAN (RH DRIVE), UNITED KINGDOM, USA
from £1.43
from £1.43
VITE(NORMALE) TE FLANGIATA M Genuine Maserati Part - New (to order)
# 028
MPN: 675000421
SCREW
Suitable for: AUSTRALIA, CHILE, EUROPE, ITALY, JAPAN, JAPAN (RH DRIVE), UNITED KINGDOM, USA
from £1.35
from £1.35
VITE(NORMALE) Genuine Maserati Part - New (to order)
# 029
MPN: 675000095
NUT [M6]
Suitable for: AUSTRALIA, CHILE, EUROPE, ITALY, JAPAN, JAPAN (RH DRIVE), UNITED KINGDOM, USA
from £0.63
from £0.63
DADO E CON FLANGIA AUTOBLOCC Genuine Maserati Part - New (to order)
# 030
MPN: 673005665
LH UPPER STRUT
Valid from assembly: 0 - 6074123. Suitable for: AUSTRALIA, CHILE, EUROPE, ITALY, JAPAN, JAPAN (RH DRIVE), UNITED KINGDOM, USA
from £123.39
from £123.39
PUNTONE SUPERIORE SX CAT M16 Genuine Maserati Part - New (to order)
# 031
MPN: 675000469
SCREW [M8]
Suitable for: AUSTRALIA, CHILE, EUROPE, ITALY, JAPAN, JAPAN (RH DRIVE), UNITED KINGDOM, USA
from £1.10
from £1.10
SCREW Genuine Maserati Part - New (to order)
# 032
MPN: 675000469
SCREW [M8]
Suitable for: AUSTRALIA, CHILE, EUROPE, ITALY, JAPAN, JAPAN (RH DRIVE), UNITED KINGDOM, USA
from £1.10
from £1.10
SCREW Genuine Maserati Part - New (to order)
# 033
MPN: 670002185
THREADED RIVET
Suitable for: AUSTRALIA, CHILE, EUROPE, ITALY, JAPAN, JAPAN (RH DRIVE), UNITED KINGDOM, USA
from £1.89
from £1.89
RIVET Genuine Maserati Part - New In stock
# 034
MPN: 670032695
RIVET
Valid from assembly: 0 - 6053786. Suitable for: AUSTRALIA, CHILE, EUROPE, ITALY, JAPAN, JAPAN (RH DRIVE), UNITED KINGDOM, USA
from £3.24
from £3.24
RIVETTO CIECO STRUTTURALE Genuine Maserati Part - New In stock
# 035
MPN: 670032695
RIVET
Valid from assembly: 0 - 6053786. Suitable for: AUSTRALIA, CHILE, EUROPE, ITALY, JAPAN, JAPAN (RH DRIVE), UNITED KINGDOM, USA
from £3.24
from £3.24
RIVETTO CIECO STRUTTURALE Genuine Maserati Part - New In stock
# 037
MPN: 670005395
THREADED RIVET
Suitable for: AUSTRALIA, CHILE, EUROPE, ITALY, JAPAN, JAPAN (RH DRIVE), UNITED KINGDOM, USA
from £2.37
from £2.37
RIVETTO TC M8 Genuine Maserati Part - New (to order)
# 038
MPN: 670006571
THREADED RIVET
Suitable for: AUSTRALIA, CHILE, EUROPE, ITALY, JAPAN, JAPAN (RH DRIVE), UNITED KINGDOM, USA
from £1.89
from £1.89
RIVETTO TC M6 Genuine Maserati Part - New (to order)
# 039
MPN: 670034982
BRACKET
Suitable for: AUSTRALIA, CHILE, EUROPE, ITALY, JAPAN, JAPAN (RH DRIVE), UNITED KINGDOM, USA
from £2.92
from £2.92
BRACKET Genuine Maserati Part - New (to order)
# 052
MPN: 675000623
WELDED STUD [M5X14]
Suitable for: AUSTRALIA, CHILE, EUROPE, ITALY, JAPAN, JAPAN (RH DRIVE), UNITED KINGDOM, USA
from £1.10
from £1.10
PERNO A SD ZINC FILETT.SPEC. Genuine Maserati Part - New (to order)
# 054
MPN: 675000628
WELDED STUD [M6X25]
Valid from assembly: 0 - 6053786. Suitable for: AUSTRALIA, CHILE, EUROPE, ITALY, JAPAN, JAPAN (RH DRIVE), UNITED KINGDOM, USA
from £2.22
from £2.22
PERNO A SD M6X25 TIPO C.FILE Genuine Maserati Part - New (to order)
# 058
MPN: 670030073
PLUG
Suitable for: AUSTRALIA, CHILE, EUROPE, ITALY, JAPAN, JAPAN (RH DRIVE), UNITED KINGDOM, USA
from £1.10
from £1.10
TAPPO GOMMA Genuine Maserati Part - New (to order)
# 059
MPN: 673008198
LONGITUDINAL MEMBER CONNECTING CROSS MEMBER
Suitable for: CHILE, EUROPE, ITALY, JAPAN, USA
from £143.98
from £143.98
TRAVERSA COLL. PUNTONI ANT G Genuine Maserati Part - New (to order)
# 059
MPN: 673008199
LONGITUDINAL MEMBER CONNECTING CROSS MEMBER
Suitable for: 3.0 TDS V6 4WD 275 HP | AUSTRALIA, JAPAN (RH DRIVE), UNITED KINGDOM
from £243.32
from £243.32
LONGITUDINAL MEMBER CONNECTING CROSS MEMBER Genuine Maserati Part - New (to order)
Translating Select View All Diagrams Search Most relevant Price descending Price ascending Translating 7 days days Stock Order Urgent Order
