maserati levante (2019) bodywork and rear outer trim panels parts diagram

09.02.1 - BODYWORK AND REAR OUTER TRIM PANELS

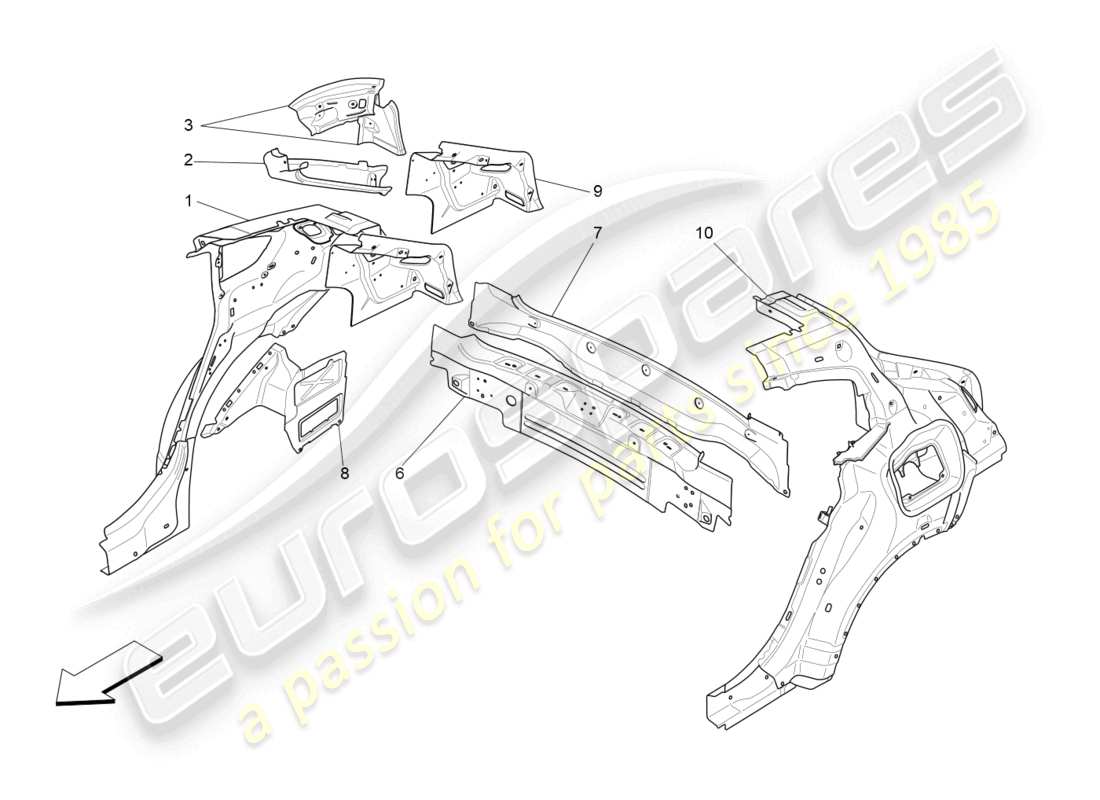

Maserati Levante (2019) BODYWORK AND REAR OUTER TRIM PANELS Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
        #
        Part number
        Description
        Key
        Price
        # 001
        MPN: 673009292
        RH BODY SIDE FRAME ASSEMBLY
        Valid from assembly: 0 - 6068588.
        from £630.02
        from £630.02
        This part replaces part number 673005672
        OSS.FIANCATA DX COMPLETE CAT M161 Genuine Maserati Part - New (to order)
        # 001
        MPN: 673010434
        RH BODY SIDE FRAME ASSEMBLY
        Valid from assembly: 6068589.
        from £630.02
        from £630.02
        RH BODY SIDE FRAME ASSEMBLY Genuine Maserati Part - New (to order)
        # 002
        MPN: 673005674
        UPPER RH HEADLIGHT HOUSING GUIDE
        from £48.83
        from £48.83
        UPPER RH HEADLIGHT HOUSING G Genuine Maserati Part - New (to order)
        # 002
        MPN: 673005675
        UPPER LH HEADLIGHT HOUSING GUIDE
        from £48.83
        from £48.83
        UPPER LH HEADLIGHT HOUSING G Genuine Maserati Part - New (to order)
        # 003
        MPN: 673010191
        LOWER RH HEADLIGHT HOUSING GUIDE
        Valid from assembly: 6044161 - 6074123.
        Supersession
        Supersession
        Genuine Maserati Part (no longer available to order)
        # 003
        MPN: 673010192
        LOWER LH HEADLIGHT HOUSING GUIDE
        Valid from assembly: 6044161 - 6074123.
        Supersession
        Supersession
        Genuine Maserati Part (no longer available to order)
        # 006
        MPN: 673009409
        LOWER REAR GUARD ASSEMBLY
        Valid from assembly: 0 - 6087716.
        Supersession
        Supersession
        This part replaces part number 673005991
        Genuine Maserati Part (no longer available to order)
        # 007
        MPN: 673007399
        REAR CROSS MEMBER ASSEMBLY
        Valid from assembly: 6001357 - 6087716.
        Supersession
        Supersession
        This part replaces part number 673005679
        Genuine Maserati Part (no longer available to order)
        # 008
        MPN: 673005680
        RH REAR INSERT
        from £20.46
        from £20.46
        RH REAR INSERT Genuine Maserati Part - New (to order)
        # 008
        MPN: 673005681
        LH REAR INSERT
        from £20.46
        from £20.46
        LH REAR INSERT Genuine Maserati Part - New (to order)
        # 009
        MPN: 670106337
        RH REAR LIGHT HOUSING BASE ASSEMBLY
        from £261.99
        from £261.99
        This part replaces part number 670033908
        COMPLETE RH TAILIGHT BASE Genuine Maserati Part - New (to order)
        # 009
        MPN: 670106340
        LH REAR LIGHT HOUSING BASE ASSEMBLY
        from £242.58
        from £242.58
        This part replaces part number 670033909
        COMPLETE LH TAILIGHT BASE Genuine Maserati Part - New (to order)
        # 010
        MPN: 673009421
        LH BODY SIDE FRAME ASSEMBLY
        Valid from assembly: 6053787 - 6068588.
        Supersession
        Supersession
        Genuine Maserati Part (no longer available to order)
        # 010
        MPN: 673010435
        LH BODY SIDE FRAME ASSEMBLY
        Valid from assembly: 6068589.
        from £488.00
        from £488.00
        This part replaces part number 673009421
        LH BODY SIDE FRAME ASSEMBLY Genuine Maserati Part - New (to order)
