maserati levante gts (2020) lubrication system: circuit and collection parts diagram

01.60.1 - lubrication system: circuit and collection

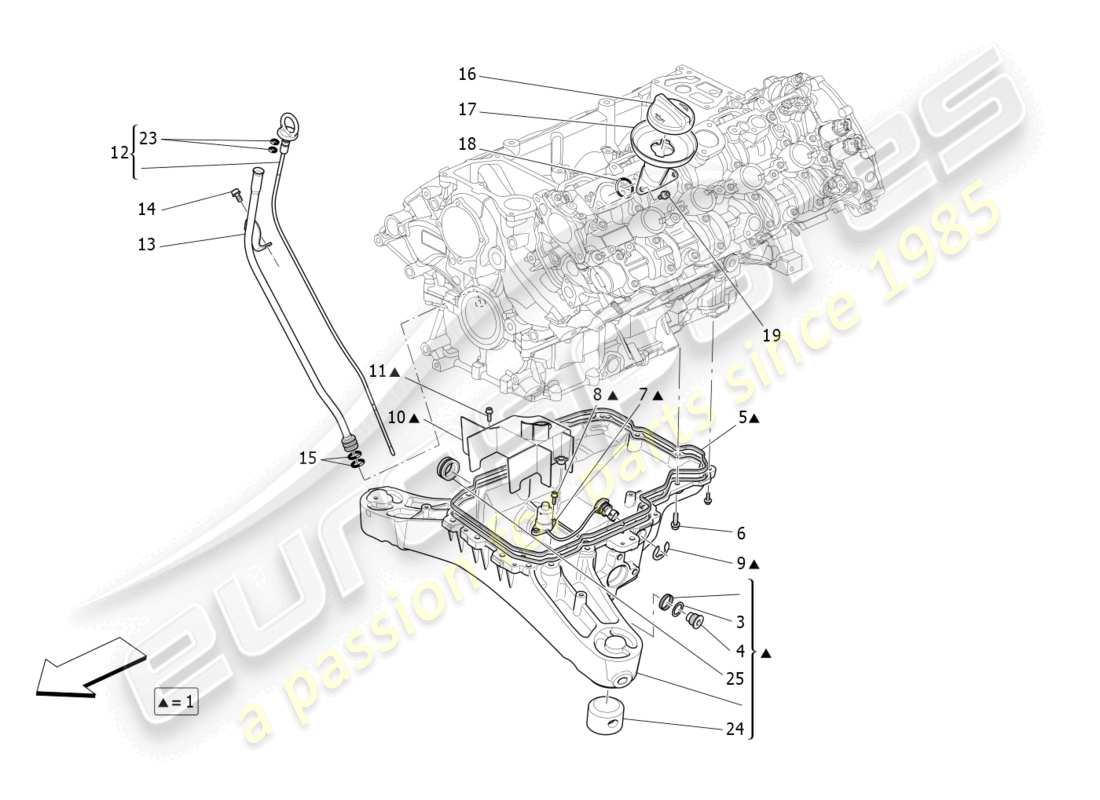

Maserati Levante GTS (2020) LUBRICATION SYSTEM: CIRCUIT AND COLLECTION Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                                        #
                                        Part number
                                        Description
                                        Key
                                        Price
                                        # 001
                                        MPN: 781515
                                        OIL SUMP ASSEMBLY
                                        from £1,246.13
                                        from £1,246.13
                                        COMPLETE OIL PAN V8 M161 Genuine Maserati Part - New (to order)
                                        # 003
                                        MPN: 10261860
                                        GASKET
                                        from £0.54
                                        from £0.54
                                        OIL DRAIN SEAL GASKET, 22 - 30 x 1.5 Genuine Maserati Part - New In stock
                                        COPPER OIL DRAIN SEAL GASKET Original Equipment - New In stock
                                        COPPER OIL DRAIN SEAL GASKET Genuine Ferrari Part - New In stock
                                        # 004
                                        MPN: 104280
                                        THREADED PLUG
                                        from £4.95
                                        from £4.95
                                        THREADED PLUG M 22X1.5 Genuine Maserati Part - New In stock
                                        MAGNETIC PLUG Genuine Ferrari Part - New In stock
                                        # 005
                                        MPN: 766412
                                        OIL SUMP GASKET
                                        from £55.87
                                        from £55.87
                                        OIL SUMP GASKET Genuine Maserati Part - New (to order)
                                        # 006
                                        MPN: 231620
                                        SCREW [M6X25]
                                        from £0.48
                                        from £0.48
                                        SOCKET HEAD SCREW WITH WASHE Genuine Maserati Part - New (to order)
                                        SCREW Genuine Ferrari Part - New In stock
                                        M6 X 25
                                        # 007
                                        MPN: 230171
                                        OIL LEVEL DETECTOR
                                        from £25.54
                                        from £25.54
                                        OIL LEVEL SENSOR Genuine Maserati Part - New (to order)
                                        OIL LEVEL DETECTOR Genuine Ferrari Part - New In stock
                                        # 008
                                        MPN: 282396
                                        SCREW [M6X22]
                                        from £0.53
                                        from £0.53
                                        SCREW Genuine Maserati Part - New (to order)
                                        SCREW Genuine Ferrari Part - New (to order)
                                        # 009
                                        MPN: 16165274
                                        CIRCLIP
                                        from £9.75
                                        from £9.75
                                        3-POINT CIRCLIP D.19 Genuine Maserati Part - New (to order)
                                        # 010
                                        MPN: 748737
                                        OIL SUMP SHIELD
                                        OIL SUMP SHIELD Genuine Maserati Part - New (to order)
                                        # 011
                                        MPN: 282396
                                        SCREW [M6X22]
                                        from £0.53
                                        from £0.53
                                        SCREW Genuine Maserati Part - New (to order)
                                        SCREW Genuine Ferrari Part - New (to order)
                                        # 012
                                        MPN: 828158
                                        DIPSTICK
                                        from £25.05
                                        from £25.05
                                        This part replaces part number 323025
                                        DIPSTICK Genuine Maserati Part - New (to order)
                                        # 013
                                        MPN: 323092
                                        OIL DIPSTICK HOLDER EXTENSION
                                        from £56.85
                                        from £56.85
                                        OIL DIPSTICK HOLDER EXTENSION Genuine Maserati Part - New (to order)
                                        # 014
                                        MPN: 233600
                                        SCREW [M6X12]
                                        from £0.54
                                        from £0.54
                                        SCREW Genuine Maserati Part - New (to order)
                                        SCREW Genuine Ferrari Part - New (to order)
                                        M6 X 12
                                        # 015
                                        MPN: 282370
                                        O.R. GASKET
                                        from £0.47
                                        from £0.47
                                        O-RING Genuine Maserati Part - New (to order)
                                        O-RING Genuine Ferrari Part - New (to order)
                                        # 016
                                        MPN: 293205
                                        ENGINE OIL FILLER CAP #SUBJECT TO Maserati TECHNICAL SERVICE AUTHORISATION#
                                        from £21.06
                                        from £21.06
                                        This part replaces part number 238500 - and 1 more. Click to view details
                                        ENGINE OIL FILLER CAP Genuine Maserati Part - New In stock
                                        OIL CAP Genuine Ferrari Part - New (to order)
                                        # 018
                                        MPN: 14457881
                                        GASKET
                                        from £0.76
                                        from £0.76
                                        GASKET Genuine Maserati Part - New (to order)
                                        GASKET Genuine Ferrari Part - New (to order)
                                        # 019
                                        MPN: 248334
                                        SCREW [M6X16]
                                        from £0.53
                                        from £0.53
                                        SCREW Genuine Maserati Part - New (to order)
                                        SCREW Genuine Ferrari Part - New In stock
                                        M6 X 16
                                        # 024
                                        MPN: 294029
                                        BUSHING
                                        from £551.17
                                        from £551.17
                                        BUSHING Genuine Maserati Part - New (to order)
                                        # 025
                                        MPN: 813183
                                        BUSHING
                                        from £33.01
                                        from £33.01
                                        BUSHING Genuine Maserati Part - New (to order)
