Valid from assembly: 6035538 - 99999999. Not for cars with: EU6D Final, EU6D Final specific Korea / USA, EURO 6.4, EU6C MY19 / EU6D-Temp MY20, CHINA 6B EMISSION. (valid for: AUSTRALIA, CHILE, JAPAN, JAPAN (RH DRIVE))
maserati levante modena (2022) auxiliary device belts parts diagram

01.11.3 - auxiliary device belts

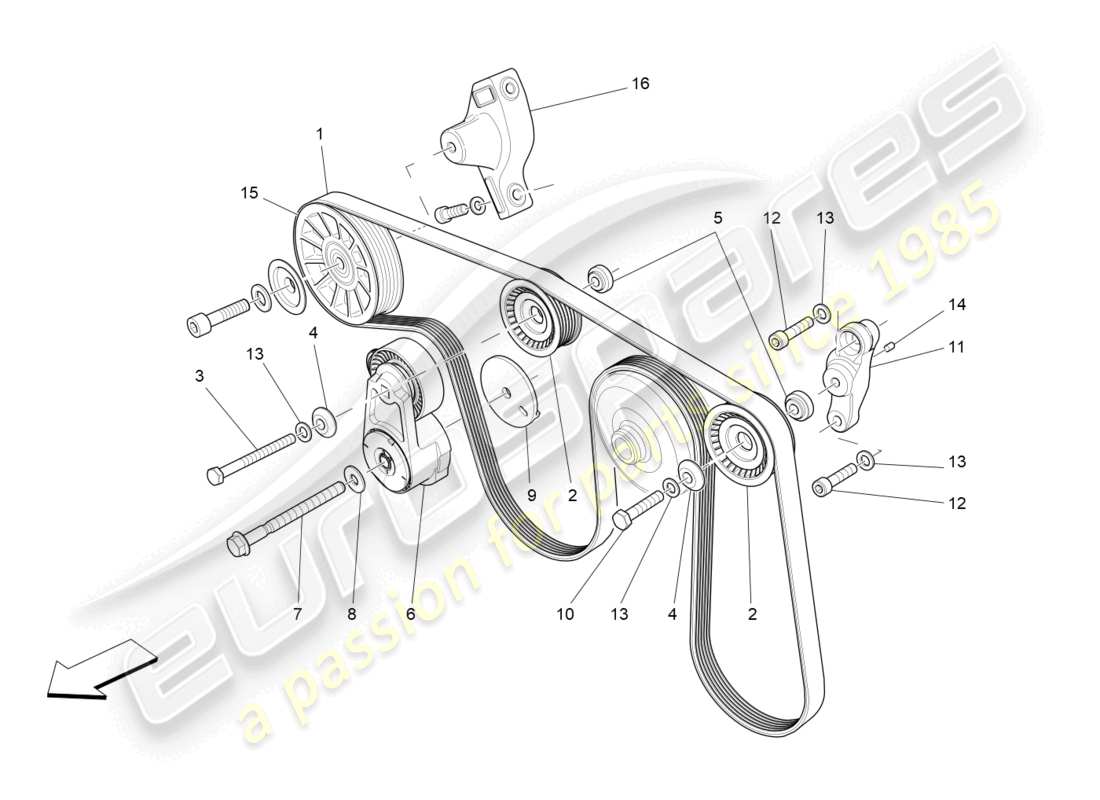

Maserati Levante Modena (2022) AUXILIARY DEVICE BELTS Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
#
Part number
Description
Key
Price
# 001
MPN: 243857
COMPRESSOR DRIVING BELT
Not for cars with: EU6C MY19 / EU6D-Temp MY20. Suitable for: AUSTRALIA, CHILE, JAPAN, JAPAN (RH DRIVE)
from £36.49
from £36.49
BELT (243857) Genuine Ferrari Part - New (to order)
BELT Genuine Maserati Part - New In stock
# 002
MPN: 278950
BELT TIGHTENING PULLEY
Suitable for: AUSTRALIA, CHILE, JAPAN, JAPAN (RH DRIVE)
from £29.55
from £29.55
BELT TIGHTENING PULLEY Genuine Maserati Part - New In stock
# 003
MPN: 16045024
SCREW [M8X90]
Suitable for: AUSTRALIA, CHILE, JAPAN, JAPAN (RH DRIVE)
from £0.47
from £0.47
SCREW (16045024) Genuine Ferrari Part - New In stock
SCREW M8X90 Genuine Maserati Part - New (to order)
# 004
MPN: 278939
WASHER
Suitable for: AUSTRALIA, CHILE, JAPAN, JAPAN (RH DRIVE)
from £6.22
from £6.22
WASHER Genuine Maserati Part - New (to order)
# 005
MPN: 290823
BUSHING
Suitable for: AUSTRALIA, CHILE, JAPAN, JAPAN (RH DRIVE)
from £7.97
from £7.97
This part replaces part number 31 290823
BUSHING Genuine Maserati Part - New (to order)
# 006
MPN: 278940

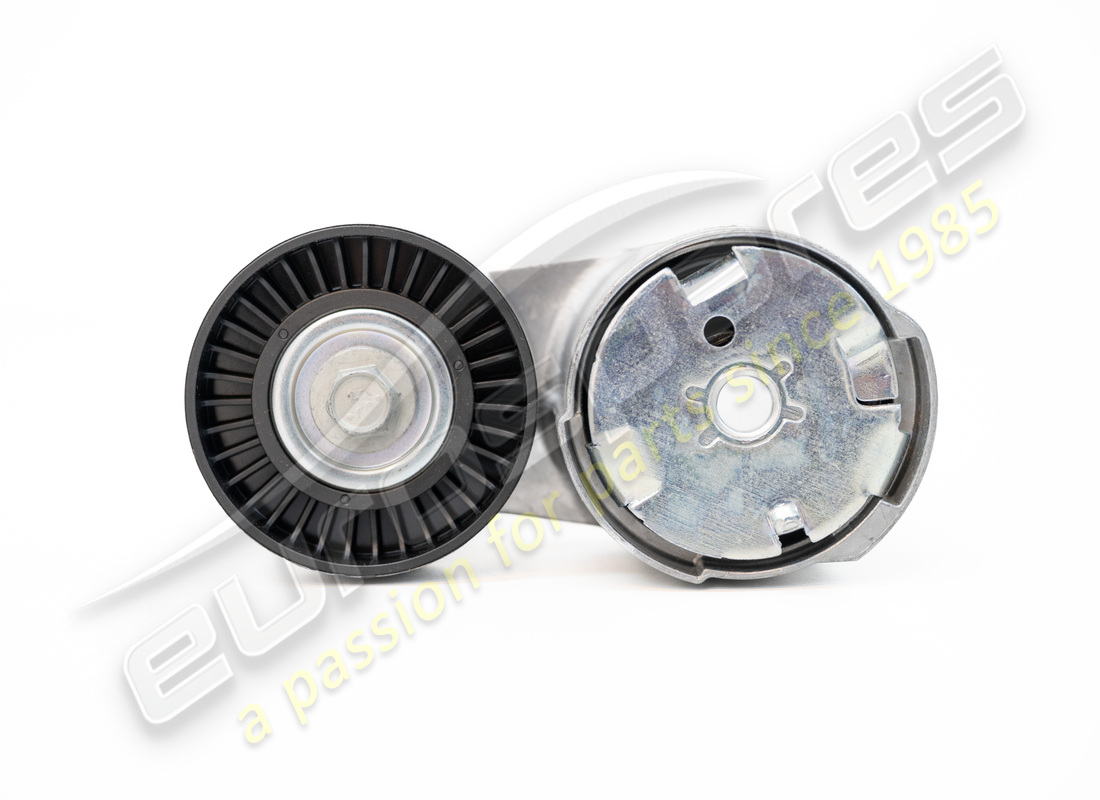

belt tensioner
Suitable for: AUSTRALIA, CHILE, JAPAN, JAPAN (RH DRIVE)
from £84.51
from £84.51
Belt stretcher Genuine Maserati Part - New In stock
# 007
MPN: 296171
SCREW [M10X110]
Suitable for: AUSTRALIA, CHILE, JAPAN, JAPAN (RH DRIVE)
from £16.09
from £16.09
This part replaces part number 296006
SCREW M10X1.5X110 Genuine Maserati Part - New (to order)
# 008
MPN: 12646824
WASHER [D.10.2-25X2]
Suitable for: AUSTRALIA, CHILE, JAPAN, JAPAN (RH DRIVE)
from £0.53
from £0.53
WASHER (12646824) Genuine Ferrari Part - New (to order)
WASHER Genuine Maserati Part - New In stock
# 009
MPN: 290822
SHIM
Suitable for: AUSTRALIA, CHILE, JAPAN, JAPAN (RH DRIVE)
from £46.11
from £46.11
SHIM Genuine Maserati Part - New (to order)
# 010
MPN: 16044024
SCREW [M8X40]
Suitable for: AUSTRALIA, CHILE, JAPAN, JAPAN (RH DRIVE)
from £0.47
from £0.47
SCREW (16044024) Genuine Ferrari Part - New In stock
SCREW M8X40 Genuine Maserati Part - New (to order)
# 011
MPN: 290824
SUPPORT
Suitable for: AUSTRALIA, CHILE, JAPAN, JAPAN (RH DRIVE)
from £15.83
from £15.83
BELT TIGHTENING PULLEY SUPPORT Genuine Maserati Part - New (to order)
# 012
MPN: 14306624
SCREW [M8X35]
Suitable for: AUSTRALIA, CHILE, JAPAN, JAPAN (RH DRIVE)
from £0.47
from £0.47
SCREW (14306624) Genuine Ferrari Part - New (to order)
SCREW FOR POWER STEERING Genuine Maserati Part - New (to order)
# 013
MPN: 11198074
WASHER [D.8.5-15X1.8]
Suitable for: AUSTRALIA, CHILE, JAPAN, JAPAN (RH DRIVE)
from £0.47
from £0.47
WASHER (11198074) Genuine Ferrari Part - New In stock
TAPERED RUBBER WASHER D8.5-15X1.8 Genuine Maserati Part - New (to order)
# 014
MPN: 175611
CENTERING DOWEL
Suitable for: AUSTRALIA, CHILE, JAPAN, JAPAN (RH DRIVE)
from £0.85
from £0.85
CENTERING DOWEL (175611) Genuine Ferrari Part - New (to order)
CENTERING DOWEL Genuine Maserati Part - New In stock
# 015
MPN: 257942
BELT TIGHTENING PULLEY
Valid from assembly: 6035538. Suitable for: AUSTRALIA, CHILE, JAPAN, JAPAN (RH DRIVE)
from £60.86
from £60.86
6-GROOVE PULLEY WITH SCREW (257942) Genuine Ferrari Part - New (to order)
6-GROOVE PULLEY WITH SCREW (257942) Genuine Ferrari Part - Used In stock
BELT TIGHTENING PULLEY WITH SCREW Genuine Maserati Part - New (to order)
# 016
MPN: 336201
SUPPORT
Valid from assembly: 6035538. Suitable for: AUSTRALIA, CHILE, JAPAN, JAPAN (RH DRIVE)
from £45.46
from £45.46
SUPPORTO GALOPPINO Genuine Maserati Part - New (to order)
