maserati levante modena (2022) fuel pumps and connection lines parts diagram

01.43.1 - fuel pumps and connection lines

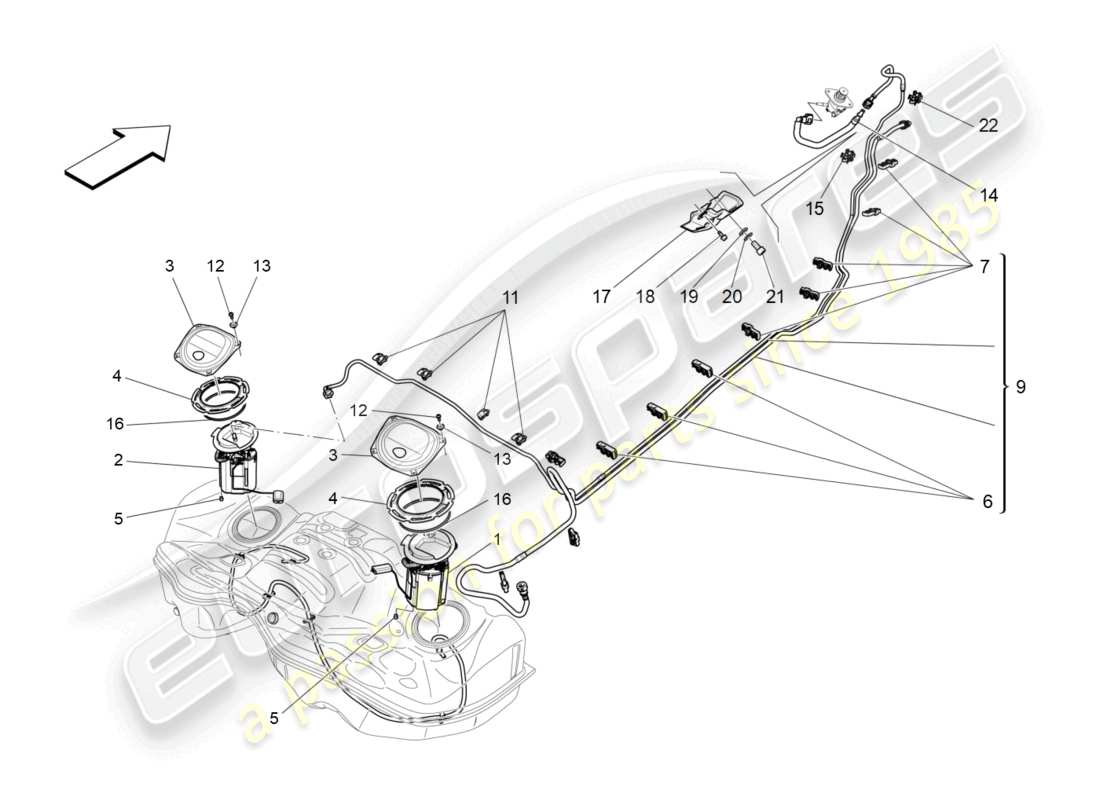

Maserati Levante Modena (2022) FUEL PUMPS AND CONNECTION LINES Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
#
Part number
Description
Key
Price
# 001
MPN: 670003733
FUEL LEVEL GAUGE RACK
Suitable for: AUSTRALIA, CHILE, JAPAN, JAPAN (RH DRIVE)
from £307.93
from £307.93
RH FUEL LEVEL INDICATOR (V8 Genuine Maserati Part - New In stock
# 002
MPN: 670035006
LH FUEL PUMP
Suitable for: AUSTRALIA, CHILE, JAPAN, JAPAN (RH DRIVE)
Supersession
Supersession
This part replaces part number 670003734
Genuine Maserati Part (no longer available to order)
# 002
MPN: 670178911
LH FUEL PUMP
Suitable for: AUSTRALIA, CHILE, JAPAN, JAPAN (RH DRIVE)
from £366.54
from £366.54
This part replaces part number 670035006
LH FUEL PUMP (V6 GASOLINE) Genuine Maserati Part - New In stock
# 003
MPN: 670003258
INSPECTION COVER
Suitable for: AUSTRALIA, CHILE, JAPAN, JAPAN (RH DRIVE)
from £6.39
from £6.39
FUEL TANK SLOT COVER Genuine Maserati Part - New (to order)
FUEL TANK SLOT COVER Genuine Maserati Part - Used In stock
# 004
MPN: 670001397
RING NUT
Suitable for: AUSTRALIA, CHILE, JAPAN, JAPAN (RH DRIVE)
from £16.49
from £16.49
FASTENING RING NUT Genuine Maserati Part - New (to order)
FASTENING RING NUT Genuine Maserati Part - Used In stock
# 005
MPN: 670009292
DAMPER
Suitable for: AUSTRALIA, CHILE, JAPAN, JAPAN (RH DRIVE)
from £2.12
from £2.12
FUEL ADJUSTMENT DOWEL Genuine Maserati Part - New (to order)
# 006
MPN: 670033279
CLIP
Suitable for: AUSTRALIA, CHILE, JAPAN, JAPAN (RH DRIVE)
from £1.89
from £1.89
CLIP Genuine Maserati Part - New (to order)
# 009
MPN: 670031943
UNDERFLOOR FUEL PIPES
Suitable for: AUSTRALIA, CHILE, JAPAN, JAPAN (RH DRIVE)
from £136.27
from £136.27
UNDERFLOOR FUEL PIPES Genuine Maserati Part - New (to order)
# 011
MPN: 670005082
CLIP
Suitable for: AUSTRALIA, CHILE, JAPAN, JAPAN (RH DRIVE)
from £1.14
from £1.14
FUEL PIPE CLIP Genuine Maserati Part - New (to order)
# 012
MPN: 675000071
SCREW
Suitable for: AUSTRALIA, CHILE, JAPAN, JAPAN (RH DRIVE)
from £1.14
from £1.14
SCREW Genuine Maserati Part - New (to order)
# 013
MPN: 675000022
BLOCK
Suitable for: AUSTRALIA, CHILE, JAPAN, JAPAN (RH DRIVE)
from £6.23
from £6.23
REAR PLATE FASTENING BLOCK Genuine Maserati Part - New (to order)
# 014
MPN: 670108532
ENGINE COMPARTMENT FUEL PIPES
Valid from assembly: 6079467. Suitable for: AUSTRALIA, CHILE, JAPAN, JAPAN (RH DRIVE)
from £13.68
from £13.68
ENGINE COMPARTMENT FUEL PIPE Genuine Maserati Part - New (to order)
# 016
MPN: 670001398
GASKET
Suitable for: AUSTRALIA, CHILE, JAPAN, JAPAN (RH DRIVE)
from £13.43
from £13.43
GASOLINE PUMP GASKET Genuine Maserati Part - New In stock
# 017
MPN: 670030163
FRONT FUEL PIPE GUARD
Suitable for: AUSTRALIA, CHILE, JAPAN, JAPAN (RH DRIVE)
from £6.59
from £6.59
FRONT FUEL PIPE GUARD Genuine Maserati Part - New (to order)
# 018
MPN: 675000173
SCREW [M6X16]
Suitable for: AUSTRALIA, CHILE, JAPAN, JAPAN (RH DRIVE)
from £1.30
from £1.30
SCREW Genuine Maserati Part - New (to order)
# 021
MPN: 675000796
SCREW
Valid from assembly: 6074589. Suitable for: AUSTRALIA, CHILE, JAPAN, JAPAN (RH DRIVE)
from £1.81
from £1.81
SCREW Genuine Maserati Part - New (to order)
# 022
MPN: 670100118
CLIP
Suitable for: AUSTRALIA, CHILE, JAPAN, JAPAN (RH DRIVE)
from £2.05
from £2.05
CLIP Genuine Maserati Part - New (to order)
