Suitable for cars with: STANDARD BRAKE SYSTEM - FRONT 345 [mm], REAR 330 [mm]. Not for cars with: PERFORMANCE BRAKE SYSTEM - FRONT 380 [mm], REAR 345 [mm], MEDIUM DUAL CAST BRAKE SYSTEM - FRONT 380 [mm], REAR 330 [mm]. (valid for: 3.0 BT V6 4WD 350 HP | CHINA)
Granted by MASERATI
Copyright MASERATI

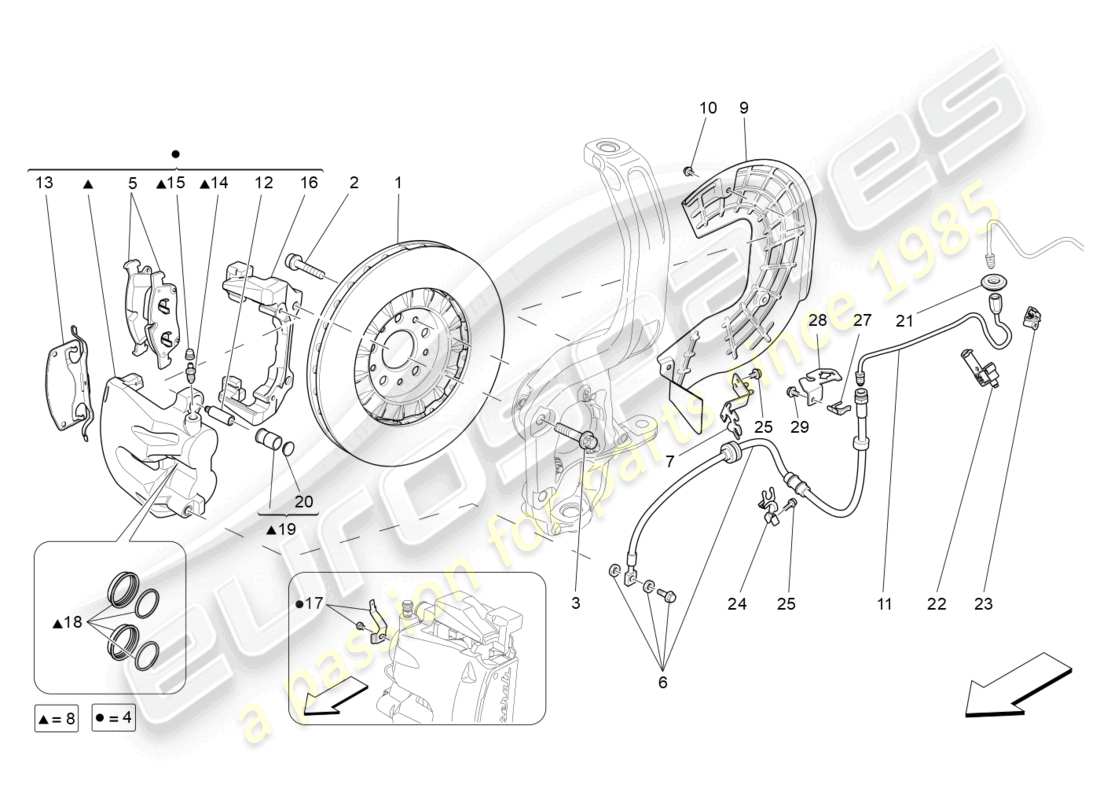

maserati levante zenga (2020) braking devices on front wheels parts diagram

04.10.1 - braking devices on front wheels

Maserati Levante Zenga (2020) BRAKING DEVICES ON FRONT WHEELS Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
#
Part number
Description
Key
Price
# 001
MPN: 670038175
FRONT BRAKE DISC
Suitable for: 3.0 BT V6 4WD 350 HP | CHINA
from £167.93
from £167.93
This part replaces part number 670031603
FRONT BRAKE DISC Genuine Maserati Part - New In stock
# 002
MPN: 675000081
SCREW [M10]
Suitable for: 3.0 BT V6 4WD 350 HP | CHINA
from £3.35
from £3.35
SCREW Genuine Maserati Part - New In stock
# 003
MPN: 670032055
SCREW
Suitable for: 3.0 BT V6 4WD 350 HP | CHINA
from £3.85
from £3.85
SCREW Genuine Maserati Part - New (to order)
# 004
MPN: 670106807
RH FRONT CALIPER ASSEMBLY
Valid from assembly: 6061367 - 6091198. Not for cars with: BLACK BRAKE CALIPERS, RED BRAKE CALIPERS, BLUE BRAKE CALIPERS, SILVER BRAKE CALIPERS, YELLOW BRAKE CALIPERS. Suitable for: 3.0 BT V6 4WD 350 HP | CHINA
from £647.44
from £647.44
COMPLETE RIGHT CALIPER OXIDE GRAY Genuine Maserati Part - New (to order)
# 004
MPN: 670106808
LH FRONT CALIPER ASSEMBLY
Valid from assembly: 6061367 - 6091198. Not for cars with: BLACK BRAKE CALIPERS, RED BRAKE CALIPERS, BLUE BRAKE CALIPERS, SILVER BRAKE CALIPERS, YELLOW BRAKE CALIPERS. Suitable for: 3.0 BT V6 4WD 350 HP | CHINA
from £647.44
from £647.44
PINZA COMPLETE SX GRIGIO OSSIDO Genuine Maserati Part - New (to order)
# 004
MPN: 670106809
RH FRONT CALIPER ASSEMBLY
Valid from assembly: 6062363 - 6092732. Suitable for cars with: BLACK BRAKE CALIPERS. Not for cars with: RED BRAKE CALIPERS, BLUE BRAKE CALIPERS, SILVER BRAKE CALIPERS, YELLOW BRAKE CALIPERS. Suitable for: 3.0 BT V6 4WD 350 HP | CHINA
from £647.44
from £647.44
This part replaces part number 673009754
COMPLETE RIGHT CALIPER BLACK Genuine Maserati Part - New (to order)
# 004
MPN: 670106810
LH FRONT CALIPER ASSEMBLY
Valid from assembly: 6062363 - 6092732. Suitable for cars with: BLACK BRAKE CALIPERS. Not for cars with: RED BRAKE CALIPERS, BLUE BRAKE CALIPERS, SILVER BRAKE CALIPERS, YELLOW BRAKE CALIPERS. Suitable for: 3.0 BT V6 4WD 350 HP | CHINA
from £647.44
from £647.44
This part replaces part number 673009755
PINZA COMPLETE SX NERO Genuine Maserati Part - New (to order)
# 005
MPN: 673011564

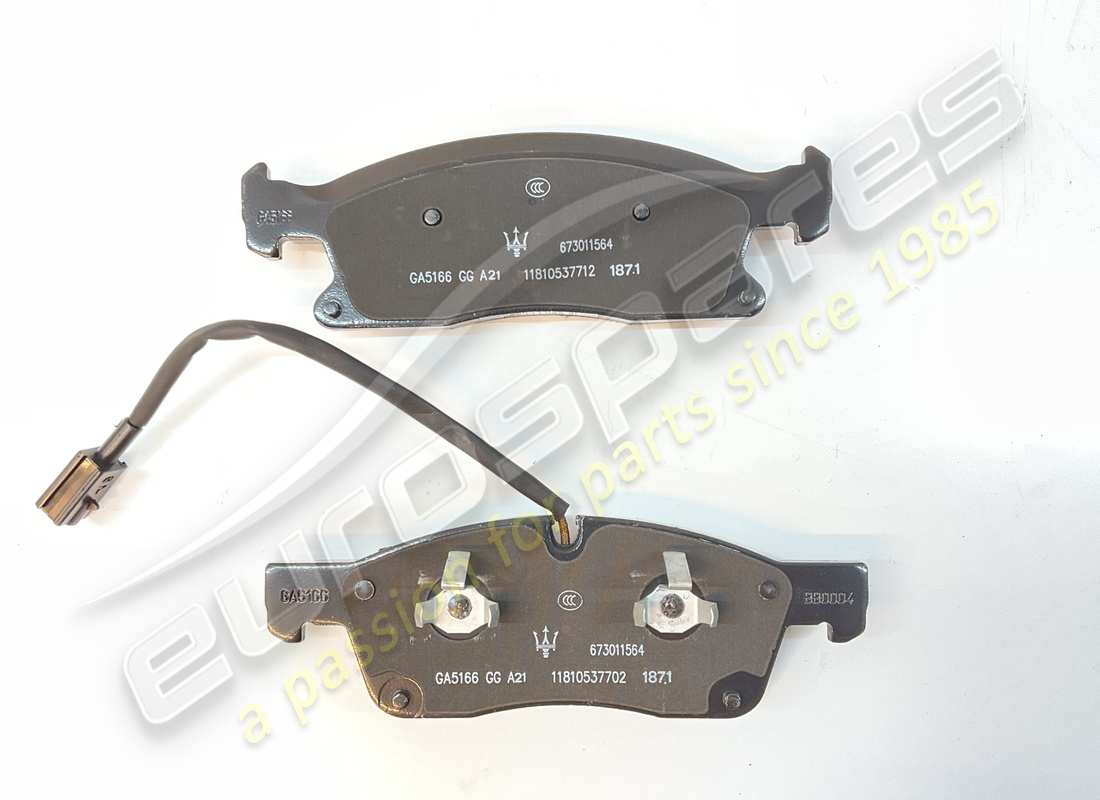

FRONT PADS KIT
Valid from assembly: 0 - 6091198. Not for cars with: CU-FREE HOMOLOGATION BRAKE PADS, BLACK BRAKE CALIPERS, RED BRAKE CALIPERS, BLUE BRAKE CALIPERS, SILVER BRAKE CALIPERS, YELLOW BRAKE CALIPERS. Suitable for: 3.0 BT V6 4WD 350 HP | CHINA
from £138.84
from £138.84
This part replaces part number 673004427
FRONT BRAKE PAD SET Genuine Maserati Part - New In stock
# 005
MPN: 673011564
FRONT PADS KIT
Valid from assembly: 0 - 6092732. Suitable for cars with: BLACK BRAKE CALIPERS. Not for cars with: CU-FREE HOMOLOGATION BRAKE PADS, RED BRAKE CALIPERS, BLUE BRAKE CALIPERS, SILVER BRAKE CALIPERS, YELLOW BRAKE CALIPERS. Suitable for: 3.0 BT V6 4WD 350 HP | CHINA
from £138.84
from £138.84
This part replaces part number 673004427
FRONT BRAKE PAD SET Genuine Maserati Part - New In stock
# 006
MPN: 670100004
FLEXIBLE PIPE TO FRONT CALIPERS
Valid from assembly: 0 - 6079466. Suitable for cars with: STANDARD BRAKE SYSTEM - FRONT 345 [mm], REAR 330 [mm]. Suitable for: 3.0 BT V6 4WD 350 HP | CHINA
from £11.31
from £11.31
FLEXIBLE PIPE TO FRONT CALIP Genuine Maserati Part - New (to order)
# 007
MPN: 670032061
RH FRONT BRACKET
Suitable for: 3.0 BT V6 4WD 350 HP | CHINA
from £7.22
from £7.22
RH FRONT BRACKET Genuine Maserati Part - New (to order)
# 007
MPN: 670032062
LH FRONT BRACKET
Suitable for: 3.0 BT V6 4WD 350 HP | CHINA
from £7.22
from £7.22
LH FRONT BRACKET Genuine Maserati Part - New (to order)
# 009
MPN: 675000066
LH FRONT BRAKE DISC GUARD
Suitable for: 3.0 BT V6 4WD 350 HP | CHINA
from £2.90
from £2.90
LH FRONT BRAKE DISC SHIELD Genuine Maserati Part - New (to order)
LH FRONT BRAKE DISC SHIELD Genuine Maserati Part - Used In stock
# 009
MPN: 675000067
RH FRONT BRAKE DISC GUARD
Suitable for: 3.0 BT V6 4WD 350 HP | CHINA
from £2.90
from £2.90
RH FRONT BRAKE DISC SHIELD Genuine Maserati Part - New (to order)
RH FRONT BRAKE DISC SHIELD Genuine Maserati Part - Used In stock
# 010
MPN: 675000126
SCREW
Suitable for: 3.0 BT V6 4WD 350 HP | CHINA
from £1.34
from £1.34
SCREW Genuine Maserati Part - New (to order)
# 011
MPN: 670039670
LH FRONT BRAKE PIPE
Valid from assembly: 6035538. Suitable for: 3.0 BT V6 4WD 350 HP | CHINA
from £16.81
from £16.81
PIPE Genuine Maserati Part - New (to order)
# 011
MPN: 670039841
RH FRONT BRAKE PIPE
Valid from assembly: 6035538. Suitable for: 3.0 BT V6 4WD 350 HP | CHINA
from £16.81
from £16.81
RH FRONT BRAKE PIPE Genuine Maserati Part - New (to order)
# 012
MPN: 673004425
PIN
Suitable for: 3.0 BT V6 4WD 350 HP | CHINA
from £42.60
from £42.60
PIN Genuine Maserati Part - New (to order)
# 013
MPN: 673004415
COVER
Not for cars with: BLACK BRAKE CALIPERS, RED BRAKE CALIPERS, BLUE BRAKE CALIPERS, SILVER BRAKE CALIPERS, YELLOW BRAKE CALIPERS. Suitable for: 3.0 BT V6 4WD 350 HP | CHINA
from £78.85
from £78.85
COVER Genuine Maserati Part - New In stock
# 013
MPN: 673004416
COVER
Suitable for cars with: BLACK BRAKE CALIPERS. Not for cars with: RED BRAKE CALIPERS, BLUE BRAKE CALIPERS, SILVER BRAKE CALIPERS, YELLOW BRAKE CALIPERS. Suitable for: 3.0 BT V6 4WD 350 HP | CHINA
from £87.49
from £87.49
COVER BLACK Genuine Maserati Part - New (to order)
# 014
MPN: 673004422
BLEEDER SCREW
Suitable for: 3.0 BT V6 4WD 350 HP | CHINA
from £19.58
from £19.58
BLEED SCREW Genuine Maserati Part - New (to order)
# 015
MPN: 673004423
DUST SEAL
Suitable for: 3.0 BT V6 4WD 350 HP | CHINA
from £13.43
from £13.43
DUST CAP Genuine Maserati Part - New (to order)
# 016
MPN: 673009162
BRACKET
Valid from assembly: 6061367. Not for cars with: BLACK BRAKE CALIPERS, RED BRAKE CALIPERS, BLUE BRAKE CALIPERS, SILVER BRAKE CALIPERS, YELLOW BRAKE CALIPERS. Suitable for: 3.0 BT V6 4WD 350 HP | CHINA
from £149.19
from £149.19
This part replaces part number 673004409
ANCHOR Genuine Maserati Part - New (to order)
# 016
MPN: 673009163
BRACKET
Valid from assembly: 6062363. Suitable for cars with: BLACK BRAKE CALIPERS. Not for cars with: RED BRAKE CALIPERS, BLUE BRAKE CALIPERS, SILVER BRAKE CALIPERS, YELLOW BRAKE CALIPERS. Suitable for: 3.0 BT V6 4WD 350 HP | CHINA
from £149.19
from £149.19
This part replaces part number 673004410
ANCHOR Genuine Maserati Part - New (to order)
# 017
MPN: 673004426
BRACKET
Suitable for: 3.0 BT V6 4WD 350 HP | CHINA
from £21.06
from £21.06
BRACKET Genuine Maserati Part - New (to order)
# 018
MPN: 673004421
GASKET KIT
Suitable for: 3.0 BT V6 4WD 350 HP | CHINA
from £27.04
from £27.04
GASKET KIT Genuine Maserati Part - New (to order)
# 019
-
BRAKE CALIPER GUIDE #AVAILABLE ONLY WITH CALIPER ASSEMBLY#
Suitable for: 3.0 BT V6 4WD 350 HP | CHINA
# 020
MPN: 673009202
PLUG
Suitable for: 3.0 BT V6 4WD 350 HP | CHINA
from £2.05
from £2.05
PROTECTION CAP Genuine Maserati Part - New (to order)
# 021
MPN: 675000281
GASKET
Suitable for: 3.0 BT V6 4WD 350 HP | CHINA
from £2.07
from £2.07
GASKET ON PILLAR Genuine Maserati Part - New (to order)
# 022
MPN: 670039674
CLIP
Valid from assembly: 6035538. Suitable for: 3.0 BT V6 4WD 350 HP | CHINA
from £1.64
from £1.64
CLIP Genuine Maserati Part - New (to order)
# 023
MPN: 675000272
CLIP
Suitable for: 3.0 BT V6 4WD 350 HP | CHINA
from £3.43
from £3.43
CLIP Genuine Maserati Part - New (to order)
# 024
MPN: 670007373
BRACKET
Suitable for: 3.0 BT V6 4WD 350 HP | CHINA
from £5.90
from £5.90
BRACKET Genuine Maserati Part - New (to order)
# 025
MPN: 675000126
SCREW
Suitable for: 3.0 BT V6 4WD 350 HP | CHINA
from £1.34
from £1.34
SCREW Genuine Maserati Part - New (to order)
# 027
MPN: 675000276
SPRING PLATE
Suitable for: 3.0 BT V6 4WD 350 HP | CHINA
from £0.72
from £0.72
ELASTIC PLATE Genuine Maserati Part - New (to order)
# 028
MPN: 670037128
RH BRACKET
Suitable for: 3.0 BT V6 4WD 350 HP | CHINA
from £2.46
from £2.46
RH BRAKE PIPE BRACKET Genuine Maserati Part - New (to order)
# 028
MPN: 670037129
LH BRACKET
Suitable for: 3.0 BT V6 4WD 350 HP | CHINA
from £2.46
from £2.46
LH BRAKE PIPE BRACKET Genuine Maserati Part - New (to order)
# 029
MPN: 675000621
SCREW
Suitable for: 3.0 BT V6 4WD 350 HP | CHINA
from £0.70
from £0.70
SCREW (M6X18) Genuine Maserati Part - New (to order)
