maserati mc20 (2022) timing parts diagram

01.24.1 - timing

Maserati MC20 (2022) TIMING Parts Diagram

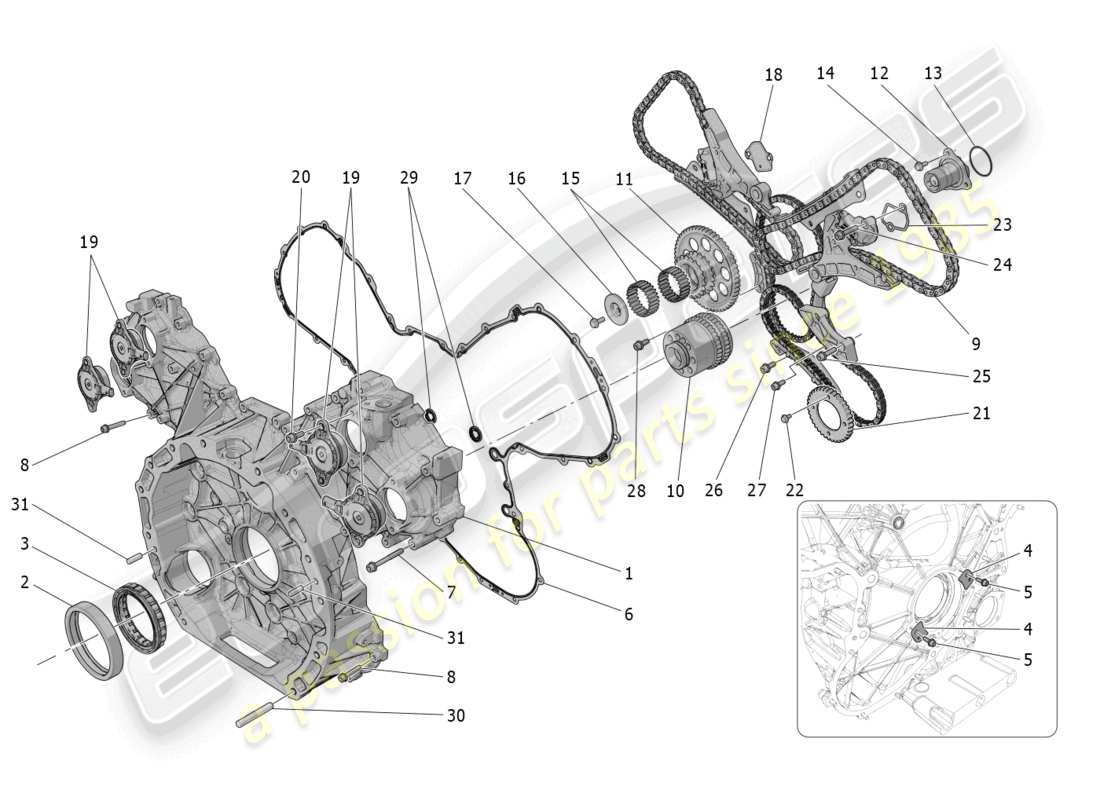

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                                                                #
                                                                Part number
                                                                Description
                                                                Key
                                                                Price
                                                                # 001
                                                                MPN: 670053770
                                                                REAR TIMING COVER
                                                                from £1,303.34
                                                                from £1,303.34
                                                                COMPLETE TIMING COVER Genuine Maserati Part - New (to order)
                                                                # 002
                                                                MPN: 670051267
                                                                GASKET
                                                                from £22.40
                                                                from £22.40
                                                                GASKET Genuine Maserati Part - New (to order)
                                                                # 003
                                                                MPN: 670050460
                                                                ROLLER BEARING
                                                                from £166.32
                                                                from £166.32
                                                                BEARING Genuine Maserati Part - New (to order)
                                                                # 004
                                                                MPN: 670051042
                                                                PLATE
                                                                from £6.81
                                                                from £6.81
                                                                BEARING PLATE Genuine Maserati Part - New (to order)
                                                                # 005
                                                                MPN: 670050026
                                                                SCREW
                                                                from £1.73
                                                                from £1.73
                                                                SCREW Genuine Maserati Part - New (to order)
                                                                # 006
                                                                MPN: 670052923
                                                                GASKET
                                                                Supersession
                                                                Supersession
                                                                Genuine Maserati Part (no longer available to order)
                                                                # 007
                                                                MPN: 670051115
                                                                SCREW
                                                                from £1.64
                                                                from £1.64
                                                                SCREW Genuine Maserati Part - New (to order)
                                                                # 008
                                                                MPN: 670051111
                                                                SCREW
                                                                from £1.47
                                                                from £1.47
                                                                SCREW Genuine Maserati Part - New (to order)
                                                                # 009
                                                                MPN: 670053347
                                                                OIL PUMP AND TIMING SYSTEM ASSEMBLY
                                                                from £614.67
                                                                from £614.67
                                                                TIMING CONTROL ASSEMBLY Genuine Maserati Part - New (to order)
                                                                # 010
                                                                MPN: 670053926
                                                                ENGINE SHAFT TOOTHED WHEEL
                                                                from £190.35
                                                                from £190.35
                                                                ENGINE SHAFT TOOTHED WHEEL Genuine Maserati Part - New (to order)
                                                                # 011
                                                                MPN: 670050972
                                                                TRANSMISSION TOOTHED WHEEL
                                                                from £177.55
                                                                from £177.55
                                                                CRANKSHAFT GEAR Genuine Maserati Part - New (to order)
                                                                # 012
                                                                MPN: 670050184
                                                                SUPPORT
                                                                from £60.48
                                                                from £60.48
                                                                SUPPORT Genuine Maserati Part - New (to order)
                                                                # 013
                                                                MPN: 670050416
                                                                GASKET
                                                                from £1.64
                                                                from £1.64
                                                                O-RING Genuine Maserati Part - New (to order)
                                                                # 014
                                                                MPN: 670050158
                                                                SCREW
                                                                from £5.90
                                                                from £5.90
                                                                SCREW Genuine Maserati Part - New (to order)
                                                                # 015
                                                                MPN: 670050109
                                                                ROLLER BEARING
                                                                from £8.50
                                                                from £8.50
                                                                BEARING CAGE Genuine Maserati Part - New (to order)
                                                                # 016
                                                                MPN: 670050185
                                                                SPACER BEARING
                                                                from £9.75
                                                                from £9.75
                                                                BEARING SPACER Genuine Maserati Part - New (to order)
                                                                # 017
                                                                MPN: 670050158
                                                                SCREW
                                                                from £5.90
                                                                from £5.90
                                                                SCREW Genuine Maserati Part - New (to order)
                                                                # 018
                                                                MPN: 670050993
                                                                GASKET
                                                                from £1.30
                                                                from £1.30
                                                                SPACER Genuine Maserati Part - New (to order)
                                                                # 019
                                                                MPN: 670053475
                                                                TIMING VARIATOR ACTUATOR
                                                                from £59.84
                                                                from £59.84
                                                                VARIABLE VALVE ACTUATOR Genuine Maserati Part - New (to order)
                                                                # 020
                                                                MPN: 670051106
                                                                SCREW
                                                                from £1.47
                                                                from £1.47
                                                                SCREW Genuine Maserati Part - New (to order)
                                                                # 021
                                                                MPN: 670050973
                                                                OIL PUMP CONTROL TOOTHED WHEEL
                                                                from £53.12
                                                                from £53.12
                                                                OIL PUMP GEAR Genuine Maserati Part - New (to order)
                                                                # 022
                                                                MPN: 670050159
                                                                SCREW
                                                                from £3.35
                                                                from £3.35
                                                                SCREW Genuine Maserati Part - New (to order)
                                                                # 023
                                                                MPN: 670050999
                                                                GASKET
                                                                from £1.95
                                                                from £1.95
                                                                GASKET Genuine Maserati Part - New (to order)
                                                                # 024
                                                                MPN: 670050150
                                                                SCREW
                                                                from £1.73
                                                                from £1.73
                                                                SCREW Genuine Maserati Part - New (to order)
                                                                # 025
                                                                MPN: 670050020
                                                                SCREW
                                                                from £1.73
                                                                from £1.73
                                                                SCREW Genuine Maserati Part - New (to order)
                                                                # 026
                                                                MPN: 670050148
                                                                SCREW
                                                                from £1.73
                                                                from £1.73
                                                                SCREW Genuine Maserati Part - New (to order)
                                                                # 027
                                                                MPN: 670050147
                                                                SCREW
                                                                from £1.73
                                                                from £1.73
                                                                SCREW Genuine Maserati Part - New (to order)
                                                                # 028
                                                                MPN: 670050149
                                                                SCREW
                                                                from £1.73
                                                                from £1.73
                                                                SCREW Genuine Maserati Part - New (to order)
                                                                # 029
                                                                MPN: 670051123
                                                                GASKET
                                                                from £5.56
                                                                from £5.56
                                                                GASKET Genuine Maserati Part - New (to order)
                                                                # 030
                                                                MPN: 675001405
                                                                STUD
                                                                from £1.89
                                                                from £1.89
                                                                STUD Genuine Maserati Part - New (to order)
                                                                # 031
                                                                MPN: 675001406
                                                                PIN
                                                                from £3.38
                                                                from £3.38
                                                                STUD Genuine Maserati Part - New (to order)
