maserati mc20 (2023) cooling system: nourice and lines parts diagram

01.71.1 - cooling system: nourice and lines

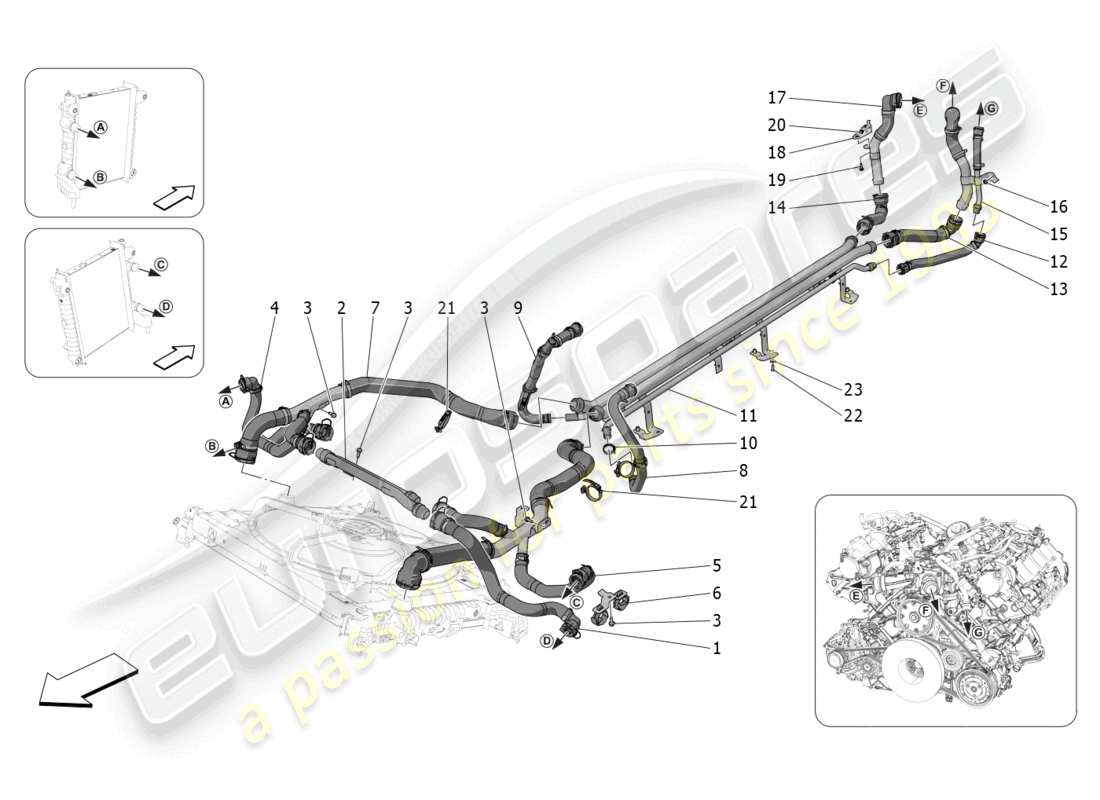

Maserati MC20 (2023) COOLING SYSTEM: NOURICE AND LINES Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                                                #
                                                Part number
                                                Description
                                                Key
                                                Price
                                                # 001
                                                MPN: 670157156
                                                HOSE ADDITIONAL RADIATOR COOLANT
                                                from £30.94
                                                from £30.94
                                                HOSE ADDITIONAL RADIATOR COO Genuine Maserati Part - New (to order)
                                                # 002
                                                MPN: 670157478
                                                RIGID PIPE
                                                from £87.98
                                                from £87.98
                                                RIGID PIPE Genuine Maserati Part - New (to order)
                                                # 003
                                                MPN: 675001358
                                                SCREW
                                                from £0.92
                                                from £0.92
                                                SCREW Genuine Maserati Part - New (to order)
                                                # 004
                                                MPN: 670157032
                                                PIPE
                                                from £34.52
                                                from £34.52
                                                PIPE Genuine Maserati Part - New (to order)
                                                # 005
                                                MPN: 670212786
                                                WATER DELIVERY PIPE FROM ENGINE TO EXCHANGER
                                                Supersession
                                                Supersession
                                                Genuine Maserati Part (no longer available to order)
                                                # 005
                                                MPN: 670215314
                                                WATER DELIVERY PIPE FROM ENGINE TO EXCHANGER
                                                from £258.69
                                                from £258.69
                                                This part replaces part number 670212786
                                                WATER DELIVERY PIPE Genuine Maserati Part - New (to order)
                                                # 006
                                                MPN: 670158091
                                                BRACKET
                                                from £21.79
                                                from £21.79
                                                BRACKET Genuine Maserati Part - New (to order)
                                                # 007
                                                MPN: 670156923
                                                WATER OUTLET SLEEVE
                                                from £173.82
                                                from £173.82
                                                WATER OUTLET SLEEVE Genuine Maserati Part - New (to order)
                                                # 008
                                                MPN: 670173060
                                                WATER DELIVERY SLEEVE TO HEATER
                                                from £25.96
                                                from £25.96
                                                WATER DELIVERY SLEEVE Genuine Maserati Part - New (to order)
                                                # 009
                                                MPN: 670156645
                                                WATER RETURN SLEEVE FROM HEATER
                                                from £43.07
                                                from £43.07
                                                WATER RETURN SLEEVE Genuine Maserati Part - New (to order)
                                                # 010
                                                MPN: 675000116
                                                COLLAR
                                                Supersession
                                                Supersession
                                                Genuine Maserati Part (no longer available to order)
                                                # 010
                                                MPN: 675001187
                                                COLLAR
                                                from £0.85
                                                from £0.85
                                                COLLAR Genuine Maserati Part - New (to order)
                                                # 011
                                                MPN: 670182029
                                                PIPE BETWEEN ENGINE AND SECONDARY RADIATOR
                                                Supersession
                                                Supersession
                                                Genuine Maserati Part (no longer available to order)
                                                # 012
                                                MPN: 670157053
                                                WATER DELIVERY SLEEVE TO HEATER
                                                from £25.96
                                                from £25.96
                                                WATER DELIVERY SLEEVE Genuine Maserati Part - New (to order)
                                                # 013
                                                MPN: 670157050
                                                SLEEVE
                                                from £35.37
                                                from £35.37
                                                SLEEVE Genuine Maserati Part - New (to order)
                                                # 014
                                                MPN: 670156654
                                                PIPE BETWEEN SECONDARY RADIATOR AND PUMP
                                                from £32.86
                                                from £32.86
                                                PIPE Genuine Maserati Part - New (to order)
                                                # 015
                                                MPN: 670157155
                                                RIGID PIPE
                                                from £83.80
                                                from £83.80
                                                RIGID PIPE Genuine Maserati Part - New (to order)
                                                # 016
                                                MPN: 675001063
                                                NUT
                                                from £0.99
                                                from £0.99
                                                NUT Genuine Maserati Part - New (to order)
                                                # 017
                                                MPN: 670156652
                                                RIGID PIPE
                                                from £81.33
                                                from £81.33
                                                RIGID PIPE Genuine Maserati Part - New (to order)
                                                # 018
                                                MPN: 670157165
                                                BRACKET ASSEMBLY
                                                from £19.90
                                                from £19.90
                                                BRACKET ASSEMBLY Genuine Maserati Part - New (to order)
                                                # 019
                                                MPN: 675001070
                                                SCREW
                                                from £1.20
                                                from £1.20
                                                SCREW Genuine Maserati Part - New (to order)
                                                # 020
                                                MPN: 675000365
                                                SCREW [M6X18]
                                                from £1.61
                                                from £1.61
                                                SCREW Genuine Maserati Part - New (to order)
                                                # 021
                                                MPN: 670175631
                                                CLIP
                                                from £2.38
                                                from £2.38
                                                CLIP Genuine Maserati Part - New (to order)
                                                # 022
                                                MPN: 675001343
                                                SCREW
                                                from £1.34
                                                from £1.34
                                                SCREW Genuine Maserati Part - New (to order)
                                                # 023
                                                MPN: 675001429
                                                WASHER
                                                from £1.96
                                                from £1.96
                                                WASHER Genuine Maserati Part - New (to order)
