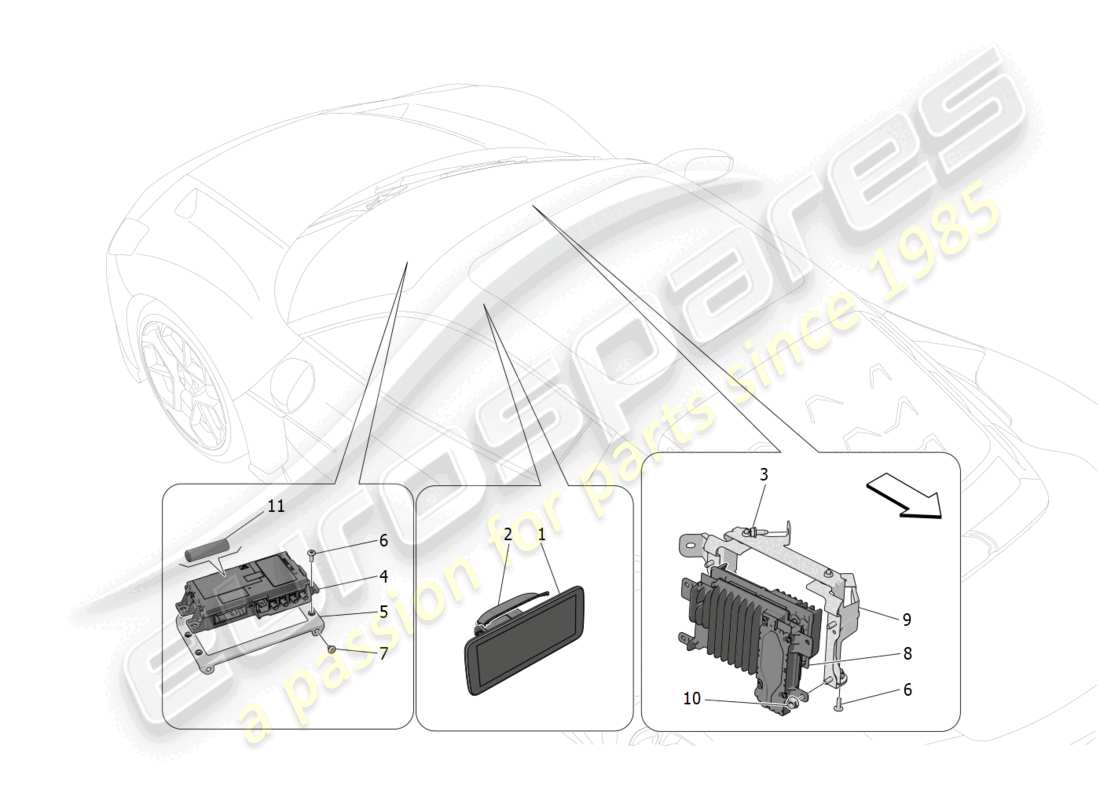

Maserati MC20 (2023) IT SYSTEM Parts Diagram
View the exploded parts diagram to find the part you are looking for
- You can reposition the diagram by dragging it
- You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
- You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
- You can click on a hotspot
in the parts diagram to locate the part in the table - You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
# 001
MPN: 675002231
NAVIGATION DISPLAY MODULE
Valid from assembly: 7000559.
from £817.08
from £817.08
This part replaces part number 675001299
# 002
MPN: 675001300
PLUG
from £12.09
from £12.09
# 003
MPN: 675000783
SCREW
from £0.72
from £0.72
# 004
MPN: 670177510
TELEMATICS BOX MODULE
Suitable for cars with: TBM - CONNECTIVITY SERVICES, CONNECTIVITY SERVICES EUROPE. Not for cars with: CONNECTIVITY SERVICES CHINA, CONNECTIVITY SERVICES MNA, CONNECTIVITY SERVICES - UAE. Suitable for: ITALY
from £516.10
from £516.10
# 005
MPN: 670160875
E-CALL UNIT BRACKET
from £34.24
from £34.24
# 006
MPN: 670006484
SCREW
from £1.14
from £1.14
# 007
MPN: 675001294
SCREW
from £1.14
from £1.14
# 008
MPN: 670217846
ECU RADIO AND CAR NAVIGATOR
Valid from assembly: 7001514. Suitable for cars with: EUROPEAN MARKET NAVIGATION SYSTEM WITH DISPLAY.
from £1,334.14
from £1,334.14
# 008
MPN: 670217848
ECU RADIO AND CAR NAVIGATOR
Valid from assembly: 7001514. Suitable for cars with: Maserati TOUCH CONTROL PLUS WITH NAVIGATION (ROW MARKET).
from £1,212.80
from £1,212.80
# 009
MPN: 670161134
RADIO MOUNTING BRACKET
from £76.69
from £76.69
# 010
MPN: 675001298
NUT
from £0.92
from £0.92
# 011
MPN: 673011017
TELEMATICS BOX MODULE BATTERY
from £39.66
from £39.66
