09.08.1 - CENTRAL MONOCOQUE

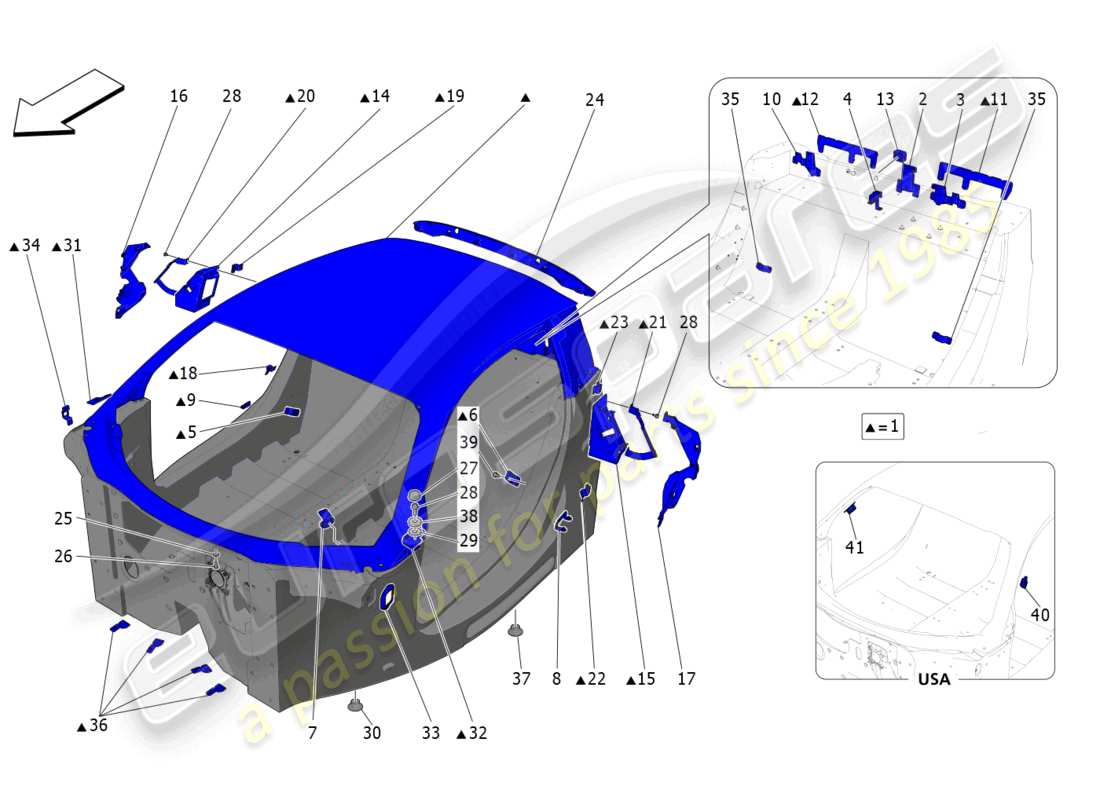

Maserati MC20 (2023) CENTRAL MONOCOQUE Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                                                                    #
                                                                    Part number
                                                                    Description
                                                                    Key
                                                                    Price
                                                                    # 001
                                                                    -
                                                                    CENTRAL MONOCOQUE
                                                                    Not for cars with: CARBON FIBER ROOF.
                                                                    # 001
                                                                    -
                                                                    CENTRAL MONOCOQUE
                                                                    Suitable for cars with: CARBON FIBER ROOF. Not for cars with: BLACK ROOF.
                                                                    # 002
                                                                    MPN: 670162169
                                                                    BRACKET
                                                                    from £29.17
                                                                    from £29.17
                                                                    BRACKET Genuine Maserati Part - New (to order)
                                                                    # 003
                                                                    MPN: 670162174
                                                                    LH BRACKET
                                                                    from £36.53
                                                                    from £36.53
                                                                    BRACKET Genuine Maserati Part - New (to order)
                                                                    # 004
                                                                    MPN: 670162170
                                                                    BRACKET
                                                                    from £32.77
                                                                    from £32.77
                                                                    BRACKET Genuine Maserati Part - New (to order)
                                                                    # 005
                                                                    MPN: 670160196
                                                                    RH BRACKET
                                                                    from £16.38
                                                                    from £16.38
                                                                    RH SIDE BRACKET Genuine Maserati Part - New (to order)
                                                                    # 006
                                                                    MPN: 670176089
                                                                    LH BRACKET
                                                                    from £12.38
                                                                    from £12.38
                                                                    LH SIDE BRACKET Genuine Maserati Part - New (to order)
                                                                    # 007
                                                                    MPN: 670162237
                                                                    LH INSERT
                                                                    from £15.25
                                                                    from £15.25
                                                                    LH INSERT Genuine Maserati Part - New (to order)
                                                                    # 008
                                                                    MPN: 670181246
                                                                    LH BRACKET
                                                                    from £30.23
                                                                    from £30.23
                                                                    BRACKET Genuine Maserati Part - New (to order)
                                                                    # 009
                                                                    MPN: 670219976
                                                                    PLATE
                                                                    Valid from assembly: 7001066.
                                                                    from £13.92
                                                                    from £13.92
                                                                    PLATE Genuine Maserati Part - New (to order)
                                                                    # 010
                                                                    MPN: 670162168
                                                                    RH BRACKET
                                                                    from £36.53
                                                                    from £36.53
                                                                    BRACKET Genuine Maserati Part - New (to order)
                                                                    # 011
                                                                    MPN: 670174705
                                                                    LH BRACKET
                                                                    from £34.74
                                                                    from £34.74
                                                                    LH BACK PANEL BRACKET Genuine Maserati Part - New (to order)
                                                                    # 012
                                                                    MPN: 670174703
                                                                    RH BRACKET
                                                                    from £34.74
                                                                    from £34.74
                                                                    RH BACK PANEL BRACKET Genuine Maserati Part - New (to order)
                                                                    # 013
                                                                    MPN: 670160180
                                                                    REINFORCEMENT
                                                                    from £23.10
                                                                    from £23.10
                                                                    REINFORCEMENT Genuine Maserati Part - New (to order)
                                                                    # 014
                                                                    MPN: 670160174
                                                                    RH REINFORCEMENT
                                                                    from £45.89
                                                                    from £45.89
                                                                    RH DOOR LOCK REINFORCEMENT Genuine Maserati Part - New (to order)
                                                                    # 015
                                                                    MPN: 670160175
                                                                    LH REINFORCEMENT
                                                                    from £45.89
                                                                    from £45.89
                                                                    LH DOOR LOCK REINFORCEMENT Genuine Maserati Part - New (to order)
                                                                    # 016
                                                                    MPN: 670160201
                                                                    RH REINFORCEMENT
                                                                    from £298.55
                                                                    from £298.55
                                                                    RH FENDER REINFORCEMENT Genuine Maserati Part - New (to order)
                                                                    # 017
                                                                    MPN: 670160202
                                                                    LH REINFORCEMENT
                                                                    from £298.55
                                                                    from £298.55
                                                                    LH FENDER REINFORCEMENT Genuine Maserati Part - New (to order)
                                                                    # 018
                                                                    MPN: 670162166
                                                                    RH MUDGUARD SUPPORT BRACKET
                                                                    from £21.14
                                                                    from £21.14
                                                                    RH FENDER BRACKET Genuine Maserati Part - New (to order)
                                                                    # 019
                                                                    MPN: 670162167
                                                                    RH BRACKET
                                                                    from £21.14
                                                                    from £21.14
                                                                    RH SIDE CONNECTION BRACKET Genuine Maserati Part - New (to order)
                                                                    # 020
                                                                    MPN: 670295913
                                                                    RH REINFORCEMENT
                                                                    Valid from assembly: 7001365.
                                                                    from £15.99
                                                                    from £15.99
                                                                    RH REAR DOOR LOCK REINFORCEM Genuine Maserati Part - New (to order)
                                                                    # 021
                                                                    MPN: 670295914
                                                                    LH REINFORCEMENT
                                                                    Valid from assembly: 7001365.
                                                                    from £15.99
                                                                    from £15.99
                                                                    LH REAR DOOR LOCK REINFORCEM Genuine Maserati Part - New (to order)
                                                                    # 022
                                                                    MPN: 670176091
                                                                    LH MUDGUARD SUPPORT BRACKET
                                                                    from £21.14
                                                                    from £21.14
                                                                    LH FENDER BRACKET Genuine Maserati Part - New (to order)
                                                                    # 023
                                                                    MPN: 670176092
                                                                    LH BRACKET
                                                                    from £21.14
                                                                    from £21.14
                                                                    LH SIDE CONNECTION BRACKET Genuine Maserati Part - New (to order)
                                                                    # 024
                                                                    MPN: 670160257
                                                                    DRIPPER
                                                                    from £38.49
                                                                    from £38.49
                                                                    DRIPPER Genuine Maserati Part - New (to order)
                                                                    # 025
                                                                    MPN: 675001364
                                                                    WASHER
                                                                    from £1.26
                                                                    from £1.26
                                                                    WASHER Genuine Maserati Part - New (to order)
                                                                    # 026
                                                                    MPN: 675001355
                                                                    SCREW
                                                                    from £1.47
                                                                    from £1.47
                                                                    SCREW Genuine Maserati Part - New (to order)
                                                                    # 027
                                                                    MPN: 675001373
                                                                    CAP
                                                                    from £3.12
                                                                    from £3.12
                                                                    CAP 17X10.5 Genuine Maserati Part - New (to order)
                                                                    # 028
                                                                    MPN: 670213828
                                                                    SCREW
                                                                    from £12.29
                                                                    from £12.29
                                                                    SCREW M10X1.5 Genuine Maserati Part - New (to order)
                                                                    # 029
                                                                    MPN: 675001366
                                                                    WASHER
                                                                    from £2.93
                                                                    from £2.93
                                                                    FLAT WASHER Genuine Maserati Part - New (to order)
                                                                    # 030
                                                                    MPN: 670214549
                                                                    PLUG
                                                                    from £12.13
                                                                    from £12.13
                                                                    PLUG Genuine Maserati Part - New (to order)
                                                                    # 031
                                                                    MPN: 670213171
                                                                    RH FRONT PILLAR INNER REINFORCEMENT
                                                                    from £25.77
                                                                    from £25.77
                                                                    RH WINDSHIELD REINFORCMENT Genuine Maserati Part - New (to order)
                                                                    # 032
                                                                    MPN: 670213172
                                                                    LH FRONT PILLAR INNER REINFORCEMENT
                                                                    from £25.77
                                                                    from £25.77
                                                                    LH WINDSHIELD REINFORCMENT Genuine Maserati Part - New (to order)
                                                                    # 033
                                                                    MPN: 670295539
                                                                    PLATE
                                                                    Valid from assembly: 7001030.
                                                                    from £32.60
                                                                    from £32.60
                                                                    PLATE Genuine Maserati Part - New (to order)
                                                                    # 034
                                                                    MPN: 670162247
                                                                    BRACKET
                                                                    from £14.42
                                                                    from £14.42
                                                                    UPPER RH SUPPORT Genuine Maserati Part - New (to order)
                                                                    # 035
                                                                    MPN: 670174187
                                                                    BRACKET
                                                                    from £25.49
                                                                    from £25.49
                                                                    BRACKET Genuine Maserati Part - New (to order)
                                                                    # 036
                                                                    MPN: 670214616
                                                                    BRACKET
                                                                    from £14.01
                                                                    from £14.01
                                                                    This part replaces part number 670174701
                                                                    LOWER COVER SUPPORT BRACKET Genuine Maserati Part - New (to order)
                                                                    # 037
                                                                    MPN: 670214548
                                                                    PLUG
                                                                    from £12.13
                                                                    from £12.13
                                                                    PLUG Genuine Maserati Part - New (to order)
                                                                    # 038
                                                                    MPN: 670215817
                                                                    SHIM
                                                                    Valid from assembly: 7000156.
                                                                    from £0.91
                                                                    from £0.91
                                                                    This part replaces part number 675001438
                                                                    SHIM Genuine Maserati Part - New (to order)
                                                                    # 039
                                                                    MPN: 675001947
                                                                    SCREW
                                                                    from £0.75
                                                                    from £0.75
                                                                    SCREW Genuine Maserati Part - New (to order)
