09.50.1 - dashboard unit

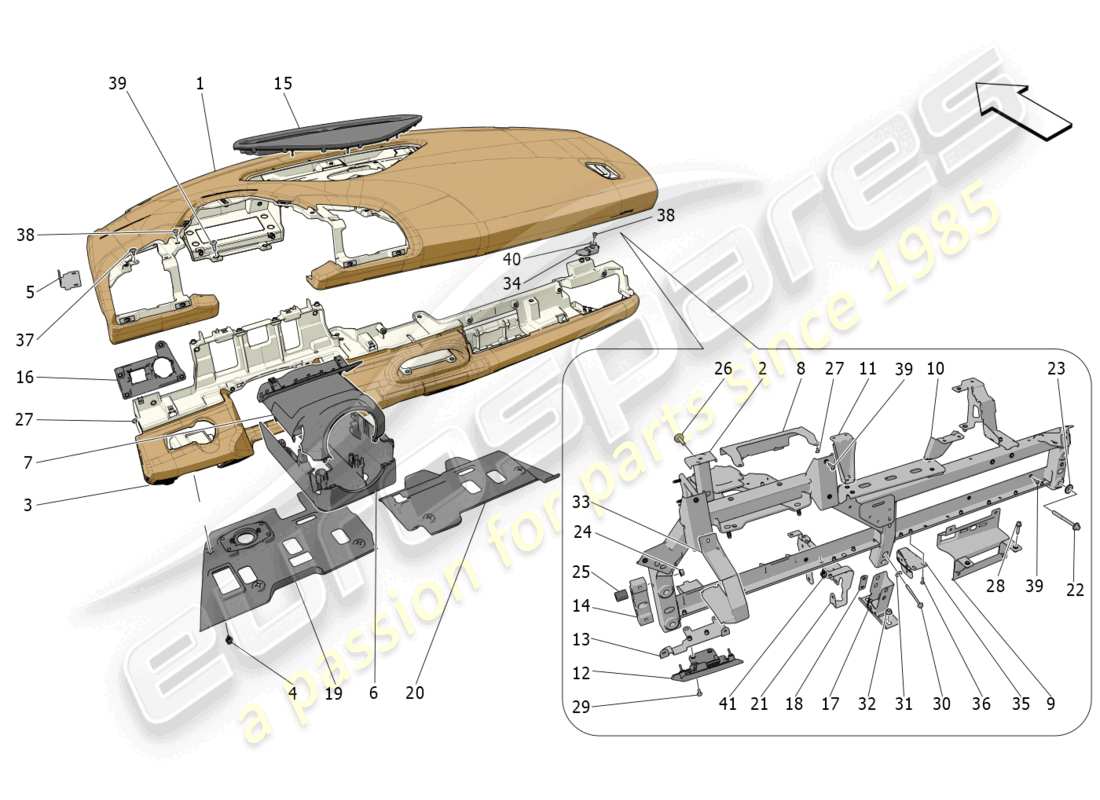

Maserati MC20 (2023) DASHBOARD UNIT Parts Diagram
View the exploded parts diagram to find the part you are looking for
- You can reposition the diagram by dragging it
- You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
- You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
- You can click on a hotspot
in the parts diagram to locate the part in the table - You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
# 001
MPN: 670193658
UPPER DASHBOARD PANEL
Not for cars with: FUORISERIE ALCANTARA & LEATHER, FUORISERIE BACKING COLOR, FUORISERIE FULL LEATHER C.P. COLOR. Colour: DASHBOARD BLACK UPPER SIDE - GREY STITC..
Supersession
Supersession
# 001
MPN: 670193660
UPPER DASHBOARD PANEL
Not for cars with: FUORISERIE ALCANTARA & LEATHER, FUORISERIE BACKING COLOR, FUORISERIE FULL LEATHER C.P. COLOR. Colour: DASHBOARD BLACK UPPER SIDE - RED STITC..
Supersession
Supersession
# 001
MPN: 670193662
UPPER DASHBOARD PANEL
Not for cars with: FUORISERIE ALCANTARA & LEATHER, FUORISERIE BACKING COLOR, FUORISERIE FULL LEATHER C.P. COLOR. Colour: DASHBOARD BLACK UPPER SIDE - YELLOW STITC..
Supersession
Supersession
# 001
MPN: 670193664
UPPER DASHBOARD PANEL
Not for cars with: FUORISERIE ALCANTARA & LEATHER, FUORISERIE BACKING COLOR, FUORISERIE FULL LEATHER C.P. COLOR. Colour: DASHBOARD BLACK UPPER SIDE - TAN STITC..
Supersession
Supersession
# 001
MPN: 670193666
UPPER DASHBOARD PANEL
Not for cars with: FUORISERIE ALCANTARA & LEATHER, FUORISERIE BACKING COLOR, FUORISERIE FULL LEATHER C.P. COLOR. Colour: DASHBOARD BLACK UPPER SIDE - BLUE STITC..
Supersession
Supersession
# 001
MPN: 670193668
UPPER DASHBOARD PANEL
Not for cars with: FUORISERIE ALCANTARA & LEATHER, FUORISERIE BACKING COLOR, FUORISERIE FULL LEATHER C.P. COLOR. Colour: DASHBOARD BLACK UPPER SIDE - SKY BLUE STITC..
Supersession
Supersession
# 001
MPN: 670264770
UPPER DASHBOARD PANEL
Suitable for cars with: FUORISERIE ALCANTARA & LEATHER. Not for cars with: FUORISERIE BACKING COLOR, FUORISERIE FULL LEATHER C.P. COLOR. Colour: DASHBOARD BLACK UPPER SIDE - YELLOW STITC..
from £2,288.16
from £2,288.16
This part replaces part number 670193662
# 001
MPN: 670264770
UPPER DASHBOARD PANEL
Suitable for cars with: FUORISERIE BACKING COLOR. Not for cars with: FUORISERIE ALCANTARA & LEATHER, FUORISERIE FULL LEATHER C.P. COLOR. Colour: DASHBOARD BLACK UPPER SIDE - YELLOW STITC..
from £2,288.16
from £2,288.16
This part replaces part number 670193662
# 001
MPN: 670264770
UPPER DASHBOARD PANEL
Suitable for cars with: FUORISERIE FULL LEATHER C.P. COLOR. Not for cars with: FUORISERIE ALCANTARA & LEATHER, FUORISERIE BACKING COLOR. Colour: DASHBOARD BLACK UPPER SIDE - YELLOW STITC..
from £2,288.16
from £2,288.16
This part replaces part number 670193662
# 001
MPN: 670264772
UPPER DASHBOARD PANEL
Suitable for cars with: FUORISERIE ALCANTARA & LEATHER. Not for cars with: FUORISERIE BACKING COLOR, FUORISERIE FULL LEATHER C.P. COLOR. Colour: DASHBOARD BLACK UPPER SIDE - TAN STITC..
from £2,288.16
from £2,288.16
This part replaces part number 670193664
# 001
MPN: 670264772
UPPER DASHBOARD PANEL
Suitable for cars with: FUORISERIE BACKING COLOR. Not for cars with: FUORISERIE ALCANTARA & LEATHER, FUORISERIE FULL LEATHER C.P. COLOR. Colour: DASHBOARD BLACK UPPER SIDE - TAN STITC..
from £2,288.16
from £2,288.16
This part replaces part number 670193664
# 001
MPN: 670264772
UPPER DASHBOARD PANEL
Suitable for cars with: FUORISERIE FULL LEATHER C.P. COLOR. Not for cars with: FUORISERIE ALCANTARA & LEATHER, FUORISERIE BACKING COLOR. Colour: DASHBOARD BLACK UPPER SIDE - TAN STITC..
from £2,288.16
from £2,288.16
This part replaces part number 670193664
# 001
MPN: 670264774
UPPER DASHBOARD PANEL
Suitable for cars with: FUORISERIE ALCANTARA & LEATHER. Not for cars with: FUORISERIE BACKING COLOR, FUORISERIE FULL LEATHER C.P. COLOR. Colour: DASHBOARD BLACK UPPER SIDE - BLUE STITC..
from £2,429.48
from £2,429.48
This part replaces part number 670193666
# 001
MPN: 670264774
UPPER DASHBOARD PANEL
Suitable for cars with: FUORISERIE BACKING COLOR. Not for cars with: FUORISERIE ALCANTARA & LEATHER, FUORISERIE FULL LEATHER C.P. COLOR. Colour: DASHBOARD BLACK UPPER SIDE - BLUE STITC..
from £2,429.48
from £2,429.48
This part replaces part number 670193666
# 001
MPN: 670264774
UPPER DASHBOARD PANEL
Suitable for cars with: FUORISERIE FULL LEATHER C.P. COLOR. Not for cars with: FUORISERIE ALCANTARA & LEATHER, FUORISERIE BACKING COLOR. Colour: DASHBOARD BLACK UPPER SIDE - BLUE STITC..
from £2,429.48
from £2,429.48
This part replaces part number 670193666
# 001
MPN: 670274737
UPPER DASHBOARD PANEL
Suitable for cars with: FUORISERIE ALCANTARA & LEATHER. Not for cars with: FUORISERIE BACKING COLOR, FUORISERIE FULL LEATHER C.P. COLOR. Colour: BLACK UPPER SIDE + ORANGE STITC..
# 001
MPN: 670274737
UPPER DASHBOARD PANEL
Suitable for cars with: FUORISERIE BACKING COLOR. Not for cars with: FUORISERIE ALCANTARA & LEATHER, FUORISERIE FULL LEATHER C.P. COLOR. Colour: BLACK UPPER SIDE + ORANGE STITC..
# 001
MPN: 670274737
UPPER DASHBOARD PANEL
Suitable for cars with: FUORISERIE FULL LEATHER C.P. COLOR. Not for cars with: FUORISERIE ALCANTARA & LEATHER, FUORISERIE BACKING COLOR. Colour: BLACK UPPER SIDE + ORANGE STITC..
# 001
MPN: 670274739
UPPER DASHBOARD PANEL
Suitable for cars with: FUORISERIE ALCANTARA & LEATHER. Not for cars with: FUORISERIE BACKING COLOR, FUORISERIE FULL LEATHER C.P. COLOR. Colour: BLACK UPPER SIDE + LIVING CORAL STITC..
# 001
MPN: 670274739
UPPER DASHBOARD PANEL
Suitable for cars with: FUORISERIE BACKING COLOR. Not for cars with: FUORISERIE ALCANTARA & LEATHER, FUORISERIE FULL LEATHER C.P. COLOR. Colour: BLACK UPPER SIDE + LIVING CORAL STITC..
# 001
MPN: 670274739
UPPER DASHBOARD PANEL
Suitable for cars with: FUORISERIE FULL LEATHER C.P. COLOR. Not for cars with: FUORISERIE ALCANTARA & LEATHER, FUORISERIE BACKING COLOR. Colour: BLACK UPPER SIDE + LIVING CORAL STITC..
# 001
MPN: 670274741
UPPER DASHBOARD PANEL
Suitable for cars with: FUORISERIE ALCANTARA & LEATHER. Not for cars with: FUORISERIE BACKING COLOR, FUORISERIE FULL LEATHER C.P. COLOR. Colour: BLACK UPPER SIDE + BLACK STITC..
# 001
MPN: 670274741
UPPER DASHBOARD PANEL
Suitable for cars with: FUORISERIE BACKING COLOR. Not for cars with: FUORISERIE ALCANTARA & LEATHER, FUORISERIE FULL LEATHER C.P. COLOR. Colour: BLACK UPPER SIDE + BLACK STITC..
# 001
MPN: 670274741
UPPER DASHBOARD PANEL
Suitable for cars with: FUORISERIE FULL LEATHER C.P. COLOR. Not for cars with: FUORISERIE ALCANTARA & LEATHER, FUORISERIE BACKING COLOR. Colour: BLACK UPPER SIDE + BLACK STITC..
# 001
MPN: 670274743
UPPER DASHBOARD PANEL
Suitable for cars with: FUORISERIE ALCANTARA & LEATHER. Not for cars with: FUORISERIE BACKING COLOR, FUORISERIE FULL LEATHER C.P. COLOR. Colour: BLACK UPPER SIDE + TERRACOTTA STITC..
# 001
MPN: 670274743
UPPER DASHBOARD PANEL
Suitable for cars with: FUORISERIE BACKING COLOR. Not for cars with: FUORISERIE ALCANTARA & LEATHER, FUORISERIE FULL LEATHER C.P. COLOR. Colour: BLACK UPPER SIDE + TERRACOTTA STITC..
# 001
MPN: 670274743
UPPER DASHBOARD PANEL
Suitable for cars with: FUORISERIE FULL LEATHER C.P. COLOR. Not for cars with: FUORISERIE ALCANTARA & LEATHER, FUORISERIE BACKING COLOR. Colour: BLACK UPPER SIDE + TERRACOTTA STITC..
# 001
MPN: 670274745
UPPER DASHBOARD PANEL
Suitable for cars with: FUORISERIE ALCANTARA & LEATHER. Not for cars with: FUORISERIE BACKING COLOR, FUORISERIE FULL LEATHER C.P. COLOR. Colour: BLACK UPPER SIDE + LIME STITC..
# 001
MPN: 670274745
UPPER DASHBOARD PANEL
Suitable for cars with: FUORISERIE BACKING COLOR. Not for cars with: FUORISERIE ALCANTARA & LEATHER, FUORISERIE FULL LEATHER C.P. COLOR. Colour: BLACK UPPER SIDE + LIME STITC..
# 001
MPN: 670274745
UPPER DASHBOARD PANEL
Suitable for cars with: FUORISERIE FULL LEATHER C.P. COLOR. Not for cars with: FUORISERIE ALCANTARA & LEATHER, FUORISERIE BACKING COLOR. Colour: BLACK UPPER SIDE + LIME STITC..
# 001
MPN: 670274747
UPPER DASHBOARD PANEL
Suitable for cars with: FUORISERIE ALCANTARA & LEATHER. Not for cars with: FUORISERIE BACKING COLOR, FUORISERIE FULL LEATHER C.P. COLOR. Colour: BLACK UPPER SIDE + AI AQUA STITC..
# 001
MPN: 670274747
UPPER DASHBOARD PANEL
Suitable for cars with: FUORISERIE BACKING COLOR. Not for cars with: FUORISERIE ALCANTARA & LEATHER, FUORISERIE FULL LEATHER C.P. COLOR. Colour: BLACK UPPER SIDE + AI AQUA STITC..
# 001
MPN: 670274747
UPPER DASHBOARD PANEL
Suitable for cars with: FUORISERIE FULL LEATHER C.P. COLOR. Not for cars with: FUORISERIE ALCANTARA & LEATHER, FUORISERIE BACKING COLOR. Colour: BLACK UPPER SIDE + AI AQUA STITC..
# 001
MPN: 670274749
UPPER DASHBOARD PANEL
Suitable for cars with: FUORISERIE ALCANTARA & LEATHER. Not for cars with: FUORISERIE BACKING COLOR, FUORISERIE FULL LEATHER C.P. COLOR. Colour: BLACK UPPER SIDE + MONDRIAN BLUE STITC..
# 001
MPN: 670274749
UPPER DASHBOARD PANEL
Suitable for cars with: FUORISERIE BACKING COLOR. Not for cars with: FUORISERIE ALCANTARA & LEATHER, FUORISERIE FULL LEATHER C.P. COLOR. Colour: BLACK UPPER SIDE + MONDRIAN BLUE STITC..
# 001
MPN: 670274749
UPPER DASHBOARD PANEL
Suitable for cars with: FUORISERIE FULL LEATHER C.P. COLOR. Not for cars with: FUORISERIE ALCANTARA & LEATHER, FUORISERIE BACKING COLOR. Colour: BLACK UPPER SIDE + MONDRIAN BLUE STITC..
# 002
MPN: 670295762
COMPLETE CROSS MEMBER
Valid from assembly: 7001514.
# 003
MPN: 670266434
LOWER DASHBOARD PANEL
Valid from assembly: 7001514. Not for cars with: ALCANTARA INTERIOR (ICE COLOR). Colour: BLACK.
from £859.24
from £859.24
# 003
MPN: 670267371
LOWER DASHBOARD PANEL
Valid from assembly: 7001514. Suitable for cars with: ALCANTARA INTERIOR (ICE COLOR).
# 004
MPN: 675000294
PIN
from £2.60
from £2.60
# 005
MPN: 670161958
BRACKET
from £27.83
from £27.83
# 006
MPN: 670267142
COMPLETE STEERING COLUMN LOWER GUARD
Suitable for cars with: STEERING COLUMN WITH ELECTRICAL ADJUSTMENT. Colour: BLACK.
from £136.77
from £136.77
# 006
MPN: 675001305
COMPLETE STEERING COLUMN LOWER GUARD
Not for cars with: STEERING COLUMN WITH ELECTRICAL ADJUSTMENT. Colour: BLACK.
from £55.41
from £55.41
# 007
MPN: 670267995
STEERING COLUMN UPPER GUARD
Valid from assembly: 7001514. Not for cars with: STEERING COLUMN WITH ELECTRICAL ADJUSTMENT. Colour: BLACK.
from £133.87
from £133.87
# 007
MPN: 670268001
STEERING COLUMN UPPER GUARD
Valid from assembly: 7001514. Suitable for cars with: STEERING COLUMN WITH ELECTRICAL ADJUSTMENT. Colour: BLACK.
from £198.46
from £198.46
# 008
MPN: 670160831
REINFORCEMENT BRACKET
from £37.00
from £37.00
# 009
MPN: 670160845
REINFORCEMENT BRACKET
from £72.15
from £72.15
# 010
MPN: 670161128
RH BRACKET
from £20.44
from £20.44
# 011
MPN: 670160994
LH BRACKET
from £22.97
from £22.97
# 012
MPN: 670183406
LH LOWER DASHBOARD COVER
Not for cars with: ALCANTARA INTERIOR (ICE COLOR). Colour: BLACK.
from £280.37
from £280.37
# 012
MPN: 670267374
LH LOWER DASHBOARD COVER
Suitable for cars with: ALCANTARA INTERIOR (ICE COLOR).
# 013
MPN: 670160995
LH LOWER CENTRAL DASHBOARD BRACKET
from £25.06
from £25.06
# 014
MPN: 670160195
RH BRACKET
from £54.74
from £54.74
# 015
MPN: 670196122
GRILL
Colour: BLACK.
from £113.26
from £113.26
# 016
MPN: 670220594
BRACKET
Valid from assembly: 7001514.
from £9.41
from £9.41
# 017
MPN: 670161125
BRACKET
from £30.19
from £30.19
# 018
MPN: 670161964
DASHBOARD CROSS MEMBER BRACKET
from £7.15
from £7.15
# 019
MPN: 670278390
LH LOWER SHIELD
Valid from assembly: 7001514. Suitable for cars with: E-CALL. Not for cars with: CONNECTIVITY SERVICES - UAE. Colour: BLACK.Suitable for: ITALY
from £79.22
from £79.22
# 020
MPN: 670183698
RH lower shield
Colour: BLACK.
from £159.71
from £159.71
# 021
MPN: 670161302
BRACKET
from £63.41
from £63.41
# 022
MPN: 675001262
SCREW
from £4.90
from £4.90
# 023
MPN: 675001263
WASHER
from £1.01
from £1.01
# 024
MPN: 675000183
NUT
from £0.95
from £0.95
# 025
MPN: 670174675
PIN
from £10.93
from £10.93
# 026
MPN: 675001045
SCREW
from £1.43
from £1.43
# 027
MPN: 675001294
SCREW
from £1.18
from £1.18
# 028
MPN: 675000171
SCREW
from £1.07
from £1.07
# 029
MPN: 670006484
SCREW
from £1.18
from £1.18
# 030
MPN: 675001275
SCREW
from £10.69
from £10.69
# 031
MPN: 675001276
WASHER
from £1.07
from £1.07
# 032
MPN: 14059311
NUT [M 8]
from £0.53
from £0.53
# 034
MPN: 670174191
BRACKET
from £34.40
from £34.40
# 035
MPN: 670161966
BRACKET
from £53.39
from £53.39
# 036
MPN: 675001279
SCREW
from £1.43
from £1.43
# 037
MPN: 675001295
SCREW
from £0.61
from £0.61
# 038
MPN: 670006373
SCREW
from £1.43
from £1.43
# 039
MPN: 670006484
SCREW
from £1.18
from £1.18
# 040
MPN: 675001257
WASHER
from £1.38
from £1.38
# 041
MPN: 675000294
PIN
from £2.60
from £2.60
-part-diagram-09.51.1.webp "MASERATI MC20 (2023) ACCESSORY CONSOLE AND CENTRE CONSOLE PARTS DIAGRAM")
-part-diagram-09.52.1.webp "MASERATI MC20 (2023) GLOVE COMPARTMENTS PARTS DIAGRAM")
-part-diagram-09.60.1.webp "MASERATI MC20 (2023) PASSENGER COMPARTMENT MATS PARTS DIAGRAM")
-part-diagram-09.62.1.webp "MASERATI MC20 (2023) SOUND-PROOFING PANELS INSIDE THE VEHICLE PARTS DIAGRAM")
-part-diagram-09.63.1.webp "MASERATI MC20 (2023) THERMAL INSULATING PANELS PARTS DIAGRAM")
-part-diagram-09.64.1.webp "MASERATI MC20 (2023) TRUNK COMPARTMENTS PARTS DIAGRAM")
-part-diagram-01.00.1.webp "MASERATI MC20 (2023) CRANKCASE PARTS DIAGRAM")
-part-diagram-01.10.1.webp "MASERATI MC20 (2023) CRANK MECHANISM PARTS DIAGRAM")
-part-diagram-01.11.1.webp "MASERATI MC20 (2023) AUXILIARY DEVICE BELTS PARTS DIAGRAM")
-part-diagram-01.20.1.webp "MASERATI MC20 (2023) RH CYLINDER HEAD PARTS DIAGRAM")
-part-diagram-01.21.1.webp "MASERATI MC20 (2023) LH CYLINDER HEAD PARTS DIAGRAM")
-part-diagram-01.22.1.webp "MASERATI MC20 (2023) RH CYLINDER HEAD CAMSHAFTS PARTS DIAGRAM")
-part-diagram-01.23.1.webp "MASERATI MC20 (2023) LH CYLINDER HEAD CAMSHAFTS PARTS DIAGRAM")
-part-diagram-01.24.1.webp "MASERATI MC20 (2023) TIMING PARTS DIAGRAM")
-part-diagram-01.25.1.webp "MASERATI MC20 (2023) VALVES PARTS DIAGRAM")
-part-diagram-01.30.1.webp "MASERATI MC20 (2023) TURBOCHARGING SYSTEM: EQUIPMENTS PARTS DIAGRAM")
-part-diagram-01.31.1.webp "MASERATI MC20 (2023) TURBOCHARGING SYSTEM: LUBRICATION AND COOLING PARTS DIAGRAM")
-part-diagram-01.32.1.webp "MASERATI MC20 (2023) INTERCOOLER SYSTEM PARTS DIAGRAM")
-part-diagram-01.40.1.webp "MASERATI MC20 (2023) INTAKE MANIFOLD AND THROTTLE BODY PARTS DIAGRAM")
-part-diagram-01.41.1.webp "MASERATI MC20 (2023) AIR FILTER, AIR INTAKE AND DUCTS PARTS DIAGRAM")
-part-diagram-01.42.1.webp "MASERATI MC20 (2023) FUEL TANK PARTS DIAGRAM")
-part-diagram-01.43.1.webp "MASERATI MC20 (2023) FUEL PUMPS AND CONNECTION LINES PARTS DIAGRAM")
-part-diagram-01.43.2.webp "MASERATI MC20 (2023) FUEL PUMPS AND CONNECTION LINES PARTS DIAGRAM")
-part-diagram-01.44.1.webp "MASERATI MC20 (2023) FUEL VAPOUR RECIRCULATION SYSTEM PARTS DIAGRAM")
-part-diagram-01.60.1.webp "MASERATI MC20 (2023) LUBRICATION SYSTEM: CIRCUIT AND COLLECTION PARTS DIAGRAM")
-part-diagram-01.61.1.webp "MASERATI MC20 (2023) LUBRICATION SYSTEM: PUMP AND FILTER PARTS DIAGRAM")
-part-diagram-01.62.1.webp "MASERATI MC20 (2023) HEAT EXCHANGER PARTS DIAGRAM")
-part-diagram-01.63.1.webp "MASERATI MC20 (2023) OIL VAPOUR RECIRCULATION SYSTEM PARTS DIAGRAM")
-part-diagram-01.70.1.webp "MASERATI MC20 (2023) COOLING: AIR RADIATORS AND DUCTS PARTS DIAGRAM")
-part-diagram-01.71.1.webp "MASERATI MC20 (2023) COOLING SYSTEM: NOURICE AND LINES PARTS DIAGRAM")
-part-diagram-01.71.2.webp "MASERATI MC20 (2023) COOLING SYSTEM: NOURICE AND LINES PARTS DIAGRAM")
-part-diagram-01.72.1.webp "MASERATI MC20 (2023) COOLING SYSTEM: WATER PUMP PARTS DIAGRAM")
-part-diagram-01.80.1.webp "MASERATI MC20 (2023) PRE-CATALYTIC CONVERTERS AND CATALYTIC CONVERTERS PARTS DIAGRAM")
-part-diagram-01.81.1.webp "MASERATI MC20 (2023) SILENCERS PARTS DIAGRAM")
-part-diagram-01.90.1.webp "MASERATI MC20 (2023) ELECTRONIC CONTROL: INJECTION AND ENGINE TIMING CONTROL PARTS DIAGRAM")
-part-diagram-01.91.1.webp "MASERATI MC20 (2023) ELECTRONIC CONTROL: ENGINE IGNITION PARTS DIAGRAM")
-part-diagram-03.10.1.webp "MASERATI MC20 (2023) GEARBOX HOUSINGS PARTS DIAGRAM")
-part-diagram-03.50.1.webp "MASERATI MC20 (2023) LUBRICATION AND GEARBOX OIL COOLING PARTS DIAGRAM")
-part-diagram-04.00.1.webp "MASERATI MC20 (2023) BRAKE SERVO SYSTEM PARTS DIAGRAM")
-part-diagram-04.10.1.webp "MASERATI MC20 (2023) BRAKING DEVICES ON FRONT WHEELS PARTS DIAGRAM")
-part-diagram-04.10.2.webp "MASERATI MC20 (2023) BRAKING DEVICES ON FRONT WHEELS PARTS DIAGRAM")
-part-diagram-04.11.1.webp "MASERATI MC20 (2023) BRAKING DEVICES ON REAR WHEELS PARTS DIAGRAM")
-part-diagram-04.11.2.webp "MASERATI MC20 (2023) BRAKING DEVICES ON REAR WHEELS PARTS DIAGRAM")
-part-diagram-04.20.1.webp "MASERATI MC20 (2023) LINES PARTS DIAGRAM")
-part-diagram-04.30.1.webp "MASERATI MC20 (2023) PARKING BRAKE PARTS DIAGRAM")
-part-diagram-04.90.1.webp "MASERATI MC20 (2023) BRAKING CONTROL SYSTEMS PARTS DIAGRAM")
-part-diagram-05.00.1.webp "MASERATI MC20 (2023) STEERING COLUMN AND STEERING WHEEL UNIT PARTS DIAGRAM")
-part-diagram-05.10.1.webp "MASERATI MC20 (2023) COMPLETE STEERING RACK UNIT PARTS DIAGRAM")
-part-diagram-05.20.1.webp "MASERATI MC20 (2023) COMPLETE PEDAL BOARD UNIT PARTS DIAGRAM")
-part-diagram-06.00.1.webp "MASERATI MC20 (2023) WHEELS AND TYRES PARTS DIAGRAM")
-part-diagram-06.10.1.webp "MASERATI MC20 (2023) FRONT SUSPENSION PARTS DIAGRAM")
-part-diagram-06.11.1.webp "MASERATI MC20 (2023) FRONT SHOCK ABSORBER DEVICES PARTS DIAGRAM")
-part-diagram-06.11.2.webp "MASERATI MC20 (2023) FRONT SHOCK ABSORBER DEVICES PARTS DIAGRAM")
-part-diagram-06.20.1.webp "MASERATI MC20 (2023) REAR SUSPENSION PARTS DIAGRAM")
-part-diagram-06.21.1.webp "MASERATI MC20 (2023) REAR SHOCK ABSORBER DEVICES PARTS DIAGRAM")
-part-diagram-06.25.1.webp "MASERATI MC20 (2023) HYDRAULIC SYSTEM FRONT AXLE LIFT PARTS DIAGRAM")
-part-diagram-06.90.1.webp "MASERATI MC20 (2023) ELECTRONIC CONTROL (SUSPENSION) PARTS DIAGRAM")
-part-diagram-06.95.0.webp "MASERATI MC20 (2023) CPL. WHEELS PARTS DIAGRAM")
-part-diagram-07.05.1.webp "MASERATI MC20 (2023) CRASH SENSORS PARTS DIAGRAM")
-part-diagram-07.06.1.webp "MASERATI MC20 (2023) AIRBAG SYSTEM PARTS DIAGRAM")
-part-diagram-07.09.1.webp "MASERATI MC20 (2023) SEAT BELTS PARTS DIAGRAM")
-part-diagram-07.30.1.webp "MASERATI MC20 (2023) STANDARD PROVIDED PARTS DIAGRAM")
-part-diagram-07.32.2.webp "MASERATI MC20 (2023) ON BOARD DOCUMENTATION PARTS DIAGRAM")
-part-diagram-08.00.1.webp "MASERATI MC20 (2023) EXTERNAL VEHICLE DEVICES PARTS DIAGRAM")
-part-diagram-08.10.1.webp "MASERATI MC20 (2023) INTERNAL VEHICLE DEVICES PARTS DIAGRAM")
-part-diagram-08.20.1.webp "MASERATI MC20 (2023) ENERGY GENERATION AND ACCUMULATION PARTS DIAGRAM")
-part-diagram-08.20.2.webp "MASERATI MC20 (2023) ENERGY GENERATION AND ACCUMULATION PARTS DIAGRAM")
-part-diagram-08.30.1.webp "MASERATI MC20 (2023) HEADLIGHT CLUSTERS PARTS DIAGRAM")
-part-diagram-08.31.1.webp "MASERATI MC20 (2023) TAILLIGHT CLUSTERS PARTS DIAGRAM")
-part-diagram-08.32.1.webp "MASERATI MC20 (2023) SIDE LIGHT CLUSTERS PARTS DIAGRAM")
-part-diagram-08.39.1.webp "MASERATI MC20 (2023) LIGHTING SYSTEM CONTROL PARTS DIAGRAM")
-part-diagram-08.40.1.webp "MASERATI MC20 (2023) A/C UNIT: ENGINE COMPARTMENT DEVICES PARTS DIAGRAM")
-part-diagram-08.40.2.webp "MASERATI MC20 (2023) A/C UNIT: ENGINE COMPARTMENT DEVICES PARTS DIAGRAM")
-part-diagram-08.41.1.webp "MASERATI MC20 (2023) A/C UNIT: DASHBOARD DEVICES PARTS DIAGRAM")
-part-diagram-08.42.1.webp "MASERATI MC20 (2023) A/C UNIT: DIFFUSION PARTS DIAGRAM")
-part-diagram-08.49.1.webp "MASERATI MC20 (2023) A/C UNIT: ELECTRONIC CONTROL PARTS DIAGRAM")
-part-diagram-08.50.2.webp "MASERATI MC20 (2023) DASHBOARD DEVICES PARTS DIAGRAM")
-part-diagram-08.51.2.webp "MASERATI MC20 (2023) CENTRE CONSOLE DEVICES PARTS DIAGRAM")
-part-diagram-08.53.2.webp "MASERATI MC20 (2023) ALARM AND IMMOBILIZER SYSTEM PARTS DIAGRAM")
-part-diagram-08.60.1.webp "MASERATI MC20 (2023) MAIN WIRING PARTS DIAGRAM")
-part-diagram-08.60.2.webp "MASERATI MC20 (2023) MAIN WIRING PARTS DIAGRAM")
-part-diagram-08.60.3.webp "MASERATI MC20 (2023) MAIN WIRING PARTS DIAGRAM")
-part-diagram-08.61.1.webp "MASERATI MC20 (2023) RELAYS, FUSES AND BOXES PARTS DIAGRAM")
-part-diagram-08.62.1.webp "MASERATI MC20 (2023) CONNECTORS PARTS DIAGRAM")
-part-diagram-08.63.1.webp "MASERATI MC20 (2023) EXTRACTORS PARTS DIAGRAM")
-part-diagram-08.70.1.webp "MASERATI MC20 (2023) SOUND DIFFUSION SYSTEM PARTS DIAGRAM")
-part-diagram-08.70.2.webp "MASERATI MC20 (2023) SOUND DIFFUSION SYSTEM PARTS DIAGRAM")
-part-diagram-08.71.1.webp "MASERATI MC20 (2023) IT SYSTEM PARTS DIAGRAM")
-part-diagram-08.71.3.webp "MASERATI MC20 (2023) IT SYSTEM PARTS DIAGRAM")
-part-diagram-08.72.1.webp "MASERATI MC20 (2023) RECEPTION AND CONNECTION SYSTEM PARTS DIAGRAM")
-part-diagram-08.73.2.webp "MASERATI MC20 (2023) DRIVE ASSISTANCE SYSTEM PARTS DIAGRAM")
-part-diagram-09.06.1.webp "MASERATI MC20 (2023) EXTERNAL COVERING PARTS DIAGRAM")
-part-diagram-09.07.1.webp "MASERATI MC20 (2023) FRONT CHASSIS PARTS DIAGRAM")
-part-diagram-09.08.1.webp "MASERATI MC20 (2023) CENTRAL MONOCOQUE PARTS DIAGRAM")
-part-diagram-09.09.1.webp "MASERATI MC20 (2023) REAR CHASSIS PARTS DIAGRAM")
-part-diagram-09.10.1.webp "MASERATI MC20 (2023) FRONT BUMPER PARTS DIAGRAM")
-part-diagram-09.11.1.webp "MASERATI MC20 (2023) REAR BUMPER PARTS DIAGRAM")
-part-diagram-09.12.1.webp "MASERATI MC20 (2023) PARKING SENSORS PARTS DIAGRAM")
-part-diagram-09.13.1.webp "MASERATI MC20 (2023) WHEELHOUSE AND LIDS PARTS DIAGRAM")
-part-diagram-09.14.1.webp "MASERATI MC20 (2023) UNDERBODY AND UNDERFLOOR GUARDS PARTS DIAGRAM")
-part-diagram-09.15.1.webp "MASERATI MC20 (2023) SHIELDS, TRIMS AND COVERING PANELS PARTS DIAGRAM")
-part-diagram-09.16.1.webp "MASERATI MC20 (2023) TRIMS, BRANDS AND SYMBOLS PARTS DIAGRAM")
-part-diagram-09.17.1.webp "MASERATI MC20 (2023) STICKERS AND LABELS PARTS DIAGRAM")
-part-diagram-09.20.1.webp "MASERATI MC20 (2023) FRONT LID PARTS DIAGRAM")
-part-diagram-09.21.1.webp "MASERATI MC20 (2023) REAR LID PARTS DIAGRAM")
-part-diagram-09.22.1.webp "MASERATI MC20 (2023) FUEL TANK DOOR AND CONTROLS PARTS DIAGRAM")
-part-diagram-09.23.1.webp "MASERATI MC20 (2023) FRONT LID OPENING BUTTON PARTS DIAGRAM")
-part-diagram-09.24.1.webp "MASERATI MC20 (2023) REAR LID OPENING CONTROL PARTS DIAGRAM")
-part-diagram-09.28.1.webp "MASERATI MC20 (2023) DOORS: TRIM PANELS PARTS DIAGRAM")
-part-diagram-09.29.1.webp "MASERATI MC20 (2023) DOORS: MECHANISMS PARTS DIAGRAM")
-part-diagram-09.34.1.webp "MASERATI MC20 (2023) WINDOWS AND WINDOW STRIPS PARTS DIAGRAM")
-part-diagram-09.35.1.webp "MASERATI MC20 (2023) INTERNAL AND EXTERNAL REAR-VIEW MIRRORS PARTS DIAGRAM")
-part-diagram-09.38.2.webp "MASERATI MC20 (2023) SEATS: TRIM PANELS PARTS DIAGRAM")
-part-diagram-09.38.3.webp "MASERATI MC20 (2023) SEATS: TRIM PANELS PARTS DIAGRAM")
-part-diagram-09.39.2.webp "MASERATI MC20 (2023) SEATS: MECHANICS AND ELECTRONICS PARTS DIAGRAM")
-part-diagram-09.44.1.webp "MASERATI MC20 (2023) PASSENGER COMPARTMENT B PILLAR TRIM PANELS AND SIDE PANELS PARTS DIAGRAM")
-part-diagram-09.45.1.webp "MASERATI MC20 (2023) ROOF AND SUN VISORS PARTS DIAGRAM")
