01.32.1 - intercooler system

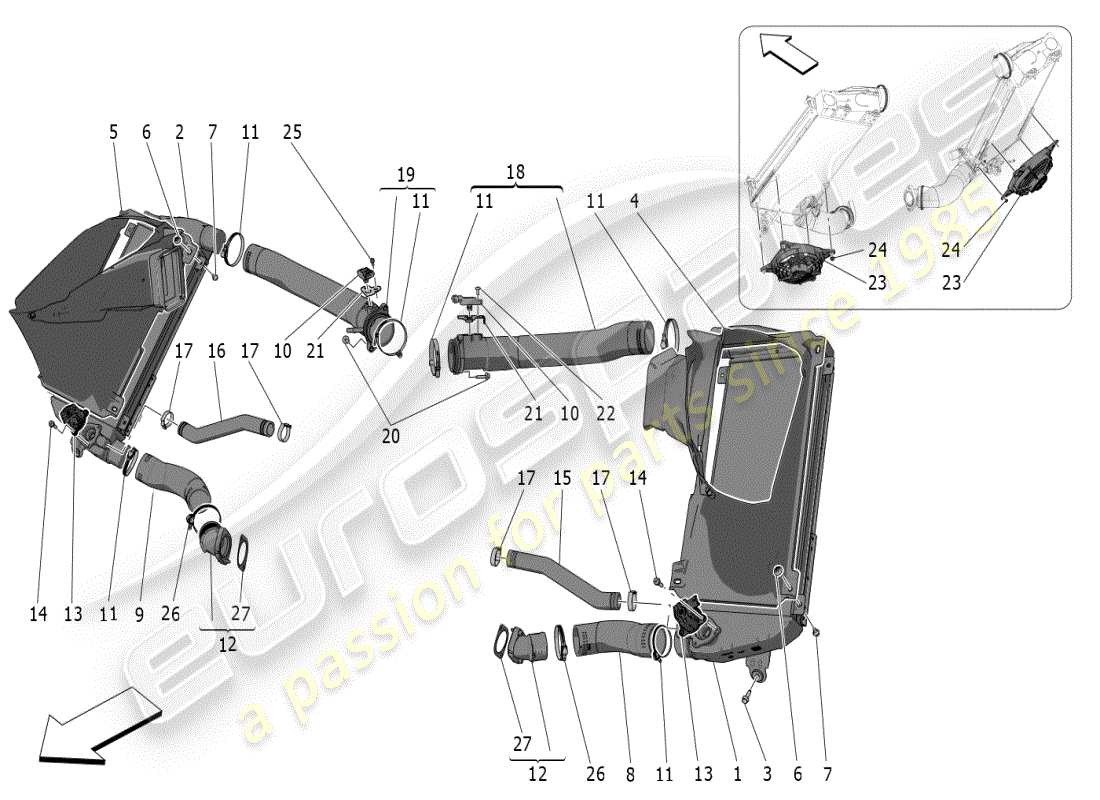

Maserati MC20 (2024) INTERCOOLER SYSTEM Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                                  #
                                  Part number
                                  Description
                                  Key
                                  Price
                                  # 001
                                  MPN: 670212790
                                  LH INTERCOOLER
                                  Not for cars with:GT2 STRADALE IDENTIFICATION.
                                  from £605.25
                                  from £605.25
                                  SCAMB. CALORE INTERCOOLER SX Genuine Maserati Part - New (to order)
                                  # 002
                                  MPN: 670212793
                                  RH INTERCOOLER
                                  Not for cars with:GT2 STRADALE IDENTIFICATION.
                                  from £605.25
                                  from £605.25
                                  SCAMB. CALORE INTERCOOLER DX Genuine Maserati Part - New (to order)
                                  # 003
                                  MPN: 675001211
                                  SCREW
                                  from £5.36
                                  from £5.36
                                  SCREW Genuine Maserati Part - New (to order)
                                  # 004
                                  MPN: 670215624
                                  LH SIDE AIR DUCT
                                  Not for cars with:GT2 STRADALE IDENTIFICATION.
                                  from £177.63
                                  from £177.63
                                  This part replaces part number 670212858
                                  LH SIDE AIR DUCT Genuine Maserati Part - New (to order)
                                  # 005
                                  MPN: 670215625
                                  RH SIDE AIR DUCT
                                  Not for cars with:GT2 STRADALE IDENTIFICATION.
                                  from £177.63
                                  from £177.63
                                  This part replaces part number 670212859
                                  RH SIDE AIR DUCT Genuine Maserati Part - New (to order)
                                  # 006
                                  MPN: 675001063
                                  NUT
                                  from £1.00
                                  from £1.00
                                  NUT Genuine Maserati Part - New (to order)
                                  # 007
                                  MPN: 675001357
                                  SCREW
                                  from £2.68
                                  from £2.68
                                  SCREW Genuine Maserati Part - New (to order)
                                  # 008
                                  MPN: 670293049
                                  SLEEVE FROM TURBINE TO LH INTERCOOLER
                                  Valid from assembly:7001566.Not for cars with:GT2 STRADALE IDENTIFICATION.
                                  from £132.55
                                  from £132.55
                                  LH SLEEVE Genuine Maserati Part - New (to order)
                                  # 009
                                  MPN: 670293054
                                  SLEEVE FROM TURBINE TO RH INTERCOOLER
                                  Valid from assembly:7001566.Not for cars with:GT2 STRADALE IDENTIFICATION.
                                  from £132.55
                                  from £132.55
                                  RH SLEEVE Genuine Maserati Part - New (to order)
                                  # 010
                                  MPN: 670053933
                                  PRESSURE SENSOR
                                  from £59.72
                                  from £59.72
                                  AIR TEMP SENSOR Genuine Maserati Part - New (to order)
                                  # 011
                                  MPN: 675000362
                                  COLLAR [D.78]
                                  Supersession
                                  Supersession
                                  This part replaces part number 675000318
                                  Genuine Maserati Part (no longer available to order)
                                  # 012
                                  MPN: 670292987
                                  SLEEVE
                                  Valid from assembly:7001566.
                                  from £193.06
                                  from £193.06
                                  INTERCOOLER SLEEVE Genuine Maserati Part - New (to order)
                                  # 013
                                  MPN: 675001051
                                  MODULAR SOLENOID VALVE
                                  from £50.45
                                  from £50.45
                                  MODULAR SOLENOID VALVE Genuine Maserati Part - New (to order)
                                  # 014
                                  MPN: 675001353
                                  SCREW
                                  from £1.77
                                  from £1.77
                                  SCREW Genuine Maserati Part - New (to order)
                                  # 015
                                  MPN: 670157013
                                  LH AIR INTAKE SLEEVE ASSEMBLY
                                  Not for cars with:GT2 STRADALE IDENTIFICATION.
                                  from £61.50
                                  from £61.50
                                  LH AIR INTAKE SLEEVE ASSEMBL Genuine Maserati Part - New (to order)
                                  # 016
                                  MPN: 670157012
                                  RH AIR INTAKE SLEEVE ASSEMBLY
                                  Not for cars with:GT2 STRADALE IDENTIFICATION.
                                  from £61.50
                                  from £61.50
                                  RH AIR INTAKE SLEEVE ASSEMBL Genuine Maserati Part - New (to order)
                                  # 017
                                  MPN: 675001354
                                  COLLAR
                                  from £1.00
                                  from £1.00
                                  COLLAR Genuine Maserati Part - New (to order)
                                  # 018
                                  MPN: 670181764
                                  LH CLEAN AIR INTAKE SLEEVE
                                  Not for cars with:GT2 STRADALE IDENTIFICATION.
                                  from £308.52
                                  from £308.52
                                  LH CLEAN AIR INTAKE SLEEVE Genuine Maserati Part - New (to order)
                                  # 019
                                  MPN: 670181761
                                  RH CLEAN AIR INTAKE SLEEVE
                                  Not for cars with:GT2 STRADALE IDENTIFICATION.
                                  from £308.52
                                  from £308.52
                                  RH CLEAN AIR INTAKE SLEEVE Genuine Maserati Part - New (to order)
                                  # 020
                                  MPN: 675001034
                                  SCREW
                                  from £1.43
                                  from £1.43
                                  SCREW Genuine Maserati Part - New (to order)
                                  # 021
                                  MPN: 670213188
                                  BRACKET
                                  from £12.40
                                  from £12.40
                                  BRACKET Genuine Maserati Part - New (to order)
                                  # 022
                                  MPN: 670051107
                                  SCREW
                                  from £1.25
                                  from £1.25
                                  SCREW Genuine Maserati Part - New (to order)
                                  # 023
                                  MPN: 670212791
                                  FAN
                                  FAN Genuine Maserati Part - New (to order)
                                  # 024
                                  MPN: 675001427
                                  NUT
                                  from £0.61
                                  from £0.61
                                  NUT M5 Genuine Maserati Part - New (to order)
                                  # 025
                                  MPN: 670051103
                                  SCREW
                                  from £1.77
                                  from £1.77
                                  SCREW Genuine Maserati Part - New (to order)
                                  # 026
                                  MPN: 675000754
                                  COLLAR [D.68]
                                  from £3.51
                                  from £3.51
                                  COLLAR Genuine Maserati Part - New (to order)
                                  # 027
                                  MPN: 675001961
                                  GASKET
                                  from £17.38
                                  from £17.38
                                  GASKET Genuine Maserati Part - New (to order)
