maserati mc20 (2024) fuel tank parts diagram

01.42.1 - FUEL TANK

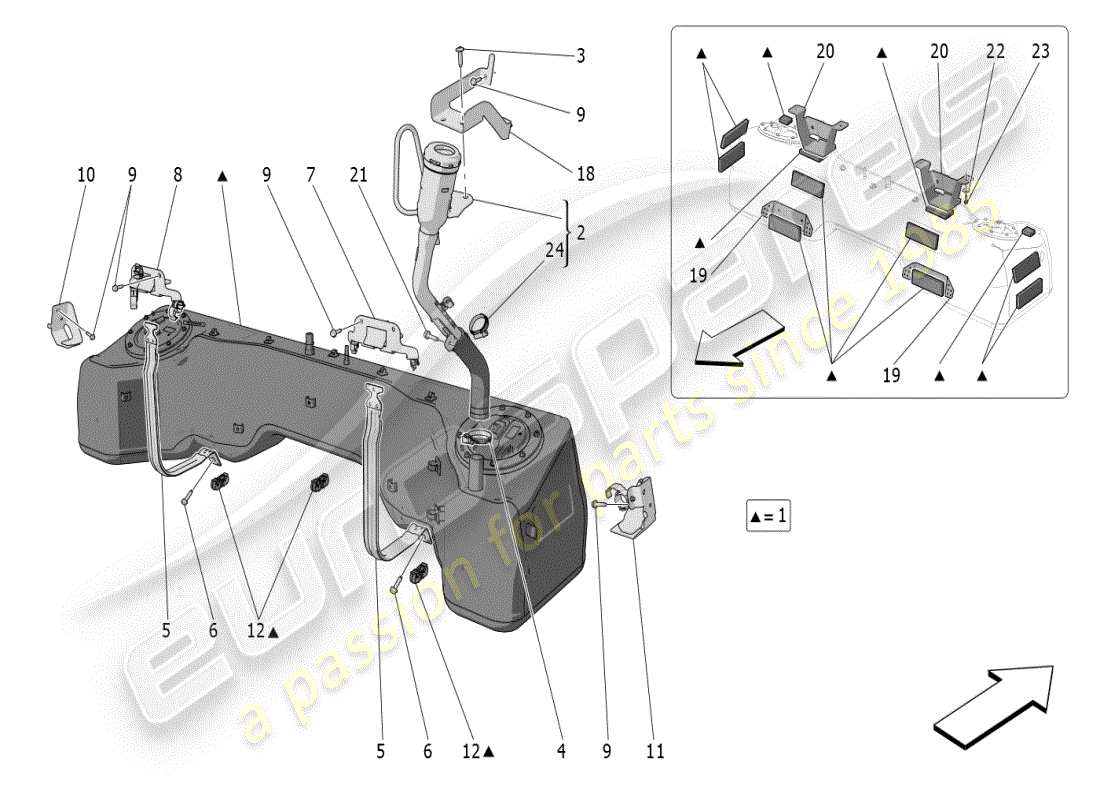

Maserati MC20 (2024) FUEL TANK Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                                    #
                                    Part number
                                    Description
                                    Price
                                    # 001
                                    MPN: 670156461
                                    FUEL TANK ASSEMBLY
                                    Valid from assembly:0 - 7003439.
                                    from £1,455.03
                                    from £1,455.03
                                    # 001
                                    MPN: 670305447
                                    FUEL TANK ASSEMBLY
                                    Valid from assembly:7003440.
                                    from £2,255.86
                                    from £2,255.86
                                    # 002
                                    MPN: 670156462
                                    FUEL FILLER NECK ASSEMBLY
                                    Suitable for:ITALY, UK, UNITED ARAB EMIRATES
                                    from £388.88
                                    from £388.88
                                    # 002
                                    MPN: 670216133
                                    FUEL FILLER NECK ASSEMBLY
                                    Suitable for:USA
                                    from £388.88
                                    from £388.88
                                    # 003
                                    MPN: 675001237
                                    SCREW
                                    from £1.43
                                    from £1.43
                                    # 004
                                    MPN: 675001238
                                    COLLAR [D.43]
                                    from £1.79
                                    from £1.79
                                    # 005
                                    MPN: 670156465
                                    FUEL TANK FASTENING STRAP
                                    from £62.88
                                    from £62.88
                                    # 006
                                    MPN: 675001233
                                    SCREW
                                    from £14.48
                                    from £14.48
                                    # 007
                                    MPN: 670161673
                                    RH FUEL TANK FASTENER BRACKET
                                    from £82.13
                                    from £82.13
                                    # 008
                                    MPN: 670161674
                                    LH FUEL TANK FASTENER BRACKET
                                    from £35.24
                                    from £35.24
                                    # 009
                                    MPN: 675001382
                                    SCREW
                                    from £1.60
                                    from £1.60
                                    # 010
                                    MPN: 670160736
                                    LH BRACKET
                                    from £31.81
                                    from £31.81
                                    # 011
                                    MPN: 670160733
                                    RH BRACKET
                                    from £30.89
                                    from £30.89
                                    # 012
                                    MPN: 670160796
                                    CLIP
                                    from £5.36
                                    from £5.36
                                    # 018
                                    MPN: 670181511
                                    FUEL FILLER BRACKET
                                    from £31.32
                                    from £31.32
                                    # 019
                                    MPN: 670162165
                                    BRACKET
                                    from £27.72
                                    from £27.72
                                    # 020
                                    MPN: 670160199
                                    TANK BRACKET
                                    from £37.10
                                    from £37.10
                                    # 021
                                    MPN: 675001236
                                    SCREW
                                    from £1.22
                                    from £1.22
                                    # 022
                                    MPN: 675001355
                                    SCREW
                                    from £1.51
                                    from £1.51
                                    # 023
                                    MPN: 675001257
                                    WASHER
                                    from £1.37
                                    from £1.37
                                    # 023
                                    MPN: 675001364
                                    WASHER
                                    from £1.29
                                    from £1.29
                                    # 024
                                    MPN: 675001965
                                    CLAMP
                                    from £7.18
                                    from £7.18
