maserati mc20 (2024) cooling: air radiators and ducts parts diagram

01.70.1 - cooling: air radiators and ducts

Maserati MC20 (2024) COOLING: AIR RADIATORS AND DUCTS Parts Diagram

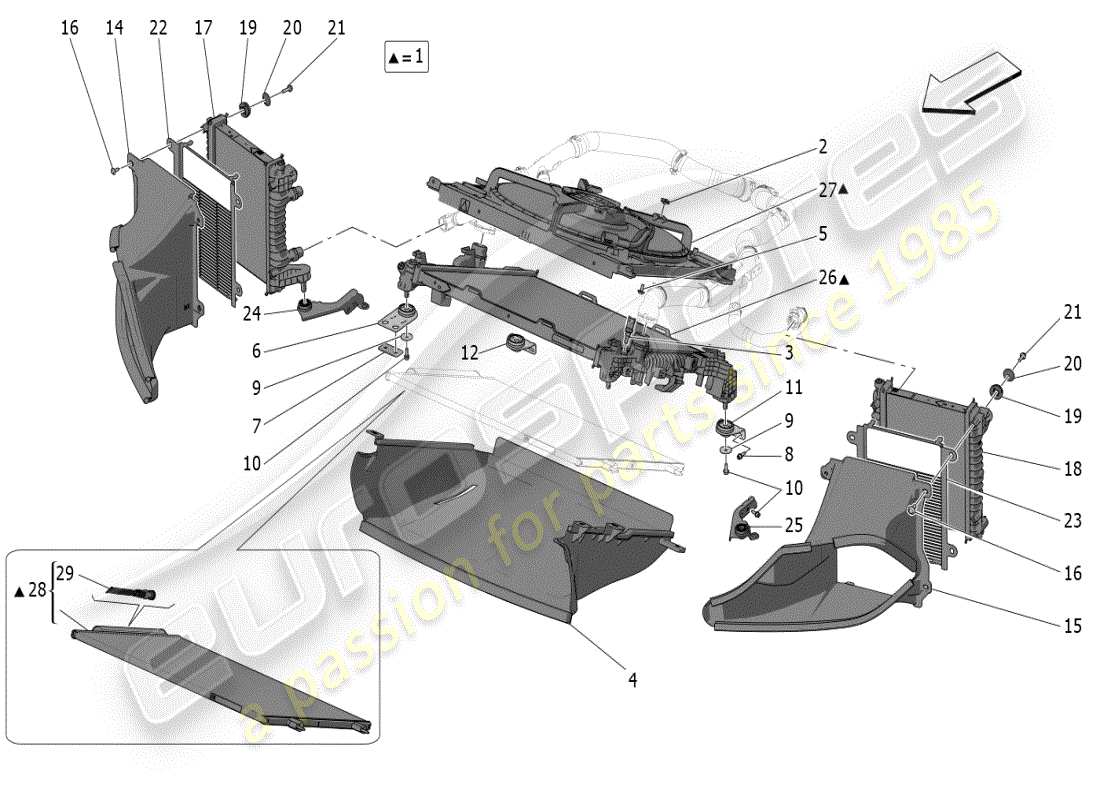

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                                                  #
                                                  Part number
                                                  Description
                                                  Price
                                                  # 001
                                                  MPN: 670160000
                                                  COOLING MODULE
                                                  from £1,386.26
                                                  from £1,386.26
                                                  # 002
                                                  MPN: 675001040
                                                  PLATE
                                                  from £1.00
                                                  from £1.00
                                                  # 003
                                                  MPN: 670005736
                                                  TEMPERATURE SENSOR
                                                  from £13.66
                                                  from £13.66
                                                  # 004
                                                  MPN: 670156538
                                                  AIR DUCT
                                                  from £122.99
                                                  from £122.99
                                                  # 005
                                                  MPN: 675001053
                                                  SCREW
                                                  from £1.35
                                                  from £1.35
                                                  # 006
                                                  MPN: 670157041
                                                  BRACKET
                                                  from £19.59
                                                  from £19.59
                                                  # 007
                                                  MPN: 670157461
                                                  PLATE
                                                  from £8.87
                                                  from £8.87
                                                  # 008
                                                  MPN: 675001055
                                                  SCREW
                                                  from £1.70
                                                  from £1.70
                                                  # 009
                                                  MPN: 670157462
                                                  WASHER
                                                  from £10.54
                                                  from £10.54
                                                  # 010
                                                  MPN: 675001357
                                                  SCREW
                                                  from £2.68
                                                  from £2.68
                                                  # 011
                                                  MPN: 670158302
                                                  LH BRACKET
                                                  from £18.76
                                                  from £18.76
                                                  # 012
                                                  MPN: 670158301
                                                  RH BRACKET
                                                  from £18.76
                                                  from £18.76
                                                  # 014
                                                  MPN: 670156539
                                                  RH SIDE AIR DUCT
                                                  Not for cars with:CARBON CERAMIC BRAKES (CCM 2) - PERFORMANCE.
                                                  from £61.71
                                                  from £61.71
                                                  # 015
                                                  MPN: 670156540
                                                  LH SIDE AIR DUCT
                                                  Not for cars with:CARBON CERAMIC BRAKES (CCM 2) - PERFORMANCE.
                                                  from £61.71
                                                  from £61.71
                                                  # 016
                                                  MPN: 675000354
                                                  SCREW
                                                  from £1.85
                                                  from £1.85
                                                  # 017
                                                  MPN: 675001056
                                                  RH ENGINE RADIATOR
                                                  from £252.94
                                                  from £252.94
                                                  # 018
                                                  MPN: 675001057
                                                  LH ENGINE RADIATOR
                                                  from £226.32
                                                  from £226.32
                                                  # 019
                                                  MPN: 675000201
                                                  FLEXIBLE PAD
                                                  from £6.36
                                                  from £6.36
                                                  # 020
                                                  MPN: 675000409
                                                  CUP
                                                  from £1.68
                                                  from £1.68
                                                  # 021
                                                  MPN: 675001048
                                                  SCREW
                                                  from £0.57
                                                  from £0.57
                                                  # 022
                                                  MPN: 675001083
                                                  RH RADIATOR GRILLE
                                                  from £27.85
                                                  from £27.85
                                                  # 023
                                                  MPN: 675001082
                                                  LH RADIATOR GRILLE
                                                  from £27.85
                                                  from £27.85
                                                  # 024
                                                  MPN: 670157045
                                                  RH BRACKET
                                                  Valid from assembly:0 - 7003307.Not for cars with:CARBON CERAMIC BRAKES (CCM 2) - PERFORMANCE.
                                                  from £21.01
                                                  from £21.01
                                                  # 024
                                                  MPN: 670309010
                                                  RH BRACKET
                                                  Valid from assembly:7003308.Not for cars with:CARBON CERAMIC BRAKES (CCM 2) - PERFORMANCE.
                                                  from £21.01
                                                  from £21.01
                                                  # 025
                                                  MPN: 670157047
                                                  LH BRACKET
                                                  Valid from assembly:0 - 7003307.Not for cars with:CARBON CERAMIC BRAKES (CCM 2) - PERFORMANCE.
                                                  from £20.29
                                                  from £20.29
                                                  # 025
                                                  MPN: 670309013
                                                  LH BRACKET
                                                  Valid from assembly:7003308.Not for cars with:CARBON CERAMIC BRAKES (CCM 2) - PERFORMANCE.
                                                  from £20.29
                                                  from £20.29
                                                  # 026
                                                  MPN: 670160001
                                                  WATER RADIATOR
                                                  from £440.01
                                                  from £440.01
                                                  # 027
                                                  MPN: 675001213
                                                  FAN
                                                  from £717.39
                                                  from £717.39
                                                  # 028
                                                  MPN: 675001449
                                                  A.C CONDENSER
                                                  from £477.75
                                                  from £477.75
                                                  # 029
                                                  MPN: 673012300
                                                  DEHYDRATING FILTER KIT
                                                  from £36.43
                                                  from £36.43
