maserati mc20 (2024) parking brake parts diagram

04.30.1 - PARKING BRAKE

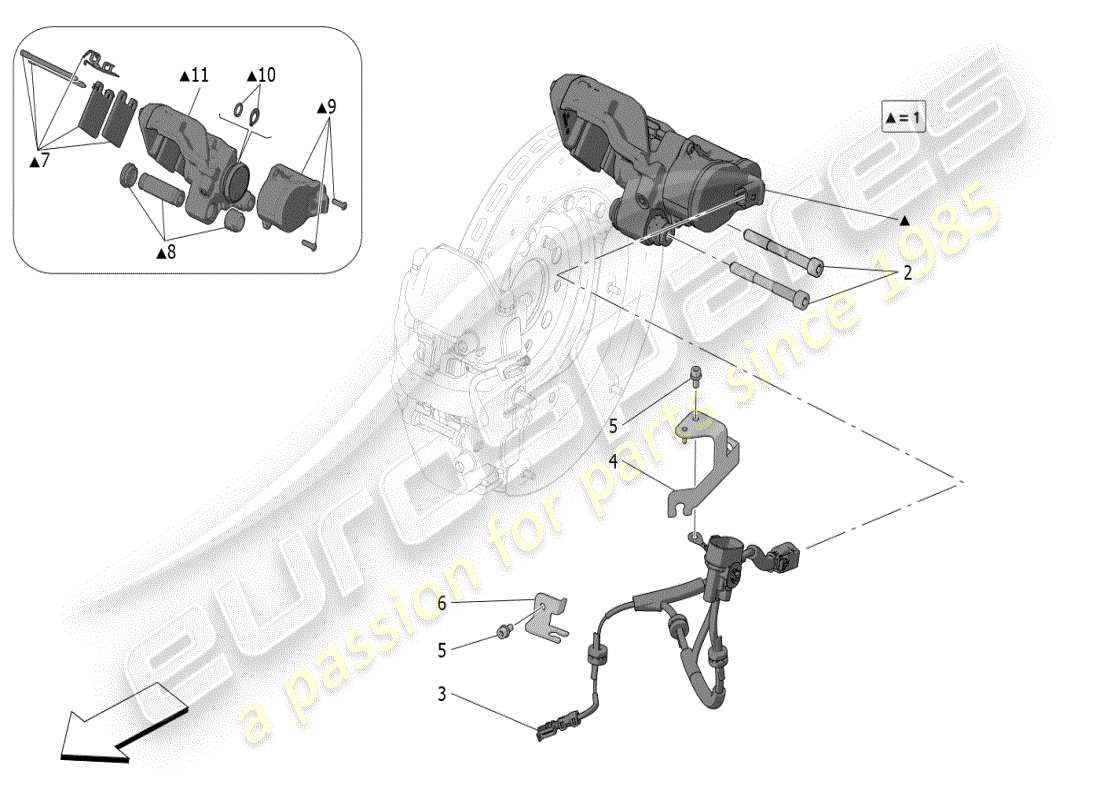

Maserati MC20 (2024) PARKING BRAKE Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
              #
              Part number
              Description
              Price
              # 001
              MPN: 670182570
              PARKING BRAKE CALIPER ASSEMBLY #APPLIED ON LH SIDE ON GHIBLI, QUATTROPORTE E LEVANTE, RH SIDE ON MC20#
              Not for cars with:CARBON CERAMIC BRAKES (CCM 2) - PERFORMANCE.
              from £581.98
              from £581.98
              This part replaces part number 670102057
              # 001
              MPN: 670182571
              PARKING BRAKE CALIPER ASSEMBLY #APPLIED ON RH SIDE ON GHIBLI, QUATTROPORTE E LEVANTE, LH SIDE ON MC20#
              Not for cars with:CARBON CERAMIC BRAKES (CCM 2) - PERFORMANCE.
              from £569.08
              from £569.08
              This part replaces part number 670102058
              # 002
              MPN: 675000810
              SCREW
              from £2.28
              from £2.28
              # 003
              MPN: 670174852
              LH PARKING BRAKE SYSTEM WIRING
              Not for cars with:CARBON CERAMIC BRAKES (CCM 2) - PERFORMANCE.
              from £59.72
              from £59.72
              # 003
              MPN: 670174853
              RH PARKING BRAKE SYSTEM WIRING
              Not for cars with:CARBON CERAMIC BRAKES (CCM 2) - PERFORMANCE.
              from £59.72
              from £59.72
              # 004
              MPN: 670161857
              RH BRACKET
              from £19.84
              from £19.84
              # 004
              MPN: 670161858
              LH BRACKET
              from £19.84
              from £19.84
              # 005
              MPN: 675000172
              SCREW
              from £0.65
              from £0.65
              # 006
              MPN: 670161366
              LH BRACKET
              Not for cars with:CARBON CERAMIC BRAKES (CCM 2) - PERFORMANCE.
              from £19.59
              from £19.59
              # 006
              MPN: 670161367
              RH BRACKET
              Not for cars with:CARBON CERAMIC BRAKES (CCM 2) - PERFORMANCE.
              from £19.59
              from £19.59
              # 007
              MPN: 673012380
              REAR PARKING BRAKE PADS KIT
              Not for cars with:CARBON CERAMIC BRAKES (CCM 2) - PERFORMANCE.
              from £209.38
              from £209.38
              This part replaces part number 673010332 which we have in stock
              # 008
              MPN: 673006243
              GUIDE PARKING BRAKE KIT
              from £133.11
              from £133.11
              # 009
              MPN: 673006244
              PARKING BRAKE CALIPER GEARMOTOR KIT
              from £326.14
              from £326.14
              # 010
              MPN: 673006245
              GASKET KIT
              from £94.35
              from £94.35
              # 011
              MPN: 673011643
              PARKING BRAKE CALIPER #APPLIED ON LH SIDE ON GHIBLI, QUATTROPORTE E LEVANTE, RH SIDE ON MC20#
              Not for cars with:CARBON CERAMIC BRAKES (CCM 2) - PERFORMANCE.
              from £897.72
              from £897.72
              This part replaces part number 673006240
              # 011
              MPN: 673011644
              PARKING BRAKE CALIPER #APPLIED ON RH SIDE ON GHIBLI, QUATTROPORTE E LEVANTE, LH SIDE ON MC20#
              Not for cars with:CARBON CERAMIC BRAKES (CCM 2) - PERFORMANCE.
              from £897.72
              from £897.72
              This part replaces part number 673006241
