maserati mc20 (2024) hydraulic system front axle lift parts diagram

06.25.1 - HYDRAULIC SYSTEM FRONT AXLE LIFT

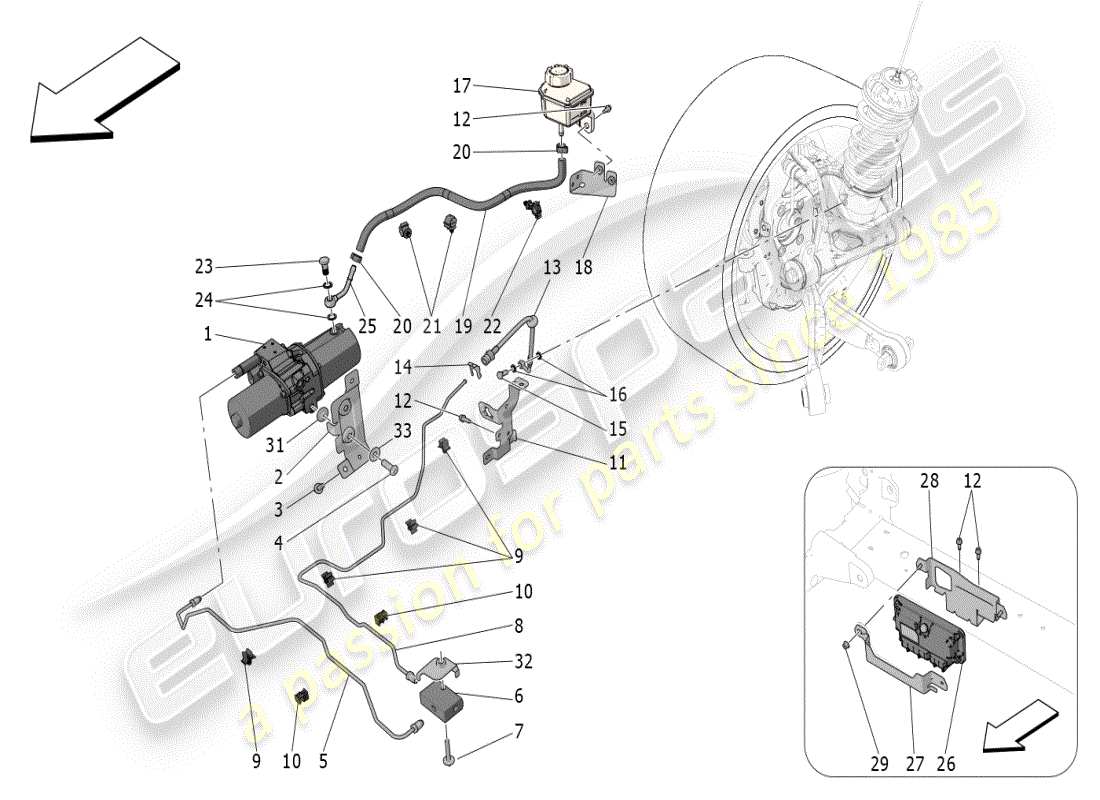

Maserati MC20 (2024) HYDRAULIC SYSTEM FRONT AXLE LIFT Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                                                              #
                                                              Part number
                                                              Description
                                                              Key
                                                              Price
                                                              # 001
                                                              MPN: 670172681
                                                              LIFTER SYSTEM PUMP
                                                              Valid from assembly:0 - 7003501.
                                                              from £1,437.29
                                                              from £1,437.29
                                                              LIFTER SYSTEM PUMP Genuine Maserati Part - New (to order)
                                                              # 002
                                                              MPN: 670172682
                                                              LIFTER SYSTEM PUMP BRACKET
                                                              from £33.83
                                                              from £33.83
                                                              LIFTER SYSTEM PUMP BRACKET Genuine Maserati Part - New (to order)
                                                              # 003
                                                              MPN: 675001087
                                                              SCREW
                                                              from £1.37
                                                              from £1.37
                                                              SCREW Genuine Maserati Part - New (to order)
                                                              # 004
                                                              MPN: 670173976
                                                              SCREW
                                                              from £3.35
                                                              from £3.35
                                                              SCREW Genuine Maserati Part - New (to order)
                                                              # 005
                                                              MPN: 670172749
                                                              PIPE
                                                              from £13.23
                                                              from £13.23
                                                              PIPE Genuine Maserati Part - New (to order)
                                                              # 006
                                                              MPN: 670172748
                                                              VALVE
                                                              from £50.47
                                                              from £50.47
                                                              VALVE Genuine Maserati Part - New (to order)
                                                              # 007
                                                              MPN: 670005287
                                                              SCREW
                                                              from £1.68
                                                              from £1.68
                                                              M6 BOLT Genuine Maserati Part - New (to order)
                                                              # 008
                                                              MPN: 670172706
                                                              RH PIPE
                                                              from £21.74
                                                              from £21.74
                                                              RH HOSE Genuine Maserati Part - New (to order)
                                                              # 008
                                                              MPN: 670172747
                                                              LH PIPE
                                                              from £21.74
                                                              from £21.74
                                                              LH HOSE Genuine Maserati Part - New (to order)
                                                              # 009
                                                              MPN: 670172705
                                                              PIPE CLIP
                                                              from £1.68
                                                              from £1.68
                                                              PIPE CLIP Genuine Maserati Part - New (to order)
                                                              # 010
                                                              MPN: 675001079
                                                              CLIP
                                                              from £0.98
                                                              from £0.98
                                                              CLIP Genuine Maserati Part - New (to order)
                                                              # 011
                                                              MPN: 670172696
                                                              RH PIPE BRACKET
                                                              from £25.21
                                                              from £25.21
                                                              RH PIPE BRACKET Genuine Maserati Part - New (to order)
                                                              # 011
                                                              MPN: 670172746
                                                              LH PIPE BRACKET
                                                              from £25.21
                                                              from £25.21
                                                              LH PIPE BRACKET Genuine Maserati Part - New (to order)
                                                              # 012
                                                              MPN: 675001384
                                                              SCREW
                                                              from £1.22
                                                              from £1.22
                                                              SCREW Genuine Maserati Part - New (to order)
                                                              # 013
                                                              MPN: 670172686
                                                              RH FLEXIBLE PIPE
                                                              from £85.66
                                                              from £85.66
                                                              RH FLEXIBLE PIPE Genuine Maserati Part - New (to order)
                                                              # 013
                                                              MPN: 670172745
                                                              LH FLEXIBLE PIPE
                                                              from £85.66
                                                              from £85.66
                                                              LH FLEXIBLE PIPE Genuine Maserati Part - New (to order)
                                                              # 014
                                                              MPN: 675000276
                                                              SPRING PLATE
                                                              from £0.73
                                                              from £0.73
                                                              ELASTIC PLATE Genuine Maserati Part - New (to order)
                                                              # 015
                                                              MPN: 670173235
                                                              SCREW
                                                              from £31.47
                                                              from £31.47
                                                              SCREW Genuine Maserati Part - New (to order)
                                                              # 016
                                                              MPN: 670173236
                                                              WASHER
                                                              from £10.30
                                                              from £10.30
                                                              WASHER Genuine Maserati Part - New (to order)
                                                              # 017
                                                              MPN: 670172683
                                                              LIFTER SYSTEM PUMP FILLING TANK
                                                              from £41.18
                                                              from £41.18
                                                              LIFTER SYSTEM PUMP FILLING TANK Genuine Maserati Part - New (to order)
                                                              # 018
                                                              MPN: 670172684
                                                              TANK BRACKET
                                                              from £17.00
                                                              from £17.00
                                                              TANK BRACKET Genuine Maserati Part - New (to order)
                                                              # 019
                                                              MPN: 670172685
                                                              HOSE
                                                              from £175.20
                                                              from £175.20
                                                              HOSE Genuine Maserati Part - New (to order)
                                                              # 020
                                                              MPN: 675000552
                                                              COLLAR [D.14,5]
                                                              from £1.34
                                                              from £1.34
                                                              SNAP-ON HOSE BAND CLAMP D.14 Genuine Maserati Part - New (to order)
                                                              # 021
                                                              MPN: 670173232
                                                              CLIP
                                                              from £8.13
                                                              from £8.13
                                                              CLIP Genuine Maserati Part - New (to order)
                                                              # 022
                                                              MPN: 670173233
                                                              CLIP
                                                              from £2.85
                                                              from £2.85
                                                              CLIP Genuine Maserati Part - New (to order)
                                                              # 023
                                                              MPN: 670173229
                                                              SCREW
                                                              from £33.41
                                                              from £33.41
                                                              SCREW Genuine Maserati Part - New (to order)
                                                              # 024
                                                              MPN: 675000250
                                                              GASKET
                                                              from £1.16
                                                              from £1.16
                                                              WASHER 12X18X1 Genuine Maserati Part - New In stock
                                                              # 025
                                                              MPN: 670176845
                                                              UNION
                                                              from £73.72
                                                              from £73.72
                                                              UNION Genuine Maserati Part - New (to order)
                                                              # 026
                                                              MPN: 670295237
                                                              LIFTER CONTROL UNIT
                                                              Valid from assembly:7002970.
                                                              from £266.63
                                                              from £266.63
                                                              ECU BUY Genuine Maserati Part - New (to order)
                                                              # 027
                                                              MPN: 670172754
                                                              LIFTER CONTROL UNIT BRACKET
                                                              from £26.46
                                                              from £26.46
                                                              LIFTER CONTROL UNIT BRACKET Genuine Maserati Part - New (to order)
                                                              # 028
                                                              MPN: 670172755
                                                              BRACKET
                                                              from £43.37
                                                              from £43.37
                                                              BRACKET Genuine Maserati Part - New (to order)
                                                              # 029
                                                              MPN: 675000794
                                                              NUT
                                                              from £1.00
                                                              from £1.00
                                                              NUT #(IMAGE NOT AVAILABLE)# Genuine Maserati Part - New (to order)
                                                              # 031
                                                              MPN: 670175142
                                                              SPACER
                                                              from £6.11
                                                              from £6.11
                                                              SPACER Genuine Maserati Part - New (to order)
                                                              # 032
                                                              MPN: 670181780
                                                              BRACKET
                                                              from £29.64
                                                              from £29.64
                                                              BRACKET Genuine Maserati Part - New (to order)
                                                              # 033
                                                              MPN: 670218725
                                                              WASHER
                                                              from £1.77
                                                              from £1.77
                                                              WASHER Genuine Maserati Part - New (to order)
