Valid from assembly:7001514 - 99999999.
Granted by MASERATI
Copyright MASERATI
maserati mc20 (2024) alarm and immobilizer system parts diagram

08.53.2 - alarm and immobilizer system

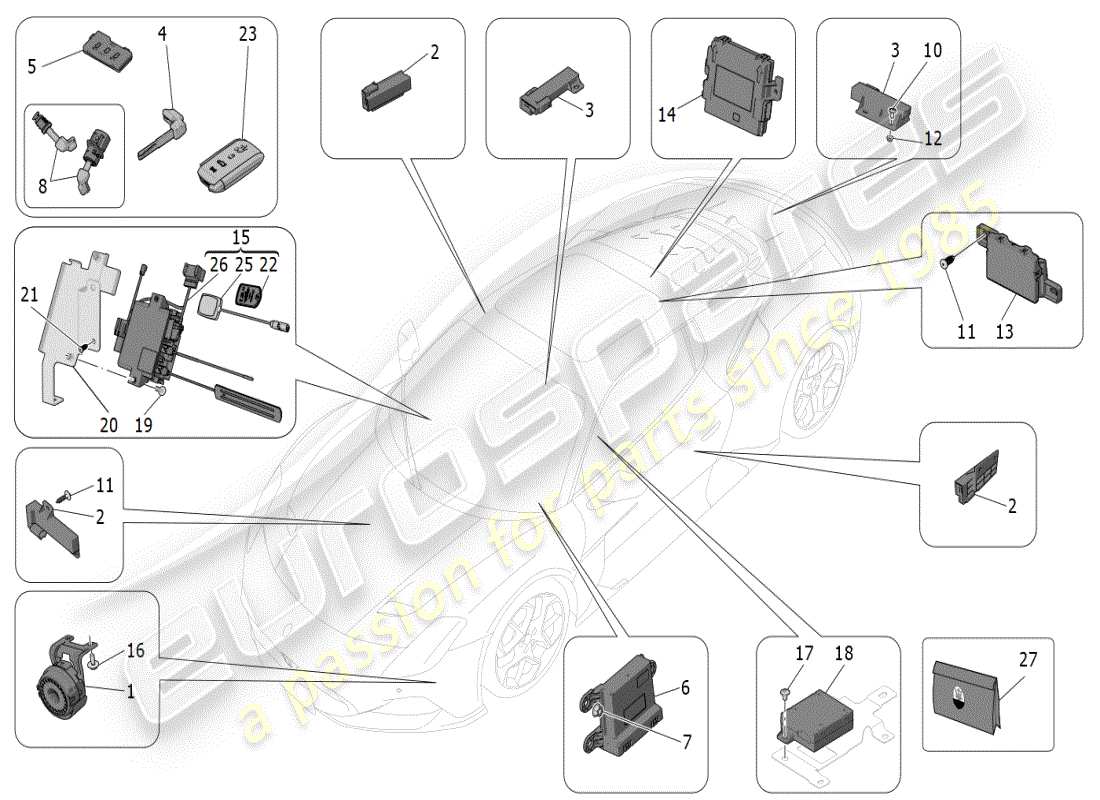

Maserati MC20 (2024) ALARM AND IMMOBILIZER SYSTEM Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                  #
                  Part number
                  Description
                  Price
                  # 001
                  MPN: 675002337
                  ALARM SYSTEM SIREN WITH BRACKET
                  Valid from assembly:7002970.Suitable for cars with:SECURITY ALARM SYSTEM.
                  # 002
                  MPN: 675000233
                  REMOTE START AND ENTRY ANTENNA
                  from £15.24
                  from £15.24
                  # 003
                  MPN: 675000207
                  REMOTE START AND ENTRY ANTENNA
                  from £8.04
                  from £8.04
                  # 004
                  MPN: 670198199
                  CARVED KEY
                  Colour:SATIN CHROME.
                  from £40.48
                  from £40.48
                  # 005
                  MPN: 670174786
                  garage door opener
                  Suitable for cars with:HOME LINK: INTEGRATED, THREE CHANNEL REMOTE GARAGE DOOR OPENER.Suitable for:ITALY, UK
                  from £152.65
                  from £152.65
                  # 005
                  MPN: 675001280
                  garage door opener
                  Suitable for cars with:HOME LINK: INTEGRATED, THREE CHANNEL REMOTE GARAGE DOOR OPENER.Suitable for:USA
                  from £152.65
                  from £152.65
                  # 006
                  MPN: 675001341
                  GATEWAY SECURITY MODULE
                  Suitable for cars with:CYBER SECURITY GATEWAY.
                  from £82.55
                  from £82.55
                  # 007
                  MPN: 675001298
                  NUT
                  from £0.95
                  from £0.95
                  # 008
                  MPN: 670255114
                  EMERGENCY KEY AND LOCK KIT
                  Colour:SATIN CHROME.
                  # 010
                  MPN: 675001050
                  SCREW
                  from £1.22
                  from £1.22
                  # 011
                  MPN: 675001279
                  SCREW
                  from £1.43
                  from £1.43
                  # 012
                  MPN: 675000449
                  NUT [M5]
                  from £0.83
                  from £0.83
                  # 013
                  MPN: 675002208
                  REMOTE START AND ENTRY ANTENNA
                  from £8.97
                  from £8.97
                  This part replaces part number 675001313
                  # 014
                  MPN: 670218870
                  PASSIVE ENTRY ECU
                  from £715.81
                  from £715.81
                  # 015
                  MPN: 670221887
                  SATELLITE ECU #IF STOCK = 0 PLEASE ORDER ORDER THE NEW 670221888, 670222386 (QUANTITY 2), 670219204 COMBINED#
                  Suitable for cars with:SATELLITE LOCATOR (GPS).Suitable for:UK
                  from £1,284.57
                  from £1,284.57
                  # 016
                  MPN: 675001317
                  SCREW
                  Suitable for cars with:SECURITY ALARM SYSTEM.
                  from £1.51
                  from £1.51
                  # 017
                  MPN: 675001294
                  SCREW
                  Suitable for cars with:SECURITY ALARM SYSTEM.
                  from £1.17
                  from £1.17
                  # 018
                  MPN: 670219055
                  ANTI-THEFT SENSOR
                  Suitable for cars with:SECURITY ALARM SYSTEM.
                  from £302.48
                  from £302.48
                  This part replaces part number 670213022
                  # 019
                  MPN: 670006484
                  SCREW
                  Suitable for cars with:SATELLITE LOCATOR (GPS).Suitable for:UK
                  from £1.17
                  from £1.17
                  # 020
                  MPN: 670176978
                  BRACKET
                  Suitable for cars with:SATELLITE LOCATOR (GPS).Suitable for:UK
                  from £33.15
                  from £33.15
                  # 021
                  MPN: 675001279
                  SCREW
                  Suitable for cars with:SATELLITE LOCATOR (GPS).Suitable for:UK
                  from £1.43
                  from £1.43
                  # 022
                  MPN: 670222386
                  DRIVER CARD
                  Suitable for cars with:SATELLITE LOCATOR (GPS).Suitable for:UK
                  from £30.41
                  from £30.41
                  # 023
                  MPN: 670255509
                  REMOTE CONTROL
                  Valid from assembly:0 - 7003289.Colour:SATIN CHROME.Suitable for:ITALY, UK, UNITED ARAB EMIRATES
                  from £398.55
                  from £398.55
                  # 023
                  MPN: 670279927
                  REMOTE CONTROL
                  Valid from assembly:7003290.Colour:SATIN CHROME.Suitable for:ITALY, UK, UNITED ARAB EMIRATES
                  from £398.55
                  from £398.55
                  # 023
                  MPN: 670279929
                  REMOTE CONTROL
                  Colour:SATIN CHROME.Suitable for:USA
                  from £398.55
                  from £398.55
                  # 025
                  MPN: 670219204
                  RADIO SATELLITE ANTENNA
                  Suitable for cars with:SATELLITE LOCATOR (GPS).Suitable for:UK
                  from £41.87
                  from £41.87
                  # 026
                  MPN: 670221888
                  SATELLITE ECU
                  Suitable for cars with:SATELLITE LOCATOR (GPS).Suitable for:UK
                  from £651.44
                  from £651.44
                  # 027
                  MPN: 670255508
                  KIT PASSIVE-ENTRY #ORDER ONLY UPON AUTHORIZATION BY THE Maserati SERVICE NETWORK#
                  Valid from assembly:0 - 7003289.Colour:SATIN CHROME.Suitable for:ITALY, UK, UNITED ARAB EMIRATES
                  from £669.21
                  from £669.21
                  # 027
                  MPN: 670279926
                  KIT PASSIVE-ENTRY #ORDER ONLY UPON AUTHORIZATION BY THE Maserati SERVICE NETWORK#
                  Valid from assembly:7003290.Colour:SATIN CHROME.Suitable for:ITALY, UK, UNITED ARAB EMIRATES
                  from £669.21
                  from £669.21
                  # 027
                  MPN: 670279928
                  KIT PASSIVE-ENTRY #ORDER ONLY UPON AUTHORIZATION BY THE Maserati SERVICE NETWORK#
                  Valid from assembly:7002914.Colour:SATIN CHROME.Suitable for:USA
                  from £669.21
                  from £669.21
