maserati mc20 (2024) external covering parts diagram

09.06.1 - EXTERNAL COVERING

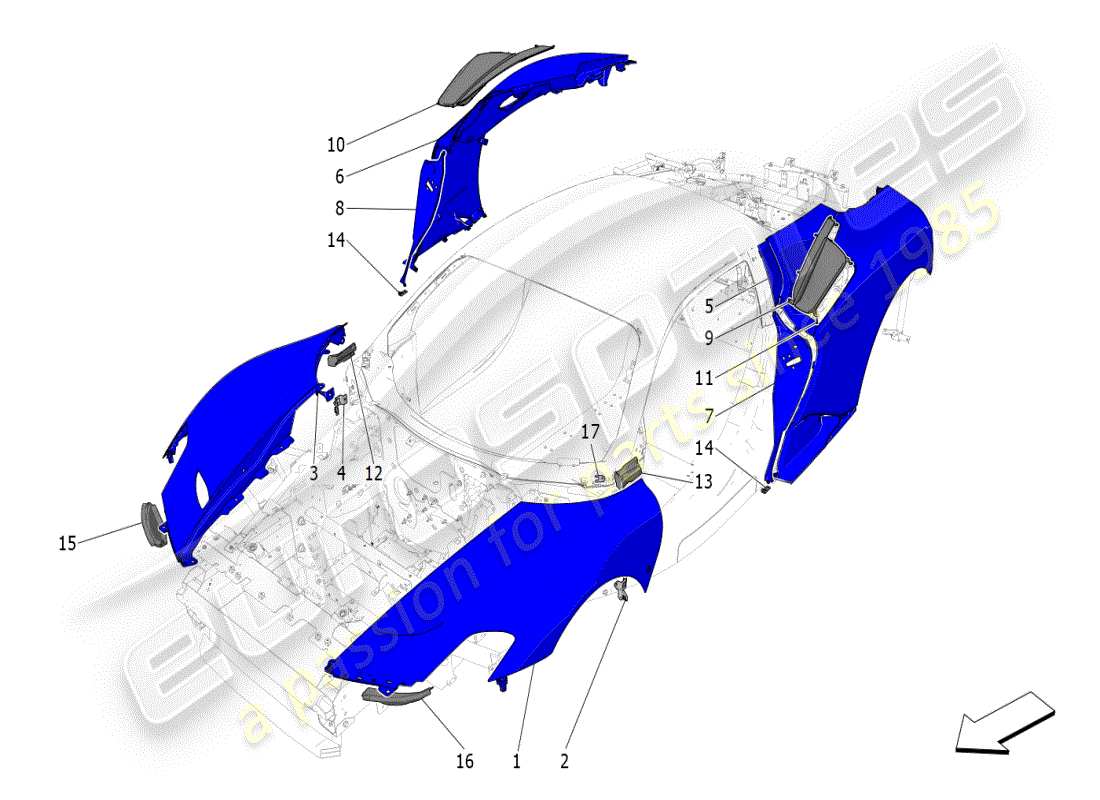

Maserati MC20 (2024) EXTERNAL COVERING Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                      #
                      Part number
                      Description
                      Price
                      # 001
                      MPN: 670156859
                      FRONT LH MUDGUARD ASSEMBLY
                      Not for cars with:Technical Specification for Flex Pack, GT2S LOUVERED FENDERS, GT2S LOUVERED FENDERS CARBON LOOK.
                      from £2,557.43
                      from £2,557.43
                      # 002
                      MPN: 670181249
                      LH MUDGUARD BRACKET FIXING
                      from £20.35
                      from £20.35
                      # 003
                      MPN: 670156448
                      FRONT RH MUDGUARD ASSEMBLY
                      Not for cars with:Technical Specification for Flex Pack, GT2S LOUVERED FENDERS, GT2S LOUVERED FENDERS CARBON LOOK.
                      from £2,557.43
                      from £2,557.43
                      # 004
                      MPN: 670181248
                      RH MUDGUARD BRACKET MUDGUARD FIXING
                      from £20.35
                      from £20.35
                      # 005
                      MPN: 670216033
                      CPL. LH REAR MUDGUARD
                      Not for cars with:UNDER DOOR AND FENDER SILL INSERTS IN CARBON FIBER, GT2 STRADALE IDENTIFICATION.
                      from £2,683.92
                      from £2,683.92
                      This part replaces part number 670156857
                      # 005
                      MPN: 670216038
                      CPL. LH REAR MUDGUARD
                      Suitable for cars with:UNDER DOOR AND FENDER SILL INSERTS IN CARBON FIBER.Not for cars with:GT2 STRADALE IDENTIFICATION.
                      from £6,093.57
                      from £6,093.57
                      # 006
                      MPN: 670215953
                      CPL. RH REAR MUDGUARD
                      Not for cars with:UNDER DOOR AND FENDER SILL INSERTS IN CARBON FIBER, GT2 STRADALE IDENTIFICATION.
                      from £2,683.92
                      from £2,683.92
                      This part replaces part number 670156856
                      # 006
                      MPN: 670216029
                      CPL. RH REAR MUDGUARD
                      Suitable for cars with:UNDER DOOR AND FENDER SILL INSERTS IN CARBON FIBER.Not for cars with:GT2 STRADALE IDENTIFICATION.
                      from £6,414.28
                      from £6,414.28
                      This part replaces part number 670173160
                      # 007
                      MPN: 670182194
                      COMPLETE LH REAR LATERAL SEAL
                      from £270.26
                      from £270.26
                      # 008
                      MPN: 670182193
                      COMPLETE RH REAR LATERAL SEAL
                      from £270.26
                      from £270.26
                      # 009
                      MPN: 670226670
                      LH UPPER GRILL
                      Not for cars with:GT2 STRADALE IDENTIFICATION.Colour:MATT BLACK.
                      from £202.14
                      from £202.14
                      # 010
                      MPN: 670226669
                      RH UPPER GRILL
                      Not for cars with:GT2 STRADALE IDENTIFICATION.Colour:MATT BLACK.
                      from £202.14
                      from £202.14
                      # 011
                      MPN: 670176445
                      SCREW
                      Not for cars with:GT2 STRADALE IDENTIFICATION.
                      from £2.09
                      from £2.09
                      # 012
                      MPN: 670178131
                      PAD
                      from £16.95
                      from £16.95
                      # 013
                      MPN: 670178394
                      PAD
                      from £16.95
                      from £16.95
                      # 014
                      MPN: 670213029
                      PLATE
                      from £15.41
                      from £15.41
                      # 015
                      MPN: 670175009
                      RH SIDE REINFORCEMENT
                      from £43.65
                      from £43.65
                      # 016
                      MPN: 670175010
                      LH SIDE REINFORCEMENT
                      from £43.65
                      from £43.65
                      # 017
                      MPN: 673012893
                      FRONT MUDGUARD SPACER #VARIABLE QUANTITY#
                      from £6.11
                      from £6.11
