Valid from assembly:7003304 - 99999999.Not for cars with:GT2 STRADALE IDENTIFICATION.
Granted by MASERATI
Copyright MASERATI
maserati mc20 (2024) underbody and underfloor guards parts diagram

09.14.2 - underbody and underfloor guards

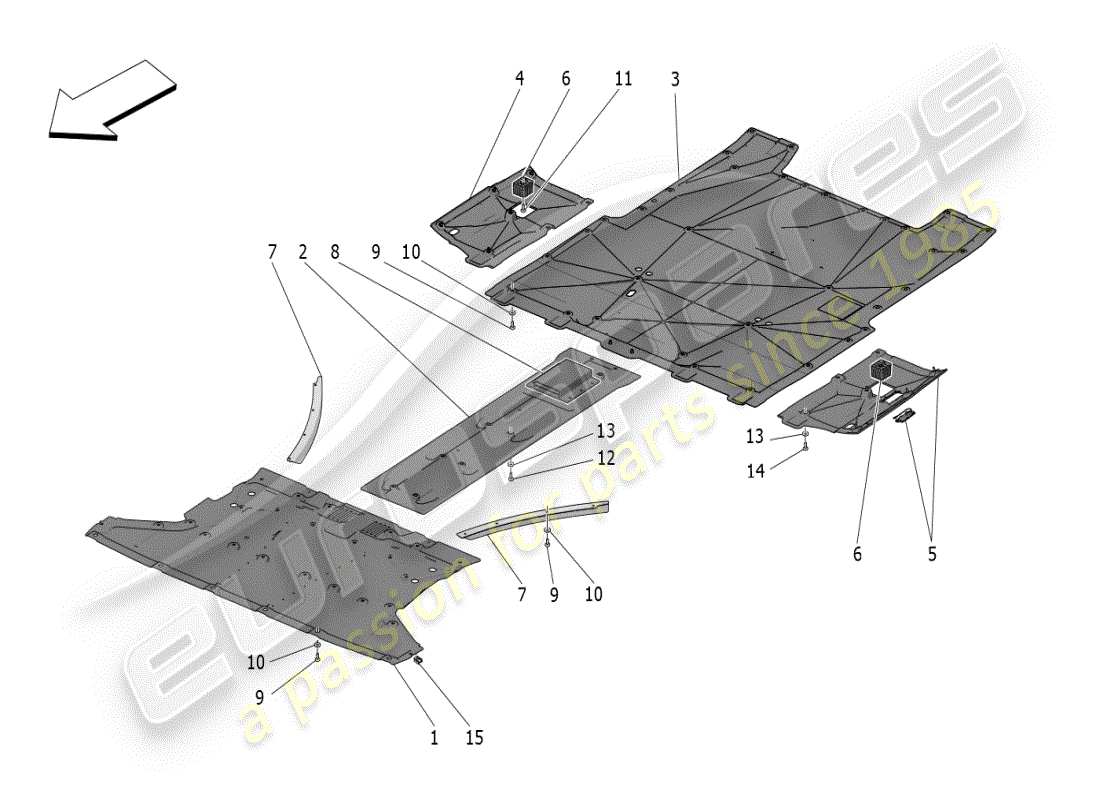

Maserati MC20 (2024) UNDERBODY AND UNDERFLOOR GUARDS Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                            #
                            Part number
                            Description
                            Key
                            Price
                            # 001
                            MPN: 670158288
                            FRONT UNDERBODY GUARD
                            from £296.65
                            from £296.65
                            COVER Genuine Maserati Part - New (to order)
                            # 002
                            MPN: 670215318
                            CENTRAL UNDERFLOOR GUARD
                            from £131.68
                            from £131.68
                            COVER Genuine Maserati Part - New (to order)
                            # 003
                            MPN: 670302469
                            CENTRAL AERODYNAMIC UNDERFLOOR CPL.
                            Valid from assembly:7002375.Not for cars with:CARBON CERAMIC BRAKES (CCM 2) - PERFORMANCE.
                            from £1,745.06
                            from £1,745.06
                            COMPLETE CENTRAL AERODYNAMIC BOTTOM Genuine Maserati Part - New (to order)
                            # 004
                            MPN: 670158283
                            RH CENTER AERODYNAMIC UNDERFLOOR
                            from £58.41
                            from £58.41
                            COVER Genuine Maserati Part - New (to order)
                            # 005
                            MPN: 670158284
                            LH CENTER AERODYNAMIC UNDERFLOOR
                            from £67.74
                            from £67.74
                            COVER Genuine Maserati Part - New (to order)
                            # 006
                            MPN: 670158810
                            REAR JACKING PAD
                            from £8.03
                            from £8.03
                            REAR JACKING PAD Genuine Maserati Part - New (to order)
                            # 007
                            MPN: 670304672
                            AIR DAMS
                            from £144.46
                            from £144.46
                            AIR DAMS Genuine Maserati Part - New (to order)
                            # 008
                            MPN: 670162176
                            BRACKET
                            Suitable for:USA
                            from £61.61
                            from £61.61
                            BRACKET Genuine Maserati Part - New (to order)
                            # 009
                            MPN: 670308847
                            SCREW
                            from £1.51
                            from £1.51
                            SCREW M6X1 Genuine Maserati Part - New (to order)
                            # 010
                            MPN: 675001364
                            WASHER
                            from £1.29
                            from £1.29
                            WASHER Genuine Maserati Part - New (to order)
                            # 011
                            MPN: 675001045
                            SCREW
                            from £1.43
                            from £1.43
                            SCREW Genuine Maserati Part - New (to order)
                            # 012
                            MPN: 675001383
                            SCREW
                            from £2.18
                            from £2.18
                            SCREW Genuine Maserati Part - New In stock
                            # 013
                            MPN: 675001257
                            WASHER
                            from £1.37
                            from £1.37
                            WASHER 6X18 Genuine Maserati Part - New In stock
                            # 014
                            MPN: 675001252
                            SCREW
                            from £1.68
                            from £1.68
                            VITE Genuine Maserati Part - New (to order)
                            # 015
                            MPN: 670303713
                            CLIP
                            from £1.77
                            from £1.77
                            RETAINER CLIP Genuine Maserati Part - New (to order)
