01.32.1 - intercooler system

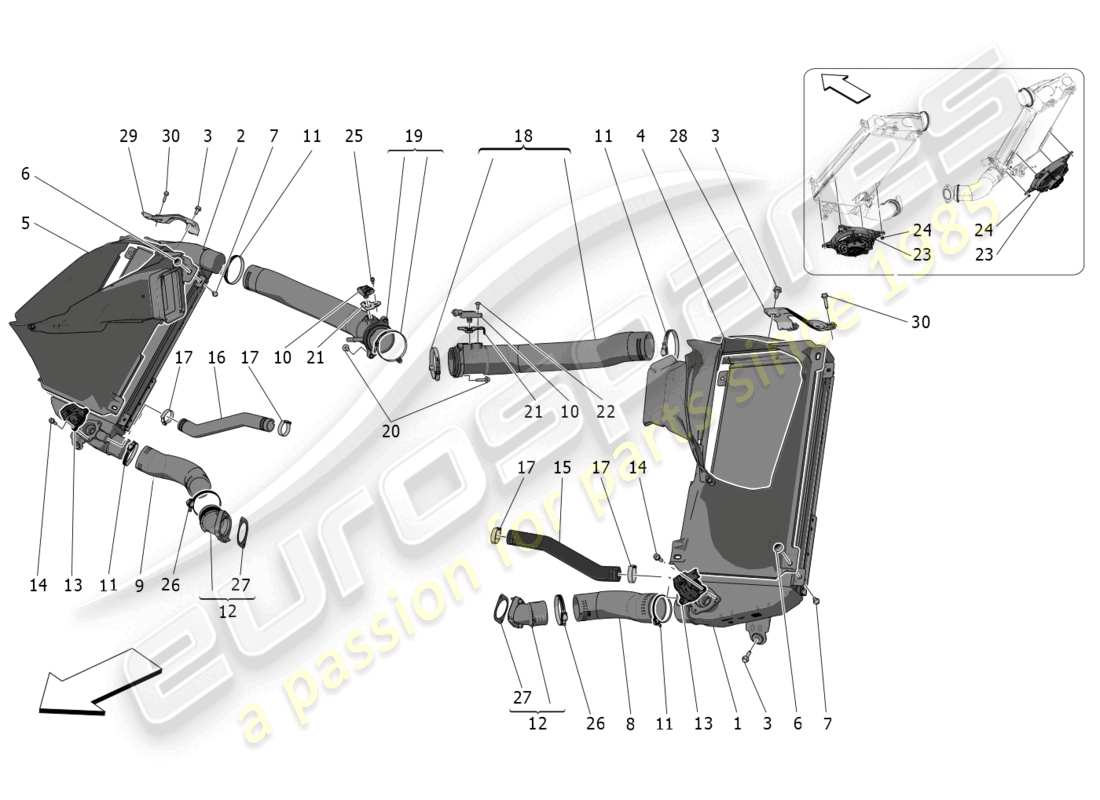

Maserati MC20 Cielo (2023) INTERCOOLER SYSTEM Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                                                        #
                                                        Part number
                                                        Description
                                                        Key
                                                        Price
                                                        # 001
                                                        MPN: 670175194
                                                        LH INTERCOOLER
                                                        from £592.27
                                                        from £592.27
                                                        LH INTERCOOLER Genuine Maserati Part - New (to order)
                                                        # 002
                                                        MPN: 670175195
                                                        RH INTERCOOLER
                                                        from £592.27
                                                        from £592.27
                                                        RH INTERCOOLER Genuine Maserati Part - New (to order)
                                                        # 003
                                                        MPN: 675001211
                                                        SCREW
                                                        from £5.24
                                                        from £5.24
                                                        SCREW Genuine Maserati Part - New (to order)
                                                        # 004
                                                        MPN: 670175328
                                                        LH SIDE AIR DUCT
                                                        from £173.82
                                                        from £173.82
                                                        LH SIDE AIR DUCT Genuine Maserati Part - New (to order)
                                                        # 005
                                                        MPN: 670175329
                                                        RH SIDE AIR DUCT
                                                        from £173.82
                                                        from £173.82
                                                        RH SIDE AIR DUCT Genuine Maserati Part - New (to order)
                                                        # 006
                                                        MPN: 675001063
                                                        NUT
                                                        from £0.99
                                                        from £0.99
                                                        NUT Genuine Maserati Part - New (to order)
                                                        # 007
                                                        MPN: 675001357
                                                        SCREW
                                                        from £2.63
                                                        from £2.63
                                                        SCREW Genuine Maserati Part - New (to order)
                                                        # 008
                                                        MPN: 670156950
                                                        SLEEVE FROM TURBINE TO LH INTERCOOLER
                                                        Valid from assembly: 0 - 7001565.
                                                        from £129.71
                                                        from £129.71
                                                        SLEEVE FROM TURBO TO LH INTE Genuine Maserati Part - New (to order)
                                                        # 008
                                                        MPN: 670293049
                                                        SLEEVE FROM TURBINE TO LH INTERCOOLER
                                                        Valid from assembly: 7001566.
                                                        from £129.71
                                                        from £129.71
                                                        LH SLEEVE Genuine Maserati Part - New (to order)
                                                        # 009
                                                        MPN: 670156659
                                                        SLEEVE FROM TURBINE TO RH INTERCOOLER
                                                        Valid from assembly: 0 - 7001565.
                                                        from £129.71
                                                        from £129.71
                                                        SLEEVE FROM TURBO TO RH INTE Genuine Maserati Part - New (to order)
                                                        # 009
                                                        MPN: 670293054
                                                        SLEEVE FROM TURBINE TO RH INTERCOOLER
                                                        Valid from assembly: 7001566.
                                                        from £129.71
                                                        from £129.71
                                                        RH SLEEVE Genuine Maserati Part - New (to order)
                                                        # 010
                                                        MPN: 670053933
                                                        PRESSURE SENSOR
                                                        from £58.44
                                                        from £58.44
                                                        AIR TEMP SENSOR Genuine Maserati Part - New (to order)
                                                        # 011
                                                        MPN: 675000362
                                                        COLLAR [D.78]
                                                        Supersession
                                                        Supersession
                                                        This part replaces part number 675000318
                                                        Genuine Maserati Part (no longer available to order)
                                                        # 012
                                                        MPN: 670156669
                                                        SLEEVE
                                                        Valid from assembly: 0 - 7001565.
                                                        from £190.71
                                                        from £190.71
                                                        SLEEVE Genuine Maserati Part - New (to order)
                                                        # 012
                                                        MPN: 670292987
                                                        SLEEVE
                                                        Valid from assembly: 7001566.
                                                        from £188.92
                                                        from £188.92
                                                        INTERCOOLER SLEEVE Genuine Maserati Part - New (to order)
                                                        # 013
                                                        MPN: 675001051
                                                        MODULAR SOLENOID VALVE
                                                        from £49.36
                                                        from £49.36
                                                        MODULAR SOLENOID VALVE Genuine Maserati Part - New (to order)
                                                        # 014
                                                        MPN: 675001353
                                                        SCREW
                                                        from £1.73
                                                        from £1.73
                                                        SCREW Genuine Maserati Part - New (to order)
                                                        # 015
                                                        MPN: 670157013
                                                        LH AIR INTAKE SLEEVE ASSEMBLY
                                                        from £60.18
                                                        from £60.18
                                                        LH AIR INTAKE SLEEVE ASSEMBL Genuine Maserati Part - New (to order)
                                                        # 016
                                                        MPN: 670157012
                                                        RH AIR INTAKE SLEEVE ASSEMBLY
                                                        from £60.18
                                                        from £60.18
                                                        RH AIR INTAKE SLEEVE ASSEMBL Genuine Maserati Part - New (to order)
                                                        # 017
                                                        MPN: 675001354
                                                        COLLAR
                                                        from £0.99
                                                        from £0.99
                                                        COLLAR Genuine Maserati Part - New (to order)
                                                        # 018
                                                        MPN: 670175193
                                                        LH CLEAN AIR INTAKE SLEEVE
                                                        from £240.24
                                                        from £240.24
                                                        LH CLEAR AIR SLEEVE Genuine Maserati Part - New (to order)
                                                        # 019
                                                        MPN: 670175192
                                                        RH CLEAN AIR INTAKE SLEEVE
                                                        from £311.49
                                                        from £311.49
                                                        ASPIRATION DUCT SLEEVE Genuine Maserati Part - New (to order)
                                                        # 020
                                                        MPN: 675001034
                                                        SCREW
                                                        from £1.39
                                                        from £1.39
                                                        SCREW Genuine Maserati Part - New (to order)
                                                        # 021
                                                        MPN: 670213188
                                                        BRACKET
                                                        from £12.13
                                                        from £12.13
                                                        BRACKET Genuine Maserati Part - New (to order)
                                                        # 022
                                                        MPN: 670051107
                                                        SCREW
                                                        from £1.22
                                                        from £1.22
                                                        SCREW Genuine Maserati Part - New (to order)
                                                        # 023
                                                        MPN: 670212791
                                                        FAN
                                                        FAN Genuine Maserati Part - New (to order)
                                                        # 024
                                                        MPN: 675001427
                                                        NUT
                                                        from £0.60
                                                        from £0.60
                                                        NUT M5 Genuine Maserati Part - New (to order)
                                                        # 025
                                                        MPN: 670051103
                                                        SCREW
                                                        from £1.73
                                                        from £1.73
                                                        SCREW Genuine Maserati Part - New (to order)
                                                        # 026
                                                        MPN: 675000754
                                                        COLLAR [D.68]
                                                        from £3.43
                                                        from £3.43
                                                        COLLAR Genuine Maserati Part - New (to order)
                                                        # 027
                                                        MPN: 675001961
                                                        GASKET
                                                        from £17.00
                                                        from £17.00
                                                        GASKET Genuine Maserati Part - New (to order)
                                                        # 028
                                                        MPN: 670176014
                                                        LH BRACKET
                                                        from £40.91
                                                        from £40.91
                                                        LH INTERCOOLER BRACKET Genuine Maserati Part - New (to order)
                                                        # 029
                                                        MPN: 670176006
                                                        RH BRACKET
                                                        from £46.37
                                                        from £46.37
                                                        RH INTERCOOLER BRACKET Genuine Maserati Part - New (to order)
                                                        # 030
                                                        MPN: 675000387
                                                        SCREW
                                                        from £1.42
                                                        from £1.42
                                                        SCREW Genuine Maserati Part - New (to order)
