maserati mc20 cielo (2023) windows and window strips parts diagram

09.34.1 - windows and window strips

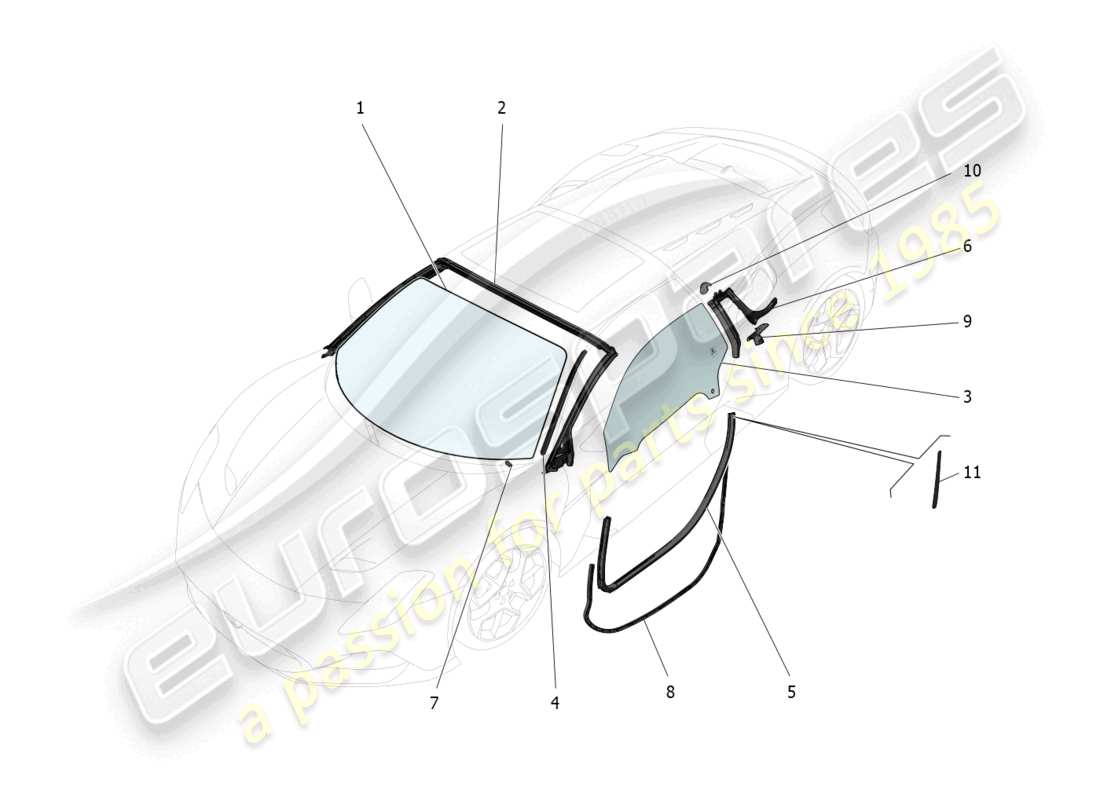

Maserati MC20 Cielo (2023) WINDOWS AND WINDOW STRIPS Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                    #
                    Part number
                    Description
                    Key
                    Price
                    # 001
                    MPN: 670157554
                    WINDSCREEN GLASS #CHECK THE WINDSHIELD FITTED IN THE CAR. IF IT CORRESPONDS TO VERSION A, ORDER 670157554. IF IT CORRESPONDS TO VERSION B, ORDER WINDSHIELD 670295794.#
                    Valid from assembly: 0 - 7002023. Not for cars with: TRAFFIC SIGN RECOGNITION (TSR), AUTOMATED EMERGENCY BRAKING.
                    Supersession
                    Supersession
                    Genuine Maserati Part (no longer available to order)
                    # 001
                    MPN: 670295794
                    WINDSCREEN GLASS
                    Suitable for cars with: AUTOMATED EMERGENCY BRAKING. Not for cars with: TRAFFIC SIGN RECOGNITION (TSR).
                    from £1,093.34
                    from £1,093.34
                    WINDSCREEN GLASS Genuine Maserati Part - New In stock
                    # 001
                    MPN: 670295794
                    WINDSCREEN GLASS
                    Suitable for cars with: TRAFFIC SIGN RECOGNITION (TSR), AUTOMATED EMERGENCY BRAKING.
                    from £1,093.34
                    from £1,093.34
                    WINDSCREEN GLASS Genuine Maserati Part - New In stock
                    # 001
                    MPN: 670295794
                    WINDSCREEN GLASS
                    Suitable for cars with: TRAFFIC SIGN RECOGNITION (TSR). Not for cars with: AUTOMATED EMERGENCY BRAKING.
                    from £1,093.34
                    from £1,093.34
                    WINDSCREEN GLASS Genuine Maserati Part - New In stock
                    # 001
                    MPN: 670295794
                    WINDSCREEN GLASS
                    Valid from assembly: 7002024. Not for cars with: TRAFFIC SIGN RECOGNITION (TSR), AUTOMATED EMERGENCY BRAKING.
                    from £1,093.34
                    from £1,093.34
                    WINDSCREEN GLASS Genuine Maserati Part - New In stock
                    # 001
                    MPN: 670295794
                    WINDSCREEN GLASS #CHECK THE WINDSHIELD FITTED IN THE CAR. IF IT CORRESPONDS TO VERSION A, ORDER 670157554. IF IT CORRESPONDS TO VERSION B, ORDER WINDSHIELD 670295794.#
                    Valid from assembly: 0 - 7002023. Not for cars with: TRAFFIC SIGN RECOGNITION (TSR), AUTOMATED EMERGENCY BRAKING.
                    from £1,093.34
                    from £1,093.34
                    WINDSCREEN GLASS Genuine Maserati Part - New In stock
                    # 002
                    MPN: 670299768
                    UPPER CROSS MEMBER GASKET
                    from £269.70
                    from £269.70
                    UPPER CROSS MEMBER GASKET Genuine Maserati Part - New (to order)
                    # 003
                    MPN: 670176342
                    RH DOOR GLASS
                    from £188.93
                    from £188.93
                    FRONT RH DOOR WINDOW GLASS Genuine Maserati Part - New (to order)
                    # 003
                    MPN: 670176343
                    LH DOOR GLASS
                    from £188.93
                    from £188.93
                    FRONT LH DOOR WINDOW GLASS Genuine Maserati Part - New (to order)
                    # 004
                    MPN: 670175665
                    RH SIDE PROFILE MOULDING
                    from £123.32
                    from £123.32
                    RH SIDE PROFILE MOULDING Genuine Maserati Part - New (to order)
                    # 004
                    MPN: 670175666
                    LH SIDE PROFILE MOULDING
                    from £123.32
                    from £123.32
                    LH SIDE PROFILE MOULDING Genuine Maserati Part - New (to order)
                    # 005
                    MPN: 670216657
                    RH DOOR OPENING FRONT GASKET
                    from £56.20
                    from £56.20
                    This part replaces part number 670157812
                    RH DOOR FRONT GASKET Genuine Maserati Part - New (to order)
                    # 005
                    MPN: 670216658
                    LH DOOR OPENING FRONT GASKET
                    from £56.20
                    from £56.20
                    This part replaces part number 670157837
                    LH DOOR FRONT GASKET Genuine Maserati Part - New (to order)
                    # 006
                    MPN: 670175674
                    RH GASKET
                    from £165.00
                    from £165.00
                    RH GASKET Genuine Maserati Part - New (to order)
                    # 006
                    MPN: 670175675
                    LH GASKET
                    from £165.00
                    from £165.00
                    LH GASKET Genuine Maserati Part - New (to order)
                    # 007
                    MPN: 675001219
                    PIN
                    from £3.51
                    from £3.51
                    PIN Genuine Maserati Part - New (to order)
                    # 008
                    MPN: 670215591
                    RH DOOR FRAMEWORK GASKET
                    Valid from assembly: 0 - 7002168.
                    from £94.87
                    from £94.87
                    This part replaces part number 670158119
                    RH DOOR FRAMEWORK GASKET Genuine Maserati Part - New (to order)
                    # 008
                    MPN: 670215592
                    LH DOOR FRAMEWORK GASKET
                    Valid from assembly: 0 - 7002168.
                    from £94.87
                    from £94.87
                    This part replaces part number 670158123
                    LH DOOR FRAMEWORK GASKET Genuine Maserati Part - New (to order)
                    # 008
                    MPN: 670299257
                    RH DOOR FRAMEWORK GASKET
                    Valid from assembly: 7002172.
                    from £92.00
                    from £92.00
                    RH DOOR FRAMEWORK GASKET Genuine Maserati Part - New (to order)
                    # 008
                    MPN: 670299259
                    LH DOOR FRAMEWORK GASKET
                    Valid from assembly: 7002172.
                    from £94.87
                    from £94.87
                    LH DOOR FRAMEWORK GASKET Genuine Maserati Part - New (to order)
                    # 009
                    MPN: 670295485
                    RH ANTI-CRUSH GASKET ON FRONT UPRIGHT
                    RH ANTI-CRUSH GASKET ON FRONT UPRIGHT Genuine Maserati Part - New (to order)
                    # 009
                    MPN: 670295492
                    LH ANTI-CRUSH GASKET ON FRONT UPRIGHT
                    LH ANTI-CRUSH GASKET ON FRONT UPRIGHT Genuine Maserati Part - New (to order)
                    # 010
                    MPN: 670295625
                    RH GASKET
                    from £37.34
                    from £37.34
                    RH GASKET Genuine Maserati Part - New (to order)
                    # 010
                    MPN: 670295626
                    LH GASKET
                    from £41.12
                    from £41.12
                    LH GASKET Genuine Maserati Part - New (to order)
                    # 011
                    MPN: 670299530
                    PAD
                    from £3.54
                    from £3.54
                    PAD RH/LH FRONT DOOR Genuine Maserati Part - New (to order)
