001 - Cylinder Heads

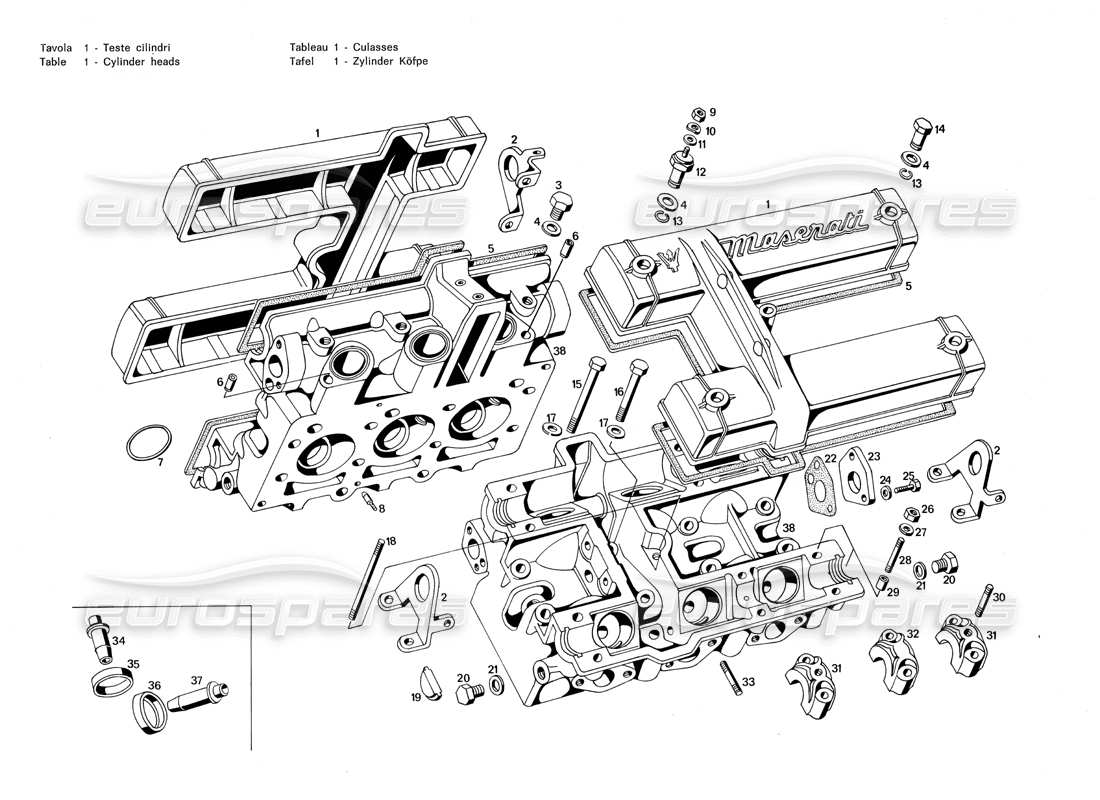

Maserati Merak 3.0 Cylinder Heads Parts Diagram
View the exploded parts diagram to find the part you are looking for
- You can reposition the diagram by dragging it
- You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
- You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
- You can click on a hotspot
in the parts diagram to locate the part in the table - You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
# 001
MPN: 5 405 833

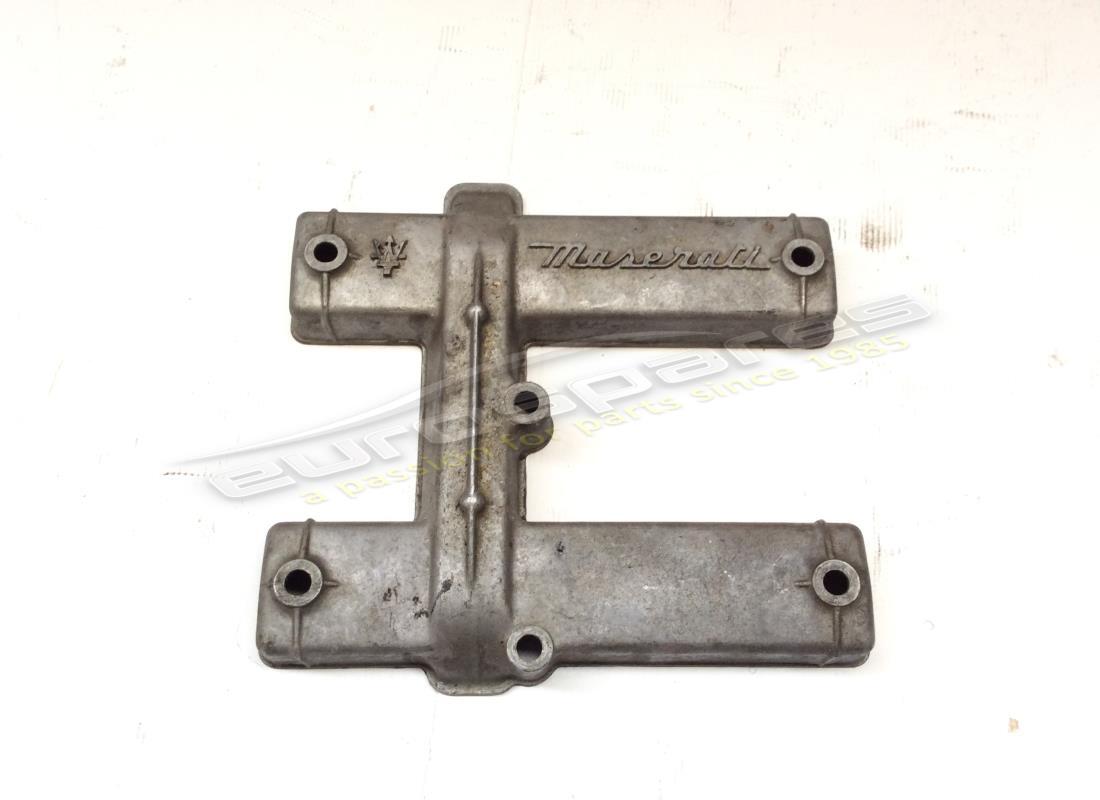

COVER
from £367.50
from £367.50
# 002
MPN: 5 407 623
CAVALLOTTO SOLLEVAMENTO MOTORE
from £52.50
from £52.50
# 003
MPN: 4 405 625
BOLT
# 004
MPN: 4 405 864
GASKET OR SEAL
from £3.92
from £3.92
# 005
MPN: 5.405 834
GASKET OR SEAL
# 005
MPN: MCCG001

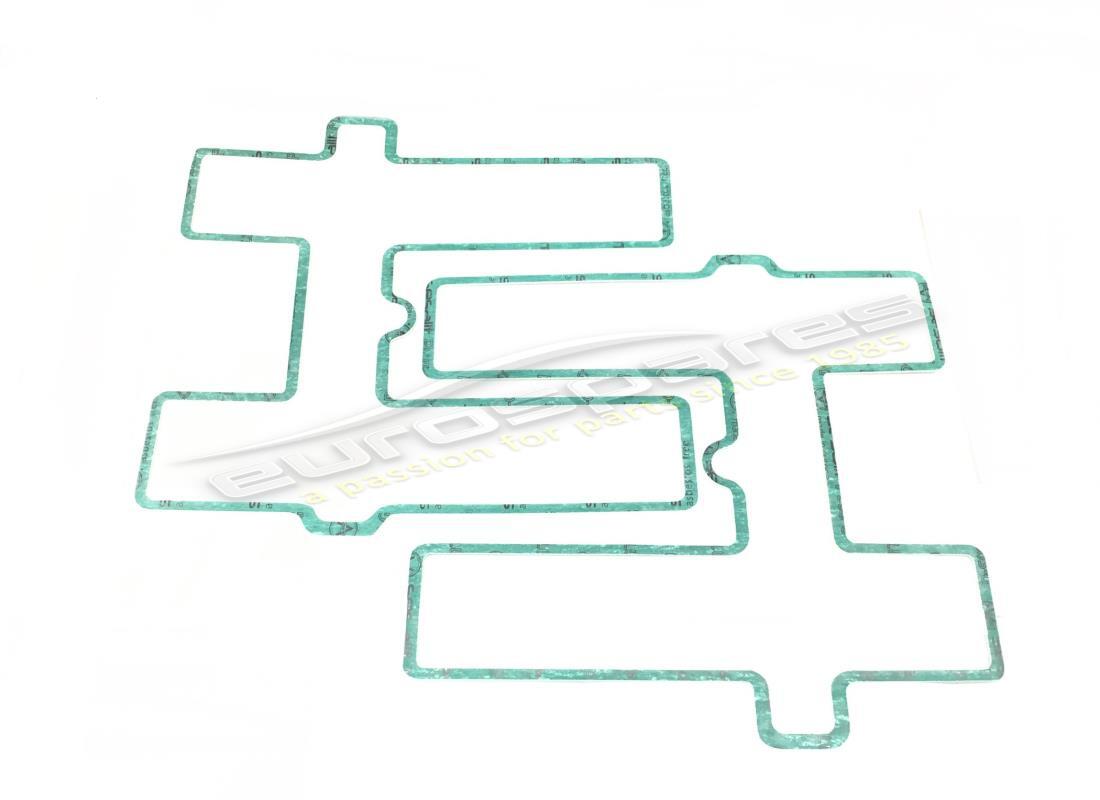

CAM COVER GASKET SET
(valid for 3.0 SS models)
from £51.90
from £51.90
# 005
MPN: MCCG002

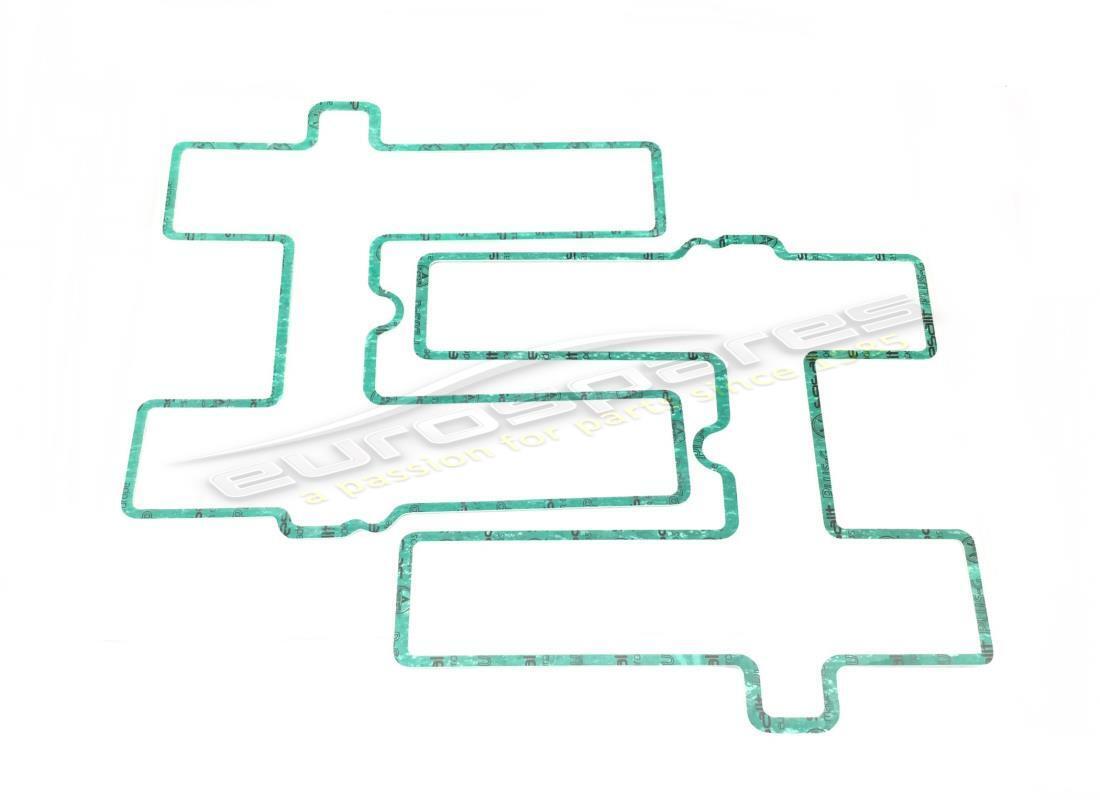

CAM COVER GASKET SET
(valid for 3.0 non SS models)
from £52.50
from £52.50
# 006
MPN: 5 405 608
GRANO 0 10 X 18 FRA TESTA E COLLETTORE ASPIRAZIONE
# 007
MPN: 5405914
GOMMINO 0 37,77X43,01X2,62 FRA TESTA E COLLETTORE ASPIRAZ
from £0.74
from £0.74
# 008
MPN: 5 405 619
GRANO PER TARATURA OLIO TESTA
# 009
MPN: ZD 9525 900
NUT
# 010
MPN: 92 33 400
WASHER
# 011
MPN: ZD 9290 200 U
WASHER
# 012
MPN: 5 405 862
NUT
# 013
MPN: 5 405 865
RING
# 014
MPN: 5 405 863
NUT
# 015
MPN: 5 405 610
BOLT
# 016
MPN: 5 405 611
BOLT
# 017
MPN: 5 405 612
WASHER
# 018
MPN: 5 405 613
THREADED STUD
# 019
MPN: 5405621
GOMMINO SULLA TESTA
from £27.81
from £27.81
# 020
MPN: 5 405 624
TAPPO 0 14X 1,5 X 14 PER FORO OLIO SULLA TESTA
# 021
MPN: 5405620
GASKET OR SEAL
from £0.74
from £0.74
# 022
MPN: 5405618
GASKET OR SEAL
from £4.07
from £4.07
# 023
MPN: 5 405 616
FLANGIA PER CONDUTTURA ACQUA SULLA TESTA
# 024
MPN: ZD 9236 300 W
WASHER
# 025
MPN: ZD 9368 300 W
BOLT
# 026
MPN: 5 405 719
NUT
# 027
MPN: ZD 9254 100 U
WASHER
# 028
MPN: 5 405 615
THREADED STUD
# 029
MPN: 5 405 609
GRANO 0 10 X 6 PER CAPPELLI ALBERI DISTRIBUZIONE
from £6.51
from £6.51
This part replaces part number GRN 56859
# 030
MPN: 5 405 724
THREADED STUD
# 031
MPN: 5 405 721
CAPPELLO LATERALE PER ALBERO DISTRIBUZIONE
# 032
MPN: 5405720
BEARING CAP CENTRAL
from £1.17
from £1.17
# 033
MPN: 5 405 614
THREADED STUD
# 034
MPN: 5 405 727
Guida per valvola d'aspirazione
# 035
MPN: 5 405 732
Sede per valvola d'aspirazione
# 036
MPN: 5 405 733
SEDE PER VALVOLA DI SCARICO
# 037
MPN: 5 405 731
GUIDA PER VALVOLA DI SCARICO
# 038
MPN: 5 423 387

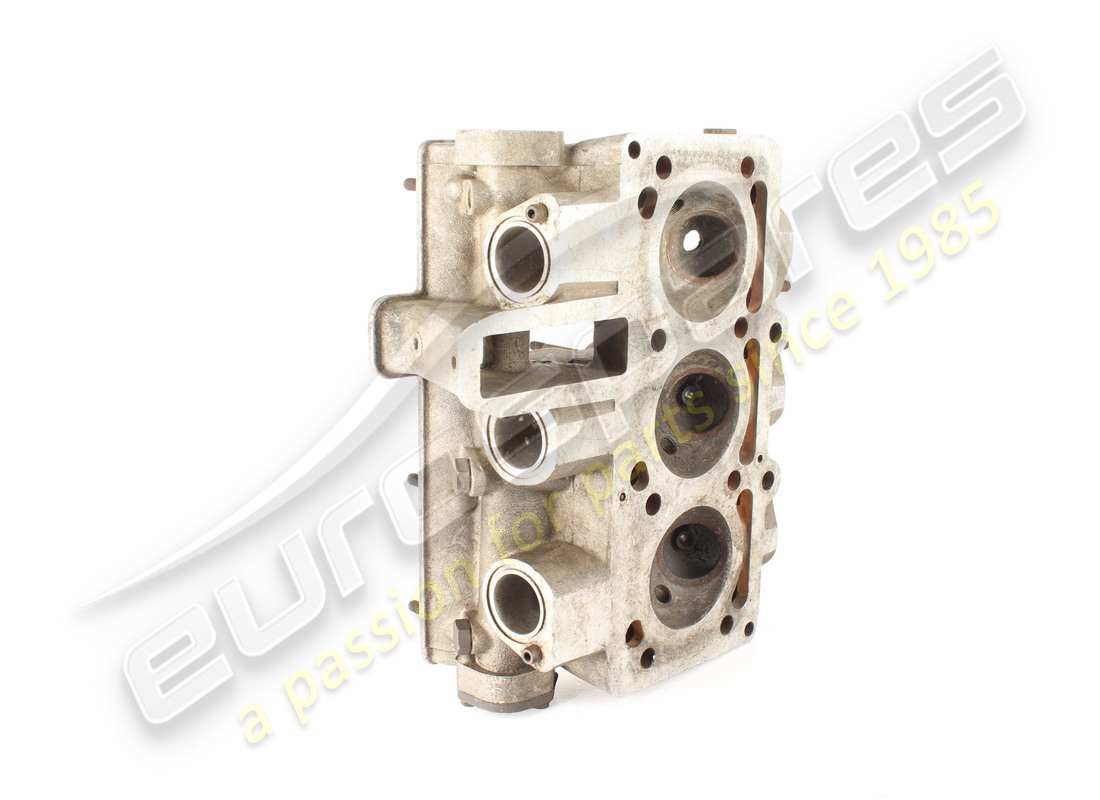

CYLINDER HEAD COMPLETE
from £1,569.75
from £1,569.75
